MXPA10-AHXNB (2020)
Toyota Yaris

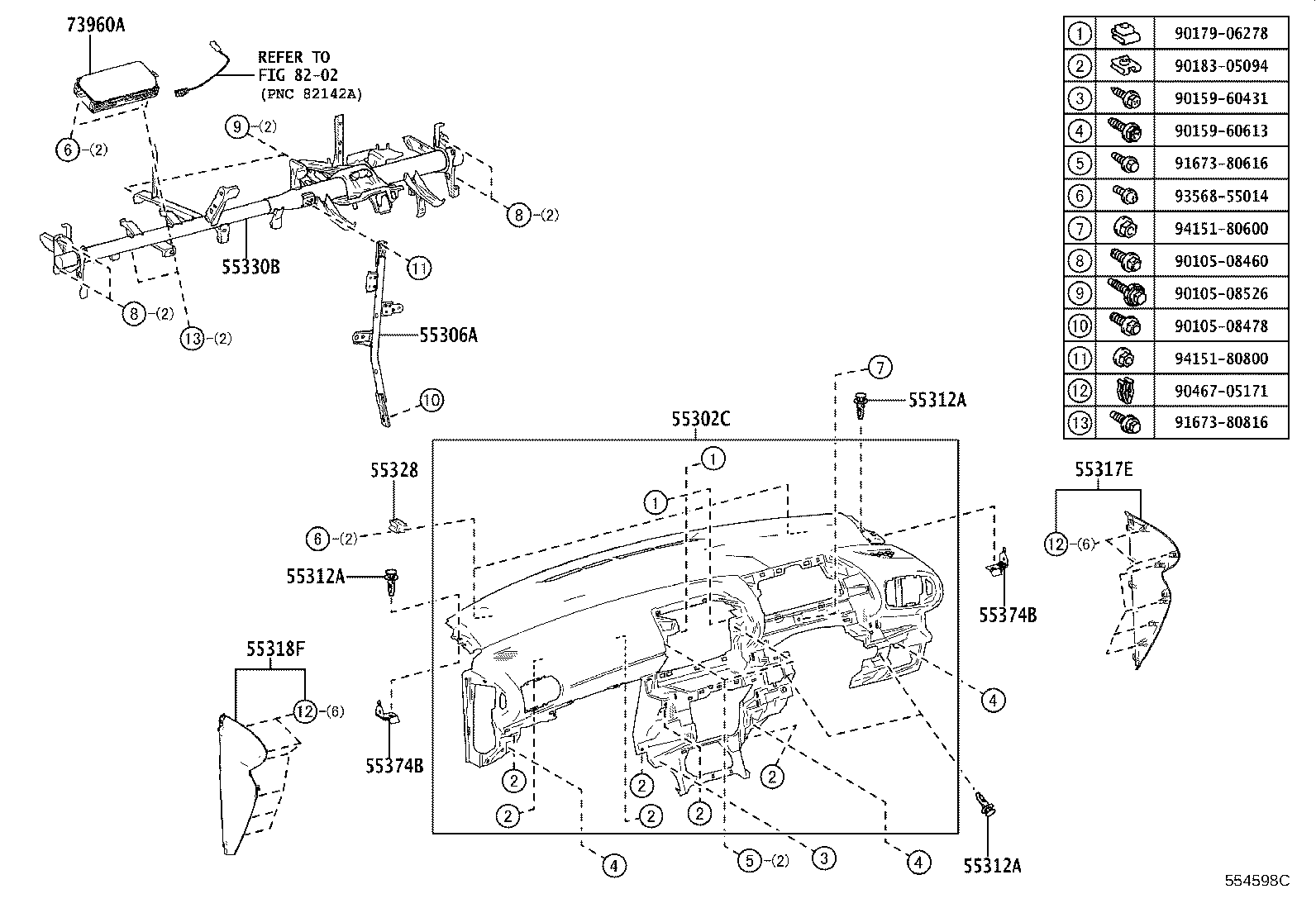

ILLUST NO. 1 OF 2(2002- )G,HBDG,HBDX,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302C - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55302-K0010C0 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 55302-52260C0 |
MXPA10..X ﾚｰｼﾝｸﾞ,BLACK,TRIM2#,4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
KSP210,MXPA1#,MXPH1# |
4 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
KSP210,MXPA1#,MXPH1# |
4 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
KSP210,MXPA1#,MXPH1# |
4 | ||
| 55317E - PANEL, INSTRUMENT SIDE, NO.1 | ||||
| 55317-K0010C0 |
MXPA1#..X;KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 55318F - PANEL, INSTRUMENT SIDE, NO.2 | ||||
| 55318-K0010C0 |
MXPA1#..X;KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
KSP210,MXPA1#,MXPH1# |
2 | ||
| 55328-12430 |
KSP210,MXPA1#,MXPH1# |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-K0010 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
1 | ||
| 55330-52A50 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
1 | ||
| 55374B - BRACKET, INSTRUMENT PANEL | ||||
| 55363-52010 |
KSP210,MXPA1#,MXPH1# 右側 |
1 | ||
| 55363-52020 |
KSP210,MXPA1#,MXPH1# 左側 |
1 | ||
| 55374B - BRACKET, INSTRUMENT PANEL | ||||
| 55363-52010 |
KSP210,MXPA1#,MXPH1# 右側 |
1 | ||
| 55363-52020 |
KSP210,MXPA1#,MXPH1# 左側 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| Common parts | ||||
| 90105-08460 | ||||
| 90105-08478 | ||||
| 90105-08526 | ||||
| 90159-60431 | ||||
| 90159-60613 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

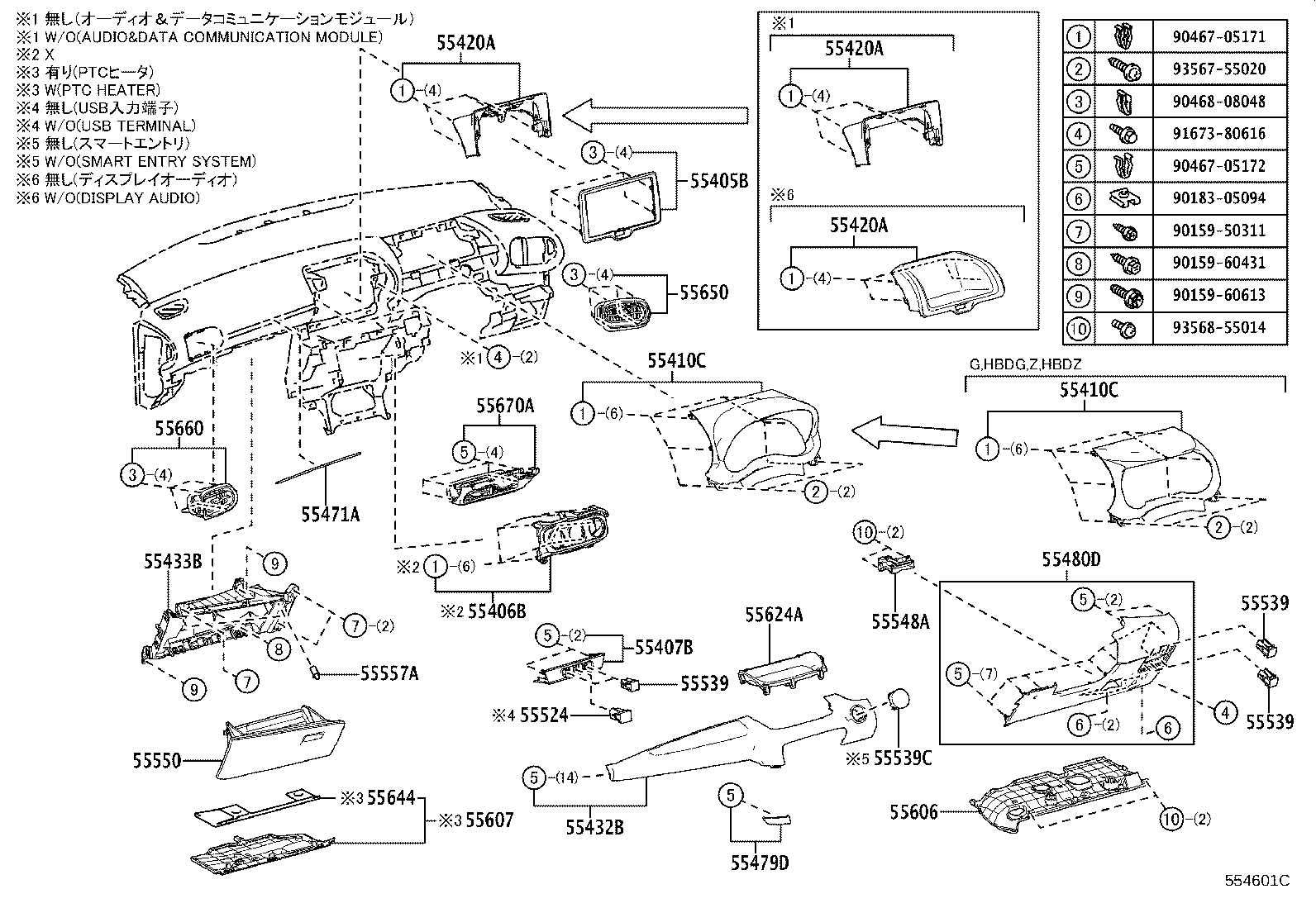

ILLUST NO. 2 OF 2(2002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-K0010 |
KSP210,MXPA1#,MXPH1#..HBDX,X |
1 | ||
| 55405-K0020 |
KSP210,MXPA1#,MXPH1#..HBDX,X ｵｰﾃﾞｨｵ−8ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ |
1 | ||
| 55405-52E00 |
MXPA10..X ﾚｰｼﾝｸﾞ&ｲﾝﾊﾟﾈ ｽｲｯﾁ ﾍﾞｰｽ−*DA無し用ｶﾊﾞｰ |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-K0010 |
KSP210,MXPA1#..X |
1 | ||
| 55407B - BASE SUB-ASSY, SWITCH HOLE | ||||
| 55407-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-K0010 |
KSP210,MXPA1#,MXPH1#..HBDX,X |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-K0010 |
KSP210,MXPA1#,MXPH1#..HBDX,X |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-52160 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 55420-52220 |
MXPA10..X ﾚｰｼﾝｸﾞ&ｵｰﾃﾞｨｵ−無し&DCM(ﾃﾞｰﾀｺﾐｭﾆｹｰｼｮﾝﾓｼﾞｭｰﾙ)−無し |
1 | ||
| 55420-K0010 |
MXPA10..X ｵｰﾃﾞｨｵ−無し&DCM(ﾃﾞｰﾀｺﾐｭﾆｹｰｼｮﾝﾓｼﾞｭｰﾙ)−無し |
1 | ||
| 55420-52220 |
MXPA10..X ﾚｰｼﾝｸﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し&ｵｰﾃﾞｨｵ−*DA無し |
1 | ||
| 55420-52230 |
MXPA10..X ﾚｰｼﾝｸﾞ&ｲﾝﾊﾟﾈ ｽｲｯﾁ ﾍﾞｰｽ−*DA無し用ｶﾊﾞｰ |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-52160 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 55420-52220 |
MXPA10..X ﾚｰｼﾝｸﾞ&ｵｰﾃﾞｨｵ−無し&DCM(ﾃﾞｰﾀｺﾐｭﾆｹｰｼｮﾝﾓｼﾞｭｰﾙ)−無し |
1 | ||
| 55420-K0010 |
MXPA10..X ｵｰﾃﾞｨｵ−無し&DCM(ﾃﾞｰﾀｺﾐｭﾆｹｰｼｮﾝﾓｼﾞｭｰﾙ)−無し |
1 | ||
| 55420-52220 |
MXPA10..X ﾚｰｼﾝｸﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し&ｵｰﾃﾞｨｵ−*DA無し |
1 | ||
| 55420-52230 |
MXPA10..X ﾚｰｼﾝｸﾞ&ｲﾝﾊﾟﾈ ｽｲｯﾁ ﾍﾞｰｽ−*DA無し用ｶﾊﾞｰ |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-52160 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 55420-52220 |
MXPA10..X ﾚｰｼﾝｸﾞ&ｵｰﾃﾞｨｵ−無し&DCM(ﾃﾞｰﾀｺﾐｭﾆｹｰｼｮﾝﾓｼﾞｭｰﾙ)−無し |
1 | ||
| 55420-K0010 |
MXPA10..X ｵｰﾃﾞｨｵ−無し&DCM(ﾃﾞｰﾀｺﾐｭﾆｹｰｼｮﾝﾓｼﾞｭｰﾙ)−無し |
1 | ||
| 55420-52220 |
MXPA10..X ﾚｰｼﾝｸﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し&ｵｰﾃﾞｨｵ−*DA無し |
1 | ||
| 55420-52230 |
MXPA10..X ﾚｰｼﾝｸﾞ&ｲﾝﾊﾟﾈ ｽｲｯﾁ ﾍﾞｰｽ−*DA無し用ｶﾊﾞｰ |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55435-K0010C0 |
MXPA1#..X;MXPA10..6F..(G,Z);KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2# |
1 | ||
| 55435-K0010E0 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X TAUPE,TRIM4# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-K0040E0 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X TAUPE,TRIM4# |
1 | ||
| 55433-K0040C0 |
KSP210,MXPA1#,MXPH1# BLACK,TRIM2# |
1 | ||
| 55471A - ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55471-K0011A0 |
MXPA1#..X;KSP210,MXPH1#..G,HBDX,X WHITE,TRIM2#,4# |
1 | ||
| 55471-K0010A0 |
MXPA1#..X;KSP210,MXPH1#..G,HBDX,X WHITE,TRIM2#,4# |
1 | ||
| 55479D - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER | ||||
| 55479-K0010C1 |
KSP210,MXPA1#,MXPH1#..HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 55479-K0040 |
KSP210,MXPA1#,MXPH1#..HBDX,X ｵｰﾃﾞｨｵ−8ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-K0010C0 |
MXPA1#..X;MXPA10..6F..(G,Z);KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2# |
1 | ||
| 55480-K0010C2 |
KSP210,MXPA1#,MXPH1# BLACK/BLACK,TRIM2# |
1 | ||
| 55480-K0010E0 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X TAUPE,TRIM4# |
1 | ||
| 55480-K0010E4 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X TAUPE,TRIM4# |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-12010C0 |
MXPA10..X ﾚｰｼﾝｸﾞ,BLACK |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X BLACK |
2 | ||
| 55539-33170C0 |
MXPA1#,MXPH1#..HBDX,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ,BLACK |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X BLACK |
2 | ||
| 55539-33170C0 |
MXPA1#,MXPH1#..HBDX,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ,BLACK |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X BLACK |
2 | ||
| 55539-33170C0 |
MXPA1#,MXPH1#..HBDX,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ,BLACK |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-52040E2 |
KSP210,MXPA10,MXPH10..HBDX,X TAUPE,TRIM4# |
1 | ||
| 55539-52040C1 |
KSP210,MXPA10,MXPH10..HBDX,X BLACK,TRIM2# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-47060E1 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X TAUPE,TRIM4# |
1 | ||
| 55548-47060C1 |
MXPA1#..X;MXPA10..6F..(G,Z);KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-K0010E0 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X TAUPE,TRIM4# |
1 | ||
| 55550-K0010C0 |
MXPA1#..X;MXPA10..6F..(G,Z);KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-10040 |
KSP210,MXPA1#,MXPH1# |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-K0010 |
MXPA1#..X ﾌﾛﾝﾄﾋｰﾀ−内外気2層 PTCﾋｰﾀ |
1 | ||
| 55607-K0010 |
MXPA1#..X ﾌﾛﾝﾄﾋｰﾀ−内外気1層 PTCﾋｰﾀ |
1 | ||
| 55624A - TRAY, INSTRUMENT PANEL, CENTER | ||||
| 55445-K0010C0 |
MXPA1#..X;KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 55644 - PAD, INSTRUMENT PANEL UNDER SILENCER, NO.2 | ||||
| 55644-K0030 |
MXPA1#..X ﾌﾛﾝﾄﾋｰﾀ−内外気1層 PTCﾋｰﾀ |
1 | ||
| 55644-K0030 |
MXPA1#..X ﾌﾛﾝﾄﾋｰﾀ−内外気2層 PTCﾋｰﾀ |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-K0010C0 |
KSP210,MXPA1#,MXPH1#..HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-K0010C0 |
KSP210,MXPA1#,MXPH1#..HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90159-60613 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-08048 | ||||
| 91673-80616 | ||||
| 93567-55020 | ||||
| 93568-55014 | ||||
