MXPA10-AHXGB (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine M15AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

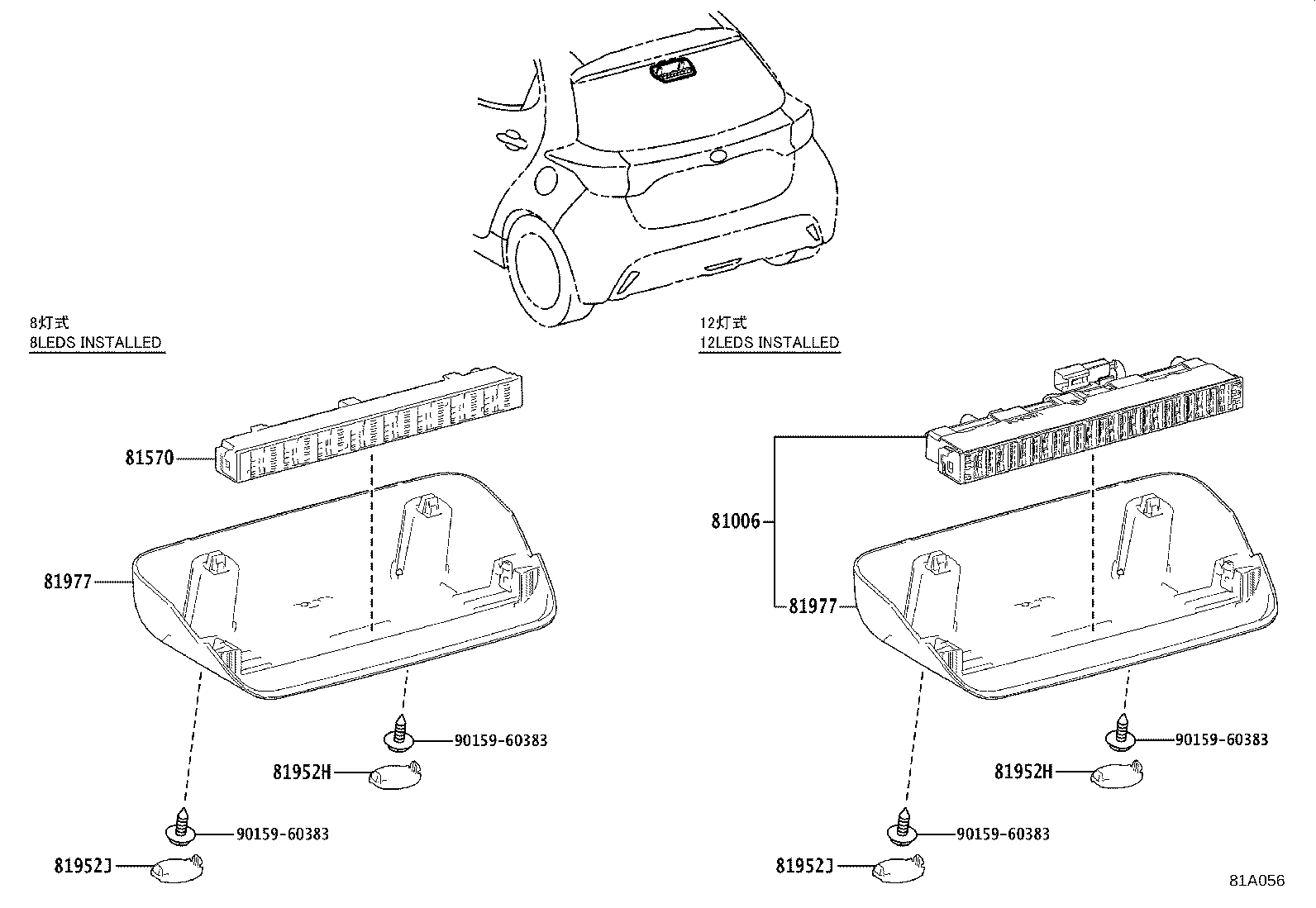

Click highlighted areas on diagram

diagram 81006 81570 81952H 81952H 81952J 81952J 81977 81977 9015960383 9015960383 9015960383 9015960383
Part # Description Qty Price
81006 - LAMP SET, STOP CENTER
81006-K0050

KSP210,MXPA1#,MXPH1#

 1
81570 - LAMP ASSY, CENTER STOP
81570-K0040

MXPA10..X

ﾚｰｼﾝｸﾞ&ﾊﾞｯｸｶﾞﾗｽ−ｸﾞﾘｰﾝ(T=2.8)

 1
81952H - COVER, CENTER STOP LAMP, RH
81952-K0010

KSP210,MXPA1#,MXPH1#

 1
81952H - COVER, CENTER STOP LAMP, RH
81952-K0010

KSP210,MXPA1#,MXPH1#

 1
81952J - COVER, CENTER STOP LAMP, LH
81952-K0010

KSP210,MXPA1#,MXPH1#

 1
81952J - COVER, CENTER STOP LAMP, LH
81952-K0010

KSP210,MXPA1#,MXPH1#

 1
81977 - COVER, CENTER STOP LAMP
81977-K0010

KSP210,MXPA1#,MXPH1#

 1
81977 - COVER, CENTER STOP LAMP
81977-K0010

KSP210,MXPA1#,MXPH1#

 1
Common parts
90159-60383
