MXPA10-AHXGB (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine M15AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

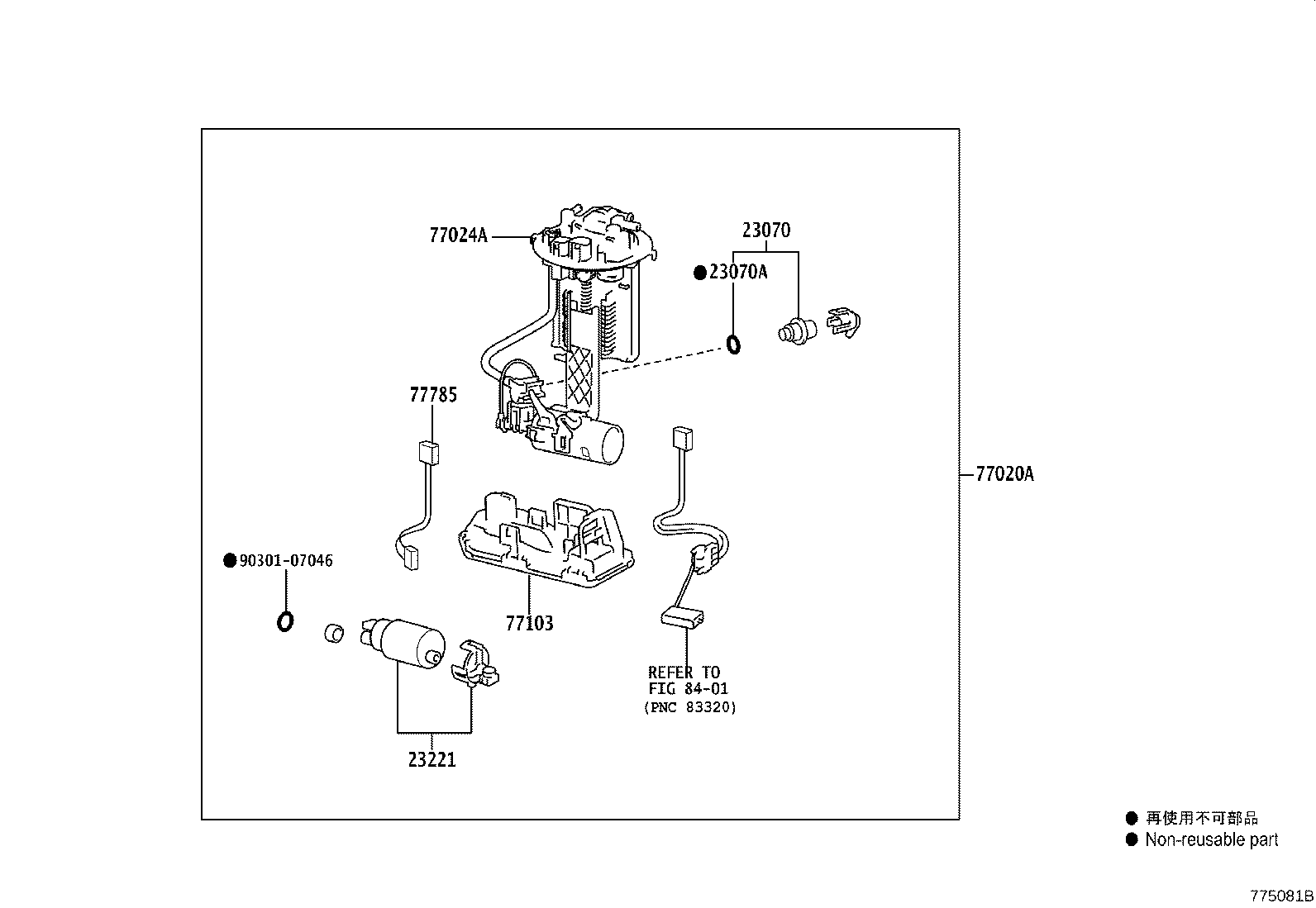

ILLUST NO. 2 OF 4(2002- )MXPA10

Click highlighted areas on diagram

ﾋｭｰｴﾙﾎﾟﾝﾌﾟ

diagram 23070 23070A 23221 77020A 77024A 77103 77785 8401 9030107046
Part # Description Qty Price
23070 - VALVE ASSY, FUEL MAIN
23070-24010

M15#..MXPA1#,MXPH1#

 1
23070A - RING, O, NO.1(FOR FUEL MAIN VALVE)
90301-15024

M15#..MXPA1#,MXPH1#

 1
23221 - PUMP, FUEL
23210-24010

M15#..MXPA1#,MXPH1#

 1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-52590

MXPA10

 1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-52260

MXPA10

 1
77103 - SUB-TANK SUB-ASSY, FUEL
77103-52090

MXPA10

 1
77785 - HARNESS, FUEL PUMP
77785-76010

MXPA1#

 1
Common parts
90301-07046
Linked diagrams
8401

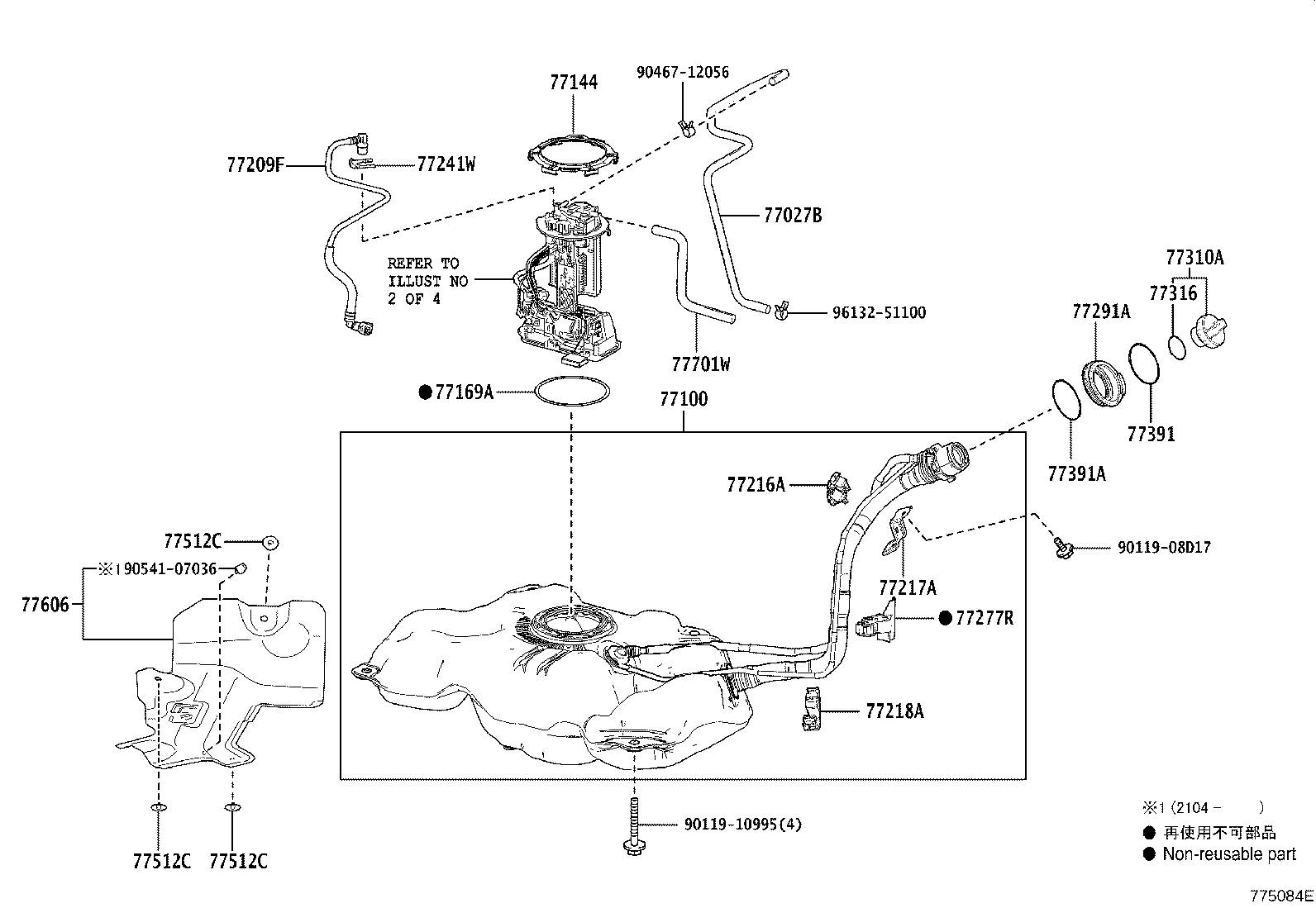

ILLUST NO. 1 OF 4(2002- )MXPA10

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸ

diagram 77027B 77100 77144 77169A 77209F 77216A 77217A 77218A 77241W 77277R 77291A 77310A 77316 77391 77391A 77512C 77512C 77512C 77606 77701W 9011908D17 9011910995 9046712056 9054107036 9613251100
Part # Description Qty Price
77027B - TUBE SUB-ASSY, FUEL EMISSION, NO.1
77027-52210

KSP210,MXPA10

 1
77100 - TANK ASSY, FUEL
77001-52630

KSP210,MXPA10

 1
77144 - RETAINER, FUEL PUMP GAUGE
77144-30030

KSP210,MXPA10,MXPH1#

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-47030

KSP210,MXPA10,MXPH1#

 1
77209F - TUBE SUB-ASSY, FUEL TANK MAIN
77209-52280

KSP210,MXPA10

 1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-52300

KSP210,MXPA1#,MXPH1#

 1
77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217-52180

KSP210,MXPA1#,MXPH1#

 1
77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3
77218-52050

KSP210,MXPA10,MXPH10

 1
77241W - CLIP, TUBE JOINT
77241-33011

KSP210,MXPA1#,MXPH1#

 1
77241-60550

KSP210,MXPA1#,MXPH1#

 1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-52120

KSP210,MXPA10,MXPH10

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-K0010

KSP210,MXPA1#,MXPH1#

 1
77310A - CAP ASSY, FUEL TANK
77300-12020

KSP210,MXPA1#,MXPH1#

 1
77316 - GASKET, FUEL TANK CAP
77316-52040

KSP210,MXPA1#,MXPH1#

 1
77391 - RING, FUEL INLET BOX
77391-12020

KSP210,MXPA1#,MXPH1#

 1
77391A - RING, FUEL INLET BOX
77391-12020

KSP210,MXPA1#,MXPH1#

 1
77512C - BRACKET, FUEL TANK
77512-35140

KSP210,MXPA10,MXPH1#

 3
77512C - BRACKET, FUEL TANK
77512-35140

KSP210,MXPA10,MXPH1#

 3
77512C - BRACKET, FUEL TANK
77512-35140

KSP210,MXPA10,MXPH1#

 3
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-52140

KSP210,MXPA10

 1
77606-52141

KSP210,MXPA10

 1
77701W - HOSE SUB-ASSY, CANISTER OUTLET, NO.1
77701-52060

KSP210,MXPA10

 1
Common parts
90119-08D17
90119-10995
90467-12056
90541-07036
96132-51100

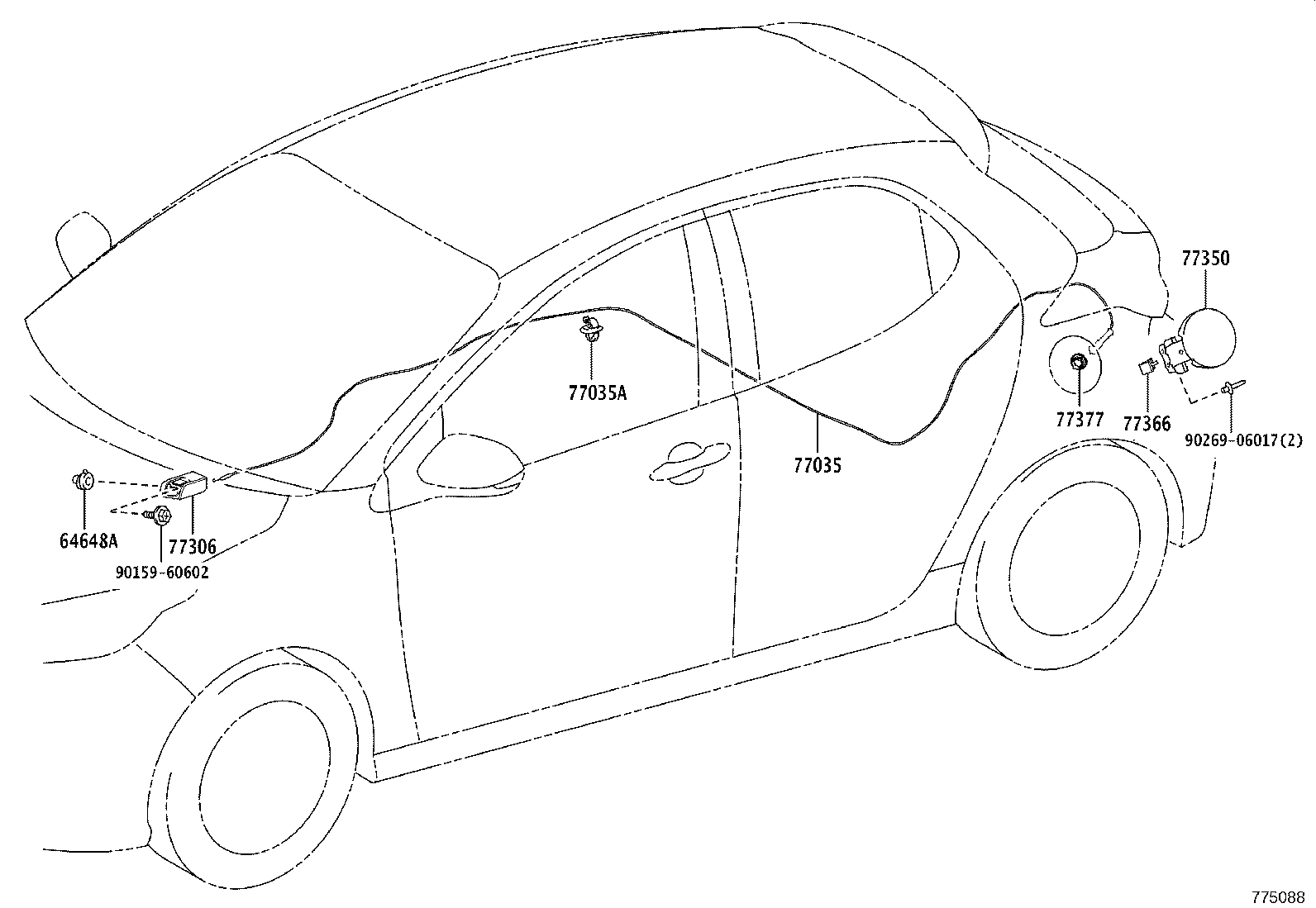

ILLUST NO. 4 OF 4(2002- )

Click highlighted areas on diagram

ﾌｭｰｴﾙﾘｯﾄﾞｵｰﾌﾟﾅ

diagram 64648A 77035 77035A 77306 77350 77366 77377 9015960602 9026906017
Part # Description Qty Price
64648A - GROMMET, LUGGAGE DOOR LOCK OPENER
64648-32020

KSP210,MXPA1#,MXPH1#

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-K0010

KSP210,MXPA1#,MXPH1#

 1
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90469-06005

KSP210,MXPA1#,MXPH1#

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-12010

KSP210,MXPA1#,MXPH1#

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-K0010

KSP210,MXPA1#,MXPH1#

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-52011

KSP210,MXPA1#,MXPH1#

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-12090

KSP210,MXPA1#,MXPH1#

 1
Common parts
90159-60602
90269-06017

ILLUST NO. 3 OF 4(2002- )MXPA10

Click highlighted areas on diagram

ﾌｭｰｴﾙﾁｭｰﾌﾞ

diagram 2211 2211 77251B 77261D 77285D 77286D 77289D 77298A
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-52550

KSP210,MXPA10

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-52560

MXPA10

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-52170

MXPA1#

 1
77286D - CLAMP, FUEL TUBE, NO.2
77286-52230

MXPA1#

 1
77289D - CLAMP, FUEL TUBE, NO.5
77289-52190

MXPA10

 1
77298A - CLAMP, FUEL TUBE, NO.4
77298-52090

MXPA1#

 5
Linked diagrams
2211
