MXPA10-AHXGB (2020)
Toyota Yaris
(2002- )HBDX,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

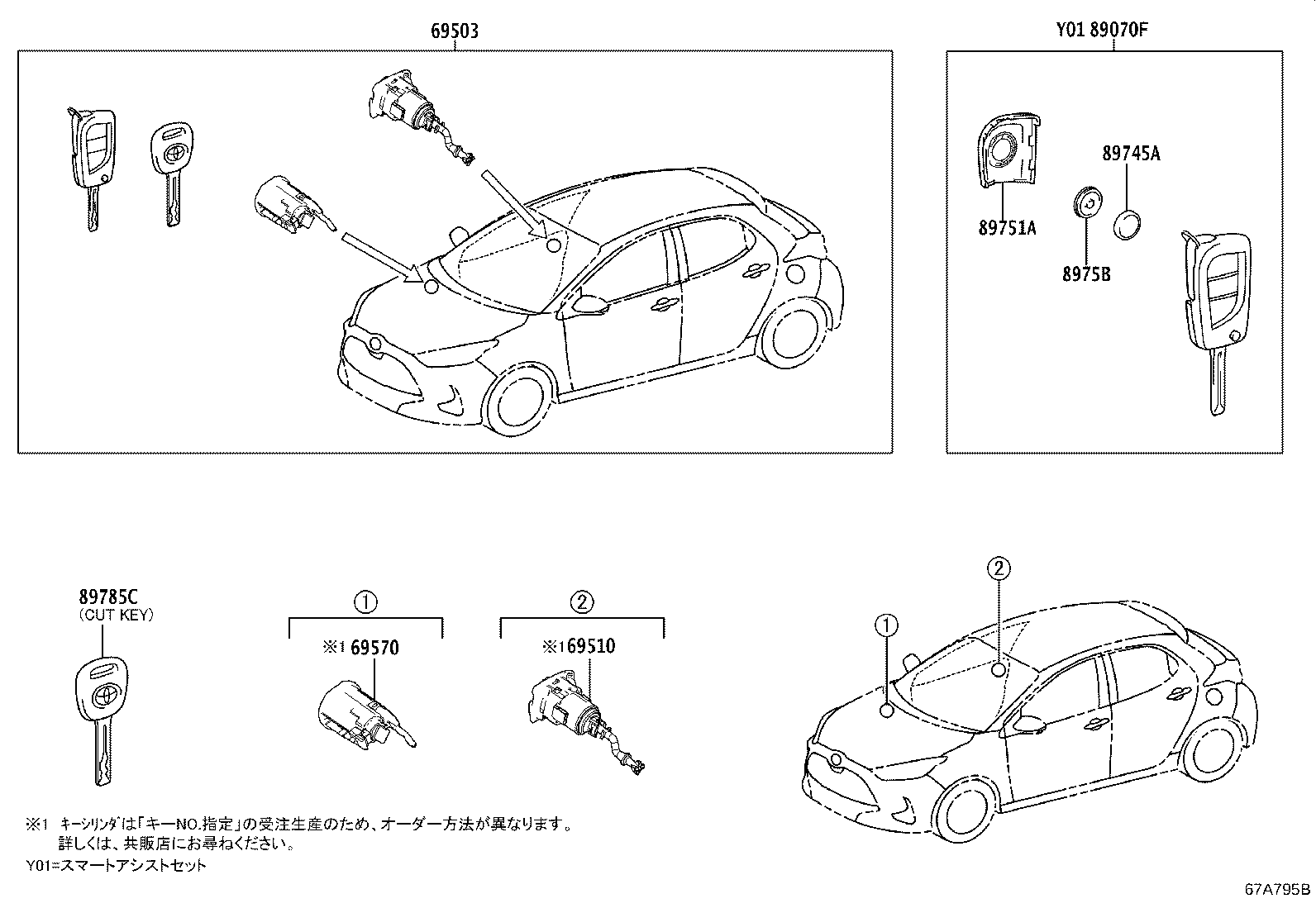

| 69503 - CYLINDER SET, LOCK | ||||
| 89704-K0020 |
KSP210,MXPA10..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89704-K0020 |
KSP210,MXPA10,MXPH10..HBDX,X |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-K0030 |
KSP210,MXPA10..CVT..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｷｰﾌﾟﾚｰﾄ−ｽﾏｰﾄ ﾏｽﾀｰｷｰ2個&ｻﾎﾟｰﾄｷｰ1個&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ) |
1 | ||
| 69510-K0030 |
KSP210,MXPA10,MXPH10..HBDX,X |
1 | ||
| 69510-K0030 |
KSP210,MXPA10..CVT..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｷｰﾌﾟﾚｰﾄ−ｽﾏｰﾄ ﾏｽﾀｰｷｰ2個&ｻﾎﾟｰﾄｷｰ1個&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB) |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-33140 |
KSP210,MXPA10..CVT..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｷｰﾌﾟﾚｰﾄ−ｽﾏｰﾄ ﾏｽﾀｰｷｰ2個&ｻﾎﾟｰﾄｷｰ1個&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ) |
1 | ||
| 69570-33140 |
KSP210,MXPA10..CVT..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｷｰﾌﾟﾚｰﾄ−ｽﾏｰﾄ ﾏｽﾀｰｷｰ2個&ｻﾎﾟｰﾄｷｰ1個&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB) |
1 | ||
| 69570-33140 |
KSP210,MXPA10,MXPH10..HBDX,X |
1 | ||
| 89070F - TRANSMITTER ASSY, DOOR CONTROL (CUT KEY) | ||||
| 89070-K0080 |
KSP210,MXPA10,MXPH10..HBDX,X |
1 | ||
| 89070-K0080 |
KSP210,MXPA10..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-50020 |
KSP210,MXPA10,MXPH10..HBDX,X CR2032 |
1 | ||
| 89745-50020 |
KSP210,MXPA10..X CR2032,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-33200 |
KSP210,MXPA10,MXPH10..HBDX,X |
1 | ||
| 89751-33200 |
KSP210,MXPA10..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 8975B - COVER, TRANSMITTER BATTERY HOUSING | ||||
| 8975B-33050 |
KSP210,MXPA10,MXPH10..HBDX,X |
1 | ||
| 8975B-33050 |
KSP210,MXPA10..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89785C - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-28070 |
KSP210,MXPA10,MXPH10..HBDX,X |
1 | ||
| 89785-28070 |
KSP210,MXPA10..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
(2002- )
ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

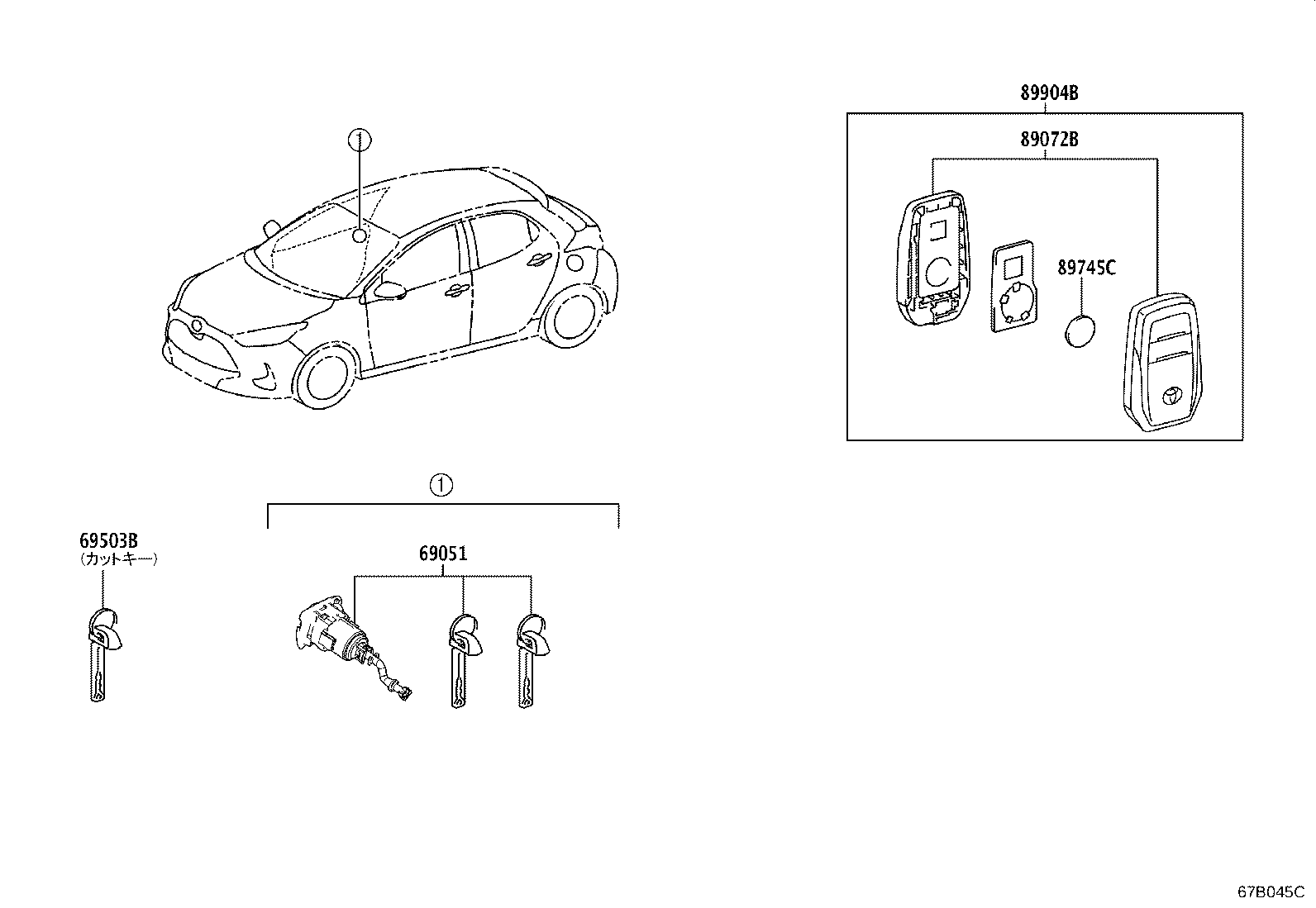

| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-K0040 |
MXPA15,MXPH15;KSP210,MXPA10,MXPH10..CVT..(G,HBDG,HBDZ,Z) ｷｰﾌﾟﾚｰﾄ−ｽﾏｰﾄ ﾏｽﾀｰｷｰ2個&ｻﾎﾟｰﾄｷｰ1個 |
1 | ||
| 69051-K0040 |
MXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z |
1 | ||
| 69051-K0040 |
KSP210,MXPA10..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69503B - KEY, CUT | ||||
| 69515-K0010 |
KSP210,MXPA10..X ﾏｽﾀｰｷｰ,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69515-K0010 |
MXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z ﾏｽﾀｰｷｰ |
1 | ||
| 69515-K0010 |
MXPA15,MXPH15;KSP210,MXPA10,MXPH10..CVT..(G,HBDG,HBDZ,Z) ﾏｽﾀｰｷｰ,ｷｰﾌﾟﾚｰﾄ−ｽﾏｰﾄ ﾏｽﾀｰｷｰ2個&ｻﾎﾟｰﾄｷｰ1個 |
1 | ||
| 69503B - KEY, CUT | ||||
| 69515-K0010 |
KSP210,MXPA10..X ﾏｽﾀｰｷｰ,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69515-K0010 |
MXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z ﾏｽﾀｰｷｰ |
1 | ||
| 69515-K0010 |
MXPA15,MXPH15;KSP210,MXPA10,MXPH10..CVT..(G,HBDG,HBDZ,Z) ﾏｽﾀｰｷｰ,ｷｰﾌﾟﾚｰﾄ−ｽﾏｰﾄ ﾏｽﾀｰｷｰ2個&ｻﾎﾟｰﾄｷｰ1個 |
1 | ||
| 89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY) | ||||
| 89072-K0010 |
MXPA15;KSP210,MXPA10..G,Z |
2 | ||
| 89072-K0010 |
KSP210,MXPA10..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
2 | ||
| 89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY) | ||||
| 89072-K0010 |
MXPA15;KSP210,MXPA10..G,Z |
2 | ||
| 89072-K0010 |
KSP210,MXPA10..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
2 | ||
| 89745C - BATTERY, TRANSMITTER | ||||
| 89745-K0010 |
KSP210,MXPA10..X CR2450,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89745-K0010 |
MXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z CR2450 |
1 | ||
| 89745C - BATTERY, TRANSMITTER | ||||
| 89745-K0010 |
KSP210,MXPA10..X CR2450,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89745-K0010 |
MXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z CR2450 |
1 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 8990H-K0030 |
MXPA15;KSP210,MXPA10..G,Z |
1 | ||
| 8990H-K0030 |
KSP210,MXPA10..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 8990H-K0030 |
MXPA15;KSP210,MXPA10..G,Z |
1 | ||
| 8990H-K0030 |
KSP210,MXPA10..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
