MXPA10-AHXGB (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine M15AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

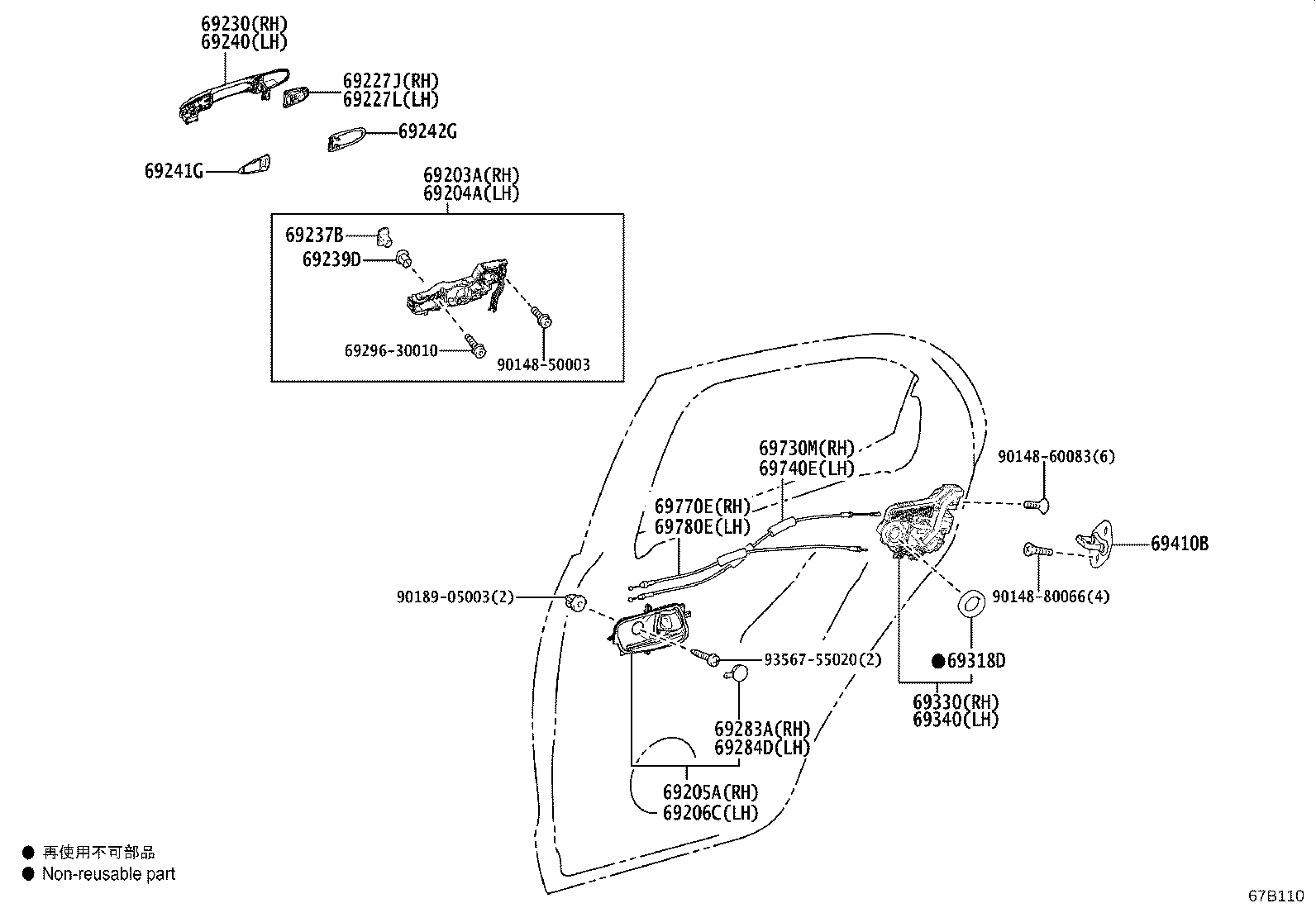

Click highlighted areas on diagram

diagram 69203A 69204A 69205A 69206C 69227J 69227L 69230 69237B 69239D 69240 69241G 69242G 69283A 69284D 6929630010 69318D 69330 69340 69410B 69730M 69740E 69770E 69780E 9014850003 9014860083 9014880066 9018905003 9356755020
Part # Description Qty Price
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-K0010

KSP210,MXPA1#,MXPH1#

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-K0010

KSP210,MXPA1#,MXPH1#

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-K0040C0

MXPA1#,MXPH1#..G,HBDG

BLACK,TRIM1#,2#,4#

 1
69205-K0040C0

MXPA1#..X;KSP210,MXPH1#..G,HBDX,X

BLACK,TRIM2#,4#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-K0040C0

MXPA1#..X;KSP210,MXPH1#..G,HBDX,X

BLACK,TRIM2#,4#

 1
69206-K0040C0

MXPA1#,MXPH1#..G,HBDG

BLACK,TRIM1#,2#,4#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-47020

KSP210,MXPA1#,MXPH1#

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-47020

KSP210,MXPA1#,MXPH1#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-47021D4

KSP210,MXPA1#,MXPH1#

BORDEAUX M.M,3R9

 1
69211-47021A0

KSP210,MXPA1#,MXPH1#

SUPER WHITE 2,040

 1
69211-47021C3

KSP210,MXPA1#,MXPH1#

BLACK,202 ,2KC

 1
69211-47021B0

KSP210,MXPA1#,MXPH1#

SILVER ME.,1F7

 1
69211-47021A1

KSP210,MXPA1#,MXPH1#

WHITE PEARL CS.,070

 1
69211-47021D1

KSP210,MXPA1#,MXPH1#

RED MC.,2NE ,3T3

 1
69211-47021G0

KSP210,MXPA1#,MXPH1#

THERMO-TECT LIME GREEN,6W7

 1
69211-47021E7

KSP210,MXPA1#,MXPH1#

AVANT-GARDE BRONZE ME.,2SQ ,4V8

 1
69211-47021J6

KSP210,MXPA1#,MXPH1#

CYAN METALLIC,2RV ,8W9

 1
69211-47021J0

KSP210,MXPA1#,MXPH1#

DK.BLUE M.M.,8W7

 1
69211-47021D7

KSP210,MXPA1#,MXPH1#

ICE PINK ME.,2SS ,3U6

 1
69211-47021D8

KSP210,MXPA1#,MXPH1#

CORAL CS.,2SR ,3U7

 1
69237B - NUT, REAR DOOR HANDLE
69237-62010

KSP210,MXPA1#,MXPH1#

 2
69239D - BUSH, REAR DOOR HANDLE
69239-47010

KSP210,MXPA1#,MXPH1#

 2
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-47021D4

KSP210,MXPA1#,MXPH1#

BORDEAUX M.M,3R9

 1
69211-47021G0

KSP210,MXPA1#,MXPH1#

THERMO-TECT LIME GREEN,6W7

 1
69211-47021A1

KSP210,MXPA1#,MXPH1#

WHITE PEARL CS.,070

 1
69211-47021B0

KSP210,MXPA1#,MXPH1#

SILVER ME.,1F7

 1
69211-47021A0

KSP210,MXPA1#,MXPH1#

SUPER WHITE 2,040

 1
69211-47021D8

KSP210,MXPA1#,MXPH1#

CORAL CS.,2SR ,3U7

 1
69211-47021C3

KSP210,MXPA1#,MXPH1#

BLACK,202 ,2KC

 1
69211-47021D1

KSP210,MXPA1#,MXPH1#

RED MC.,2NE ,3T3

 1
69211-47021E7

KSP210,MXPA1#,MXPH1#

AVANT-GARDE BRONZE ME.,2SQ ,4V8

 1
69211-47021D7

KSP210,MXPA1#,MXPH1#

ICE PINK ME.,2SS ,3U6

 1
69211-47021J0

KSP210,MXPA1#,MXPH1#

DK.BLUE M.M.,8W7

 1
69211-47021J6

KSP210,MXPA1#,MXPH1#

CYAN METALLIC,2RV ,8W9

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-47020

KSP210,MXPA1#,MXPH1#

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-47030

KSP210,MXPA1#,MXPH1#

 2
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-52010C1

MXPA1#,MXPH1#..G,HBDG

BLACK,TRIM1#,2#,4#

 1
69283-52010C1

MXPA1#..X;KSP210,MXPH1#..G,HBDX,X

BLACK,TRIM2#,4#

 1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69283-52010C1

MXPA1#,MXPH1#..G,HBDG

BLACK,TRIM1#,2#,4#

 1
69283-52010C1

MXPA1#..X;KSP210,MXPH1#..G,HBDX,X

BLACK,TRIM2#,4#

 1
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-47010

KSP210,MXPA1#,MXPH1#

 2
69330 - LOCK ASSY, REAR DOOR, RH
69050-K0010

KSP210,MXPA10..X

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
69050-K0020

KSP210,MXPA10..X

 1
69050-K0010

MXPA15;KSP210,MXPA10,MXPH1#..G,HBDG,HBDX,HBDZ,Z

 1
69340 - LOCK ASSY, REAR DOOR, LH
69060-K0010

MXPA15;KSP210,MXPA10,MXPH1#..G,HBDG,HBDX,HBDZ,Z

 1
69060-K0020

KSP210,MXPA10..X

 1
69060-K0010

KSP210,MXPA10..X

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-47010

KSP210,MXPA1#,MXPH1#

 2
69730M - CABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER
69730-K0011

KSP210,MXPA1#,MXPH1#

 1
69730-K0010

KSP210,MXPA1#,MXPH1#

 1
69740E - CABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER
69730-K0011

KSP210,MXPA1#,MXPH1#

 1
69730-K0010

KSP210,MXPA1#,MXPH1#

 1
69770E - CABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK K
69770-K0011

KSP210,MXPA1#,MXPH1#

 1
69770-K0010

KSP210,MXPA1#,MXPH1#

 1
69780E - CABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK K
69770-K0011

KSP210,MXPA1#,MXPH1#

 1
69770-K0010

KSP210,MXPA1#,MXPH1#

 1
Common parts
69296-30010
90148-50003
90148-60083
90148-80066
90189-05003
93567-55020
