MXPA10-AHXGB (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine M15AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

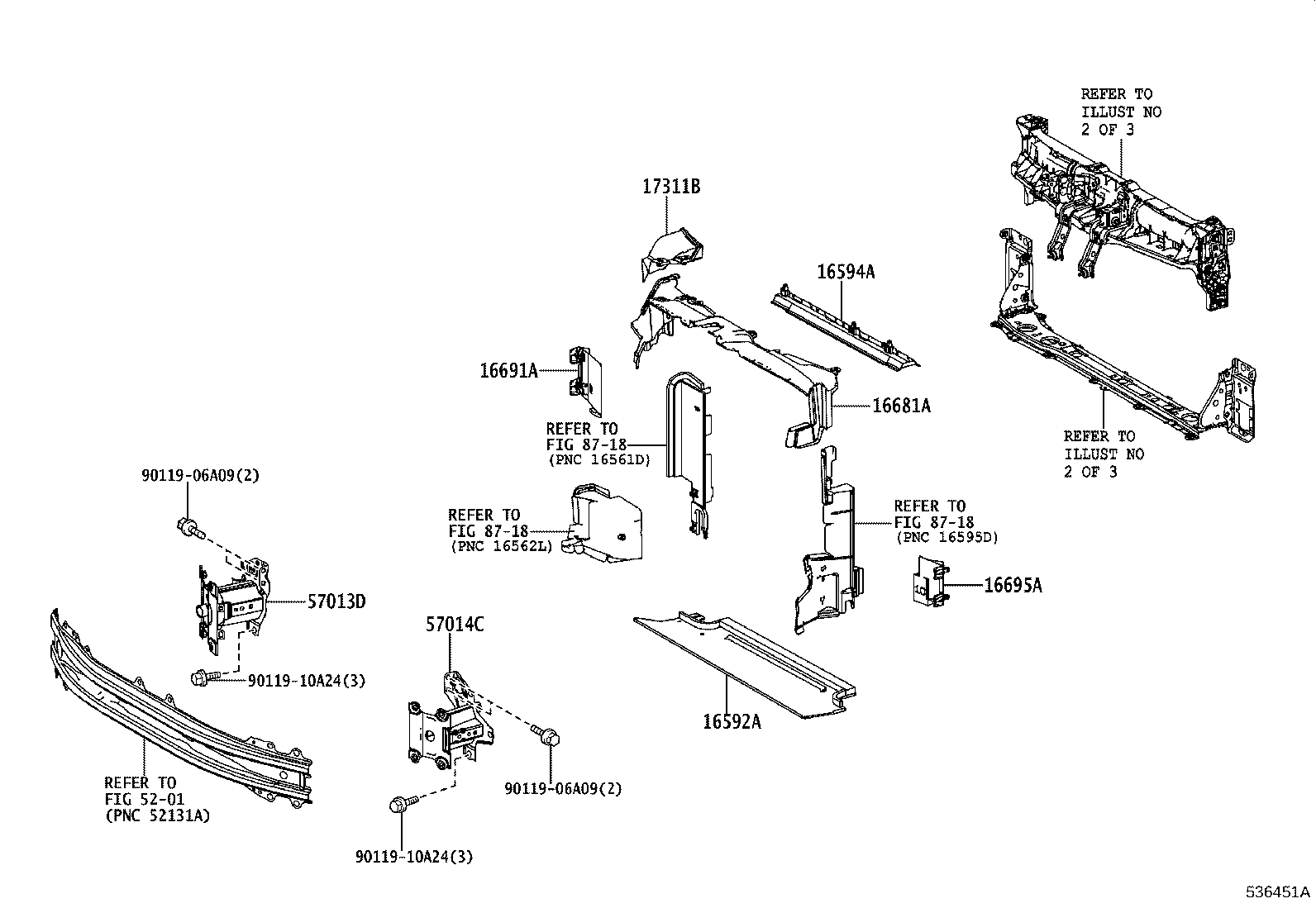

ILLUST NO. 1 OF 3(2002- )MXPA1#

Click highlighted areas on diagram

ｴｱｶﾞｲﾄﾞ&ﾗｼﾞｴｰﾀｻﾎﾟｰﾄｶﾊﾞｰ

diagram 16592A 16594A 16681A 16691A 16695A 17311B 5201 57013D 57014C 8718 8718 8718 9011906A09 9011906A09 9011910A24 9011910A24
Part # Description Qty Price
16592A - GUIDE, RADIATOR AIR, NO.3
16592-15020

M15#,1KRFE..KSP210,MXPA1#,MXPH1#

 1
16594A - GUIDE, RADIATOR AIR, NO.2
16594-15010

M15AFKS..MXPA1#

 1
16681A - PLATE, RADIATOR UPPER AIR GUIDE
16681-15021

M15#,1KRFE..KSP210,MXPA1#,MXPH1#

 1
16691A - PLATE, RADIATOR SIDE AIR GUIDE, FRONT RH
16691-15020

M15#,1KRFE..KSP210,MXPA1#,MXPH1#

 1
16695A - PLATE, RADIATOR SIDE AIR GUIDE, FRONT LH
16695-15010

M15#,1KRFE..KSP210,MXPA1#,MXPH1#

 1
17311B - DUCT, AIR INLET, NO.1
17311-15010

M15#,1KRFE..KSP210,MXPA1#,MXPH1#

 1
57013D - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-K0010

KSP210,MXPA1#,MXPH1#

 1
57014C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-K0010

KSP210,MXPA1#,MXPH1#

 1
Common parts
90119-06A09
90119-10A24
Linked diagrams
5201
8718

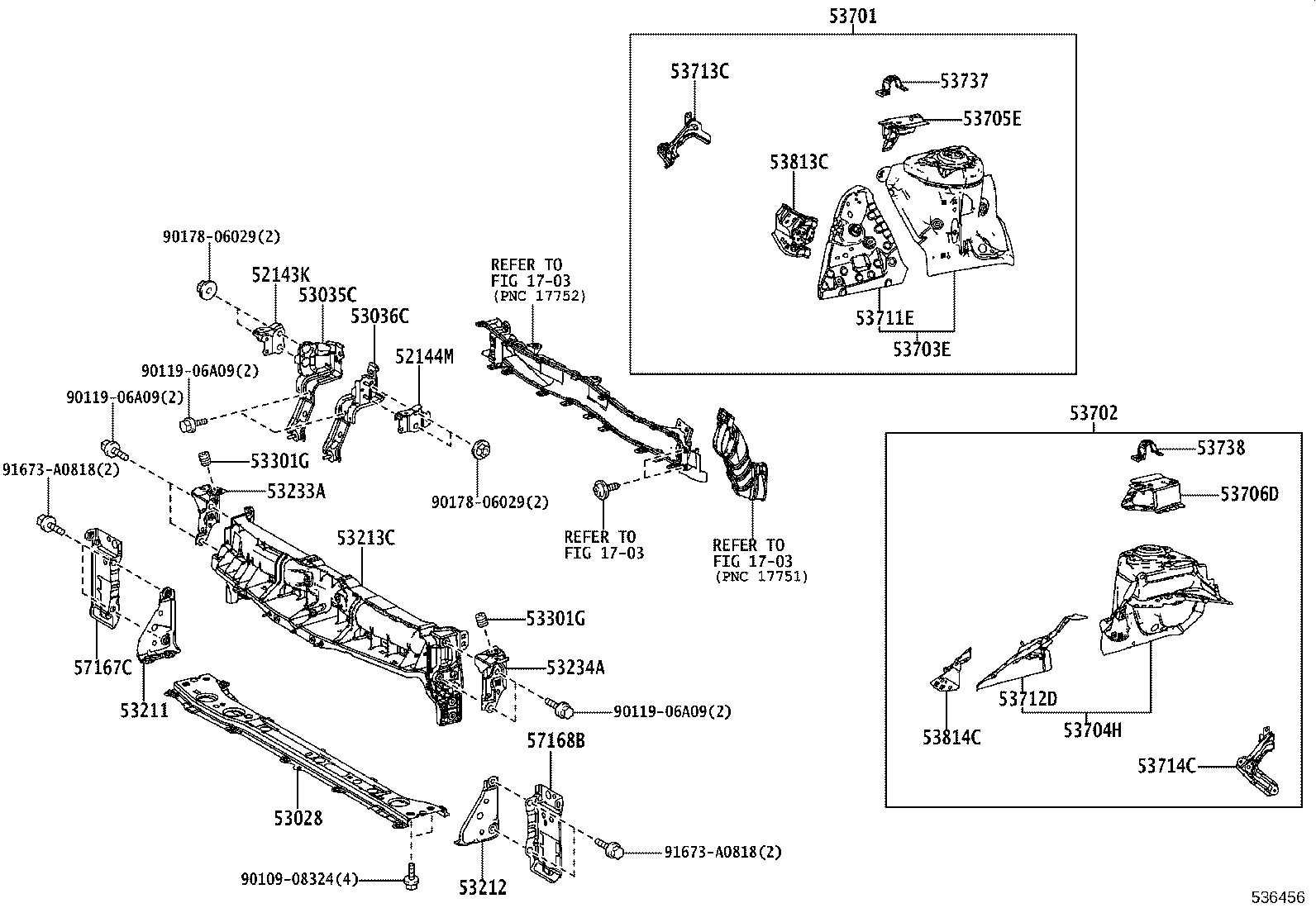

ILLUST NO. 2 OF 3(2002- )

Click highlighted areas on diagram

ﾗｼﾞｴｰﾀｻﾎﾟｰﾄ&ﾌｪﾝﾀﾞｴﾌﾟﾛﾝ

diagram 1703 1703 1703 52143K 52144M 53028 53035C 53036C 53211 53212 53213C 53233A 53234A 53301G 53301G 53701 53702 53703E 53704H 53705E 53706D 53711E 53712D 53713C 53714C 53737 53738 53813C 53814C 57167C 57168B 9010908324 9011906A09 9011906A09 9011906A09 9017806029 9017806029 91673A0818 91673A0818
Part # Description Qty Price
52143K - ARM, FRONT BUMPER, LOWER RH
52143-K0030

KSP210,MXPA1#,MXPH1#

 1
52144M - ARM, FRONT BUMPER, LOWER LH
52144-K0030

KSP210,MXPA1#,MXPH1#

 1
53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER
53028-K0010

KSP210,MXPA1#,MXPH1#

 1
53035C - BRACKET SUB-ASSY, FRONT END PANEL MOUNTING, RH
53035-K0010

KSP210,MXPA1#,MXPH1#

 1
53036C - BRACKET SUB-ASSY, FRONT END PANEL MOUNTING, LH
53036-K0010

KSP210,MXPA1#,MXPH1#

 1
53211 - SUPPORT, RADIATOR, RH
53211-K0010

KSP210,MXPA1#,MXPH1#

 1
53212 - SUPPORT, RADIATOR, LH
53212-K0010

KSP210,MXPA1#,MXPH1#

 1
53213C - SUPPORT, RADIATOR, UPPER FRONT
53213-K0010

KSP210,MXPA1#,MXPH1#

 1
53213-52180

KSP210,MXPA1#,MXPH1#

 1
53213-52180

KSP210,MXPA1#,MXPH1#

 1
53233A - BRACKET, HEADLAMP, NO.1 RH
53233-K0010

KSP210,MXPA1#,MXPH1#

 1
53234A - BRACKET, HEADLAMP, NO.1 LH
53234-K0010

KSP210,MXPA1#,MXPH1#

 1
53301G - CUSHION, HOOD BUMPER
90541-15040

KSP210,MXPA1#,MXPH1#

 2
53301G - CUSHION, HOOD BUMPER
90541-15040

KSP210,MXPA1#,MXPH1#

 2
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-K0010

KSP210,MXPA1#,MXPH1#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-K0010

KSP210,MXPA1#,MXPH1#

 1
53703E - APRON SUB-ASSY, FRONT FENDER, REAR RH
53703-52050

KSP210,MXPA1#,MXPH1#

 1
53704H - APRON SUB-ASSY, FRONT FENDER, REAR LH
53704-52090

KSP210,MXPA1#,MXPH1#

 1
53705E - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH
53705-K0010

KSP210,MXPA1#,MXPH1#

 1
53706D - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH
53706-K0010

KSP210,MXPA1#,MXPH1#

 1
53711E - APRON, FRONT FENDER, RH
53711-K0010

KSP210,MXPA1#,MXPH1#

 1
53712D - APRON, FRONT FENDER, LH
53712-K0010

KSP210,MXPA1#,MXPH1#

 1
53713C - EXTENSION, FRONT FENDER APRON, FRONT RH
53713-K0010

KSP210,MXPA1#,MXPH1#

 1
53714C - EXTENSION, FRONT FENDER APRON, FRONT LH
53714-K0010

KSP210,MXPA1#,MXPH1#

 1
53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53737-K0010

KSP210,MXPA1#,MXPH1#

 1
53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53738-K0010

KSP210,MXPA1#,MXPH1#

 1
53813C - EXTENSION, FRONT FENDER, RH
53813-K0010

KSP210,MXPA1#,MXPH1#

 1
53814C - EXTENSION, FRONT FENDER, LH
53814-K0010

KSP210,MXPA1#,MXPH1#

 1
57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH
57167-K0010

KSP210,MXPA1#,MXPH1#

 1
57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH
57168-K0010

KSP210,MXPA1#,MXPH1#

 1
Common parts
90109-08324
90119-06A09
90178-06029
91673-A0818
Linked diagrams
1703

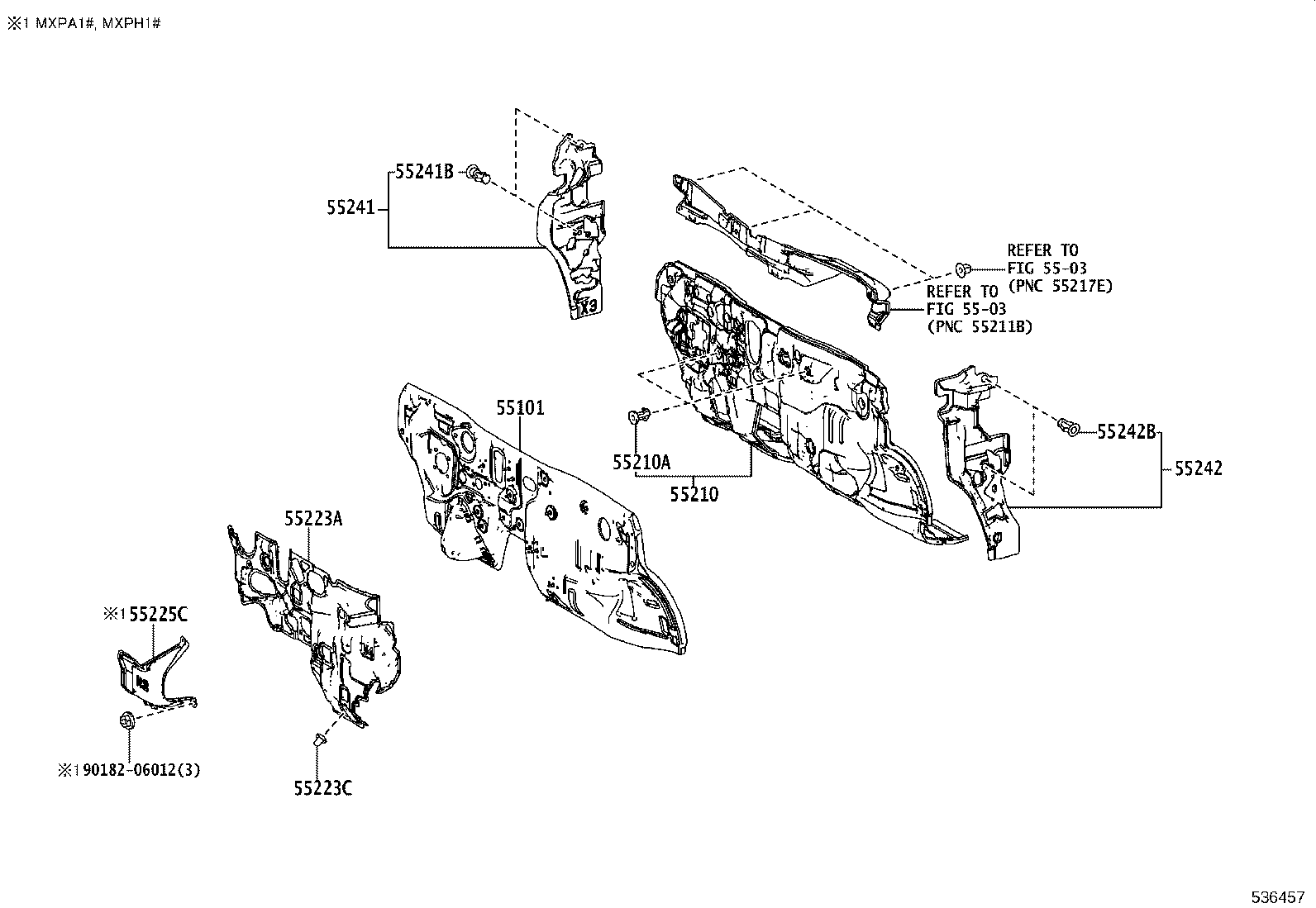

ILLUST NO. 3 OF 3(2002- )

Click highlighted areas on diagram

ﾀﾞｯｼｭﾊﾟﾈﾙ

diagram 55101 55210 55210A 55223A 55223C 55225C 55241 55241B 55242 55242B 9018206012
Part # Description Qty Price
55101 - PANEL SUB-ASSY, DASH
55101-52750

KSP210,MXPA1#,MXPH1#..CVT

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-K0050

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X,Z

 1
55210A - CLIP
90467-11122

KSP210,MXPA1#,MXPH1#

 2
55223A - INSULATOR, DASH PANEL, OUTER
55223-52140

KSP210,MXPA1#,MXPH1#

 1
55223C - CLIP
90467-06197

KSP210,MXPA1#,MXPH1#

 1
55225C - INSULATOR, DASH PANEL HEAT
55225-K0030

MXPA1#,MXPH1#

 1
55241 - SILENCER, FRONT PANEL SIDE, NO.1 RH
55241-K0030

KSP210,MXPA1#,MXPH1#

 1
55241B - CLIP, FRONT PANEL SIDE SILENCER
90467-13079

KSP210,MXPA1#,MXPH1#

 2
55242 - SILENCER, FRONT PANEL SIDE, NO.1 LH
55242-K0030

KSP210,MXPA1#,MXPH1#

 1
55242B - CLIP, FRONT PANEL SIDE SILENCER
90467-13079

KSP210,MXPA1#,MXPH1#

 2
Common parts
90182-06012
