MXPA10-AHXGB (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine M15AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )KSP210,MXPA10,MXPH10

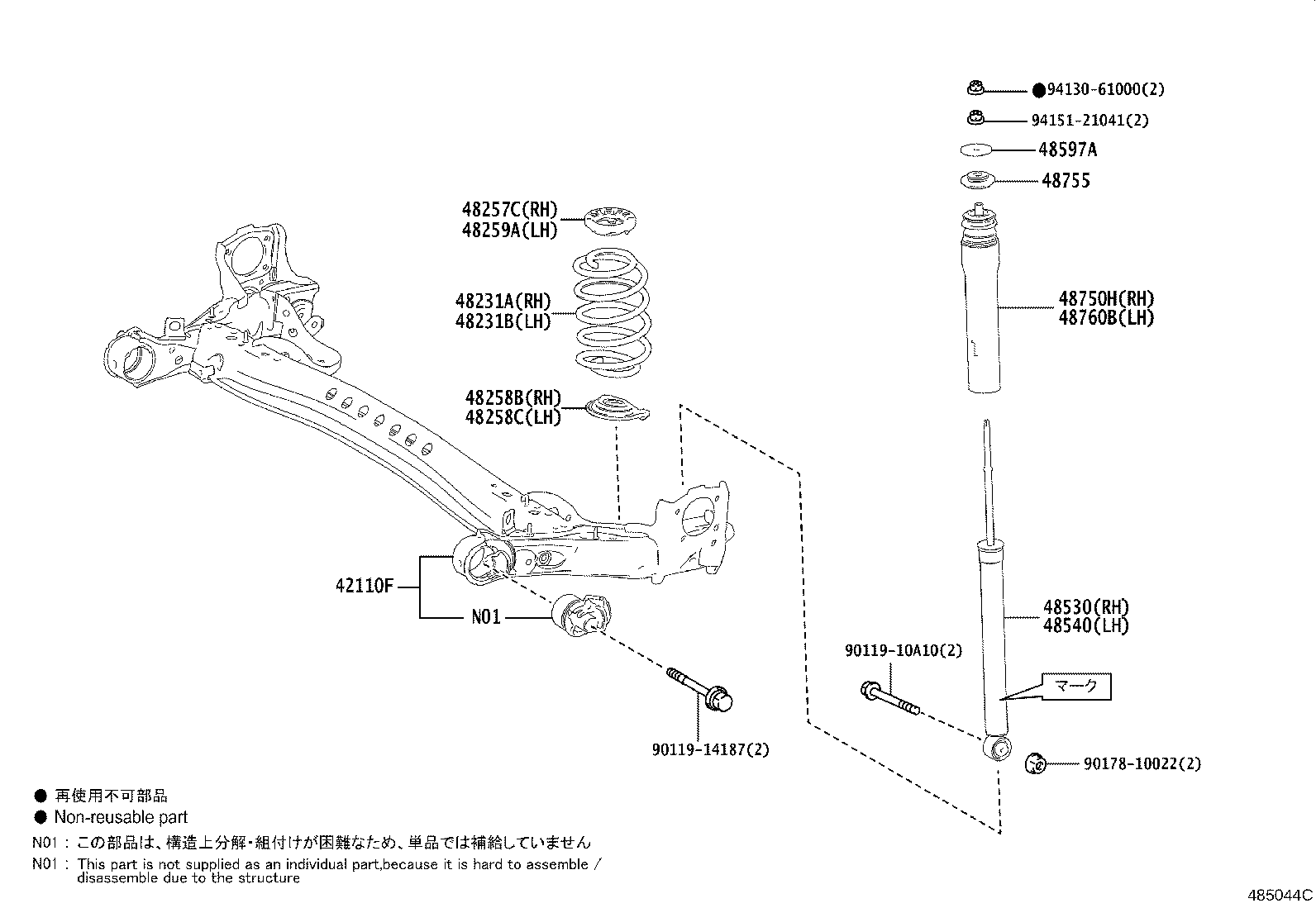

Click highlighted areas on diagram

diagram 42110F 48231A 48231B 48257C 48258B 48258C 48259A 48530 48540 48597A 48750H 48755 48760B 9011910A10 9011914187 9017810022 9413061000 9415121041
Part # Description Qty Price
42110F - BEAM ASSY, REAR AXLE
42110-K0010

KSP210,MXPA10,MXPH10

 1
48231A - SPRING, COIL, REAR RH
48231-K0030

KSP210,MXPA10

 1
48231-52P30

MXPA10..CVT..G

KINTOﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ

 1
48231-K0030

MXPA10..X

ﾚｰｼﾝｸﾞ

 1
48231B - SPRING, COIL, REAR LH
48231-K0030

MXPA10..X

ﾚｰｼﾝｸﾞ

 1
48231-52P30

MXPA10..CVT..G

KINTOﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ

 1
48231-K0030

KSP210,MXPA10

 1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-52010

KSP210,MXPA10,MXPH10

 1
48258B - INSULATOR, REAR COIL SPRING, LOWER RH
48258-K0010

KSP210,MXPA10,MXPH10

 1
48258C - INSULATOR, REAR COIL SPRING, LOWER LH
48258-K0010

KSP210,MXPA10,MXPH10

 1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-52010

KSP210,MXPA10,MXPH10

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-K0020

MXPA10

ﾏｰｸ 48530−K0020

 1
48530-K0020

MXPA10..X

ﾏｰｸ 48530−K0020,ﾚｰｼﾝｸﾞ

 1
48530-52S60

MXPA10..CVT..G

ﾏｰｸ 48530−52S60,KINTOﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-K0020

MXPA10..X

ﾏｰｸ 48530−K0020,ﾚｰｼﾝｸﾞ

 1
48530-52S60

MXPA10..CVT..G

ﾏｰｸ 48530−52S60,KINTOﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ

 1
48530-K0020

MXPA10

ﾏｰｸ 48530−K0020

 1
48597A - RETAINER, REAR SHOCK ABSORBER CUSHION
90201-10138

KSP210,MXPA1#,MXPH1#

 2
48750H - SUPPORT ASSY, REAR SUSPENSION, RH
48750-K0010

KSP210,MXPA10,MXPH10

 1
48755 - SUPPORT, REAR SUSPENSION
48755-K0010

KSP210,MXPA1#,MXPH1#

 2
48755-K0011

KSP210,MXPA1#,MXPH1#

 2
48760B - SUPPORT ASSY REAR SUSPENSION, LH
48750-K0010

KSP210,MXPA10,MXPH10

 1
Common parts
90119-10A10
90119-14187
90178-10022
94130-61000
94151-21041
