MXPA10-AHXGB (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine M15AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )M15AFKS..MXPA10

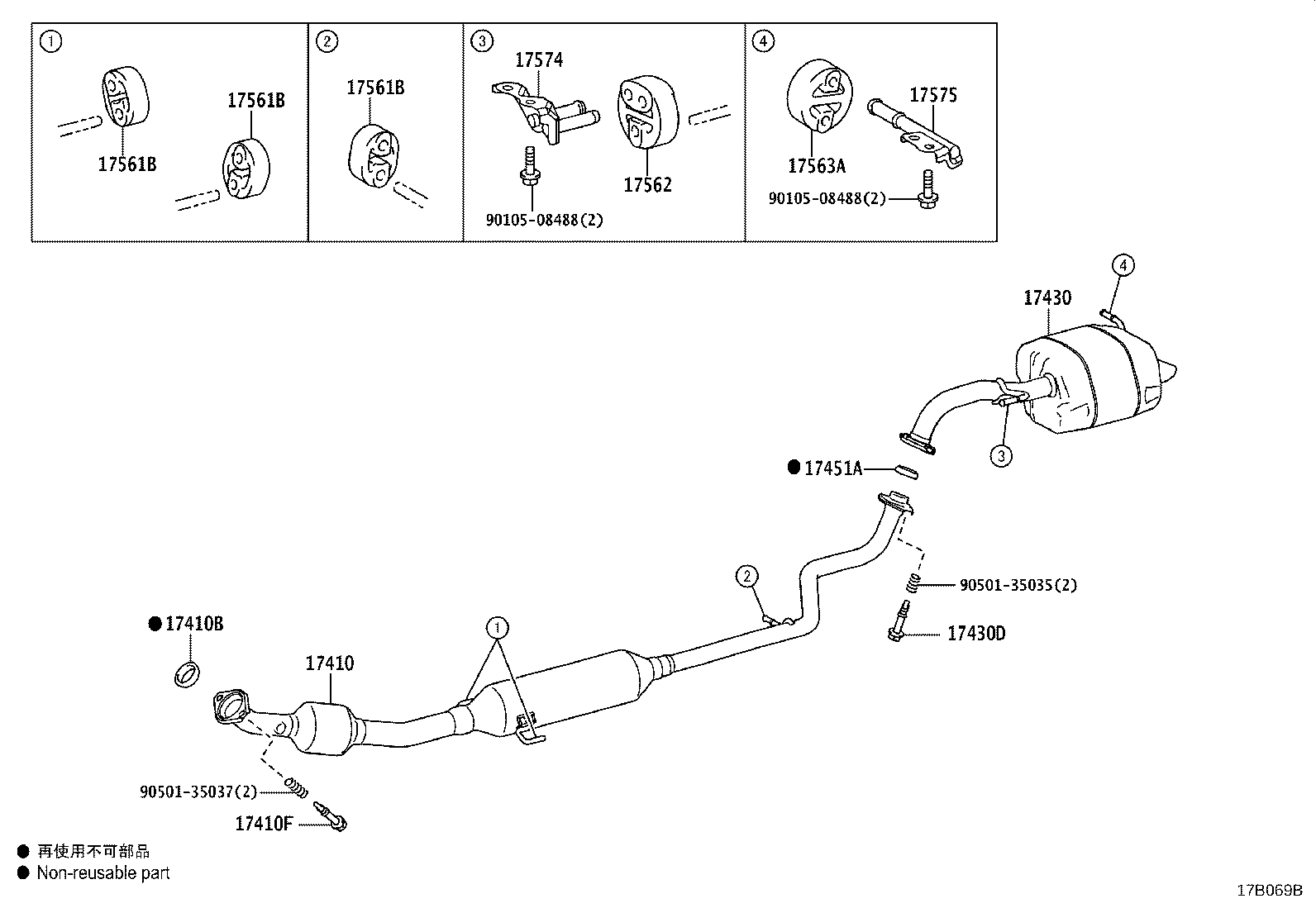

Click highlighted areas on diagram

diagram 17410 17410B 17410F 17430 17430D 17451A 17561B 17561B 17561B 17562 17563A 17574 17575 9010508488 9010508488 9050135035 9050135037
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-15290

M15AFKS..MXPA10

 1
17410B - GASKET, EXHAUST PIPE
17451-21070

M15#..MXPA1#,MXPH1#

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90901-05020

M15#,1KRFE..KSP210,MXPA1#,MXPH1#

 2
90109-10182

M15#,1KRFE..KSP210,MXPA1#,MXPH1#

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-15720

M15AFKS,1KRFE..KSP210,MXPA10

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90109-10183

M15#,1KRFE..KSP210,MXPA10,MXPH1#

 2
90901-05026

M15#,1KRFE..KSP210,MXPA10,MXPH1#

 2
17451A - GASKET, EXHAUST PIPE, NO.2
17451-23042

M15#,1KRFE..KSP210,MXPA10,MXPH1#

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-47010

M15#,1KRFE..KSP210,MXPA10,MXPH1#

 3
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-47010

M15#,1KRFE..KSP210,MXPA10,MXPH1#

 3
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-47010

M15#,1KRFE..KSP210,MXPA10,MXPH1#

 3
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-74320

M15#,1KRFE..KSP210,MXPA10,MXPH10

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-28010

M15#,1KRFE..KSP210,MXPA10,MXPH10

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-15060

M15#,1KRFE..KSP210,MXPA10,MXPH10

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-15040

M15#,1KRFE..KSP210,MXPA10,MXPH10

 1
Common parts
90105-08488
90501-35035
90501-35037
