MXPA10-AHXEB (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine M15AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

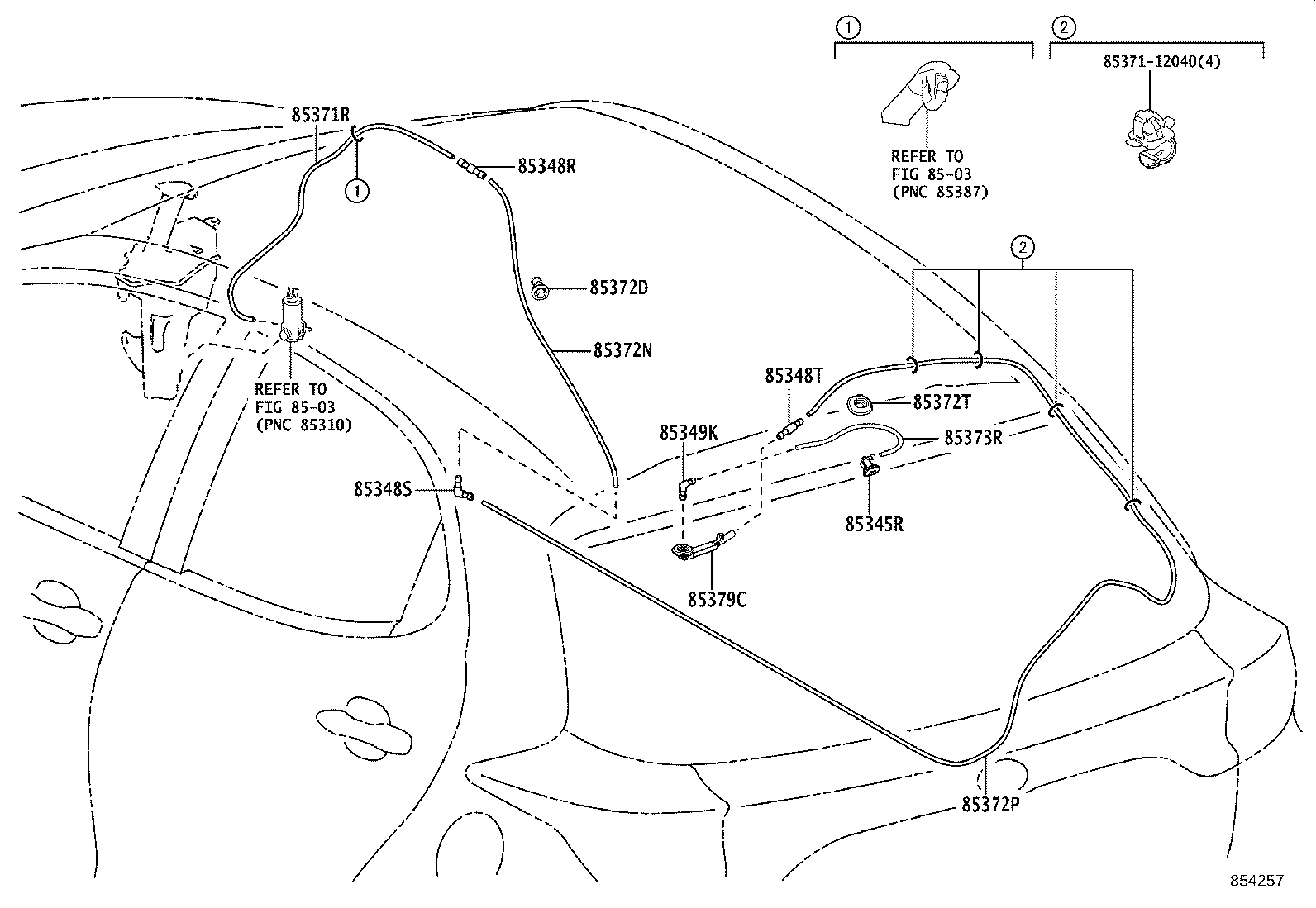

Click highlighted areas on diagram

diagram 8503 8503 85345R 85348R 85348S 85348T 85349K 8537112040 85371R 85372D 85372N 85372P 85372T 85373R 85379C
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85391-K0010

KSP210,MXPA1#,MXPH1#

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

KSP210,MXPA1#,MXPH1#

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

KSP210,MXPA1#,MXPH1#

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

KSP210,MXPA1#,MXPH1#

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85355-20200

KSP210,MXPA1#,MXPH1#

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-62226

KSP210,MXPA1#,MXPH1#

長さ=820,寒冷地仕様

 1
90099-62226

KSP210,MXPA1#,MXPH1#

長さ=820

 1
85372D - GROMMET, REAR WASHER HOSE
85379-12850

KSP210,MXPA1#,MXPH1#

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

KSP210,MXPA1#,MXPH1#

*H,L=670

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-59377

KSP210,MXPA1#,MXPH1#

長さ=3374

 1
85372T - GROMMET, WASHER
85372-20020

KSP210,MXPA1#,MXPH1#

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-62206

KSP210,MXPA1#,MXPH1#

長さ=280

 1
85379C - GROMMET, REAR WASHER HOSE NO.1
85372-20040

KSP210,MXPA1#,MXPH1#

 1
Common parts
85371-12040
Linked diagrams
8503
