MXPA10-AHXEB (2020)
Toyota Yaris

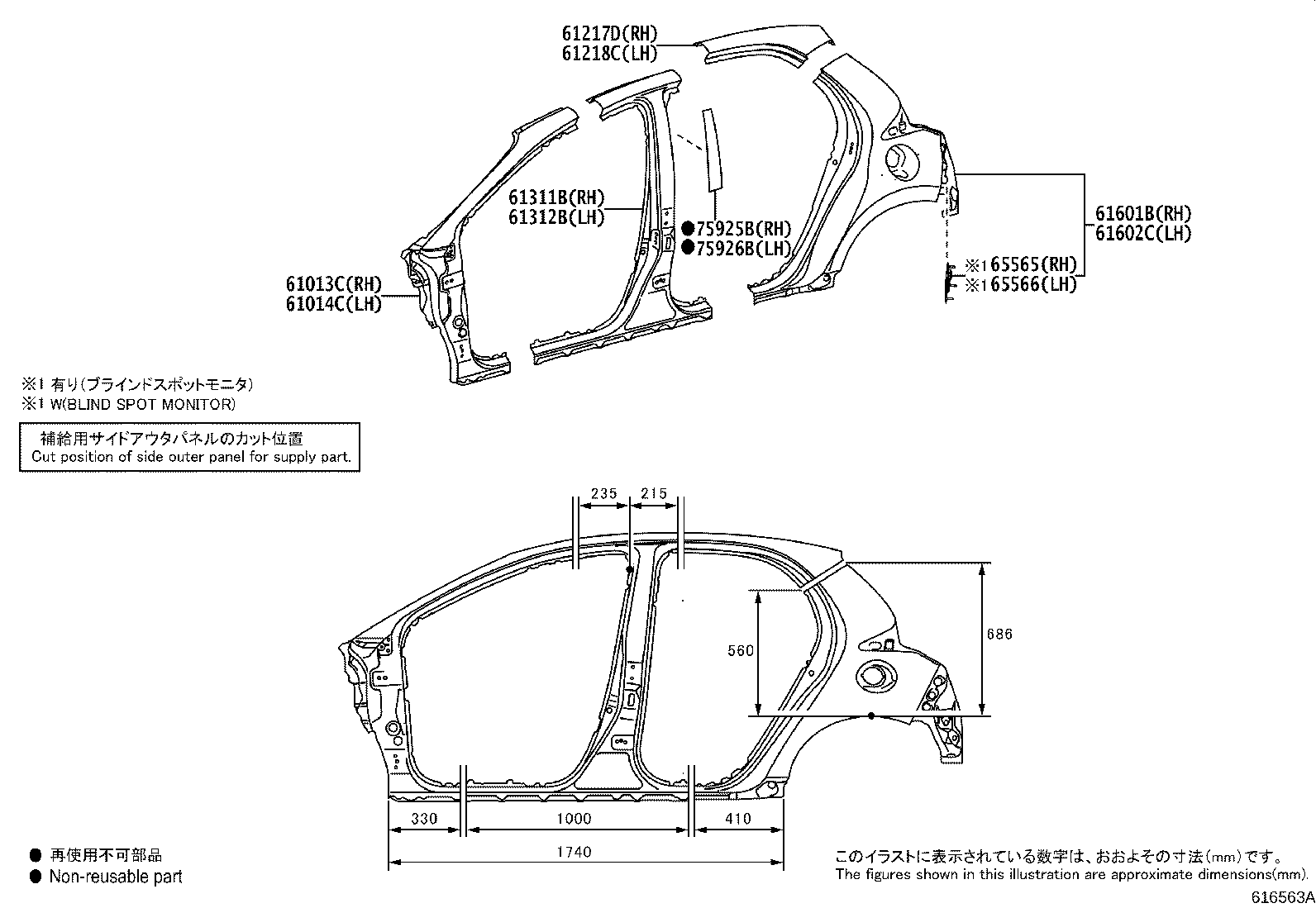

ILLUST NO. 1 OF 3(2002- )
ｱｳﾀﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61013C - PANEL SUB-ASSY, SIDE, INNER RH | ||||
| 61013-52070 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61014C - PANEL SUB-ASSY, SIDE, INNER LH | ||||
| 61014-52070 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61217D - RAIL, ROOF SIDE, OUTER NO.4 RH | ||||
| 61217-52020 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61218C - RAIL, ROOF SIDE, OUTER NO.4 LH | ||||
| 61218-52020 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-52101 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61311-52100 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-52101 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61312-52100 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61601B - PANEL SUB-ASSY, QUARTER, RH | ||||
| 61601-52840 |
KSP210,MXPA1#..CVT..(G,Z) ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 61601-52840 |
KSP210,MXPA1#..CVT..X ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 61601-52840 |
KSP210,MXPA1#..CVT..X ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 61601-52840 |
KSP210,MXPA1#..CVT..(G,Z) ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB) |
1 | ||
| 61601-52840 |
KSP210,MXPA1#..CVT..(G,Z) ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 61601-52850 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61602C - PANEL SUB-ASSY, QUARTER, LH | ||||
| 61602-52840 |
KSP210,MXPA1#..CVT..X ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 61602-52840 |
KSP210,MXPA1#..CVT..(G,Z) ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 61602-52840 |
KSP210,MXPA1#..CVT..(G,Z) ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 61602-52850 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61602-52840 |
KSP210,MXPA1#..CVT..(G,Z) ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB) |
1 | ||
| 61602-52840 |
KSP210,MXPA1#..CVT..X ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 65565 - PATCH, SIDE PANEL REAR END, RH | ||||
| 65565-50010 |
KSP210,MXPA1#..CVT..X ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 65565-50010 |
KSP210,MXPA1#..CVT..X ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 65565-50010 |
KSP210,MXPA1#..CVT..(G,Z) ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB) |
1 | ||
| 65565-50010 |
KSP210,MXPA1#..CVT..(G,Z) ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 65565-50010 |
KSP210,MXPA1#..CVT..(G,Z) ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 65566 - PATCH, SIDE PANEL REAR END, LH | ||||
| 65565-50010 |
KSP210,MXPA1#..CVT..(G,Z) ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 65565-50010 |
KSP210,MXPA1#..CVT..X ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 65565-50010 |
KSP210,MXPA1#..CVT..(G,Z) ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB) |
1 | ||
| 65565-50010 |
KSP210,MXPA1#..CVT..(G,Z) ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 65565-50010 |
KSP210,MXPA1#..CVT..X ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 75925B - TAPE, BLACK OUT, NO.3 RH | ||||
| 75925-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 75926B - TAPE, BLACK OUT, NO.3 LH | ||||
| 75926-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||

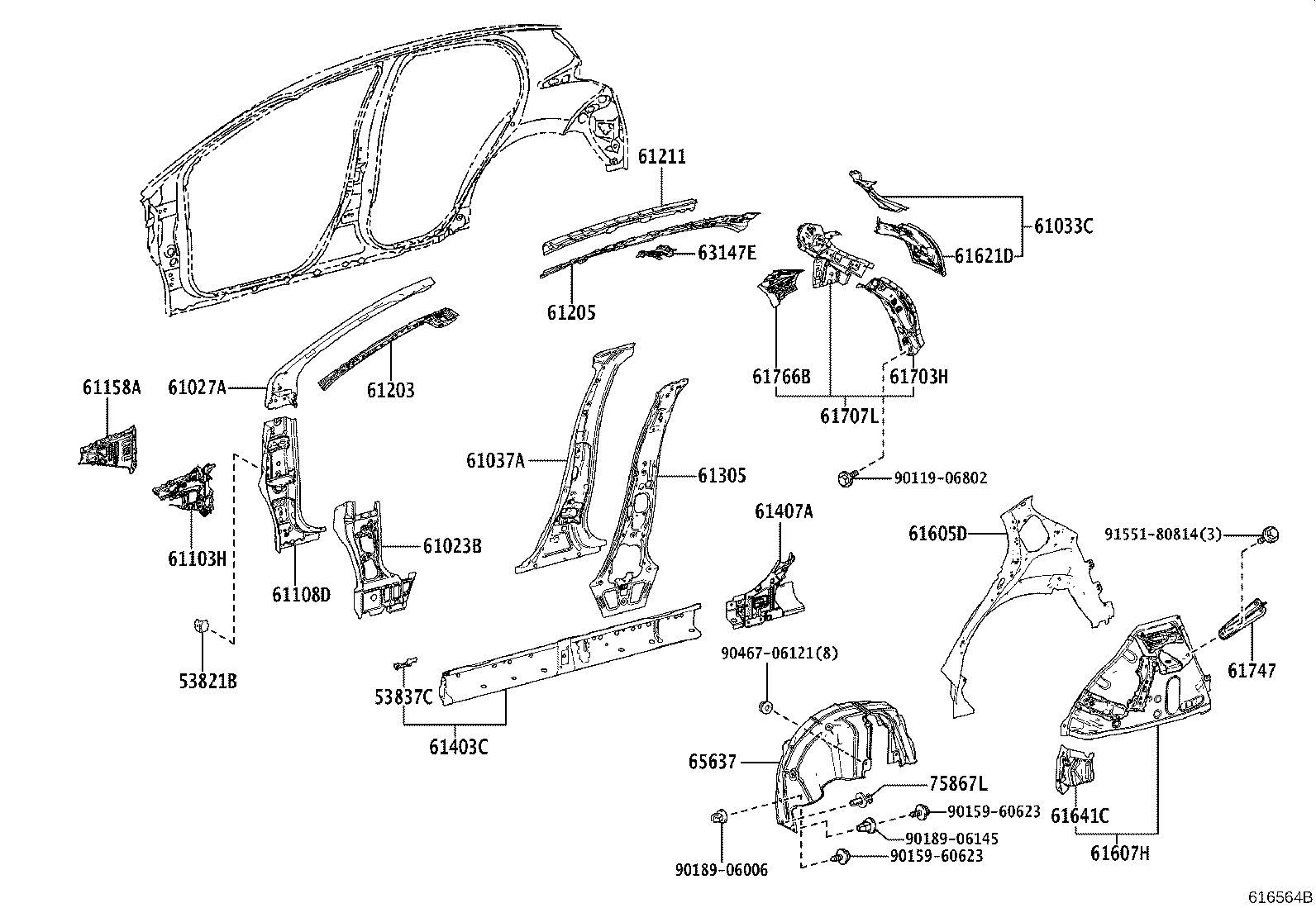

ILLUST NO. 2 OF 3(2002- )
ｲﾝﾅﾊﾟﾈﾙ,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-48030 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 53837C - BRACKET, FRONT SIDE PANEL, NO.2 RH | ||||
| 53837-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-52900 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61033C - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61033-52170 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61033-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61037-52360 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61103H - PANEL SUB-ASSY, SIDE, NO.2 RH | ||||
| 61103-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH | ||||
| 61108-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61158A - EXTENSION, FRONT PILLER, LOWER RH | ||||
| 61158-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61205 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH | ||||
| 61205-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-52903 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61403-K0904 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61407A - PLATE SUB-ASSY, STEP, LOWER RH | ||||
| 61407-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61605D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-52100 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61607H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-52460 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-52240 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61621-K0060 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61703H - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61703-K0030 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61707L - PANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH | ||||
| 61707-52080 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-52190 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 63147E - BRACKET, ROOF PANEL REINFORCEMENT | ||||
| 63147-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-K0040 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 75867L - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-30140 |
KSP210,MXPA1#,MXPH1#..HBDX,X |
1 | ||
| 75867-33050 |
KSP210,MXPA1#,MXPH1#..HBDX,X |
1 | ||
| Common parts | ||||
| 90119-06802 | ||||
| 90159-60623 | ||||
| 90189-06006 | ||||
| 90189-06145 | ||||
| 90467-06121 | ||||
| 91551-80814 | ||||
ILLUST NO. 3 OF 3(2002- )
ｲﾝﾅﾊﾟﾈﾙ,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-48030 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 53838E - BRACKET, FRONT SIDE PANEL, NO.2 LH | ||||
| 53838-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-52900 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61034 - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61034-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61034-52170 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61038-52360 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61104H - PANEL SUB-ASSY, SIDE, NO.2 LH | ||||
| 61104-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH | ||||
| 61109-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61159K - EXTENSION, FRONT PILLER, LOWER LH | ||||
| 61159-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61206 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH | ||||
| 61206-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-K0904 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61404-52903 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61408C - PLATE SUB-ASSY, STEP, LOWER LH | ||||
| 61408-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61606D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61606-52100 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61608H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-K0050 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-K0050 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61622-52250 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61704J - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61704-K0030 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61708G - PANEL SUB-ASSY, ROOF SIDE, INNER FRONT LH | ||||
| 61708-52090 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-52210 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 63148H - BRACKET, ROOF PANEL REINFORCEMENT | ||||
| 63148-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-K0040 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 75868F - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-33050 |
KSP210,MXPA1#,MXPH1#..HBDX,X |
1 | ||
| 75867-30140 |
KSP210,MXPA1#,MXPH1#..HBDX,X |
1 | ||
| Common parts | ||||
| 90119-06802 | ||||
| 90159-60623 | ||||
| 90189-06006 | ||||
| 90189-06145 | ||||
| 90467-06121 | ||||
| 91551-80814 | ||||
