MXPA10-AHFNB (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine M15AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

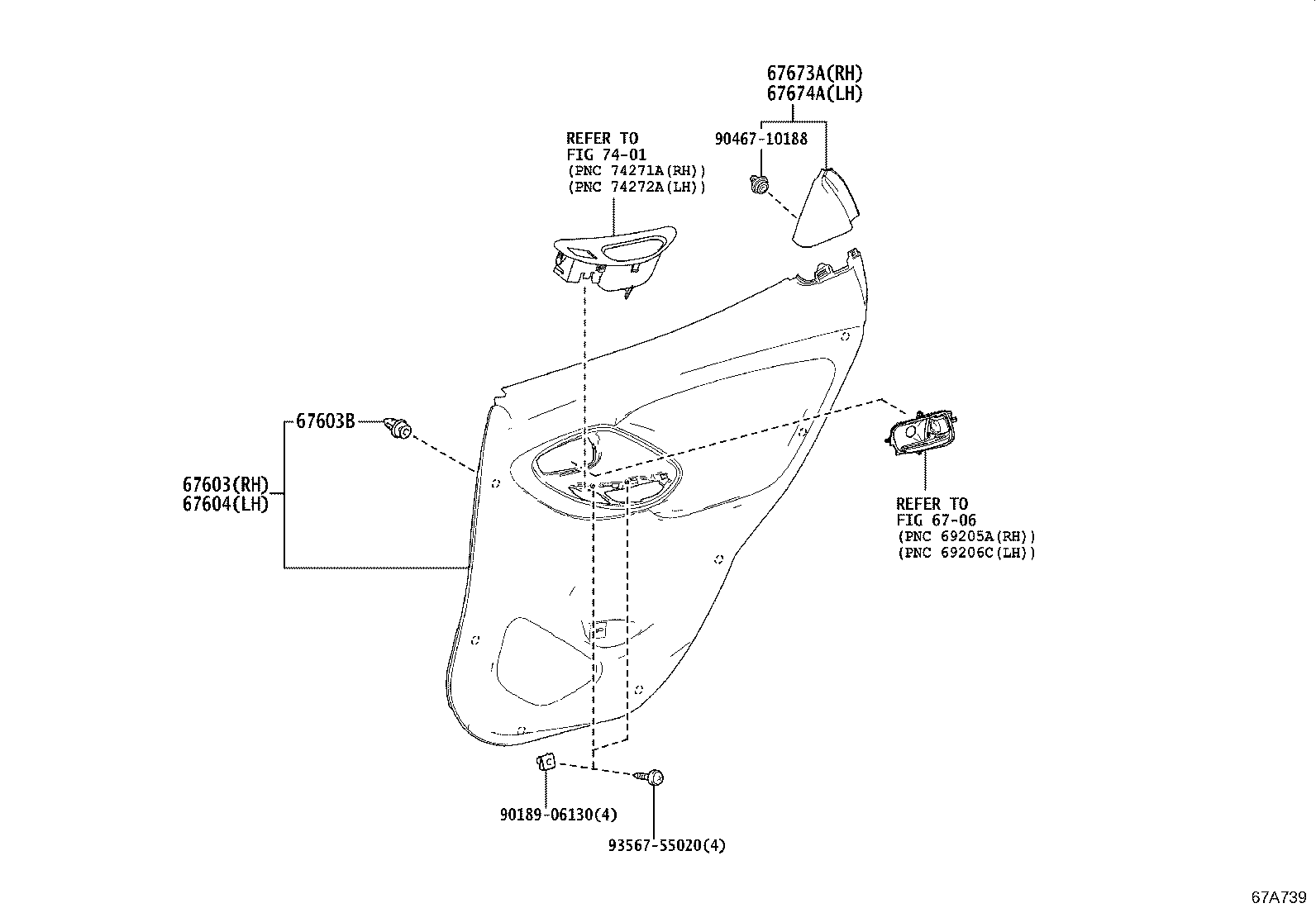

ILLUST NO. 2 OF 2(2002- )

Click highlighted areas on diagram

ﾄﾞｱﾄﾘﾑ

diagram 6706 67603 67603B 67604 67673A 67674A 7401 9018906130 9046710188 9356755020
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-K0010C0

MXPA1#..X;KSP210,MXPH1#..G,HBDX,X

BLACK,TRIM2#,4#

 1
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90467-09206

KSP210,MXPA1#,MXPH1#

 14
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-K0010C0

MXPA1#..X;KSP210,MXPH1#..G,HBDX,X

BLACK,TRIM2#,4#

 1
67673A - GARNISH, REAR DOOR FRAME, RH
67673-K0010

KSP210,MXPA1#,MXPH1#

 1
67674A - GARNISH, REAR DOOR FRAME, LH
67674-K0010

KSP210,MXPA1#,MXPH1#

 1
Common parts
90189-06130
90467-10188
93567-55020
Linked diagrams
6706
7401

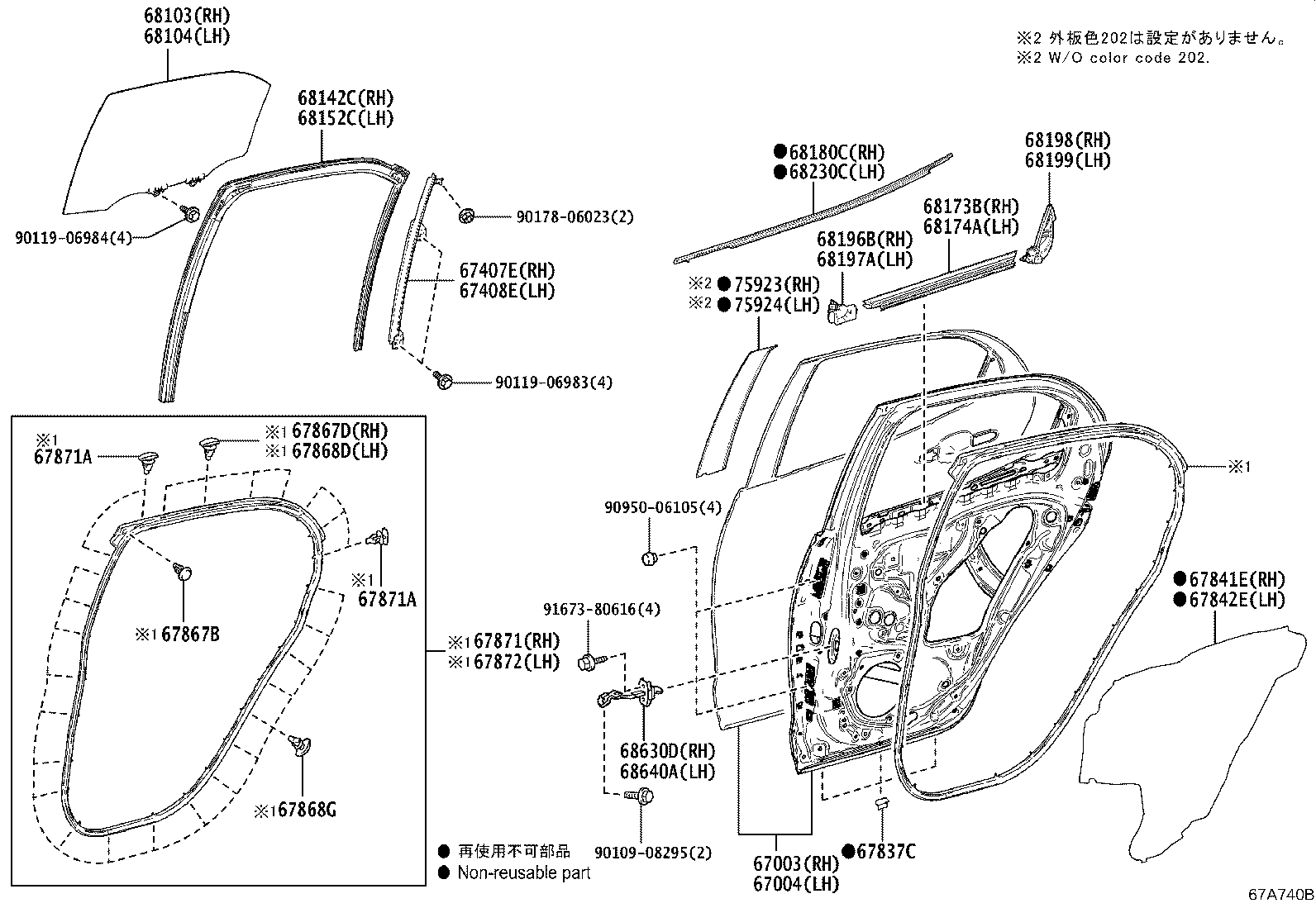

ILLUST NO. 1 OF 2(2002- )

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

diagram 67003 67004 67407E 67408E 67837C 67841E 67842E 67867B 67867D 67868D 67868G 67871 67871A 67871A 67872 68103 68104 68142C 68152C 68173B 68174A 68180C 68196B 68197A 68198 68199 68230C 68630D 68640A 75923 75924 9010908295 9011906983 9011906984 9017806023 9095006105 9167380616
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-K0090

KSP210,MXPA1#,MXPH1#

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-K0090

KSP210,MXPA1#,MXPH1#

 1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-K0010

KSP210,MXPA1#,MXPH1#

 1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-K0010

KSP210,MXPA1#,MXPH1#

 1
67837C - SEAL, REAR DOOR DUST PROOF
67837-48050

KSP210,MXPA1#,MXPH1#

 6
67837-47060

KSP210,MXPA1#,MXPH1#

 6
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-K0020

KSP210,MXPA1#,MXPH1#..HBDX,X

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67841-K0020

KSP210,MXPA1#,MXPH1#..HBDX,X

 1
67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
90467-06084

KSP210,MXPA1#,MXPH1#

 2
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-52040

KSP210,MXPA1#,MXPH1#

 4
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-52010

KSP210,MXPA1#,MXPH1#

 4
67868G - RETAINER, DOOR WEATHERSTRIP
67867-12150

KSP210,MXPA1#,MXPH1#

 36
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-K0010

KSP210,MXPA1#,MXPH1#

 1
67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP)
67867-30080

KSP210,MXPA1#,MXPH1#

 10
67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP)
67867-30080

KSP210,MXPA1#,MXPH1#

 10
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-K0010

KSP210,MXPA1#,MXPH1#

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68103-K0030

MXPA10..X

ﾚｰｼﾝｸﾞ

 1
68103-K0040

KSP210,MXPA1#,MXPH1#

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68104-K0030

MXPA10..X

ﾚｰｼﾝｸﾞ

 1
68104-K0040

KSP210,MXPA1#,MXPH1#

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-K0010

KSP210,MXPA1#,MXPH1#

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-K0010

KSP210,MXPA1#,MXPH1#

 1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-K0010

KSP210,MXPA1#,MXPH1#

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-K0010

KSP210,MXPA1#,MXPH1#

 1
68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
68180-52220

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

 1
68196B - SEAL, REAR DOOR BELT, FRONT RH
68196-K0010

KSP210,MXPA1#,MXPH1#

 1
68197A - SEAL, REAR DOOR BELT, FRONT LH
68197-K0010

KSP210,MXPA1#,MXPH1#

 1
68198 - SEAL, REAR DOOR BELT, REAR RH
68198-K0010

KSP210,MXPA1#,MXPH1#

 1
68199 - SEAL, REAR DOOR BELT, REAR LH
68199-K0010

KSP210,MXPA1#,MXPH1#

 1
68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
68230-52220

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

 1
68630D - CHECK ASSY, REAR DOOR, RH
68630-K0010

KSP210,MXPA1#,MXPH1#

 1
68640A - CHECK ASSY, REAR DOOR, LH
68630-K0010

KSP210,MXPA1#,MXPH1#

 1
75923 - TAPE, BLACK OUT, NO.2 RH
75923-K0010

KSP210,MXPA1#,MXPH1#

個数0or1個､ｲﾗｽﾄ参照

 1
75924 - TAPE, BLACK OUT, NO.2 LH
75924-K0010

KSP210,MXPA1#,MXPH1#

個数0or1個､ｲﾗｽﾄ参照

 1
Common parts
90109-08295
90119-06983
90119-06984
90178-06023
90950-06105
91673-80616
