MXPA10-AHFNB (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine M15AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

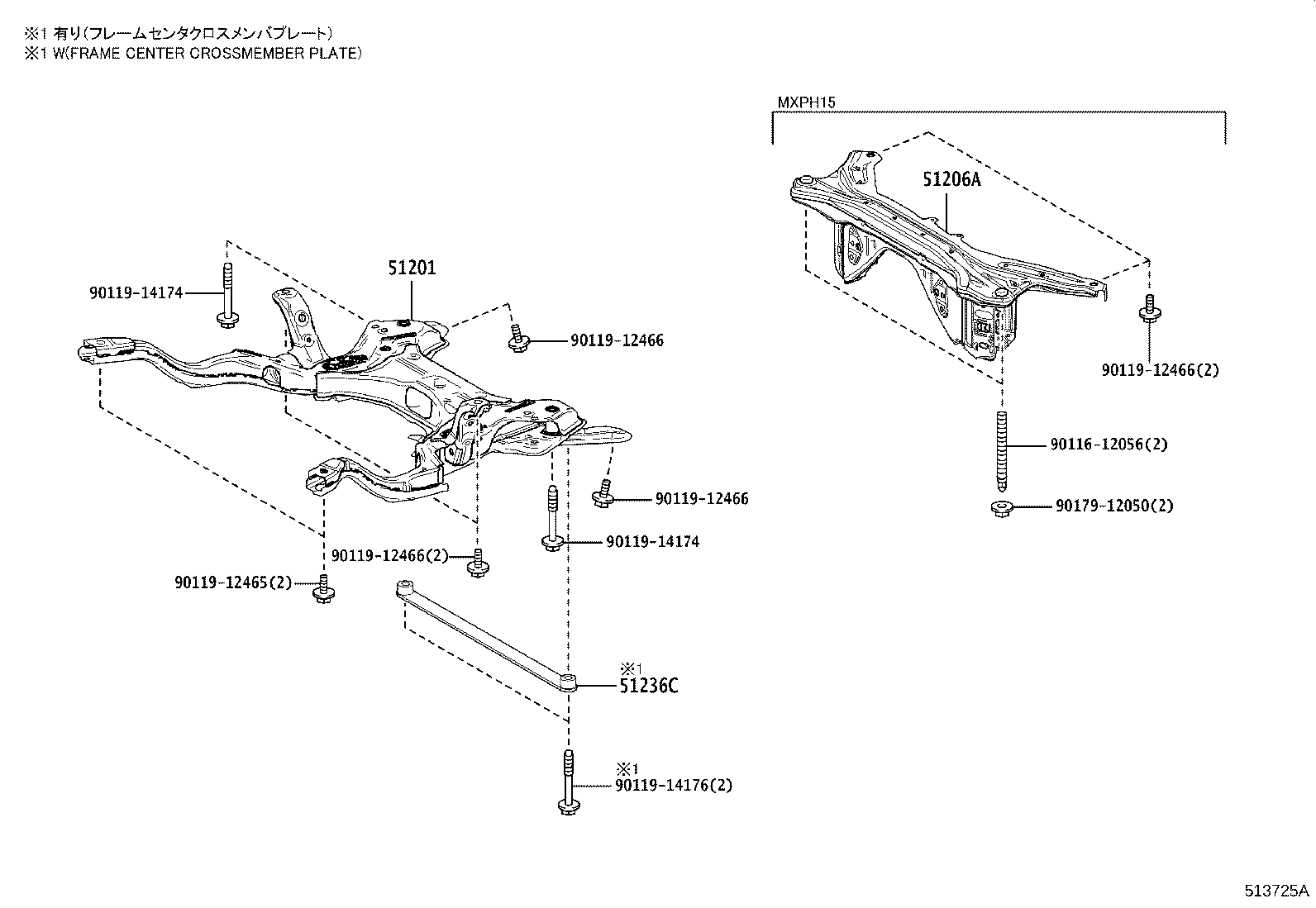

ILLUST NO. 1 OF 2(2002- )MXPA10,MXPH1#

Click highlighted areas on diagram

diagram 51201 51206A 51236C 9011612056 9011912465 9011912466 9011912466 9011912466 9011912466 9011914174 9011914174 9011914176 9017912050
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-52120

MXPA10,MXPH1#

 1
Common parts
90116-12056
90119-12465
90119-12466
90119-14174
90119-14176
90179-12050

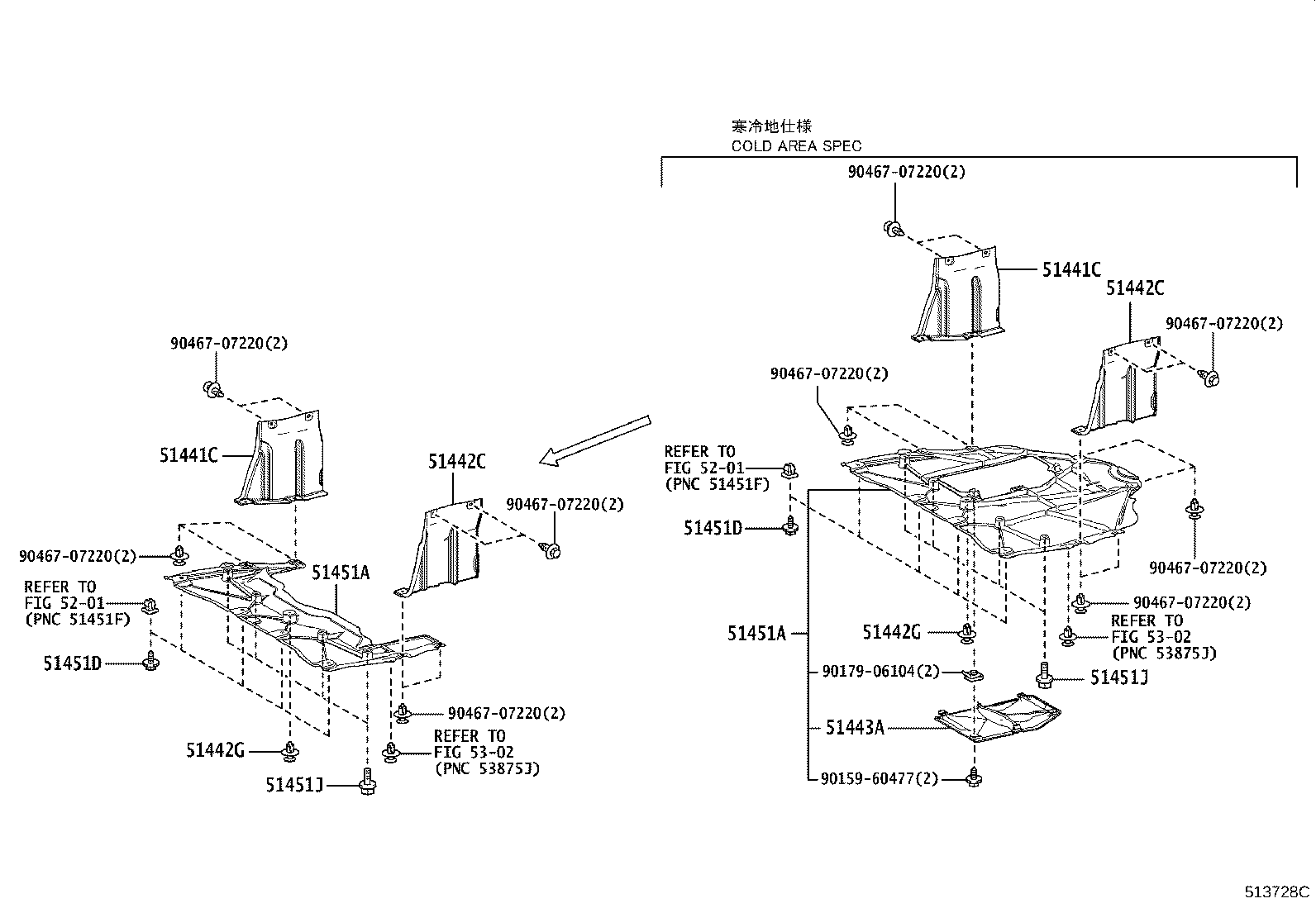

ILLUST NO. 2 OF 2(2002- )MXPA10

Click highlighted areas on diagram

diagram 51441C 51441C 51442C 51442C 51442G 51442G 51443A 51451A 51451A 51451D 51451D 51451J 51451J 5201 5201 5302 5302 9015960477 9017906104 9046707220 9046707220 9046707220 9046707220 9046707220 9046707220 9046707220 9046707220 9046707220
Part # Description Qty Price
51441C - COVER, ENGINE UNDER, RH
51441-K0010

KSP210,MXPA10,MXPH1#

 1
51441C - COVER, ENGINE UNDER, RH
51441-K0010

KSP210,MXPA10,MXPH1#

 1
51442C - COVER, ENGINE UNDER, LH
51442-K0010

KSP210,MXPA10,MXPH1#

 1
51442C - COVER, ENGINE UNDER, LH
51442-K0010

KSP210,MXPA10,MXPH1#

 1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220

KSP210,MXPA1#,MXPH1#

 1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220

KSP210,MXPA1#,MXPH1#

 1
51443A - COVER, ENGINE UNDER, REAR
51443-K0010

MXPA10

寒冷地仕様

 1
51451A - COVER, ENGINE UNDER, CENTER
51451-K0010

KSP210,MXPA10

 1
51410-K0010

MXPA10

寒冷地仕様

 1
51451A - COVER, ENGINE UNDER, CENTER
51451-K0010

KSP210,MXPA10

 1
51410-K0010

MXPA10

寒冷地仕様

 1
51451D - SCREW, NO.1
90159-60477

KSP210,MXPA1#,MXPH1#

 4
51451D - SCREW, NO.1
90159-60477

KSP210,MXPA1#,MXPH1#

 4
51451J - BOLT, NO.1
90119-06A13

KSP210,MXPA1#,MXPH1#

 4
51451J - BOLT, NO.1
90119-06A13

KSP210,MXPA1#,MXPH1#

 4
Common parts
90159-60477
90179-06104
90467-07220
Linked diagrams
5201
5302
