MXPA10-AHFNB (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine M15AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

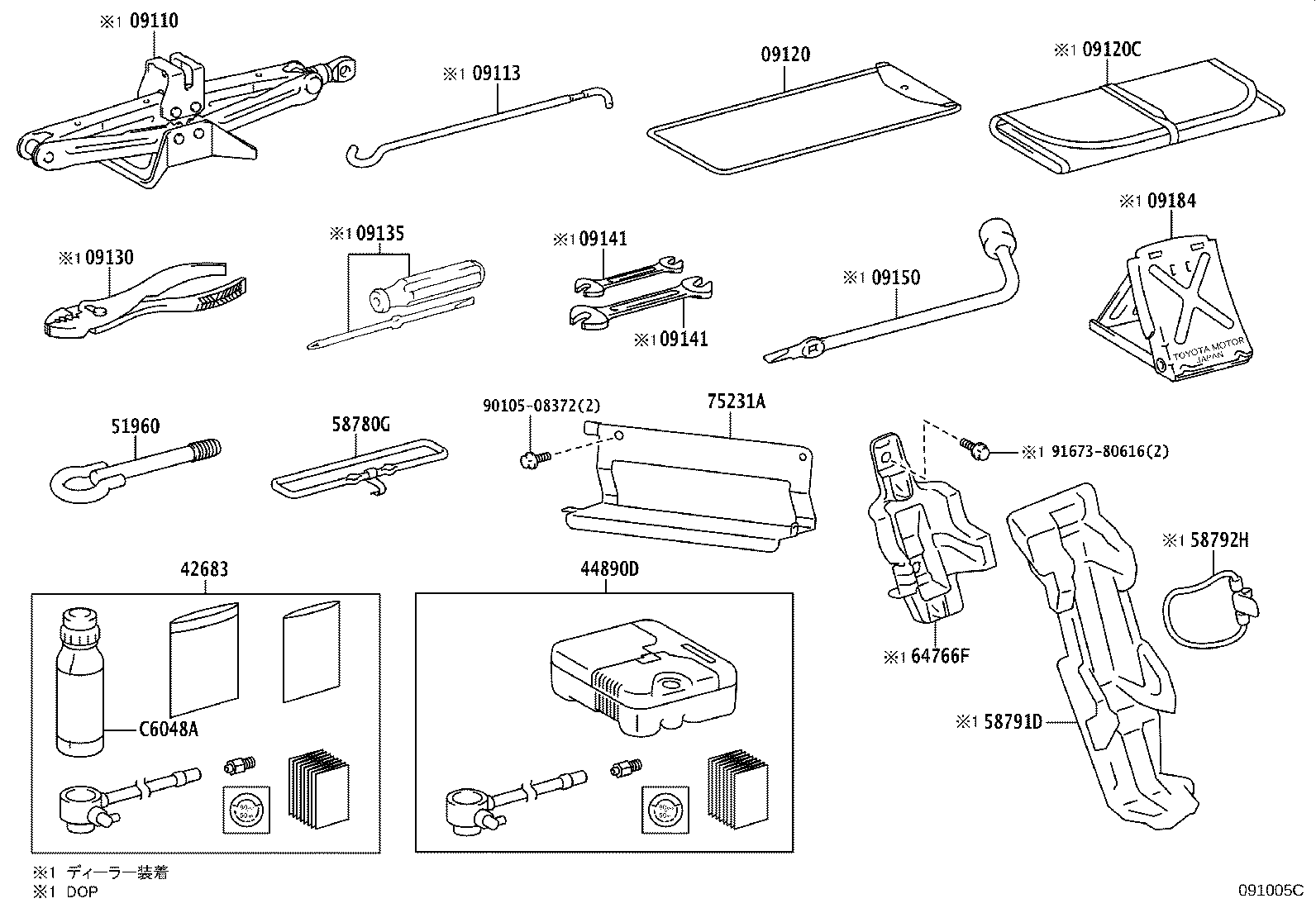

Click highlighted areas on diagram

diagram 09110 09113 09120 09120C 09130 09135 09141 09141 09150 09184 42683 44890D 51960 58780G 58791D 58792H 64766F 75231A 9010508372 9167380616 C6048A
Part # Description Qty Price
09110 - JACK ASSY
09111-K0040

KSP210,MXPA1#,MXPH1#

ｼﾞｬｯｷ−有り(DOP)

 1
09113 - HANDLE, JACK
09113-42030

MXPA10..G,Z;MXPA10..6F..X;KSP210,MXPA15,MXPH10

ｼﾞｬｯｷ−有り&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)

 1
09113-42030

KSP210,MXPA1#,MXPH1#

ｼﾞｬｯｷ−有り(DOP)

 1
09120 - BAG, TOOL
09120-37030

MXPA10..G,Z;MXPA10..6F..X;KSP210,MXPA15,MXPH10

ｼﾞｬｯｷ−有り&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)

 1
09120C - BAG,TOOL, NO.2
09120-16030

KSP210,MXPA10,MXPH1#

ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ,輪止め

 1
09130 - PLIERS
99913-11500

KSP210,MXPA10,MXPH1#

ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ,輪止め

 1
09135 - DRIVER, SCREW
99915-10700

KSP210,MXPA10,MXPH1#

ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ,輪止め

 1
09141 - SPANNER
99914-10810

KSP210,MXPA10,MXPH1#

8 X 10,ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ,輪止め

 1
99914-11214

KSP210,MXPA10,MXPH1#

12 X 14,ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ,輪止め

 1
09141 - SPANNER
99914-10810

KSP210,MXPA10,MXPH1#

8 X 10,ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ,輪止め

 1
99914-11214

KSP210,MXPA10,MXPH1#

12 X 14,ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ,輪止め

 1
09150 - WRENCH, HUB NUT BOX
09150-42010

MXPA10..G,Z;MXPA10..6F..X;KSP210,MXPA15,MXPH10

ｼﾞｬｯｷ−有り&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)

 1
09150-42010

KSP210,MXPA1#,MXPH1#

ﾂｰﾙ(DOP)−ﾊﾝﾄﾞﾙ,ﾚﾝﾁ

 1
09184 - STOPPER, WHEEL
09184-00010

KSP210,MXPA10,MXPH1#

ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ,輪止め

 1
42683 - SEAL, TIRE REPAIR
42683-K0010

KSP210,MXPA1#,MXPH1#

 1
44890D - COMPRESSOR ASSY, AIR
44890-K0010

KSP210,MXPA10,MXPH1#

 1
51960 - HOOK ASSY, FRONT
51960-10010

KSP210,MXPA1#,MXPH1#

 1
58791D - CARRIER, JACK
58791-K0040

KSP210,MXPA1#,MXPH10

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)

 1
58791-K0040

KSP210,MXPA1#,MXPH1#

ｼﾞｬｯｷ−有り(DOP)

 1
58792H - SUPPORT, JACK CARRIER
58792-K0010

KSP210,MXPA1#,MXPH10

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)

 1
58792-K0010

KSP210,MXPA1#,MXPH1#

ｼﾞｬｯｷ−有り(DOP)

 1
64766F - BEZEL, JACK COVER, LOWER
64766-K0040

KSP210,MXPA1#,MXPH1#

ｼﾞｬｯｷ−有り(DOP)

 1
64766-K0040

KSP210,MXPA1#,MXPH10

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)

 1
C6048A - SEALANT, REPAIR TIRE
C6048-K0010

KSP210,MXPA1#,MXPH1#

 1
Common parts
90105-08372
91673-80616
