MXPA10-AHFGB (2020)
Toyota Yaris
(2002- )

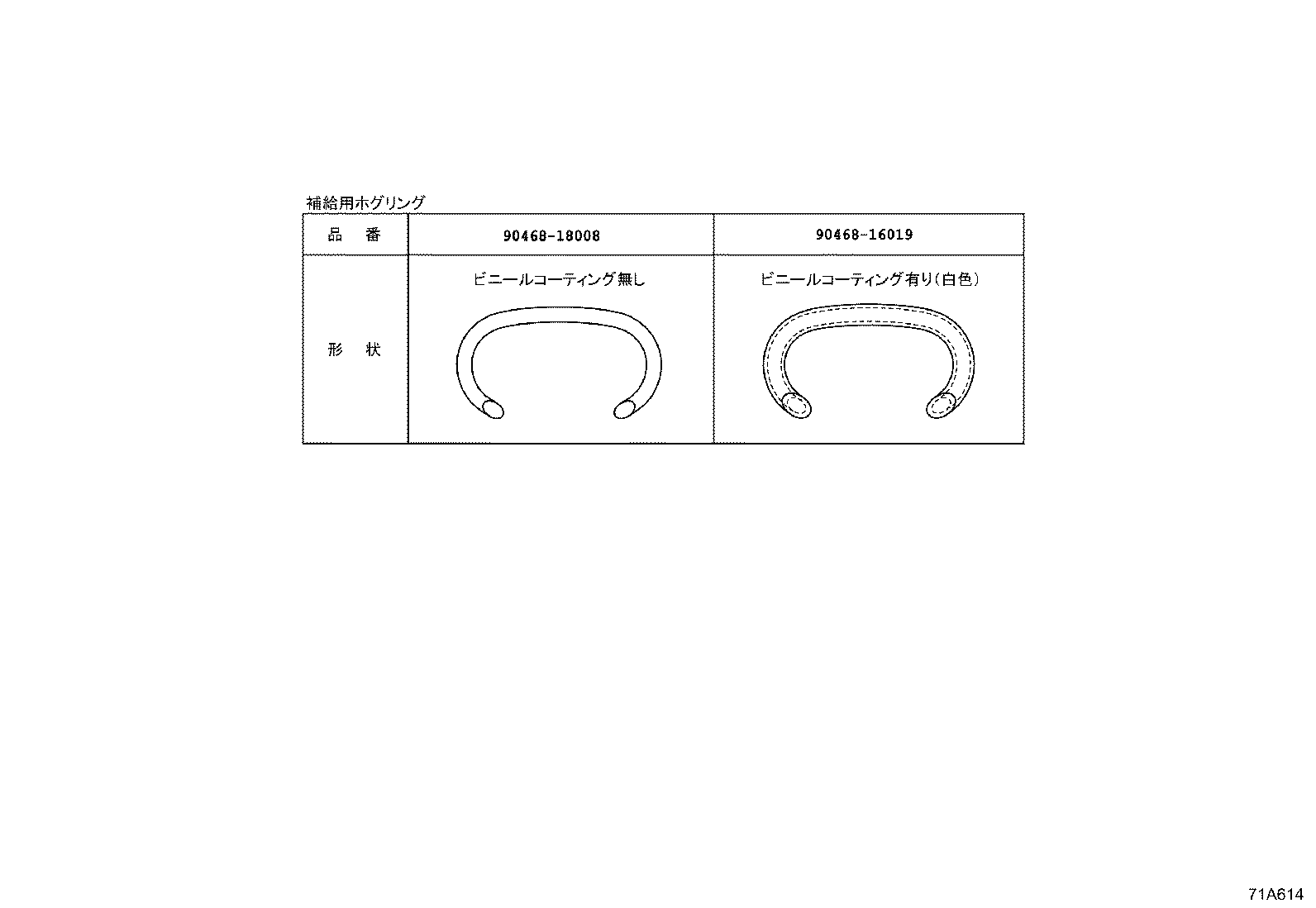

ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

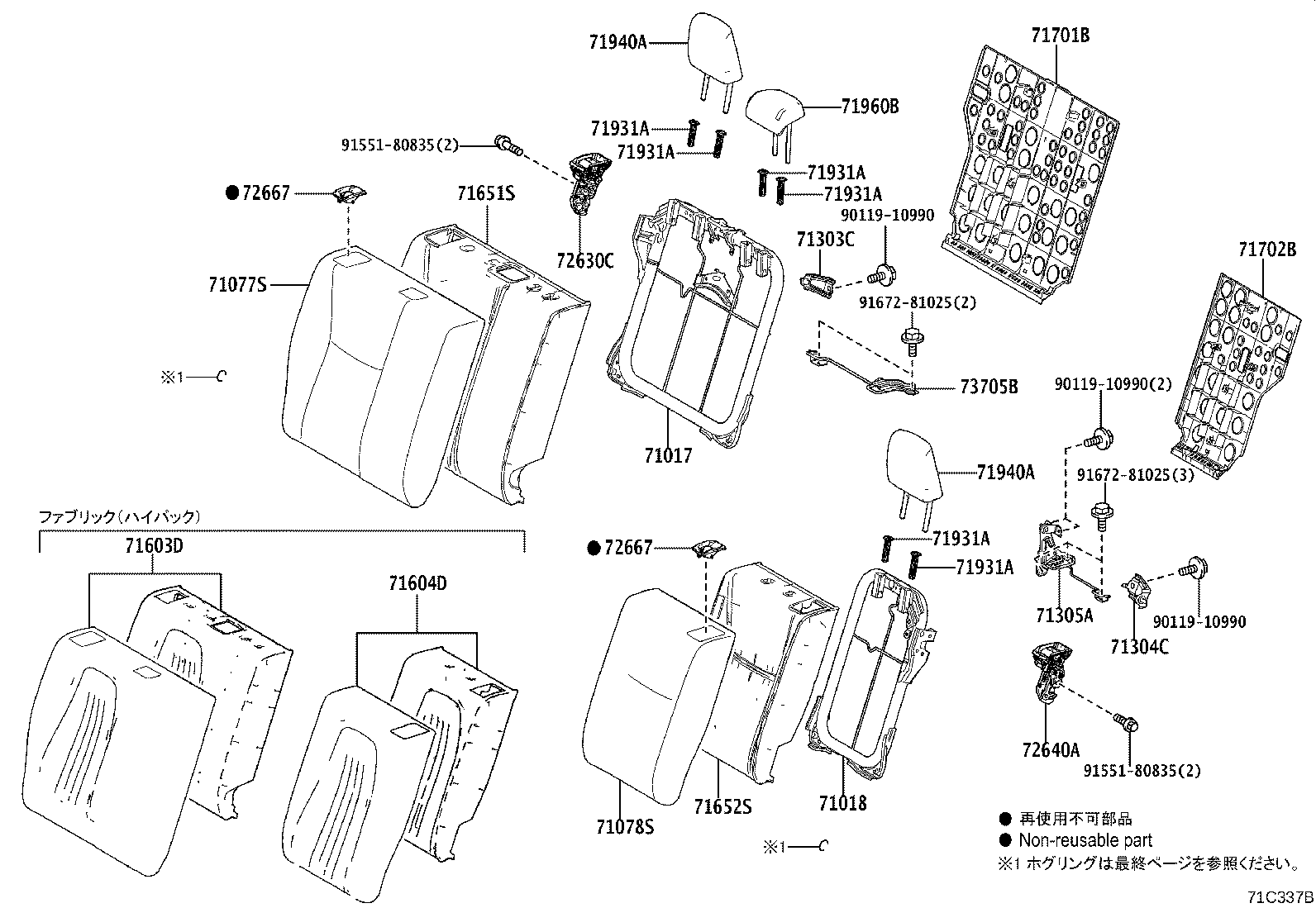

ILLUST NO. 1 OF 2(2002- )
ｼｰﾄﾊﾞｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-K0040 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-K0020 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-K0060C2 |
KSP210,MXPA1#,MXPH1#..G,HBDG “ｾﾚｸｼｮﾝ”*(K)&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾐｯﾄﾞｸﾞﾚｰﾄﾞ),BLACK/BLACK/BLACK/TAUPE,TRIM4# |
1 | ||
| 71077-K0100E1 |
MXPA1#,MXPH1#..G,HBDG ﾊｲｶﾗｰﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾒｲﾝ:ﾌｧﾌﾞﾘｯｸ ｻｲﾄﾞ:合皮,TAUPE/BLACK/TAUPE/LT.GRAY,TRIM1# |
1 | ||
| 71077-K0060C2 |
KSP210,MXPA1#,MXPH1#..G,HBDG “ｾﾚｸｼｮﾝ”*(K)&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ) 運転席:回転&ﾁﾙﾄ&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾐｯﾄﾞｸﾞﾚｰﾄﾞ),BLACK/BLACK/BLACK/TAUPE,TRIM4# |
1 | ||
| 71077-K0060C3 |
KSP210,MXPA1#,MXPH1#..G,HBDG “ｾﾚｸｼｮﾝ”*(K)&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾐｯﾄﾞｸﾞﾚｰﾄﾞ),BLACK/BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-K0060C0 |
KSP210,MXPA1#,MXPH1#..G,HBDG “ｾﾚｸｼｮﾝ”*(K)&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ) 運転席:回転&ﾁﾙﾄ&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾐｯﾄﾞｸﾞﾚｰﾄﾞ),BLACK/BLACK/TAUPE/BLACK,TRIM4# |
1 | ||
| 71078-K0100C1 |
MXPA1#,MXPH1#..G,HBDG ﾊｲｶﾗｰﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾒｲﾝ:ﾌｧﾌﾞﾘｯｸ ｻｲﾄﾞ:合皮,BLACK/TAUPE/LT.GRAY/TAUPE,TRIM1# |
1 | ||
| 71078-K0060C1 |
KSP210,MXPA1#,MXPH1#..G,HBDG “ｾﾚｸｼｮﾝ”*(K)&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾐｯﾄﾞｸﾞﾚｰﾄﾞ),BLACK/BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 71078-K0060C0 |
KSP210,MXPA1#,MXPH1#..G,HBDG “ｾﾚｸｼｮﾝ”*(K)&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾐｯﾄﾞｸﾞﾚｰﾄﾞ),BLACK/BLACK/TAUPE/BLACK,TRIM4# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-K0030 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-K0030 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-K0040 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH | ||||
| 71603-K0040E3 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X TAUPE,TRIM4# |
1 | ||
| 71603-K0040C8 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X BLACK,TRIM2# |
1 | ||
| 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH | ||||
| 71604-K0040E0 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X TAUPE,TRIM4# |
1 | ||
| 71604-K0040C0 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X BLACK,TRIM2# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-K0050 |
MXPA1#,MXPH1#..G,HBDG ﾊｲｶﾗｰﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾒｲﾝ:ﾌｧﾌﾞﾘｯｸ ｻｲﾄﾞ:合皮 |
1 | ||
| 71651-K0050 |
KSP210,MXPA1#,MXPH1#..G,HBDG “ｾﾚｸｼｮﾝ”*(K)&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾐｯﾄﾞｸﾞﾚｰﾄﾞ) |
1 | ||
| 71651-K0050 |
KSP210,MXPA1#,MXPH1#..G,HBDG “ｾﾚｸｼｮﾝ”*(K)&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ) 運転席:回転&ﾁﾙﾄ&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾐｯﾄﾞｸﾞﾚｰﾄﾞ) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-K0040 |
KSP210,MXPA1#,MXPH1#..G,HBDG “ｾﾚｸｼｮﾝ”*(K)&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾐｯﾄﾞｸﾞﾚｰﾄﾞ) |
1 | ||
| 71652-K0040 |
MXPA1#,MXPH1#..G,HBDG ﾊｲｶﾗｰﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾒｲﾝ:ﾌｧﾌﾞﾘｯｸ ｻｲﾄﾞ:合皮 |
1 | ||
| 71652-K0040 |
KSP210,MXPA1#,MXPH1#..G,HBDG “ｾﾚｸｼｮﾝ”*(K)&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ) 運転席:回転&ﾁﾙﾄ&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾐｯﾄﾞｸﾞﾚｰﾄﾞ) |
1 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-K0030 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71702-K0020 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ付,BLACK,TRIM2#,40 |
3 | ||
| 71930-47050L0 |
KSP210,MXPA1#,MXPH1#..HBDX,X ﾛｯｸ付,TAUPE,TRIM4# |
3 | ||
| 71930-47050C5 |
KSP210,MXPA1#,MXPH1#..HBDX,HBDZ,X,Z ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71930-47050L0 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ付,TAUPE,TRIM40 |
3 | ||
| 71931-47030C4 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ無,BLACK,TRIM2#,40 |
3 | ||
| 71931-47030L0 |
KSP210,MXPA1#,MXPH1#..HBDX,X ﾛｯｸ無,TAUPE,TRIM4# |
3 | ||
| 71931-47030C4 |
KSP210,MXPA1#,MXPH1#..HBDX,HBDZ,X,Z ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71931-47030L0 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ無,TAUPE,TRIM40 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ付,BLACK,TRIM2#,40 |
3 | ||
| 71930-47050L0 |
KSP210,MXPA1#,MXPH1#..HBDX,X ﾛｯｸ付,TAUPE,TRIM4# |
3 | ||
| 71930-47050C5 |
KSP210,MXPA1#,MXPH1#..HBDX,HBDZ,X,Z ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71930-47050L0 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ付,TAUPE,TRIM40 |
3 | ||
| 71931-47030C4 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ無,BLACK,TRIM2#,40 |
3 | ||
| 71931-47030L0 |
KSP210,MXPA1#,MXPH1#..HBDX,X ﾛｯｸ無,TAUPE,TRIM4# |
3 | ||
| 71931-47030C4 |
KSP210,MXPA1#,MXPH1#..HBDX,HBDZ,X,Z ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71931-47030L0 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ無,TAUPE,TRIM40 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ付,BLACK,TRIM2#,40 |
3 | ||
| 71930-47050L0 |
KSP210,MXPA1#,MXPH1#..HBDX,X ﾛｯｸ付,TAUPE,TRIM4# |
3 | ||
| 71930-47050C5 |
KSP210,MXPA1#,MXPH1#..HBDX,HBDZ,X,Z ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71930-47050L0 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ付,TAUPE,TRIM40 |
3 | ||
| 71931-47030C4 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ無,BLACK,TRIM2#,40 |
3 | ||
| 71931-47030L0 |
KSP210,MXPA1#,MXPH1#..HBDX,X ﾛｯｸ無,TAUPE,TRIM4# |
3 | ||
| 71931-47030C4 |
KSP210,MXPA1#,MXPH1#..HBDX,HBDZ,X,Z ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71931-47030L0 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ無,TAUPE,TRIM40 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ付,BLACK,TRIM2#,40 |
3 | ||
| 71930-47050L0 |
KSP210,MXPA1#,MXPH1#..HBDX,X ﾛｯｸ付,TAUPE,TRIM4# |
3 | ||
| 71930-47050C5 |
KSP210,MXPA1#,MXPH1#..HBDX,HBDZ,X,Z ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71930-47050L0 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ付,TAUPE,TRIM40 |
3 | ||
| 71931-47030C4 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ無,BLACK,TRIM2#,40 |
3 | ||
| 71931-47030L0 |
KSP210,MXPA1#,MXPH1#..HBDX,X ﾛｯｸ無,TAUPE,TRIM4# |
3 | ||
| 71931-47030C4 |
KSP210,MXPA1#,MXPH1#..HBDX,HBDZ,X,Z ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71931-47030L0 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ無,TAUPE,TRIM40 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ付,BLACK,TRIM2#,40 |
3 | ||
| 71930-47050L0 |
KSP210,MXPA1#,MXPH1#..HBDX,X ﾛｯｸ付,TAUPE,TRIM4# |
3 | ||
| 71930-47050C5 |
KSP210,MXPA1#,MXPH1#..HBDX,HBDZ,X,Z ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71930-47050L0 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ付,TAUPE,TRIM40 |
3 | ||
| 71931-47030C4 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ無,BLACK,TRIM2#,40 |
3 | ||
| 71931-47030L0 |
KSP210,MXPA1#,MXPH1#..HBDX,X ﾛｯｸ無,TAUPE,TRIM4# |
3 | ||
| 71931-47030C4 |
KSP210,MXPA1#,MXPH1#..HBDX,HBDZ,X,Z ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71931-47030L0 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ無,TAUPE,TRIM40 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ付,BLACK,TRIM2#,40 |
3 | ||
| 71930-47050L0 |
KSP210,MXPA1#,MXPH1#..HBDX,X ﾛｯｸ付,TAUPE,TRIM4# |
3 | ||
| 71930-47050C5 |
KSP210,MXPA1#,MXPH1#..HBDX,HBDZ,X,Z ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71930-47050L0 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ付,TAUPE,TRIM40 |
3 | ||
| 71931-47030C4 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ無,BLACK,TRIM2#,40 |
3 | ||
| 71931-47030L0 |
KSP210,MXPA1#,MXPH1#..HBDX,X ﾛｯｸ無,TAUPE,TRIM4# |
3 | ||
| 71931-47030C4 |
KSP210,MXPA1#,MXPH1#..HBDX,HBDZ,X,Z ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71931-47030L0 |
KSP210,MXPA1#,MXPH1#..G,HBDG ﾛｯｸ無,TAUPE,TRIM40 |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-K0060C2 |
KSP210,MXPA1#,MXPH1#..G,HBDG BLACK,TRIM2#,40 |
2 | ||
| 71940-K0060C2 |
KSP210,MXPA1#,MXPH1#..HBDX,HBDZ,X,Z BLACK,TRIM2# |
2 | ||
| 71940-K0060E2 |
KSP210,MXPA1#,MXPH1#..G,HBDG TAUPE,TRIM40 |
2 | ||
| 71940-K0060E2 |
KSP210,MXPA1#,MXPH1#..HBDX,X TAUPE,TRIM4# |
2 | ||
| 71940-K0070E2 |
MXPA1#,MXPH1#..G,HBDG ﾊｲｶﾗｰﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾒｲﾝ:ﾌｧﾌﾞﾘｯｸ ｻｲﾄﾞ:合皮,TAUPE,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-K0060C2 |
KSP210,MXPA1#,MXPH1#..G,HBDG BLACK,TRIM2#,40 |
2 | ||
| 71940-K0060C2 |
KSP210,MXPA1#,MXPH1#..HBDX,HBDZ,X,Z BLACK,TRIM2# |
2 | ||
| 71940-K0060E2 |
KSP210,MXPA1#,MXPH1#..G,HBDG TAUPE,TRIM40 |
2 | ||
| 71940-K0060E2 |
KSP210,MXPA1#,MXPH1#..HBDX,X TAUPE,TRIM4# |
2 | ||
| 71940-K0070E2 |
MXPA1#,MXPH1#..G,HBDG ﾊｲｶﾗｰﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾒｲﾝ:ﾌｧﾌﾞﾘｯｸ ｻｲﾄﾞ:合皮,TAUPE,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-K0050C2 |
KSP210,MXPA1#,MXPH1#..G,HBDG BLACK,TRIM2#,40 |
1 | ||
| 71960-K0050E2 |
KSP210,MXPA1#,MXPH1#..G,HBDG TAUPE,TRIM40 |
1 | ||
| 71960-K0050E2 |
KSP210,MXPA1#,MXPH1#..HBDX,X TAUPE,TRIM4# |
1 | ||
| 71960-K0060E2 |
MXPA1#,MXPH1#..G,HBDG ﾊｲｶﾗｰﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾒｲﾝ:ﾌｧﾌﾞﾘｯｸ ｻｲﾄﾞ:合皮,TAUPE,TRIM1# |
1 | ||
| 71960-K0050C2 |
KSP210,MXPA1#,MXPH1#..HBDX,HBDZ,X,Z BLACK,TRIM2# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-47050E3 |
MXPA10..6F..G TAUPE,TRIM1#,40 |
1 | ||
| 72630-47050C2 |
MXPA1#..X;MXPA10..6F..G;KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2#,40 |
1 | ||
| 72630-47050E3 |
MXPA1#..X;KSP210,MXPH1#..G,HBDX,X TAUPE,TRIM40 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-47050C2 |
MXPA1#..X;MXPA10..6F..G;KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2#,40 |
1 | ||
| 72640-47050E3 |
MXPA1#..X;KSP210,MXPH1#..G,HBDX,X TAUPE,TRIM40 |
1 | ||
| 72640-47050E3 |
MXPA10..6F..G TAUPE,TRIM1#,40 |
1 | ||
| 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER | ||||
| 72667-47010C1 |
MXPA1#..X;MXPA10..6F..G;KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2#,40 |
2 | ||
| 72667-47010E3 |
MXPA1#..X;KSP210,MXPH1#..G,HBDX,X TAUPE,TRIM40 |
2 | ||
| 72667-47010E3 |
MXPA10..6F..G TAUPE,TRIM1#,40 |
2 | ||
| 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER | ||||
| 72667-47010C1 |
MXPA1#..X;MXPA10..6F..G;KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2#,40 |
2 | ||
| 72667-47010E3 |
MXPA1#..X;KSP210,MXPH1#..G,HBDX,X TAUPE,TRIM40 |
2 | ||
| 72667-47010E3 |
MXPA10..6F..G TAUPE,TRIM1#,40 |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-K0030 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| Common parts | ||||
| 90119-10990 | ||||
| 91551-80835 | ||||
| 91672-81025 | ||||

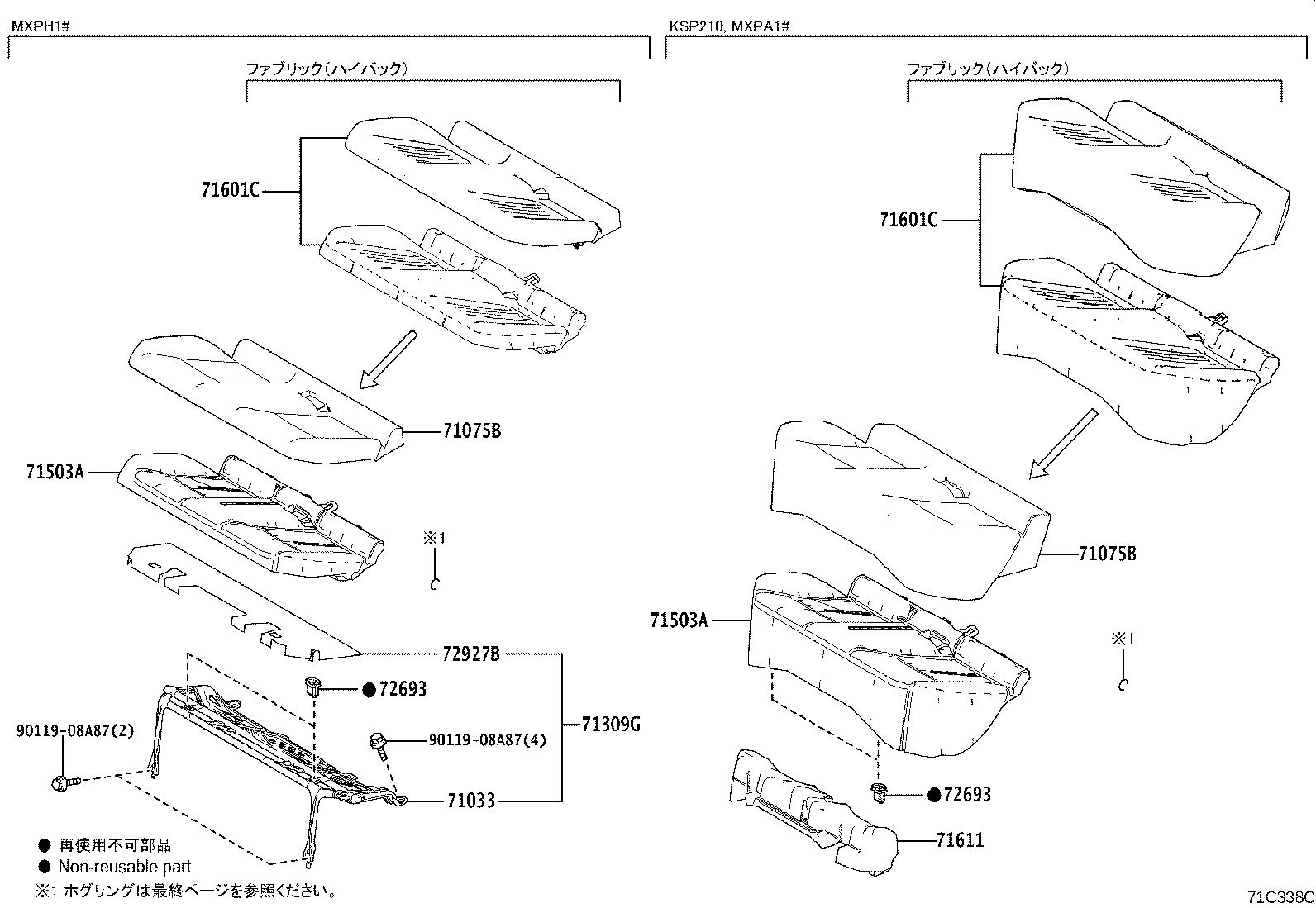

ILLUST NO. 2 OF 2(2002- )
ｼｰﾄｸｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-K0110C2 |
KSP210,MXPA1#..G “ｾﾚｸｼｮﾝ”*(K)&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾐｯﾄﾞｸﾞﾚｰﾄﾞ),BLACK/TAUPE/BLACK/MD.GRAY,TRIM4# |
1 | ||
| 71075-K0110C2 |
KSP210,MXPA1#..G “ｾﾚｸｼｮﾝ”*(K)&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ) 運転席:回転&ﾁﾙﾄ&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾐｯﾄﾞｸﾞﾚｰﾄﾞ),BLACK/TAUPE/BLACK/MD.GRAY,TRIM4# |
1 | ||
| 71075-K0110C3 |
KSP210,MXPA1#..G “ｾﾚｸｼｮﾝ”*(K)&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾐｯﾄﾞｸﾞﾚｰﾄﾞ),BLACK/BLACK/BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71075-K0190E1 |
MXPA1#..G ﾊｲｶﾗｰﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾒｲﾝ:ﾌｧﾌﾞﾘｯｸ ｻｲﾄﾞ:合皮,TAUPE/LT.GRAY/BLACK/TAUPE,TRIM1# |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-K0110C2 |
KSP210,MXPA1#..G “ｾﾚｸｼｮﾝ”*(K)&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾐｯﾄﾞｸﾞﾚｰﾄﾞ),BLACK/TAUPE/BLACK/MD.GRAY,TRIM4# |
1 | ||
| 71075-K0110C2 |
KSP210,MXPA1#..G “ｾﾚｸｼｮﾝ”*(K)&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ) 運転席:回転&ﾁﾙﾄ&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾐｯﾄﾞｸﾞﾚｰﾄﾞ),BLACK/TAUPE/BLACK/MD.GRAY,TRIM4# |
1 | ||
| 71075-K0110C3 |
KSP210,MXPA1#..G “ｾﾚｸｼｮﾝ”*(K)&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾐｯﾄﾞｸﾞﾚｰﾄﾞ),BLACK/BLACK/BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71075-K0190E1 |
MXPA1#..G ﾊｲｶﾗｰﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾒｲﾝ:ﾌｧﾌﾞﾘｯｸ ｻｲﾄﾞ:合皮,TAUPE/LT.GRAY/BLACK/TAUPE,TRIM1# |
1 | ||
| 71503A - PAD SUB-ASSY, REAR SEAT CUSHION | ||||
| 71503-K0070 |
KSP210,MXPA1#..G “ｾﾚｸｼｮﾝ”*(K)&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾐｯﾄﾞｸﾞﾚｰﾄﾞ) |
1 | ||
| 71503-K0070 |
MXPA1#..G ﾊｲｶﾗｰﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾒｲﾝ:ﾌｧﾌﾞﾘｯｸ ｻｲﾄﾞ:合皮 |
1 | ||
| 71503-K0070 |
KSP210,MXPA1#..G “ｾﾚｸｼｮﾝ”*(K)&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ) 運転席:回転&ﾁﾙﾄ&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾐｯﾄﾞｸﾞﾚｰﾄﾞ) |
1 | ||
| 71503A - PAD SUB-ASSY, REAR SEAT CUSHION | ||||
| 71503-K0070 |
KSP210,MXPA1#..G “ｾﾚｸｼｮﾝ”*(K)&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾐｯﾄﾞｸﾞﾚｰﾄﾞ) |
1 | ||
| 71503-K0070 |
MXPA1#..G ﾊｲｶﾗｰﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ)&ｼｰﾄ表皮−ﾒｲﾝ:ﾌｧﾌﾞﾘｯｸ ｻｲﾄﾞ:合皮 |
1 | ||
| 71503-K0070 |
KSP210,MXPA1#..G “ｾﾚｸｼｮﾝ”*(K)&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ) 運転席:回転&ﾁﾙﾄ&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾐｯﾄﾞｸﾞﾚｰﾄﾞ) |
1 | ||
| 71601C - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER, RH | ||||
| 71601-K0050C2 |
KSP210,MXPA1#..G,X BLACK,TRIM2# |
1 | ||
| 71601-K0050E3 |
KSP210,MXPA1#..G,X TAUPE,TRIM4# |
1 | ||
| 71601C - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER, RH | ||||
| 71601-K0050C2 |
KSP210,MXPA1#..G,X BLACK,TRIM2# |
1 | ||
| 71601-K0050E3 |
KSP210,MXPA1#..G,X TAUPE,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-K0020 |
KSP210,MXPA1# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
KSP210,MXPA1#,MXPH1# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
KSP210,MXPA1#,MXPH1# |
2 | ||
| Common parts | ||||
| 90119-08A87 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
