MXPA10-AHFGB (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine M15AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )KSP210,MXPA10

Click highlighted areas on diagram

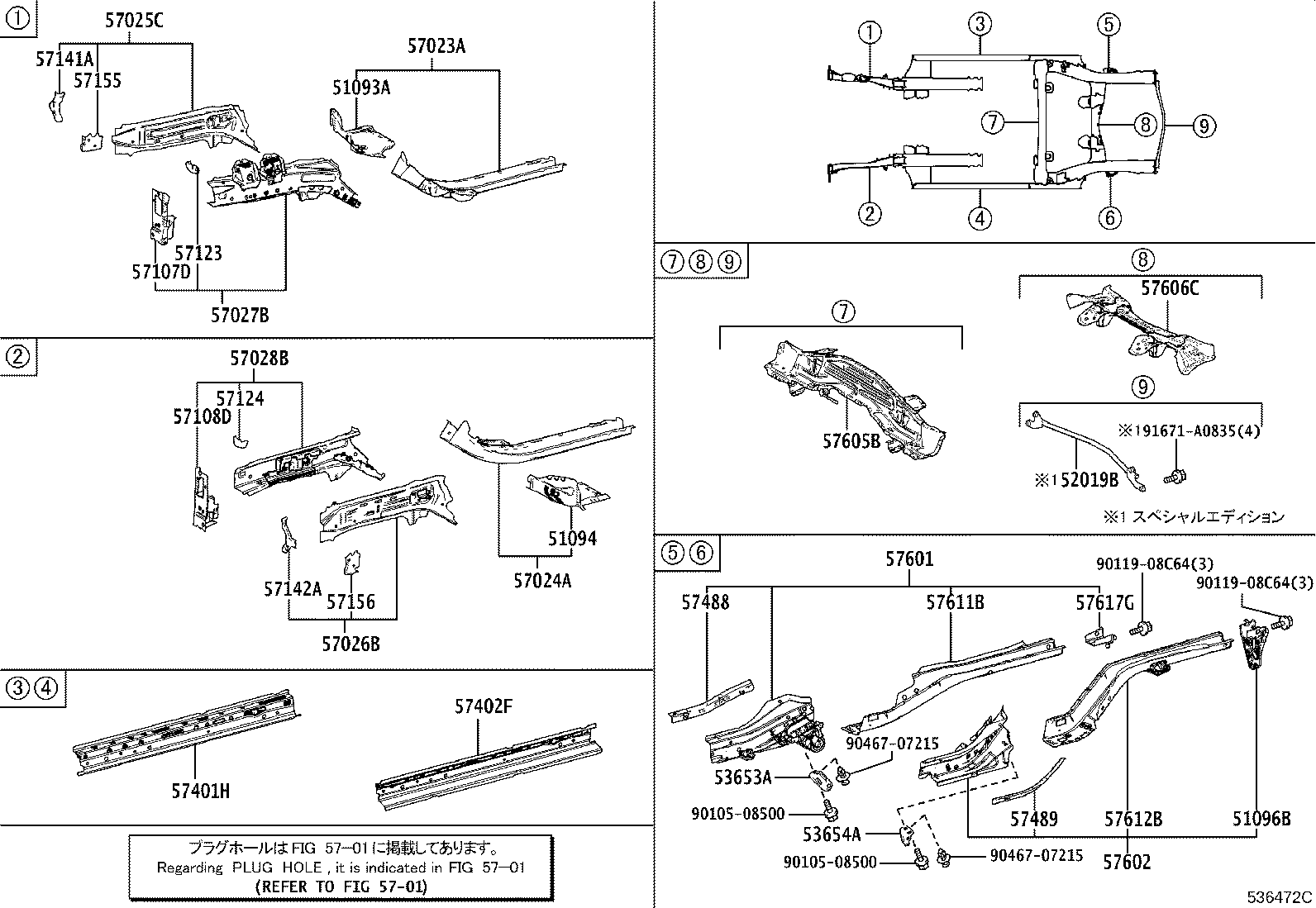

diagram 51093A 51094 51096B 52019B 53653A 53654A 5701 57023A 57024A 57025C 57026B 57027B 57028B 57107D 57108D 57123 57124 57141A 57142A 57155 57156 57401H 57402F 57488 57489 57601 57602 57605B 57606C 57611B 57612B 57617G 9010508500 9010508500 9011908C64 9011908C64 9046707215 9046707215 91671A0835
Part # Description Qty Price
51093A - HOOK SUB-ASSY, TRANSPORT, FRONT RH
51093-K0010

KSP210,MXPA1#,MXPH1#

 1
51094 - HOOK SUB-ASSY, TRANSPORT, FRONT LH
51094-K0010

KSP210,MXPA1#,MXPH1#

 1
51096B - HOOK SUB-ASSY, TRANSPORT, REAR LH
51096-K0010

KSP210,MXPA1#,MXPH1#

 1
53653A - BRACE, REAR SUSPENSION, LOWER RH
53653-K0010

KSP210,MXPA10,MXPH10

 1
53654A - BRACE, REAR SUSPENSION, LOWER LH
53654-K0010

KSP210,MXPA10,MXPH10

 1
57023A - MEMBER SUB-ASSY, REAR SIDE, RH
57023-K0010

KSP210,MXPA1#,MXPH1#

 1
57024A - MEMBER SUB-ASSY, REAR SIDE, LH
57024-K0010

KSP210,MXPA1#,MXPH1#

 1
57025C - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57025-K0010

KSP210,MXPA1#,MXPH1#

 1
57026B - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57026-K0010

KSP210,MXPA1#,MXPH1#

 1
57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH
57027-52020

KSP210,MXPA1#,MXPH1#

 1
57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH
57028-K0010

KSP210,MXPA1#,MXPH1#

 1
57107D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH
57107-K0010

KSP210,MXPA1#,MXPH1#

 1
57108D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH
57108-K0010

KSP210,MXPA1#,MXPH1#

 1
57123 - SUPPORT, FRONT SIDE MEMBER, RH
57123-K0010

KSP210,MXPA1#,MXPH1#

 1
57124 - SUPPORT, FRONT SIDE MEMBER, LH
57124-K0010

KSP210,MXPA1#,MXPH1#

 1
57141A - SUPPORT, FRONT BUMPER ARM, RH
57141-K0010

KSP210,MXPA1#,MXPH1#

 1
57142A - SUPPORT, FRONT BUMPER ARM, LH
57142-K0010

KSP210,MXPA1#,MXPH1#

 1
57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH
57155-K0010

KSP210,MXPA1#,MXPH1#

 1
57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH
57156-K0010

KSP210,MXPA1#,MXPH1#

 1
57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57401-K0010

KSP210,MXPA1#,MXPH1#

 1
57402F - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57402-K0010

KSP210,MXPA1#,MXPH1#

 1
57488 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.2 RH
57488-K0010

KSP210,MXPA1#,MXPH1#

 1
57489 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.2 LH
57489-K0010

KSP210,MXPA1#,MXPH1#

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-K0020

KSP210,MXPA10,MXPH10

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-K0020

KSP210,MXPA10,MXPH10

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-K0020

KSP210,MXPA10

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-K0020

KSP210,MXPA10,MXPH10

 1
57611B - MEMBER, REAR FLOOR SIDE, FRONT RH
57611-K0020

KSP210,MXPA1#,MXPH1#

 1
57612B - MEMBER, REAR FLOOR SIDE, FRONT LH
57612-K0020

KSP210,MXPA1#,MXPH1#

 1
57617G - RETAINER, REAR BUMPER ARM
57617-K0010

KSP210,MXPA1#,MXPH1#

 1
Common parts
90105-08500
90119-08C64
90467-07215
91671-A0835
Linked diagrams
5701
