MXPA10-AHFGB (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine M15AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

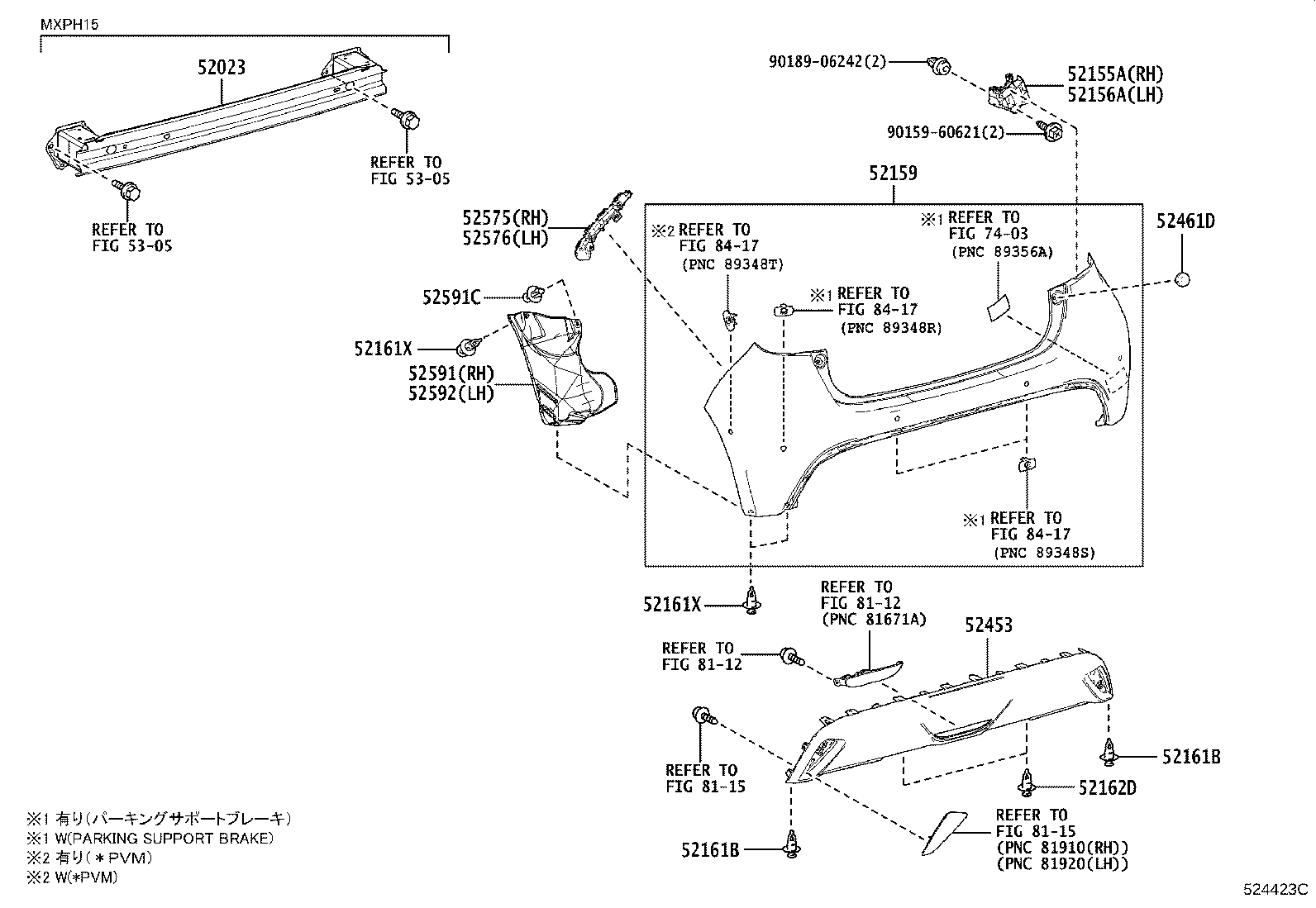

Click highlighted areas on diagram

diagram 52023 52155A 52156A 52159 52161B 52161B 52161X 52161X 52162D 52453 52461D 52575 52576 52591 52591C 52592 5305 5305 7403 8112 8112 8115 8115 8417 8417 8417 9015960621 9018906242
Part # Description Qty Price
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-K0010

KSP210,MXPA1#,MXPH1#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-K0010

KSP210,MXPA1#,MXPH1#

 1
52159 - COVER, REAR BUMPER
52159-K0010D0

KSP210,MXPA1#,MXPH1#

BORDEAUX M.M,3R9

 1
52159-K0010D3

MXPA10..6F..Z;KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

CORAL CS.,2SR ,3U7

 1
52159-K0010D2

MXPA10..6F..Z;KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

ICE PINK ME.,2SS ,3U6

 1
52159-K0010A1

MXPA10..6F..Z;KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

WHITE PEARL CS.,070

 1
52159-K0010J1

MXPA10..6F..Z;KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

CYAN METALLIC,2RV ,8W9

 1
52159-K0010C0

MXPA10..6F..Z;KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

BLACK,202 ,2KC

 1
52159-K0010D1

MXPA10..6F..Z;KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

RED MC.,2NE ,3T3

 1
52159-K0010B0

MXPA10..6F..Z;KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

SILVER ME.,1F7

 1
52159-K0010A0

MXPA10..6F..Z;KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

SUPER WHITE 2,040

 1
52159-K0010E0

MXPA10..6F..Z;KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

AVANT-GARDE BRONZE ME.,2SQ ,4V8

 1
52159-K0010G0

MXPA10..6F..Z;KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

THERMO-TECT LIME GREEN,6W7

 1
52159-K0010J0

MXPA10..6F..Z;KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

DK.BLUE M.M.,8W7

 1
52161B - PIECE, REAR BUMPER
52161-16010

KSP210,MXPA1#,MXPH1#

 2
52161B - PIECE, REAR BUMPER
52161-16010

KSP210,MXPA1#,MXPH1#

 2
52161X - PIECE, REAR BUMPER
52161-16010

KSP210,MXPA1#,MXPH1#

 6
52161X - PIECE, REAR BUMPER
52161-16010

KSP210,MXPA1#,MXPH1#

 6
52162D - PIECE, REAR BUMPER
52161-16010

KSP210,MXPA1#,MXPH1#

 2
52453 - GUARD, REAR BUMPER, CENTER
52453-K0010

KSP210,MXPA1#,MXPH1#

 1
52461D - CUSHION, REAR BUMPER
52461-52020

KSP210,MXPA1#,MXPH1#

 2
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-K0010

KSP210,MXPA1#,MXPH1#

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-K0010

KSP210,MXPA1#,MXPH1#

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-52450

KSP210,MXPA1#,MXPH1#

 1
52591C - CLIP, REAR BUMPER SIDE SEAL
90467-06121

KSP210,MXPA1#,MXPH1#

 2
90467-06206C0

MXPA10..6F..Z;KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

BLACK

 2
52592 - SEAL, REAR BUMPER SIDE, LH
52592-52450

KSP210,MXPA1#,MXPH1#

 1
Common parts
90159-60621
90189-06242
Linked diagrams
5305
7403
8112
8115
8417
