MXPA10-AHFEB (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine M15AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

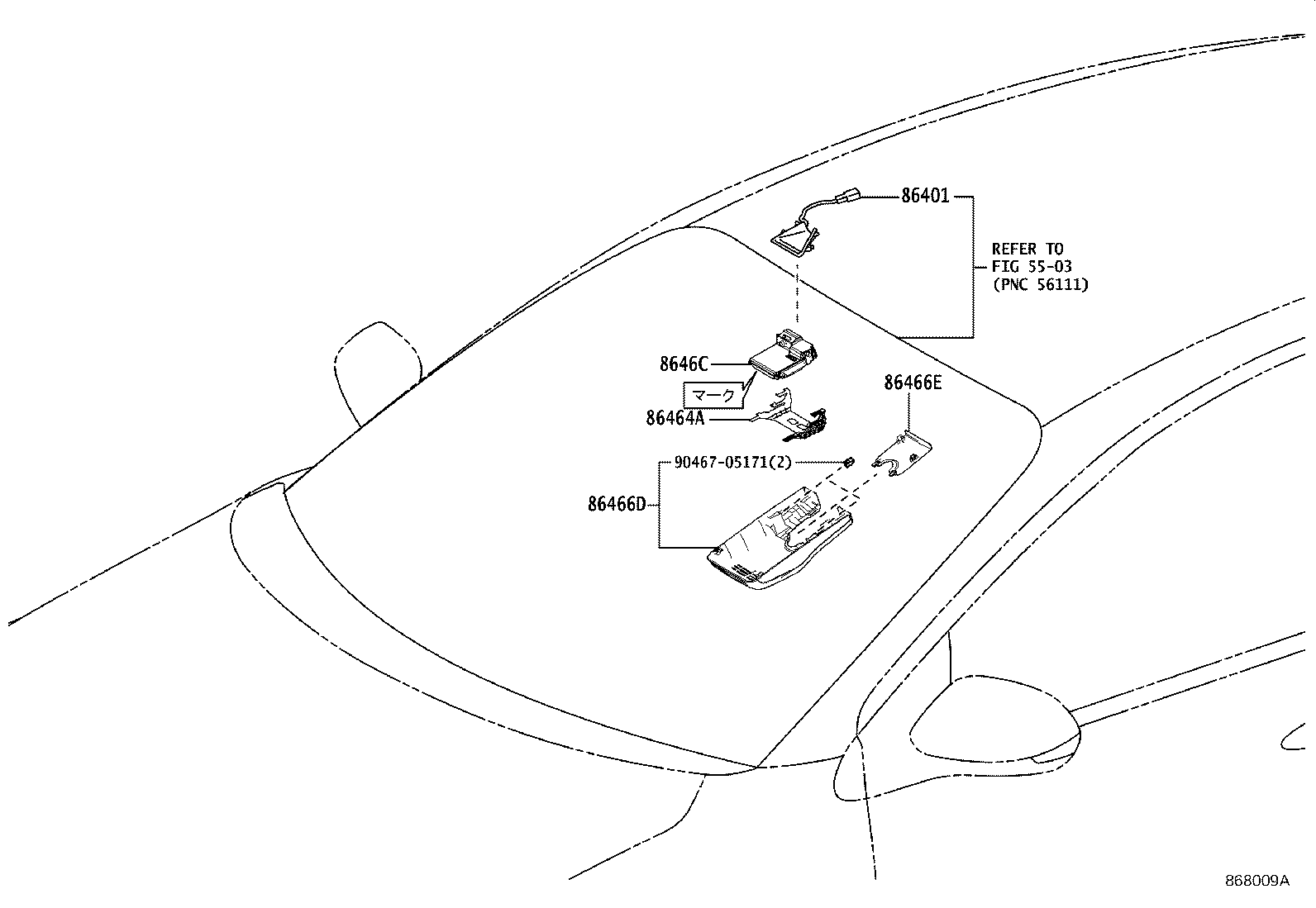

Click highlighted areas on diagram

diagram 5503 86401 86464A 86466D 86466E 8646C 9046705171
Part # Description Qty Price
86401 - HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER
86401-K0010

KSP210,MXPA1#,MXPH1#

 1
86401-K0010

KSP210,MXPA1#,MXPH1#..HBDX,X

予防安全ﾊﾟｯｹｰｼﾞ−無し

 1
86464A - LATCH, FORWARD RECOGNITION
86464-K0010

KSP210,MXPA1#,MXPH1#

 1
86466D - COVER, FORWARD RECOGNITION, NO.1
86466-K0010

KSP210,MXPA1#,MXPH1#..HBDX,X

予防安全ﾊﾟｯｹｰｼﾞ−無し

 1
86466-K0010

KSP210,MXPA1#,MXPH1#

 1
86466E - COVER, FORWARD RECOGNITION, NO.2
86466-K0020

KSP210,MXPA1#,MXPH1#..HBDX,X

予防安全ﾊﾟｯｹｰｼﾞ−無し

 1
86466-K0020

KSP210,MXPA1#,MXPH1#

 1
8646C - CAMERA, FORWARD RECOGNITION
8646C-52080

KSP210,MXPA1#,MXPH1#

*614､ﾏｰｸ 8646C−52080

 1
8646C-52030

KSP210,MXPA1#,MXPH1#..HBDX,X

予防安全ﾊﾟｯｹｰｼﾞ−無し,*614､ﾏｰｸ 8646C−52030

 1
8646C-K0010

KSP210,MXPA1#,MXPH1#

*614､ﾏｰｸ 8646C−K0010

 1
8646C-52080

KSP210,MXPA1#,MXPH1#..HBDX,X

予防安全ﾊﾟｯｹｰｼﾞ−無し,*614､ﾏｰｸ 8646C−52080

 1
8646C-K0010

KSP210,MXPA1#,MXPH1#..HBDX,X

予防安全ﾊﾟｯｹｰｼﾞ−無し,*614､ﾏｰｸ 8646C−K0010

 1
8646C-52030

KSP210,MXPA1#,MXPH1#

*614､ﾏｰｸ 8646C−52030

 1
Common parts
90467-05171
Linked diagrams
5503
