MXPA10-AHFEB (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine M15AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

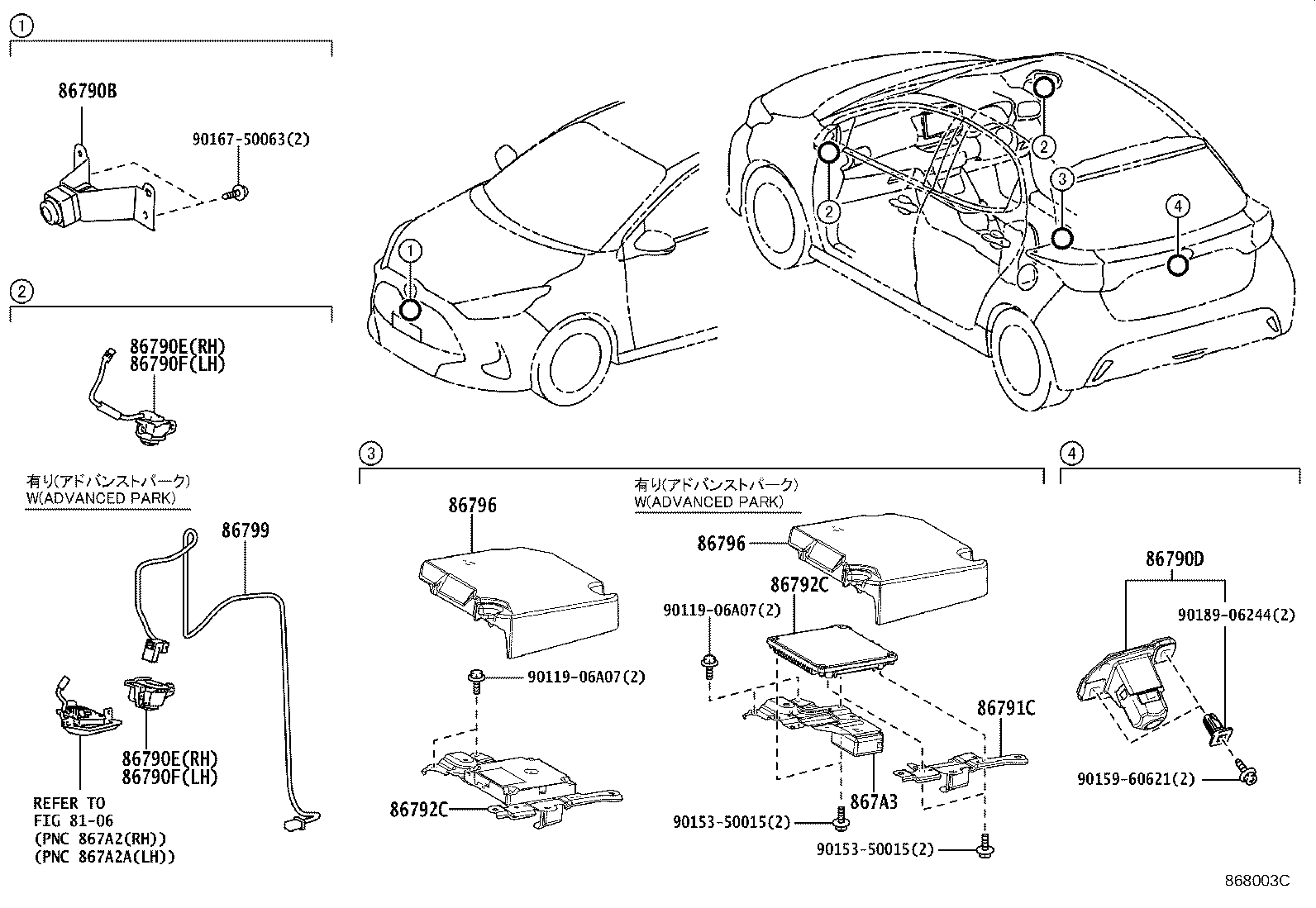

Click highlighted areas on diagram

diagram 8106 86790B 86790D 86790E 86790E 86790F 86790F 86791C 86792C 86792C 86796 86796 86799 867A3 9011906A07 9011906A07 9015350015 9015350015 9015960621 9016750063 9018906244
Part # Description Qty Price
86790B - CAMERA ASSY, TELEVISION, FR
86790-K0080

KSP210,MXPA10,MXPH1#

ﾊﾞｯｸﾓﾆﾀ−有り(*PVM)

 1
86790D - CAMERA ASSY, TELEVISION, RR
86790-K0020

KSP210,MXPA1#,MXPH1#

ﾊﾞｯｸﾓﾆﾀ−有り(*PVM)

 1
867B0-K0010

KSP210,MXPA1#..G,Z

ﾊﾞｯｸﾓﾆﾀ−有り(*BGM)

 1
867B0-K0010

KSP210,MXPA1#,MXPH1#..HBDX,X

ﾊﾞｯｸﾓﾆﾀ−有り(*BGM)

 1
867B0-K0010

KSP210,MXPA1#..G,Z

 1
86790E - CAMERA ASSY, TELEVISION, SIDE RH
86790-K0040

KSP210,MXPA10,MXPH1#

ﾊﾞｯｸﾓﾆﾀ−有り(*PVM)

 1
86790E - CAMERA ASSY, TELEVISION, SIDE RH
86790-K0040

KSP210,MXPA10,MXPH1#

ﾊﾞｯｸﾓﾆﾀ−有り(*PVM)

 1
86790F - CAMERA ASSY, TELEVISION, SIDE LH
86790-K0030

KSP210,MXPA10,MXPH1#

ﾊﾞｯｸﾓﾆﾀ−有り(*PVM)

 1
86790F - CAMERA ASSY, TELEVISION, SIDE LH
86790-K0030

KSP210,MXPA10,MXPH1#

ﾊﾞｯｸﾓﾆﾀ−有り(*PVM)

 1
86792C - COMPUTER, PARKING ASSIST
86792-K0010

KSP210,MXPA1#,MXPH1#

ﾊﾞｯｸﾓﾆﾀ−有り(*PVM)

 1
86792C - COMPUTER, PARKING ASSIST
86792-K0010

KSP210,MXPA1#,MXPH1#

ﾊﾞｯｸﾓﾆﾀ−有り(*PVM)

 1
86796 - COVER, COMPUTER PARKING ASSIST
86796-K0010

KSP210,MXPA10,MXPH1#

ﾊﾞｯｸﾓﾆﾀ−有り(*PVM)

 1
86796 - COVER, COMPUTER PARKING ASSIST
86796-K0010

KSP210,MXPA10,MXPH1#

ﾊﾞｯｸﾓﾆﾀ−有り(*PVM)

 1
Common parts
90119-06A07
90153-50015
90159-60621
90167-50063
90189-06244
Linked diagrams
8106
