MXPA10-AHFEB (2020)
Toyota Yaris

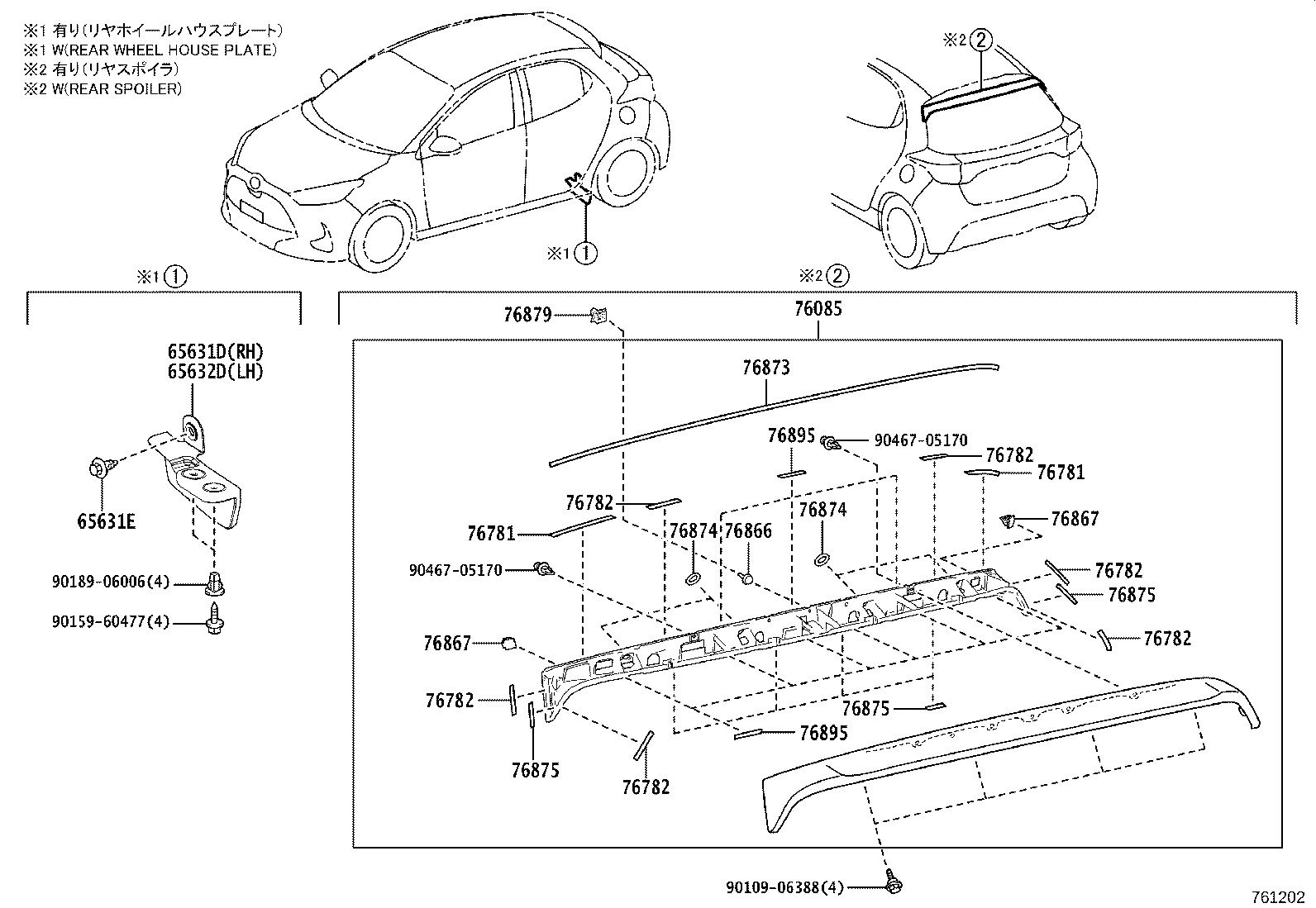

ILLUST NO. 1 OF 2(2002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65631D - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-K0010 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDZ,Z |
1 | ||
| 65631E - CLIP, REAR WHEEL HOUSE PLATE | ||||
| 75867-33050 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDZ,Z |
2 | ||
| 75867-30140 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDZ,Z |
2 | ||
| 65632D - PLATE, REAR WHEEL HOUSE, FRONT LH | ||||
| 65632-K0010 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDZ,Z |
1 | ||
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-52270C0 |
MXPA1#,MXPH1#..HBDZ,Z BLACK,040 ,070 ,1F7 ,202 ,2KC ,2NE ,2RV ,2SQ ,2SR ,2SS ,3R9 ,3T3 ,3U6 ,3U7 ,4V8 ,6W7 ,8W7 ,8W9 |
1 | ||
| 76085-52270C0 |
MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X ﾘﾔｽﾎﾟｲﾗ−有り,BLACK,040 ,070 ,1F7 ,202 ,2KC ,2NE ,2RV ,2SQ ,2SR ,2SS ,3R9 ,3T3 ,3U6 ,3U7 ,4V8 ,6W7 ,8W7 ,8W9 |
1 | ||
| 76781 - TAPE, REAR SPOILER, UPPER RH | ||||
| 76781-52040 |
MXPA1#,MXPH1#..HBDZ,Z |
2 | ||
| 76781-52040 |
MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X ﾘﾔｽﾎﾟｲﾗ−有り |
2 | ||
| 76781 - TAPE, REAR SPOILER, UPPER RH | ||||
| 76781-52040 |
MXPA1#,MXPH1#..HBDZ,Z |
2 | ||
| 76781-52040 |
MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X ﾘﾔｽﾎﾟｲﾗ−有り |
2 | ||
| 76782 - TAPE, REAR SPOILER, UPPER LH | ||||
| 76782-52040 |
MXPA1#,MXPH1#..HBDZ,Z |
6 | ||
| 76782-52040 |
MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X ﾘﾔｽﾎﾟｲﾗ−有り |
6 | ||
| 76782 - TAPE, REAR SPOILER, UPPER LH | ||||
| 76782-52040 |
MXPA1#,MXPH1#..HBDZ,Z |
6 | ||
| 76782-52040 |
MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X ﾘﾔｽﾎﾟｲﾗ−有り |
6 | ||
| 76782 - TAPE, REAR SPOILER, UPPER LH | ||||
| 76782-52040 |
MXPA1#,MXPH1#..HBDZ,Z |
6 | ||
| 76782-52040 |
MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X ﾘﾔｽﾎﾟｲﾗ−有り |
6 | ||
| 76782 - TAPE, REAR SPOILER, UPPER LH | ||||
| 76782-52040 |
MXPA1#,MXPH1#..HBDZ,Z |
6 | ||
| 76782-52040 |
MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X ﾘﾔｽﾎﾟｲﾗ−有り |
6 | ||
| 76782 - TAPE, REAR SPOILER, UPPER LH | ||||
| 76782-52040 |
MXPA1#,MXPH1#..HBDZ,Z |
6 | ||
| 76782-52040 |
MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X ﾘﾔｽﾎﾟｲﾗ−有り |
6 | ||
| 76782 - TAPE, REAR SPOILER, UPPER LH | ||||
| 76782-52040 |
MXPA1#,MXPH1#..HBDZ,Z |
6 | ||
| 76782-52040 |
MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X ﾘﾔｽﾎﾟｲﾗ−有り |
6 | ||
| 76866 - RETAINER, REAR SPOILER, NO.2 | ||||
| 76866-48010 |
MXPA1#,MXPH1#..HBDZ,Z |
1 | ||
| 76866-48010 |
MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X ﾘﾔｽﾎﾟｲﾗ−有り |
1 | ||
| 76867 - RETAINER, REAR SPOILER SIDE, RH | ||||
| 76867-K0010 |
MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X ﾘﾔｽﾎﾟｲﾗ−有り |
2 | ||
| 76867-K0010 |
MXPA1#,MXPH1#..HBDZ,Z |
2 | ||
| 76867 - RETAINER, REAR SPOILER SIDE, RH | ||||
| 76867-K0010 |
MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X ﾘﾔｽﾎﾟｲﾗ−有り |
2 | ||
| 76867-K0010 |
MXPA1#,MXPH1#..HBDZ,Z |
2 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-52170 |
MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X ﾘﾔｽﾎﾟｲﾗ−有り |
1 | ||
| 76873-52170 |
MXPA1#,MXPH1#..HBDZ,Z |
1 | ||
| 76874 - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-52120 |
MXPA1#,MXPH1#..HBDZ,Z |
4 | ||
| 76874-52120 |
MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X ﾘﾔｽﾎﾟｲﾗ−有り |
4 | ||
| 76874 - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-52120 |
MXPA1#,MXPH1#..HBDZ,Z |
4 | ||
| 76874-52120 |
MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X ﾘﾔｽﾎﾟｲﾗ−有り |
4 | ||
| 76875 - PROTECTOR, REAR SPOILER, NO.4 | ||||
| 76875-52100 |
MXPA1#,MXPH1#..HBDZ,Z |
6 | ||
| 76875-52100 |
MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X ﾘﾔｽﾎﾟｲﾗ−有り |
6 | ||
| 76875 - PROTECTOR, REAR SPOILER, NO.4 | ||||
| 76875-52100 |
MXPA1#,MXPH1#..HBDZ,Z |
6 | ||
| 76875-52100 |
MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X ﾘﾔｽﾎﾟｲﾗ−有り |
6 | ||
| 76875 - PROTECTOR, REAR SPOILER, NO.4 | ||||
| 76875-52100 |
MXPA1#,MXPH1#..HBDZ,Z |
6 | ||
| 76875-52100 |
MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X ﾘﾔｽﾎﾟｲﾗ−有り |
6 | ||
| 76879 - CLIP, REAR SPOILER, NO.1 | ||||
| 76879-52030 |
MXPA1#,MXPH1#..HBDZ,Z |
1 | ||
| 76879-52030 |
MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X ﾘﾔｽﾎﾟｲﾗ−有り |
1 | ||
| 76895 - PROTECTOR, REAR SPOILER, NO.5 | ||||
| 76895-52040 |
MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X ﾘﾔｽﾎﾟｲﾗ−有り |
9 | ||
| 76895-52040 |
MXPA1#,MXPH1#..HBDZ,Z |
9 | ||
| 76895 - PROTECTOR, REAR SPOILER, NO.5 | ||||
| 76895-52040 |
MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X ﾘﾔｽﾎﾟｲﾗ−有り |
9 | ||
| 76895-52040 |
MXPA1#,MXPH1#..HBDZ,Z |
9 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90159-60477 | ||||
| 90189-06006 | ||||
| 90467-05170 | ||||

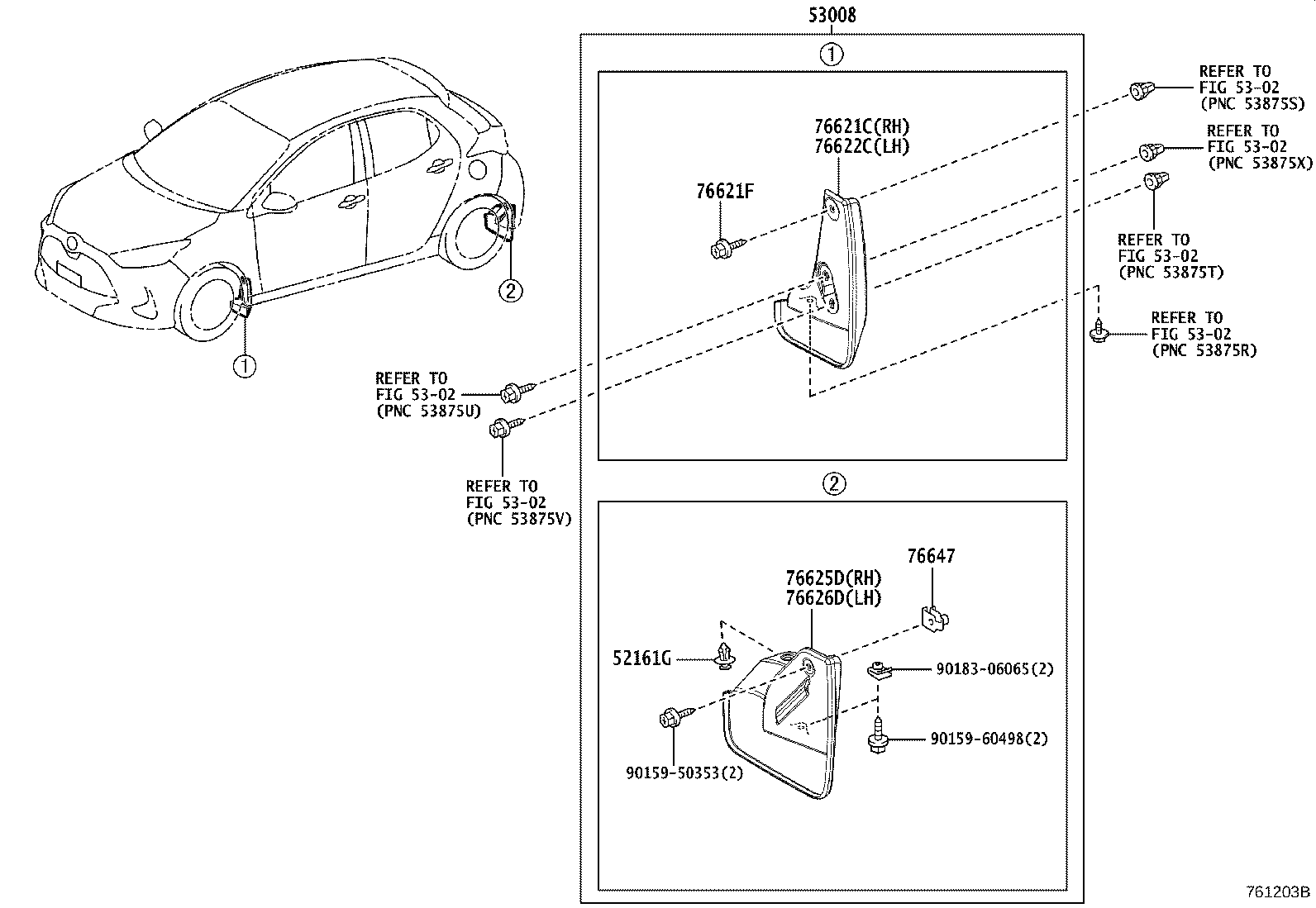

ILLUST NO. 2 OF 2(2002- )
ﾏｯﾄﾞｶﾞｰﾄﾞ(DOP)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161G - PIECE, REAR BUMPER | ||||
| 52161-16010 |
KSP210,MXPA1#,MXPH1# ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ&ﾘﾔ) |
2 | ||
| 53008 - MUDGUARD SET | ||||
| 53008-K0010 |
KSP210,MXPA1#,MXPH1# ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ&ﾘﾔ) |
1 | ||
| 76621C - MUDGUAD, FRONT FENDER, RH | ||||
| 76621-K0010 |
KSP210,MXPA1#,MXPH1# ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ&ﾘﾔ) |
1 | ||
| 76621F - SCREW, NO.1 | ||||
| 90159-60623 |
KSP210,MXPA1#,MXPH1# ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ&ﾘﾔ) |
2 | ||
| 76622C - MUDGUARD, FRONT FENDER, LH | ||||
| 76622-K0010 |
KSP210,MXPA1#,MXPH1# ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ&ﾘﾔ) |
1 | ||
| 76625D - MUDGUARD, QUARTER PANEL, REAR RH | ||||
| 76625-K0010 |
KSP210,MXPA1#,MXPH1# ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ&ﾘﾔ) |
1 | ||
| 76626D - MUDGUARD, QUARTER PANEL, REAR LH | ||||
| 76626-K0010 |
KSP210,MXPA1#,MXPH1# ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ&ﾘﾔ) |
1 | ||
| 76647 - RETAINER, QUARTER PANEL REAR MUDGUARD | ||||
| 76647-52010 |
KSP210,MXPA1#,MXPH1# ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ&ﾘﾔ) |
2 | ||
| Common parts | ||||
| 90159-50353 | ||||
| 90159-60498 | ||||
| 90183-06065 | ||||
| Linked diagrams | ||||
| 5302 | ||||
