MXPA10-AHFEB (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine M15AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )6F

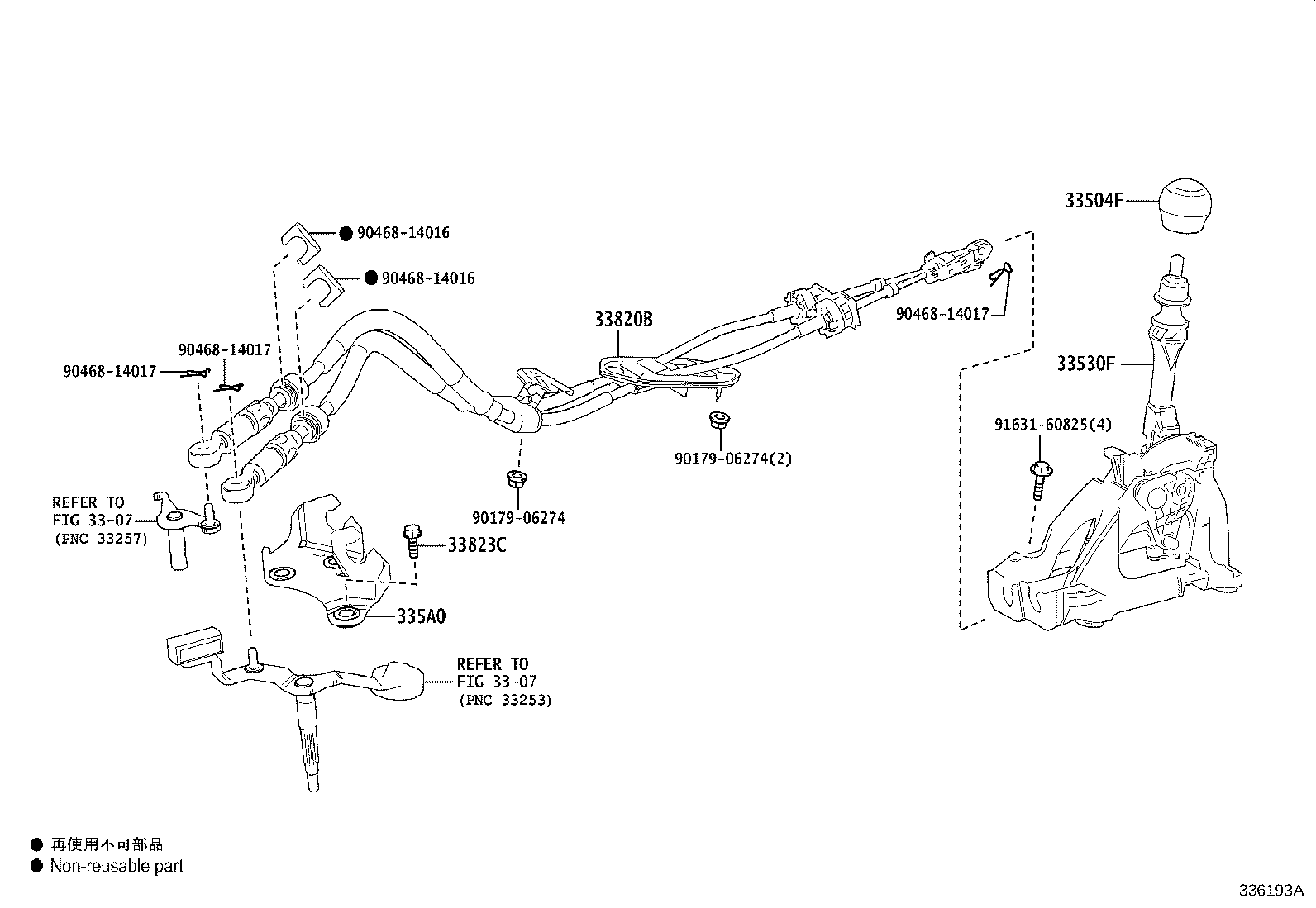

Click highlighted areas on diagram

diagram 3307 3307 33504F 33530F 335A0 33820B 33823C 9017906274 9017906274 9046814016 9046814016 9046814017 9046814017 9046814017 9163160825
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-12680C1

MXPA10..6F..X

BLACK,TRIM2#,4#

 1
33504-52570C0

MXPA10..6F..Z

BLACK,TRIM1#,2#

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-12C50

MXPA10..6F

 1
335A0 - BRACKET ASSY, CONTROL CABLE
335A0-20010

MXPA10..6F

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-K0060

MXPA10..6F

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-08C60

MXPA10..6F

 3
Common parts
90179-06274
90468-14016
90468-14017
91631-60825
Linked diagrams
3307
