KSP210-AHXNK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

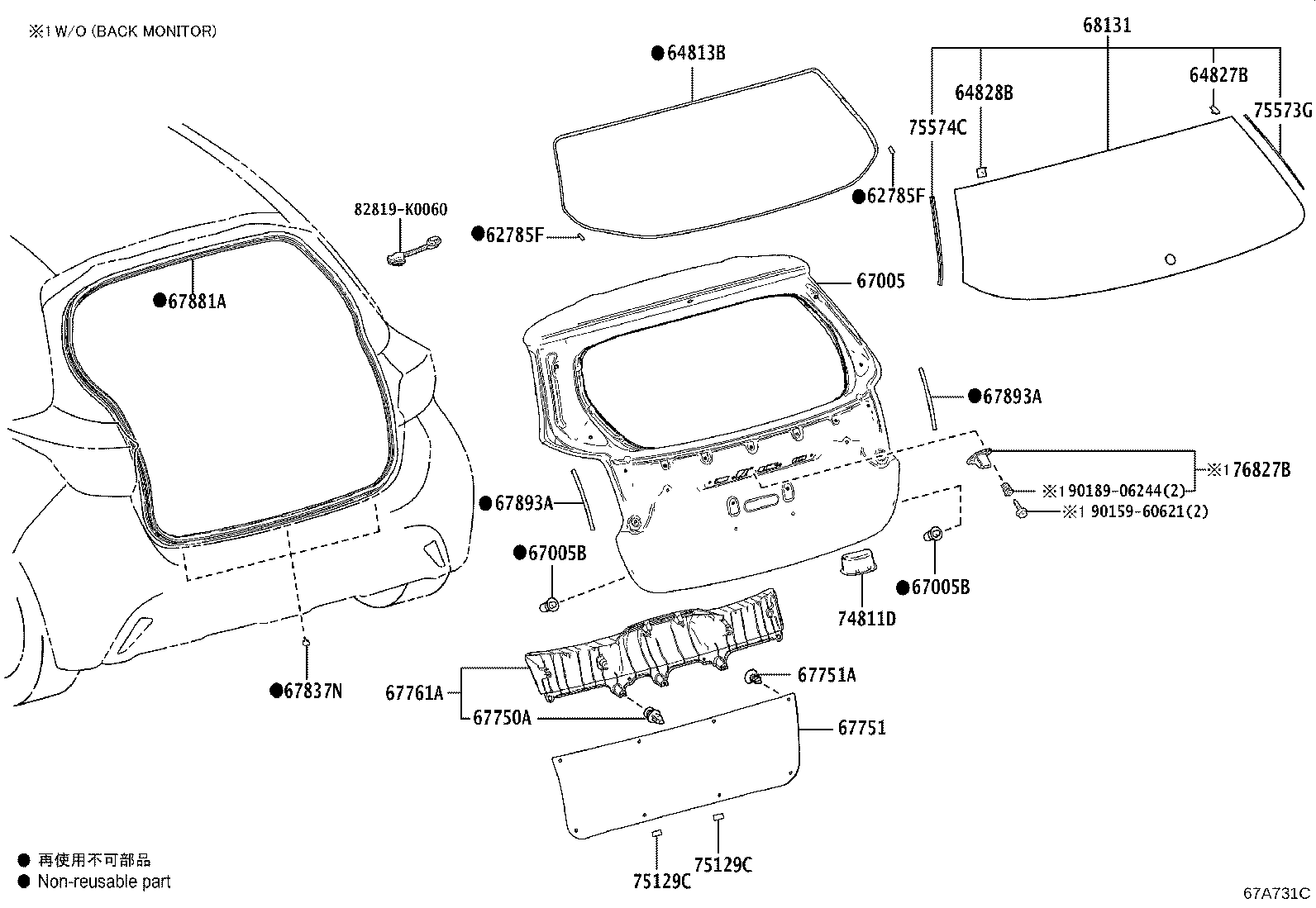

Click highlighted areas on diagram

diagram 62785F 62785F 64813B 64827B 64828B 67005 67005B 67005B 67750A 67751 67751A 67761A 67837N 67881A 67893A 67893A 68131 74811D 75129C 75129C 75573G 75574C 76827B 82819K0060 9015960621 9018906244
Part # Description Qty Price
62785F - SPACER, BACK DOOR GLASS
62785-12050

KSP210,MXPA1#,MXPH1#

 2
62785F - SPACER, BACK DOOR GLASS
62785-12050

KSP210,MXPA1#,MXPH1#

 2
64813B - DAM, BACK WINDOW GLASS ADHESIVE
56117-50140

KSP210,MXPA1#,MXPH1#

 1
64827B - CLIP, BACK WINDOW GLASS, RH
64827-K0010

KSP210,MXPA1#,MXPH1#

 1
64828B - CLIP, BACK WINDOW GLASS, LH
64828-K0010

KSP210,MXPA1#,MXPH1#

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-52J10

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

 1
67005-52J20

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

ﾘﾔｽﾎﾟｲﾗ−有り

 1
67005-52J21

MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X

ﾘﾔｽﾎﾟｲﾗ−有り

 1
67005-52J11

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09142

KSP210,MXPA1#,MXPH1#

 2
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09142

KSP210,MXPA1#,MXPH1#

 2
67750A - CLIP(FOR BACK DOOR TRIM)
90467-10161

KSP210,MXPA1#,MXPH1#

 8
67751 - BOARD, BACK DOOR TRIM
67751-K0010B0

MXPA1#..X;KSP210,MXPH1#..G,HBDX,X

DARK GRAY,TRIM2#,4#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-08186C3

MXPA1#..X;KSP210,MXPH1#..G,HBDX,X

BLACK,TRIM2#,4#

 8
67761A - COVER, BACK DOOR TRIM
67761-K0010C0

MXPA1#..X;KSP210,MXPH1#..G,HBDX,X

BLACK,TRIM2#,4#

 1
67837N - SEAL, BACK DOOR DUST PROOF
67837-K0040

KSP210,MXPA1#,MXPH1#

 3
67881A - WEATHERSTRIP, BACK DOOR
67881-K0030

KSP210,MXPA1#,MXPH1#

 1
67893A - PROTECTOR, BACK DOOR PANEL, NO.1
67893-52110

KSP210,MXPA1#,MXPH1#

 2
67893A - PROTECTOR, BACK DOOR PANEL, NO.1
67893-52110

KSP210,MXPA1#,MXPH1#

 2
68131 - GLASS, BACK DOOR
68105-K0010

KSP210,MXPA1#,MXPH1#

 1
74811D - HANDLE, DOOR PULL
74811-13010C2

MXPA1#..X;KSP210,MXPH1#..G,HBDX,X

BLACK,TRIM2#,4#

 1
75129C - CUSHION, REAR LICENCE PLATE
75129-30010

KSP210,MXPA1#,MXPH1#

 2
75129C - CUSHION, REAR LICENCE PLATE
75129-30010

KSP210,MXPA1#,MXPH1#

 2
75573G - MOULDING, BACK WINDOW, OUTSIDE RH NO.1
75573-K0010

KSP210,MXPA1#,MXPH1#

 1
75574C - MOULDING, BACK WINDOW, OUTSIDE LH NO.1
75574-K0010

KSP210,MXPA1#,MXPH1#

 1
76827B - RETAINER, BACK DOOR GARNISH, NO.2
76827-K0010

KSP210,MXPA1#,MXPH1#..HBDX,X

 1
Common parts
82819-K0060
90159-60621
90189-06244
