KSP210-AHXNK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

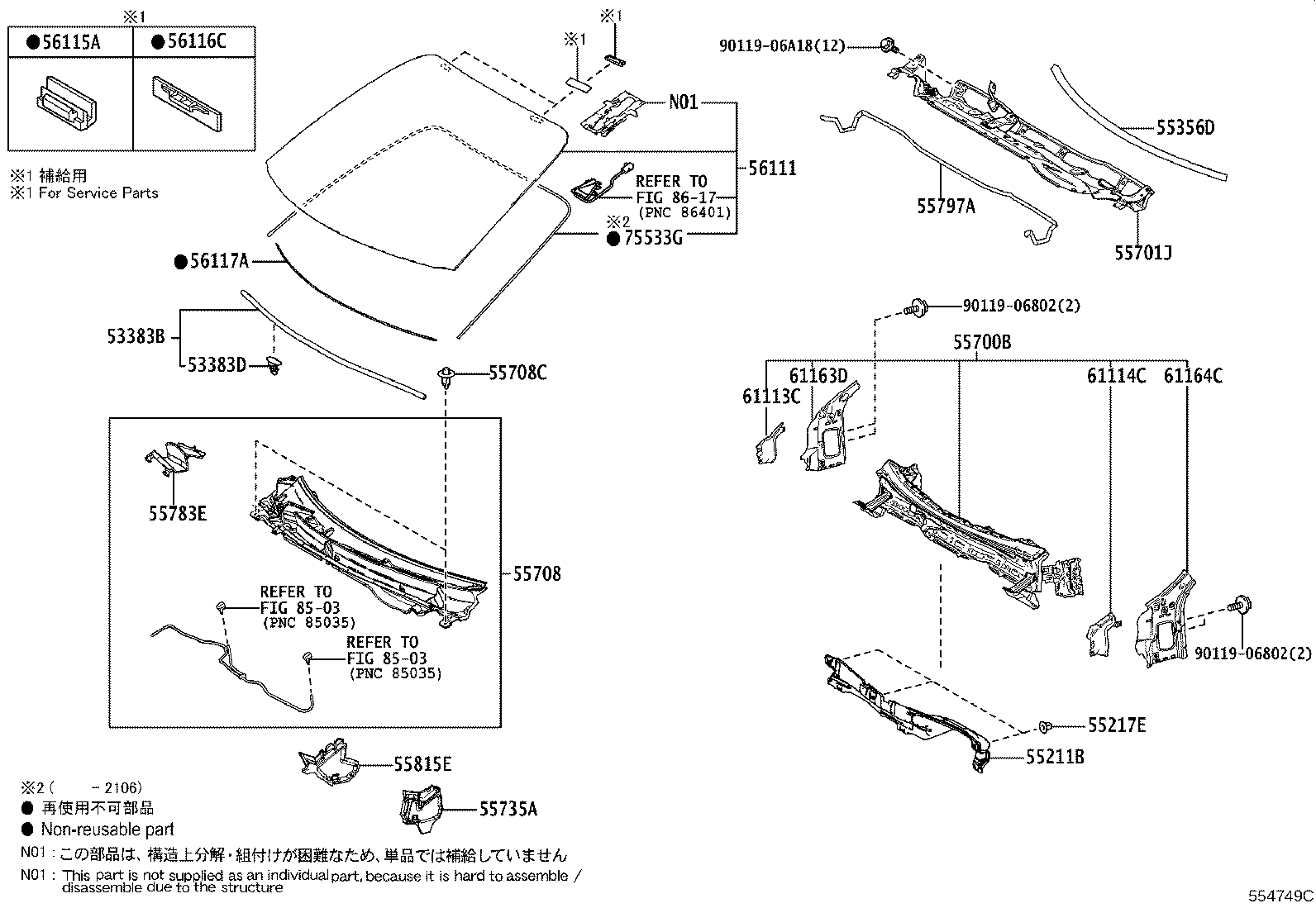

Click highlighted areas on diagram

diagram 53383B 53383D 55211B 55217E 55356D 55700B 55701J 55708 55708C 55735A 55783E 55797A 55815E 56111 56115A 56116C 56117A 61113C 61114C 61163D 61164C 75533G 8503 8503 8617 9011906802 9011906802 9011906A18
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-K0010

KSP210,MXPA1#,MXPH1#

 1
53383D - CLIP(FOR HOOD TO COWL TOP SEAL)
67867-12150

KSP210,MXPA1#,MXPH1#

 7
55211B - SILENCER, FRONT PANEL
55211-K0050

KSP210,MXPA1#,MXPH1#

 1
55217E - RETAINER, DASH PANEL SILENCER
55217-51010

KSP210,MXPA1#,MXPH1#

 3
55356D - CUSHION, INSTRUMENT PANEL, NO.2
55356-K2010

KSP210,MXPA1#,MXPH1#

 1
55700B - COWL ASSY
55700-52450

KSP210,MXPA1#,MXPH1#

 1
55701J - PANEL SUB-ASSY, COWL TOP, OUTER
55701-52470

KSP210,MXPA1#,MXPH1#

 1
55701-52420

KSP210,MXPA1#,MXPH1#

 1
55708 - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-K0010

KSP210,MXPA1#,MXPH1#

 1
55708-K0020

KSP210,MXPA1#,MXPH1#

寒冷地仕様

 1
55708C - CLIP, COWL TOP VENTILATOR LOUVER
90467-07076C7

KSP210,MXPA1#,MXPH1#

BLACK

 2
55735A - PLATE, WATER GUARD, LH
55735-K0060

KSP210,MXPA1#,MXPH1#

 1
55783E - LOUVER, COWL TOP VENTILATOR, CENTER
55783-K0010

KSP210,MXPA1#,MXPH1#

 1
55797A - SEAL, COWL WATER EXTRACT
55797-K0010

KSP210,MXPA1#,MXPH1#

 1
55815E - SEAL, FRONT VENTILATOR, NO.1
55815-K0060

KSP210,MXPA1#,MXPH1#

 1
56111 - GLASS, WINDSHIELD
56101-K0030

KSP210,MXPA1#,MXPH1#..G,HBDX,X

寒冷地仕様

 1
56101-K0010

KSP210,MXPA1#,MXPH1#..HBDX,X

予防安全ﾊﾟｯｹｰｼﾞ−無し

 1
56101-K0090

KSP210,MXPA1#,MXPH1#..HBDX,X

予防安全ﾊﾟｯｹｰｼﾞ−無し&寒冷地仕様

 1
56101-K0020

KSP210,MXPA1#,MXPH1#..G,HBDX,X

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

KSP210,MXPA1#,MXPH1#

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

KSP210,MXPA1#,MXPH1#

 1
56117A - DAM, WINDOW GLASS ADHESIVE
56117-50140

KSP210,MXPA1#,MXPH1#

長さ=1234

 1
56117-50140

KSP210,MXPA1#,MXPH1#

長さ=1234,寒冷地仕様

 1
56117-50140

KSP210,MXPA1#,MXPH1#..HBDX,X

長さ=1234,予防安全ﾊﾟｯｹｰｼﾞ−無し&寒冷地仕様

 1
56117-50140

KSP210,MXPA1#,MXPH1#..HBDX,X

長さ=1234,予防安全ﾊﾟｯｹｰｼﾞ−無し

 1
61113C - PANEL, SIDE, INNER RH
61113-K0010

KSP210,MXPA1#,MXPH1#

 1
61114C - PANEL, SIDE, INNER LH
61114-K0010

KSP210,MXPA1#,MXPH1#

 1
61163D - PILLAR, FRONT BODY, LOWER INNER RH
61163-K0010

KSP210,MXPA1#,MXPH1#

 1
61164C - PILLAR, FRONT BODY, LOWER INNER LH
61164-K0010

KSP210,MXPA1#,MXPH1#

 1
75533G - MOULDING, WINDSHIELD, OUTSIDE
75533-K0010

KSP210,MXPA1#,MXPH1#

 1
Common parts
90119-06802
90119-06A18
Linked diagrams
8503
8617
