KSP210-AHXGK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )KSP210

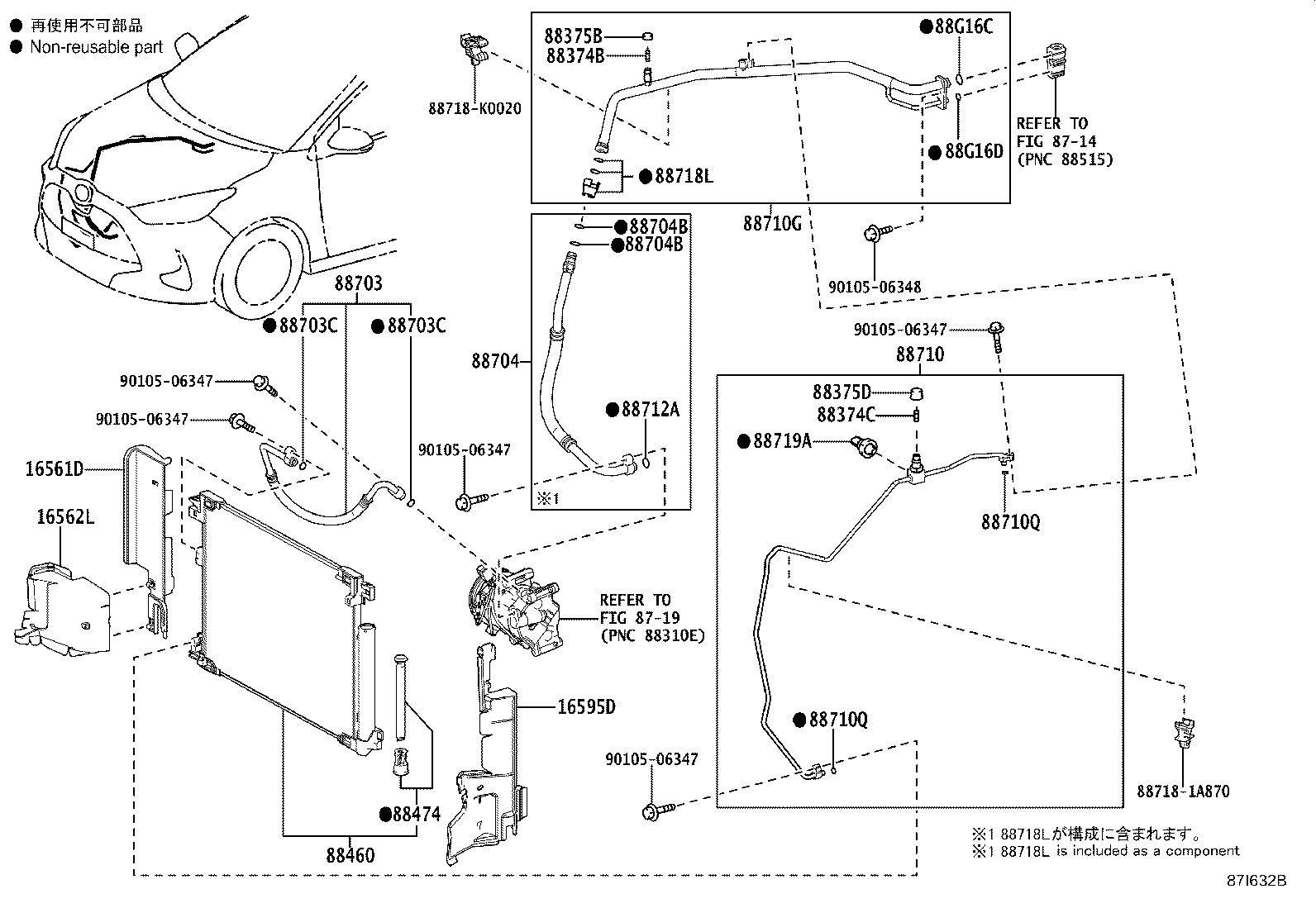

Click highlighted areas on diagram

diagram 16561D 16562L 16595D 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88703 88703C 88703C 88704 88704B 88704B 88710 88710G 88710Q 88710Q 88712A 887181A870 88718K0020 88718L 88719A 88G16C 88G16D 9010506347 9010506347 9010506347 9010506347 9010506347 9010506348
Part # Description Qty Price
16561D - SEAL, RADIATOR TO SUPPORT, NO.1
16561-40060

1KRFE..KSP210

 1
16562L - SEAL, RADIATOR TO SUPPORT, NO.2
16562-15030

M15AFKS,1KRFE..KSP210,MXPA1#

 1
16595D - GUIDE, RADIATOR AIR, NO.1 LH
16595-15020

M15#,1KRFE..KSP210,MXPA1#,MXPH1#

 1
88374B - VALVE, SERVICE, NO.1
88374-30010

KSP210,MXPA1#,MXPH1#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

KSP210,MXPA1#,MXPH1#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30310

KSP210,MXPA1#,MXPH1#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30320

KSP210,MXPA1#,MXPH1#

 1
88460 - CONDENSER ASSY, COOLER
884A0-52030

KSP210,MXPA1#

 1
88474 - DRYER, COOLER
88474-12010

KSP210,MXPA1#

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88711-K0050

KSP210

 1
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

KSP210,MXPA1#,MXPH1#

内径=10.8,外径=15.6

 2
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

KSP210,MXPA1#,MXPH1#

内径=10.8,外径=15.6

 2
88704 - HOSE SUB-ASSY, SUCTION
88704-K0040

KSP210

 1
88704B - RING, O(FOR SUCTION HOSE)
90099-14157

KSP210,MXPA1#,MXPH1#

内径=13.4,外径=18.2

 2
88704B - RING, O(FOR SUCTION HOSE)
90099-14157

KSP210,MXPA1#,MXPH1#

内径=13.4,外径=18.2

 2
88710 - TUBE ASSY, AIR CONDITIONER
88710-K0260

KSP210

 1
88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710-K0210

KSP210

 1
88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119

KSP210

内径=6.7,外径=10.3

 2
88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119

KSP210

内径=6.7,外径=10.3

 2
88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
90099-14121

KSP210,MXPA1#,MXPH1#

 1
88718L - CLAMP, PIPING
88718-52280

KSP210,MXPA1#,MXPH1#

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-11010

KSP210,MXPA1#,MXPH1#

 1
88G16C - RING, O, NO.1(FOR TUBE ASSY, AIR CONDITIONER)
90099-14121

KSP210

内径=13.4,外径=18.2

 1
88G16D - RING, O, NO.2(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119

KSP210

内径=6.7,外径=10.3

 1
Common parts
88718-1A870
88718-K0020
90105-06347
90105-06348
Linked diagrams
8714
8719
