KSP210-AHXGK (2020)
Toyota Yaris

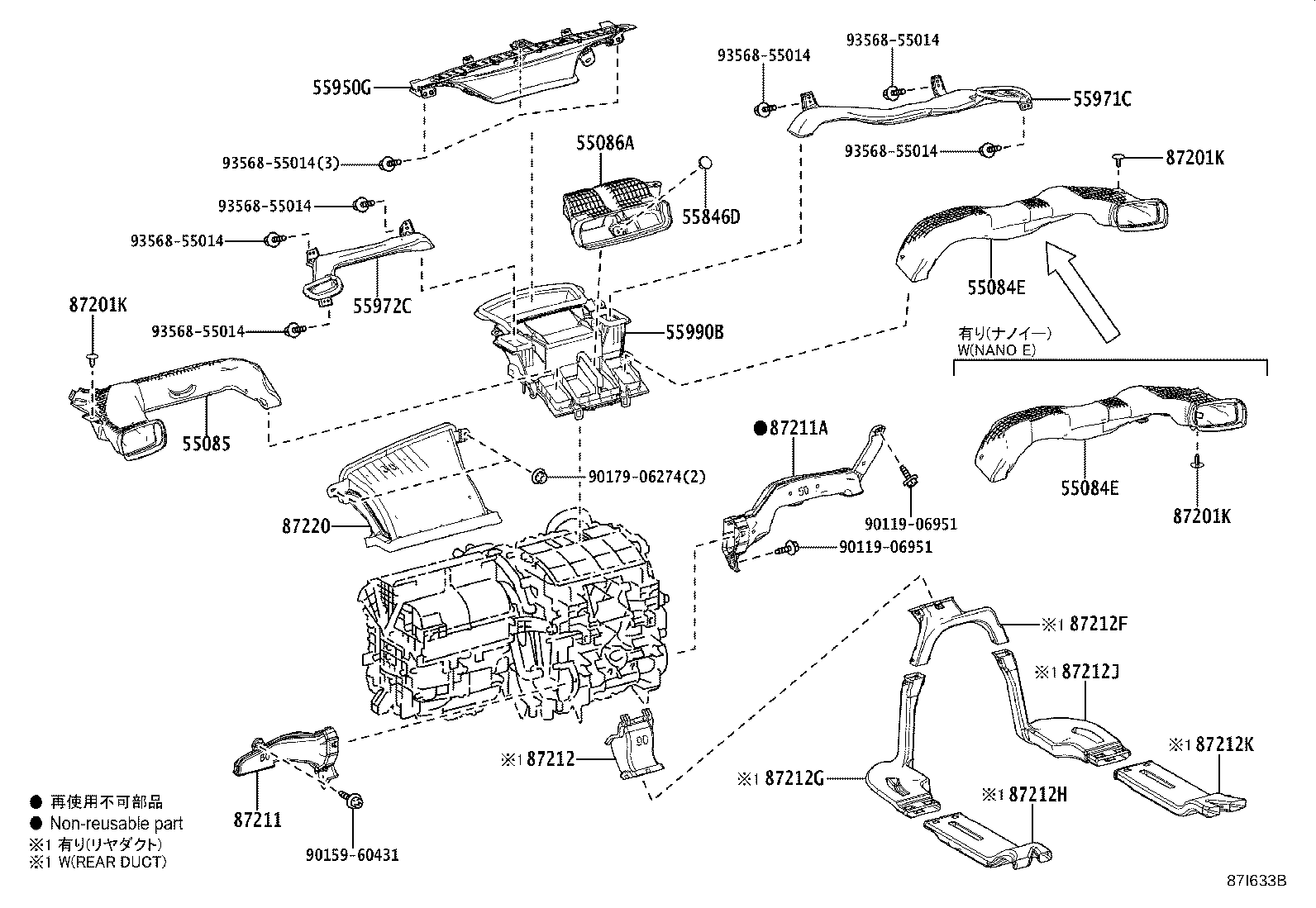

ILLUST NO. 2 OF 3(2002- )
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-K0021 |
KSP210,MXPA1#,MXPH1#..G,HBDG “ｾﾚｸｼｮﾝ”*(K) |
1 | ||
| 55084-K0010 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
1 | ||
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-K0021 |
KSP210,MXPA1#,MXPH1#..G,HBDG “ｾﾚｸｼｮﾝ”*(K) |
1 | ||
| 55084-K0010 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER | ||||
| 55086-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 55846D - CLIP, HEATER TO REGISTER DUCT | ||||
| 90467-05161C9 |
KSP210,MXPA1#,MXPH1# BLACK |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-05161C9 |
KSP210,MXPA1#,MXPH1# BLACK |
1 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-05161C9 |
KSP210,MXPA1#,MXPH1# BLACK |
1 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-05161C9 |
KSP210,MXPA1#,MXPH1# BLACK |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-K0060 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-K0050 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87114-K0090 |
KSP210,MXPA10,MXPH1# 寒冷地仕様 |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87215-K0020 |
KSP210,MXPA10,MXPH1# 寒冷地仕様 |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87213-K0010 |
KSP210,MXPA10,MXPH1# 寒冷地仕様 |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87217-K0010 |
KSP210,MXPA10,MXPH1# 寒冷地仕様 |
1 | ||
| 87212J - DUCT, AIR, REAR NO.5 | ||||
| 87212-K0010 |
KSP210,MXPA10,MXPH1# 寒冷地仕様 |
1 | ||
| 87212K - DUCT, AIR, REAR NO.6 | ||||
| 87216-K0010 |
KSP210,MXPA10,MXPH1# 寒冷地仕様 |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-K0030 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-60431 | ||||
| 90179-06274 | ||||
| 93568-55014 | ||||

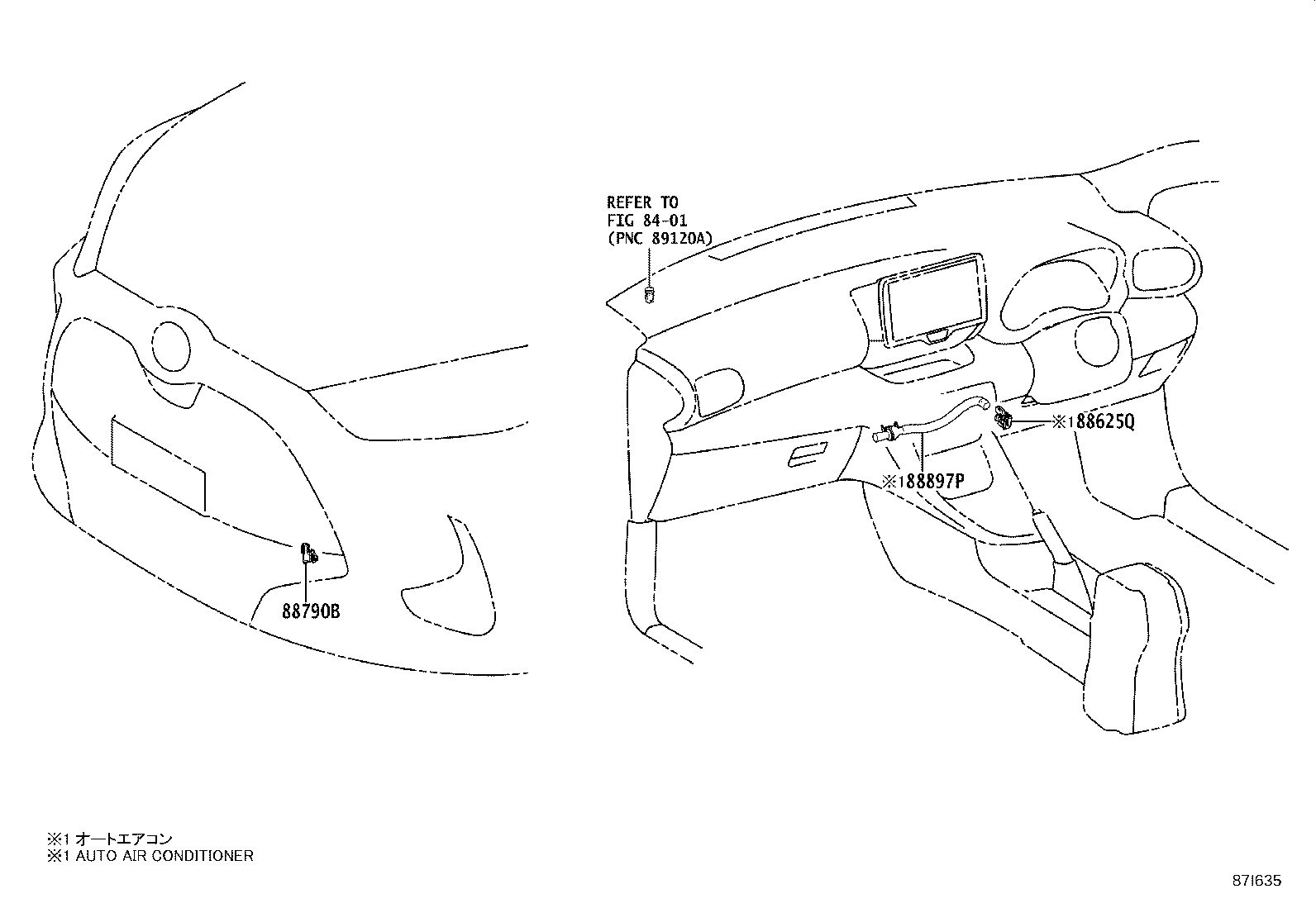

ILLUST NO. 3 OF 3(2002- )
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,HBDZ,Z |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-28100 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88505-K0030 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,HBDZ,Z |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||

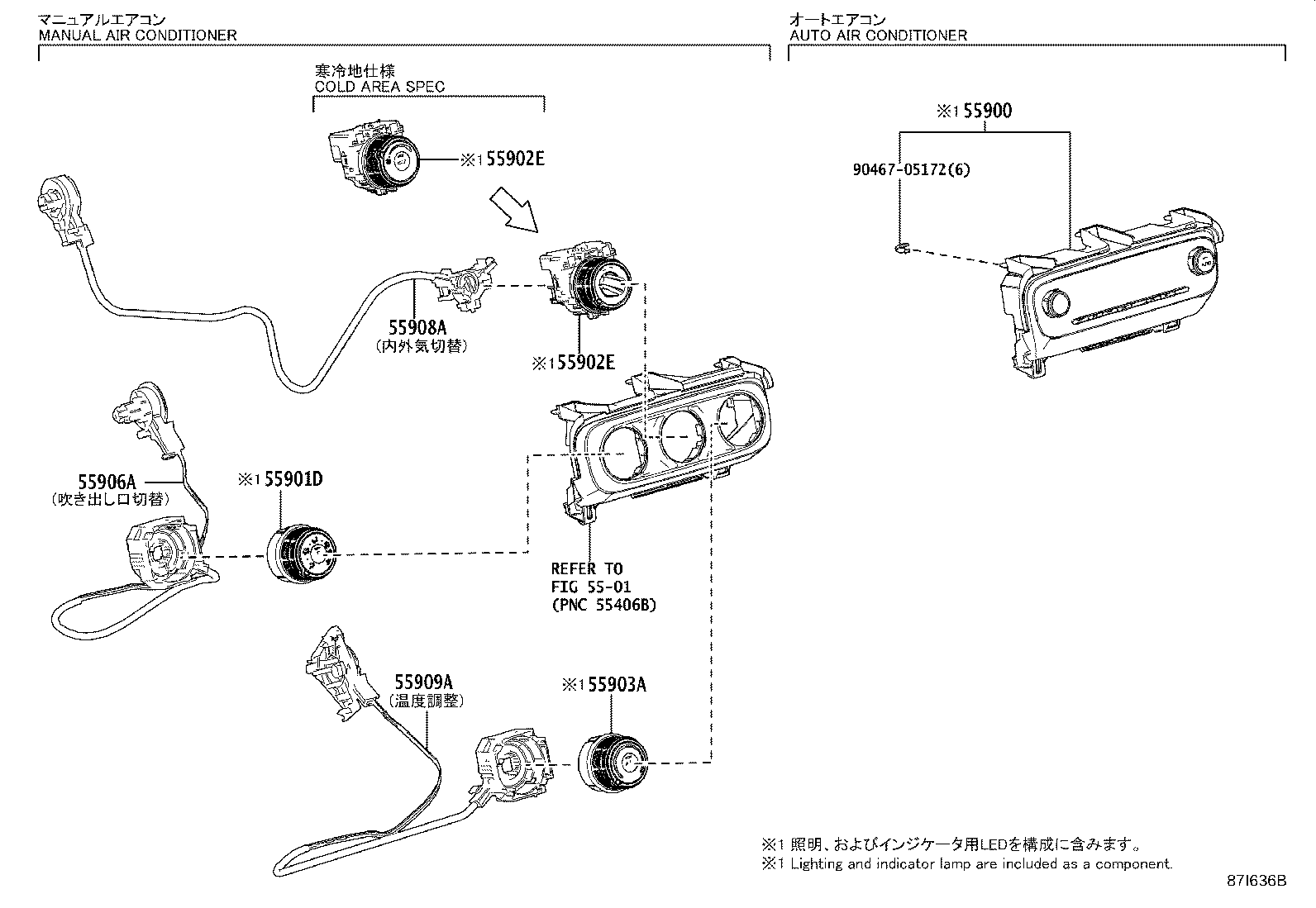

ILLUST NO. 1 OF 3(2002- )KSP210
HEATER CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-K0060 |
KSP210,MXPA1#..CVT..(G,Z) 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM)&車線変更支援ｼｽﾃﾑ−有り |
1 | ||
| 55900-K0060 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDZ,Z 寒冷地仕様 |
1 | ||
| 55900-K0060 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDZ,Z 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 55900-K0050 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDZ,Z |
1 | ||
| 55900-K0060 |
KSP210,MXPA1#..CVT..(G,Z) ﾊﾞｯｸﾓﾆﾀ−有り(*BGM)&車線変更支援ｼｽﾃﾑ−有り |
1 | ||
| 55900-K0051 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDZ,Z |
1 | ||
| 55900-K0061 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDZ,Z 寒冷地仕様 |
1 | ||
| 55900-K0061 |
KSP210,MXPA1#..G,Z 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM)&車線変更支援ｼｽﾃﾑ−有り |
1 | ||
| 55900-K0060 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDZ,Z ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 55900-K0061 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDZ,Z 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 55900-K0061 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDZ,Z ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 55900-K0061 |
KSP210,MXPA1#..G,Z ﾊﾞｯｸﾓﾆﾀ−有り(*PVM)&車線変更支援ｼｽﾃﾑ−有り |
1 | ||
| 55900-K0061 |
KSP210,MXPA1#..G,Z 寒冷地仕様&車線変更支援ｼｽﾃﾑ−有り |
1 | ||
| 55900-K0061 |
KSP210,MXPA1#..G,Z 車線変更支援ｼｽﾃﾑ−有り |
1 | ||
| 55901D - CONTROL SUB-ASSY, HEATER, NO.1 | ||||
| 55901-12340 |
KSP210..X |
1 | ||
| 55901-12340 |
KSP210..X 寒冷地仕様 |
1 | ||
| 55901-K0030 |
KSP210..X |
1 | ||
| 55902E - CONTROL SUB-ASSY, HEATER, NO.2 | ||||
| 55902-26150 |
KSP210..X |
1 | ||
| 55902-K0030 |
KSP210..X |
1 | ||
| 55902-26150 |
KSP210..X 寒冷地仕様 |
1 | ||
| 55902E - CONTROL SUB-ASSY, HEATER, NO.2 | ||||
| 55902-26150 |
KSP210..X |
1 | ||
| 55902-K0030 |
KSP210..X |
1 | ||
| 55902-26150 |
KSP210..X 寒冷地仕様 |
1 | ||
| 55903A - CONTROL SUB-ASSY, HEATER, NO.3 | ||||
| 55903-26140 |
KSP210..X |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-K0010 |
KSP210,MXPA1#..X |
1 | ||
| 55906-K0011 |
KSP210,MXPA1#..X |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-K0010 |
KSP210..X |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-K0010 |
KSP210,MXPA1#..X |
1 | ||
| 55909-K0011 |
KSP210,MXPA1#..X |
1 | ||
| Common parts | ||||
| 90467-05172 | ||||
| Linked diagrams | ||||
| 5501 | ||||
