KSP210-AHXGK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

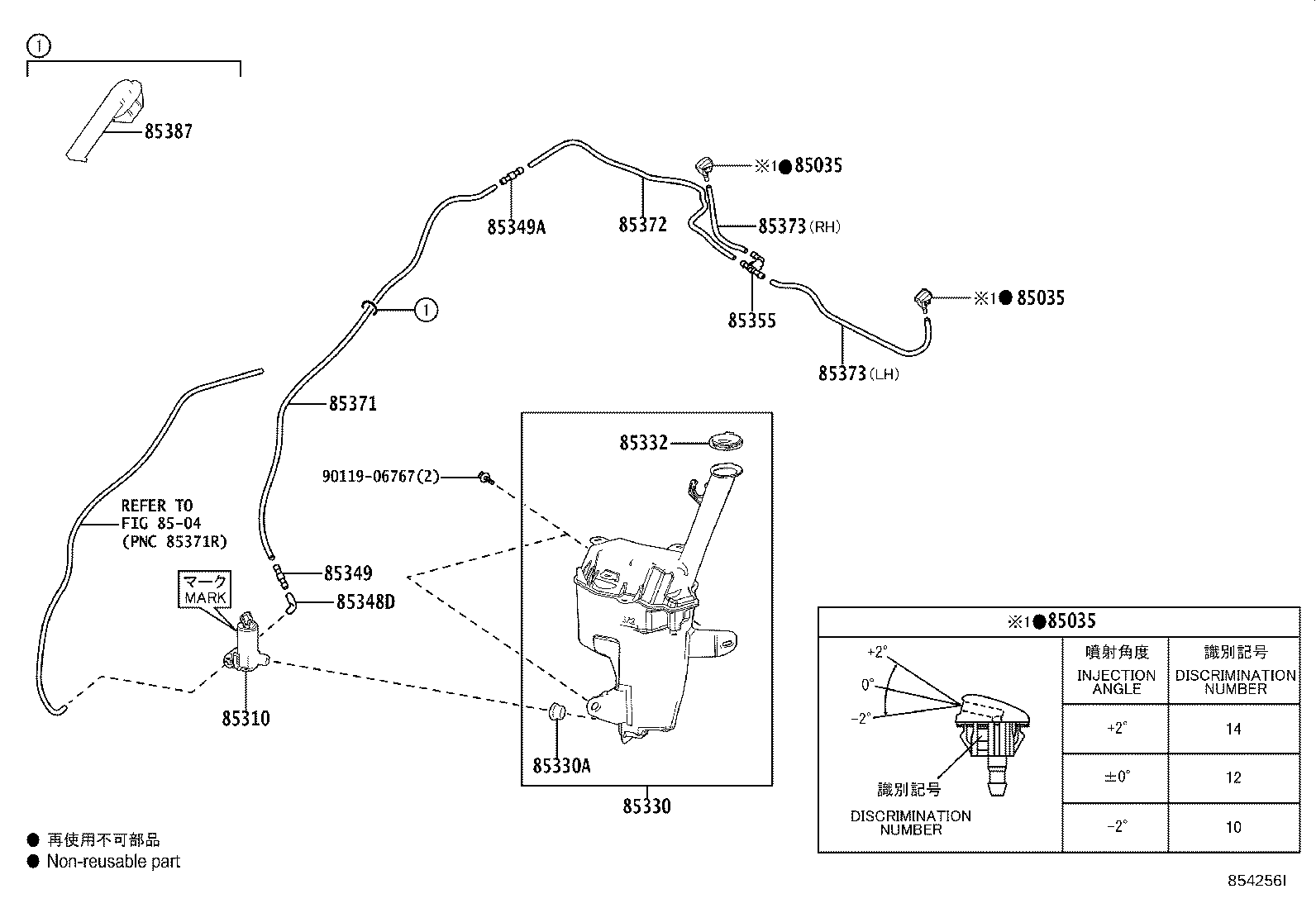

Click highlighted areas on diagram

diagram 85035 85035 85035 8504 85310 85330 85330A 85332 85348D 85349 85349A 85355 85371 85372 85373 85373 85387 9011906767
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-52450

KSP210,MXPA1#,MXPH1#

角度 +2

 2
85381-52430

KSP210,MXPA1#,MXPH1#

角度 0

 2
85381-52440

KSP210,MXPA1#,MXPH1#

角度 −2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-52450

KSP210,MXPA1#,MXPH1#

角度 +2

 2
85381-52430

KSP210,MXPA1#,MXPH1#

角度 0

 2
85381-52440

KSP210,MXPA1#,MXPH1#

角度 −2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-52450

KSP210,MXPA1#,MXPH1#

角度 +2

 2
85381-52430

KSP210,MXPA1#,MXPH1#

角度 0

 2
85381-52440

KSP210,MXPA1#,MXPH1#

角度 −2

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-47091

KSP210,MXPA1#,MXPH1#

ﾏｰｸ=85330−47091

 1
85330-47090

KSP210,MXPA1#,MXPH1#

ﾏｰｸ=85330−47090

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-K0040

KSP210,MXPA1#,MXPH1#

 1
85315-K0030

KSP210,MXPA1#,MXPH1#

寒冷地仕様

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

KSP210,MXPA1#,MXPH1#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-16070

KSP210,MXPA1#,MXPH1#

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85336-12230

KSP210,MXPA1#,MXPH1#

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

KSP210,MXPA1#,MXPH1#

 1
85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122

KSP210,MXPA1#,MXPH1#

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

KSP210,MXPA1#,MXPH1#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-62228

KSP210,MXPA1#,MXPH1#

長さ=800

 1
90099-62228

KSP210,MXPA1#,MXPH1#

長さ=800,寒冷地仕様

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

KSP210,MXPA1#,MXPH1#

*H,L=670

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

KSP210,MXPA1#,MXPH1#

*H,L=150,左側,右側

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

KSP210,MXPA1#,MXPH1#

*H,L=150,左側,右側

 1
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-52090

KSP210,MXPA1#,MXPH1#

 1
Common parts
90119-06767
Linked diagrams
8504
