KSP210-AHXGK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

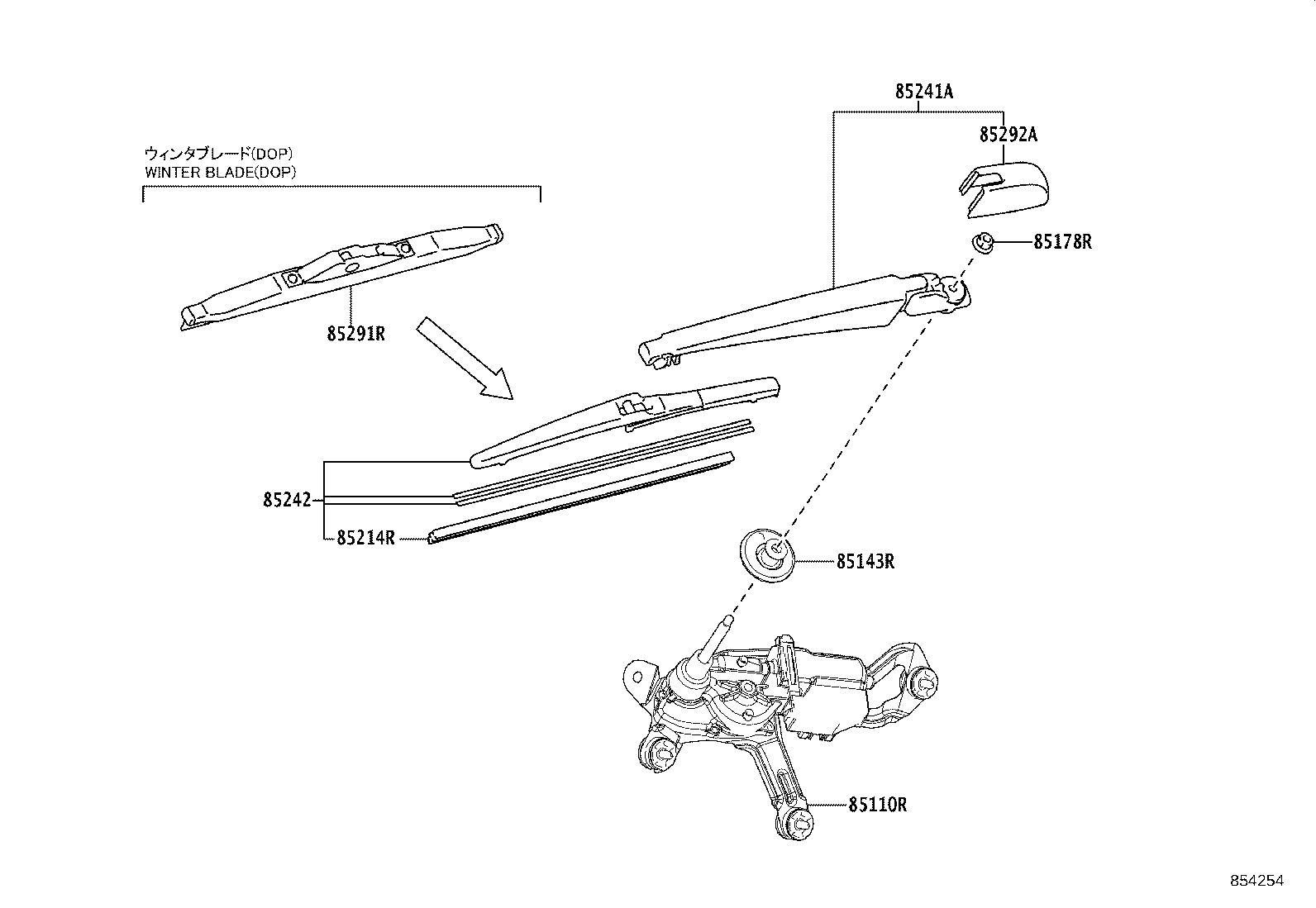

Click highlighted areas on diagram

diagram 85110R 85143R 85178R 85214R 85241A 85242 85291R 85292A
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-K0040

KSP210,MXPA1#,MXPH1#

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-42050

KSP210,MXPA1#,MXPH1#

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

KSP210,MXPA1#,MXPH1#

 1
85214R - RUBBER, REAR WIPER
85214-42060

KSP210,MXPA1#,MXPH1#

 1
85241A - ARM, REAR WIPER
85241-52220

KSP210,MXPA1#,MXPH1#

 1
85242 - BLADE, RR WIPER
85242-K0030

KSP210,MXPA1#,MXPH1#

 1
85291R - BLADE,REAR WIPER, WINTER
85291-K0020

KSP210,MXPA10,MXPH1#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-42010

KSP210,MXPA1#,MXPH1#

 1
