KSP210-AHXGK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

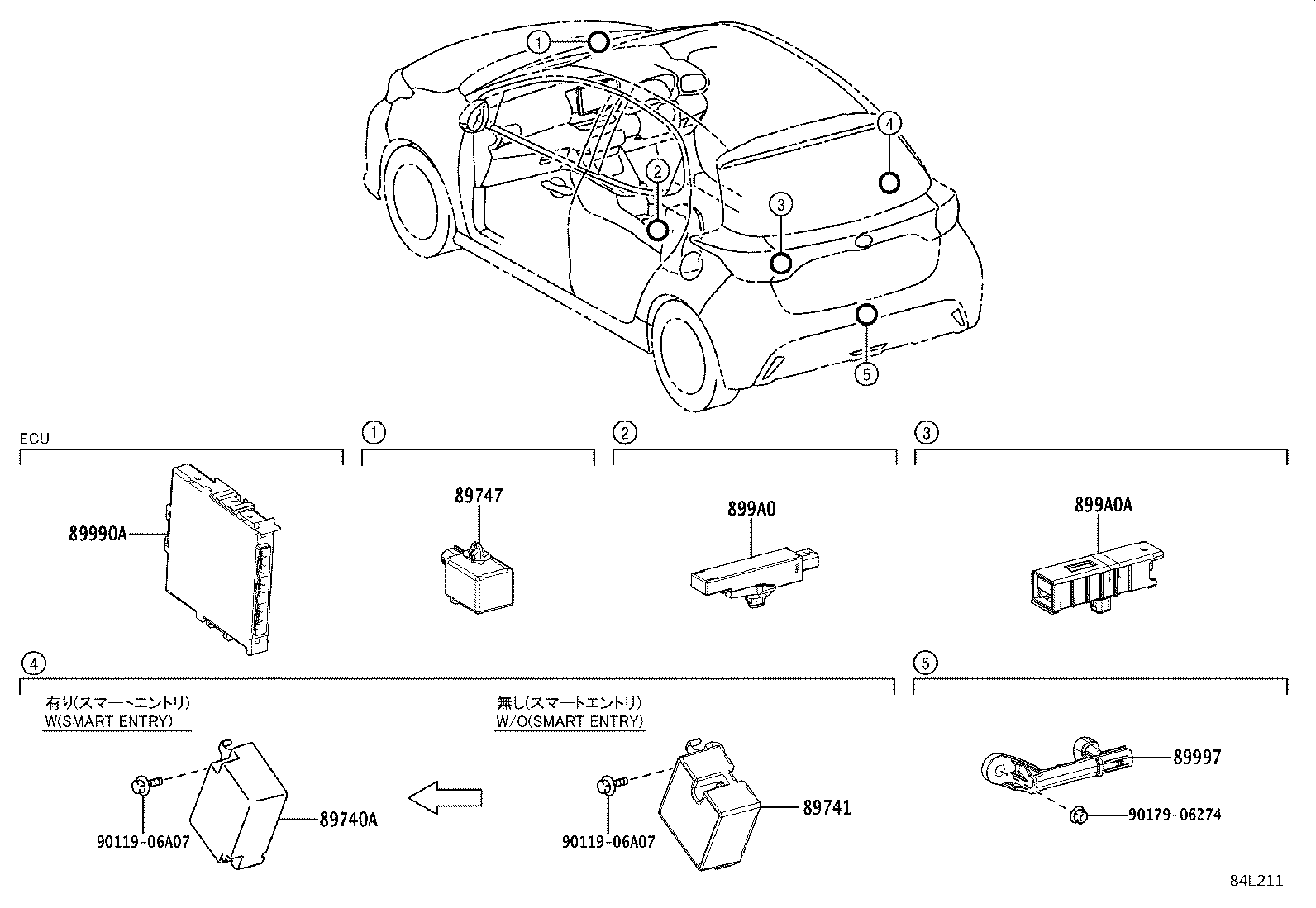

Click highlighted areas on diagram

diagram 89740A 89741 89747 89990A 89997 899A0 899A0A 9011906A07 9011906A07 9017906274
Part # Description Qty Price
89740A - RECEIVER ASSY, SMART DOOR CONTROL
89740-K0020

KSP210,MXPA10..X

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
89740-K0020

MXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z

 1
89741 - RECEIVER, DOOR CONTROL
89741-K0020

KSP210,MXPA10,MXPH10..HBDX,X

 1
89741-K0020

KSP210,MXPA10..X

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

MXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z

 1
89747-30040

KSP210,MXPA10..X

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
89990A - COMPUTER ASSY, SMART KEY
899H0-K0011

MXPA15;KSP210,MXPA10..G,Z

 1
899H0-K0011

KSP210,MXPA10..X

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-30100

MXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z

 1
89997-30100

KSP210,MXPA10..X

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-K0040

MXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z

 1
899A0-12080

MXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z

 1
899A0-K0040

KSP210,MXPA10..X

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
899A0-12080

KSP210,MXPA10..X

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-12090

MXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z

 1
899A0-12090

KSP210,MXPA10..X

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
Common parts
90119-06A07
90179-06274
