KSP210-AHXGK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )KSP210

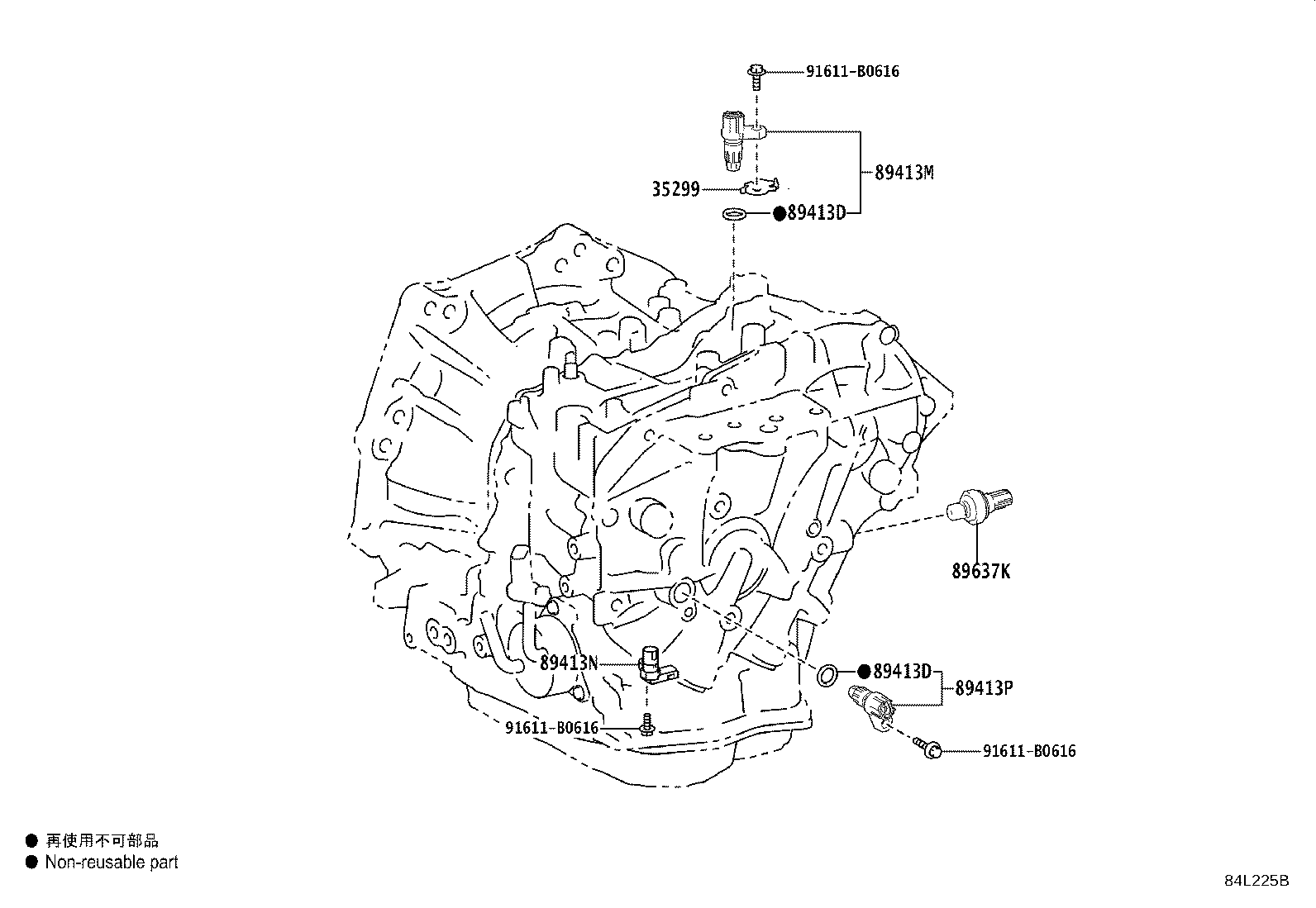

Click highlighted areas on diagram

K412

diagram 35299 89413D 89413D 89413M 89413N 89413P 89637K 91611B0616 91611B0616 91611B0616
Part # Description Qty Price
35299 - SPACER, TRANSMISSION REVOLUTION SENSOR
35469-52020

KSP210

 1
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

KSP210

 2
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

KSP210

 2
89413M - SENSOR, TRANSMISSION REVOLUTION, (NOUT)
89413-52080

KSP210

 1
89413N - SENSOR, TRANSMISSION REVOLUTION, (NT)
89413-11021

KSP210

 1
89413P - SENSOR, TRANSMISSION REVOLUTION, (NIN)
89413-52090

KSP210

 1
89637K - SENSOR, OIL PRESSURE
89637-12040

KSP210,MXPA1#..CVT

 1
Common parts
91611-B0616
