KSP210-AHXGK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )KSP210

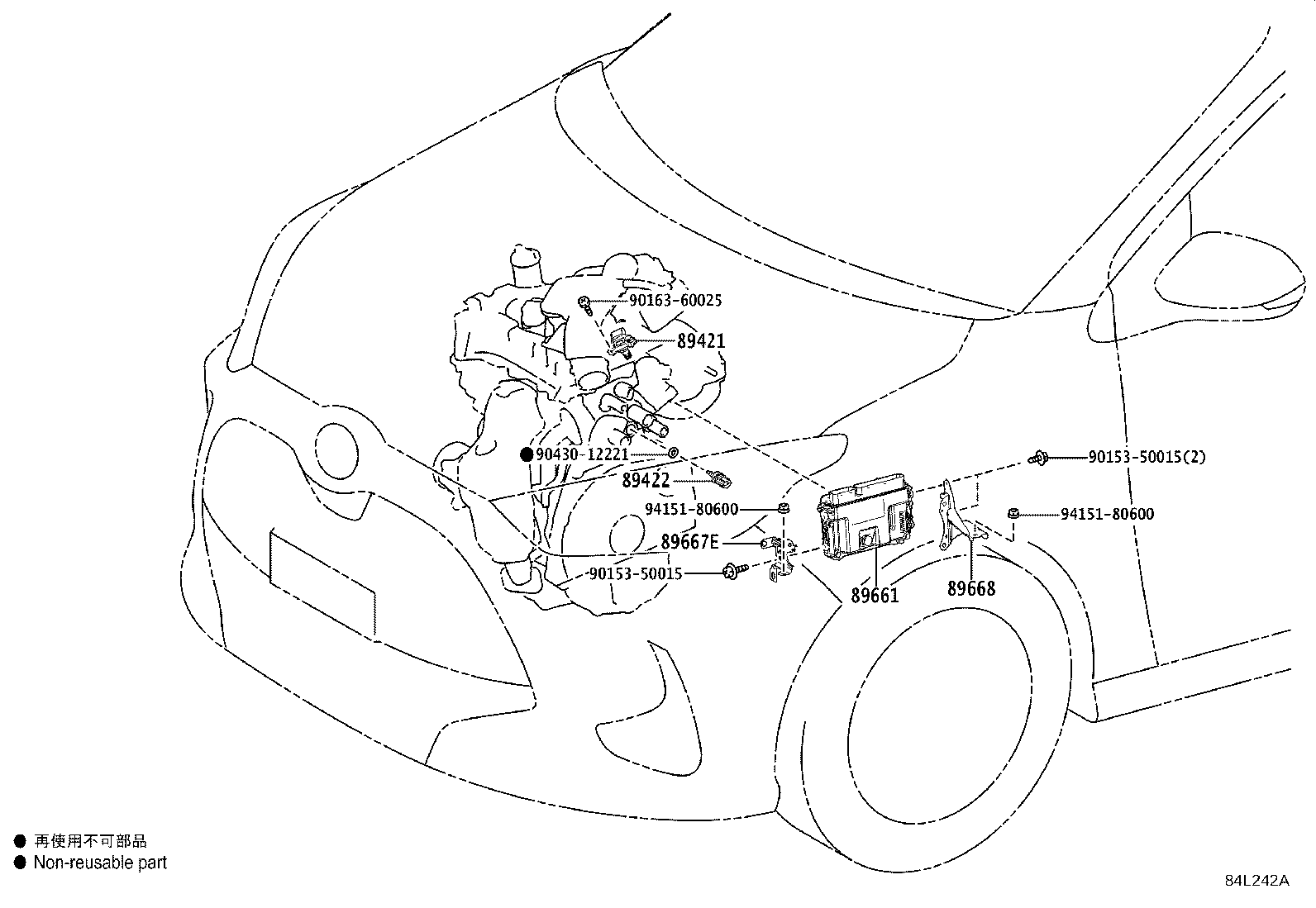

Click highlighted areas on diagram

diagram 89421 89422 89661 89667E 89668 9015350015 9015350015 9016360025 9043012221 9415180600 9415180600
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-52010

KSP210

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

KSP210

 1
89661 - COMPUTER, ENGINE CONTROL
89661-K0061

KSP210

BOSCH,*614

 1
89661-K0063

KSP210

BOSCH,*614

 1
89661-K0062

KSP210

BOSCH,*614

 1
89661-K0060

KSP210

BOSCH,*614

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-K0010

KSP210,MXPA1#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-52440

KSP210

 1
Common parts
90153-50015
90163-60025
90430-12221
94151-80600
