KSP210-AHXGK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )KSP210,MXPA1#

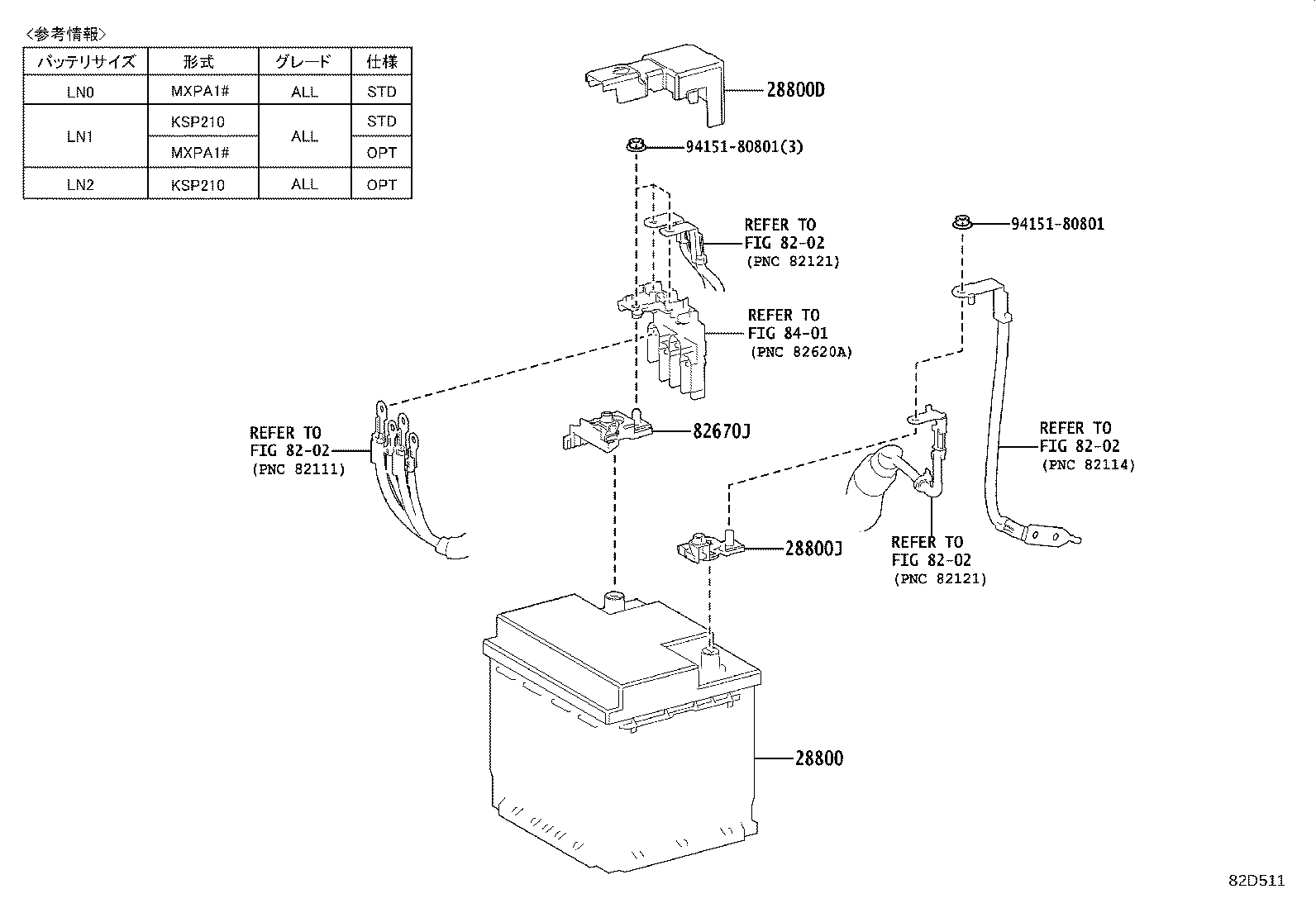

Click highlighted areas on diagram

diagram 28800 28800D 28800J 8202 8202 8202 8202 82670J 8401 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-25010

1KRFE..KSP210

LN2,寒冷地仕様

 1
28800-37130

1KRFE..KSP210

LN1

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82621-52170

M15AFKS,1KRFE..KSP210,MXPA1#

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06061

M15AFKS,1KRFE..KSP210,MXPA1#

 1
82670J - BLOCK ASSY, JUNCTION
82670-K0010

KSP210

 1
Common parts
94151-80801
Linked diagrams
8202
8401
