KSP210-AHXGK (2020)
Toyota Yaris

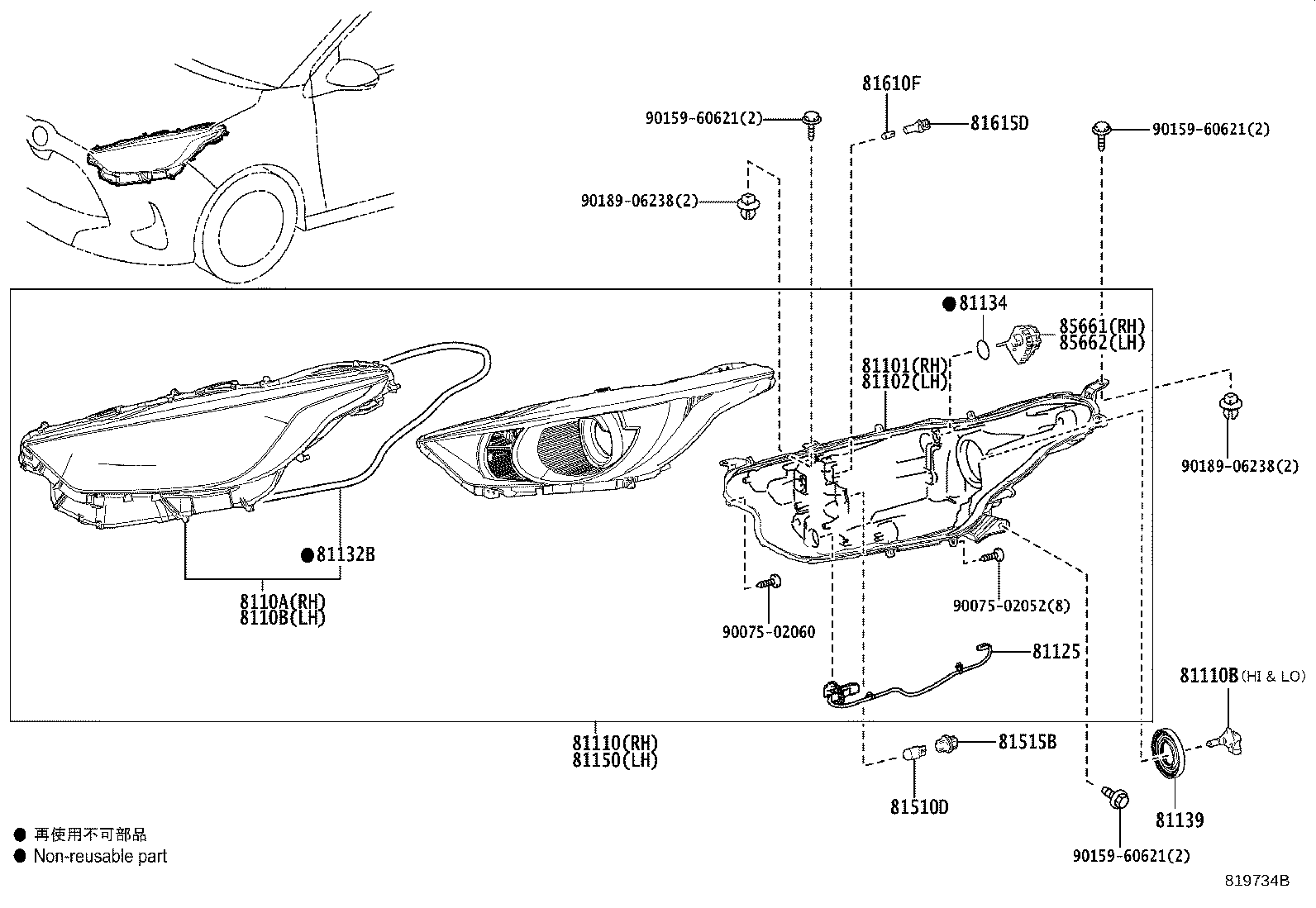

(2002- )G,HBDG,HBDX,X
ﾊﾛｹﾞﾝ ﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81101 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 8111B-K0010 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
1 | ||
| 8111B-K0030 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81102 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 8115B-K0010 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
1 | ||
| 8115B-K0030 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 8110A - LENS SUB-ASSY, HEADLAMP, RH | ||||
| 8110A-K0010 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
1 | ||
| 8110A-K0030 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 8110B - LENS SUB-ASSY, HEADLAMP, LH | ||||
| 8110B-K0030 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 8110B-K0010 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-K0030 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81130-K0010 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13091 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-K0010 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
2 | ||
| 81125-K0030 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
2 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-50590 |
KSP210,MXPA1#,MXPH1# |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-99120 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
2 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 90075-65006 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81170-K0010 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
1 | ||
| 81150-K0030 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-11069 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60089 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| Common parts | ||||
| 90075-02052 | ||||
| 90075-02060 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||

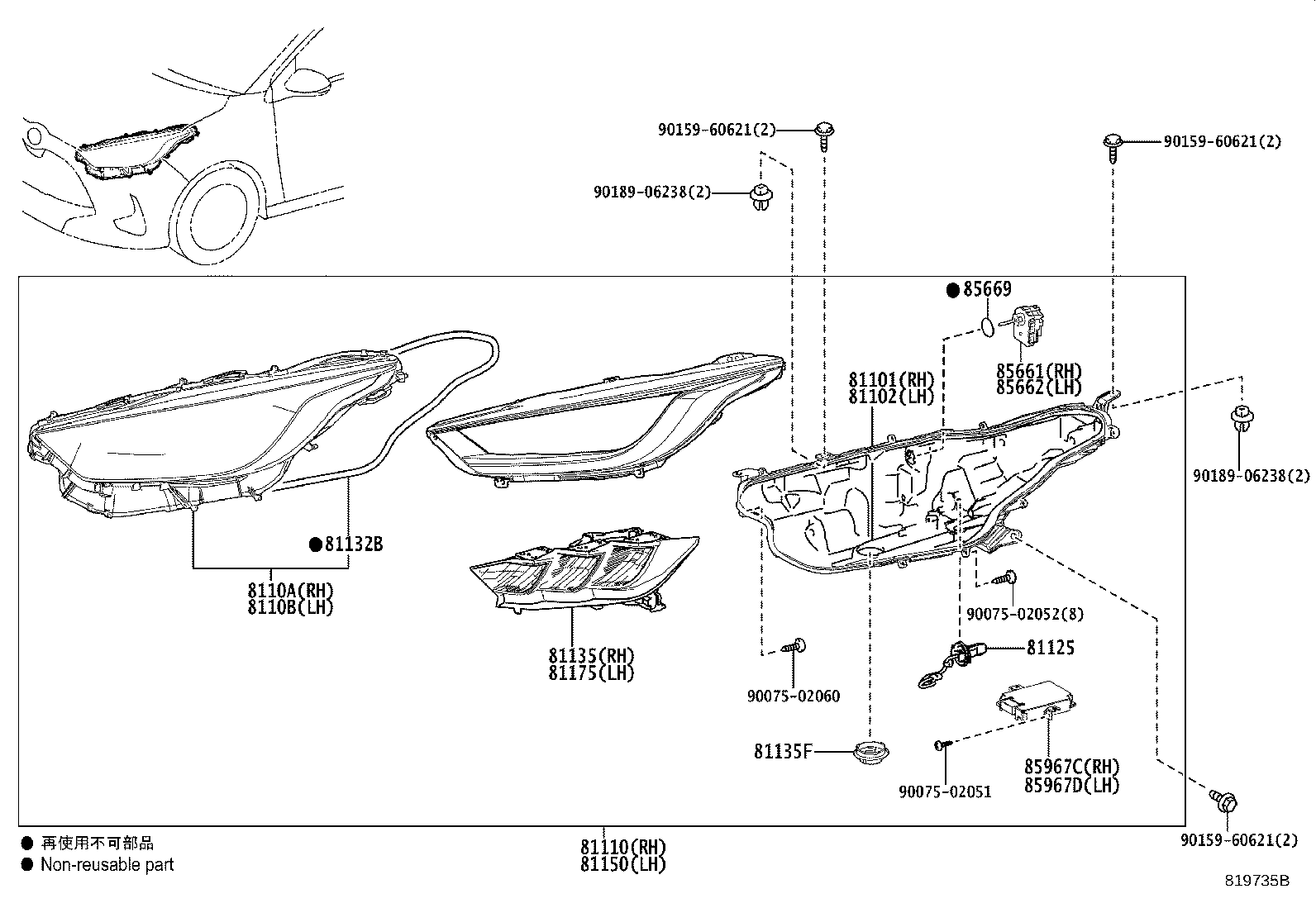

(2002- )MXPA1# ; (2002- )KSP210,MXPH1#..G,HBDG,HBDX,HBDZ
LED ﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81101 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 8111B-K0010 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
1 | ||
| 8111B-K0030 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81102 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 8115B-K0010 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
1 | ||
| 8115B-K0030 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 8110A - LENS SUB-ASSY, HEADLAMP, RH | ||||
| 8110A-K0010 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
1 | ||
| 8110A-K0030 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 8110B - LENS SUB-ASSY, HEADLAMP, LH | ||||
| 8110B-K0030 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 8110B-K0010 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-K0030 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81130-K0010 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
1 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-K0010 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
2 | ||
| 81125-K0030 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
2 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-50590 |
KSP210,MXPA1#,MXPH1# |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-K0030 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81135F - COVER, HEADLAMP BACK | ||||
| 90075-66016 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81170-K0010 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
1 | ||
| 81150-K0030 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-K0030 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
2 | ||
| 85967C - COMPUTER, LIGHT CONTROL LED, RH | ||||
| 8596A-K0040 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85967D - COMPUTER, LIGHT CONTROL LED, LH | ||||
| 8596A-K0030 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| Common parts | ||||
| 90075-02051 | ||||
| 90075-02052 | ||||
| 90075-02060 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
