KSP210-AHXGK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

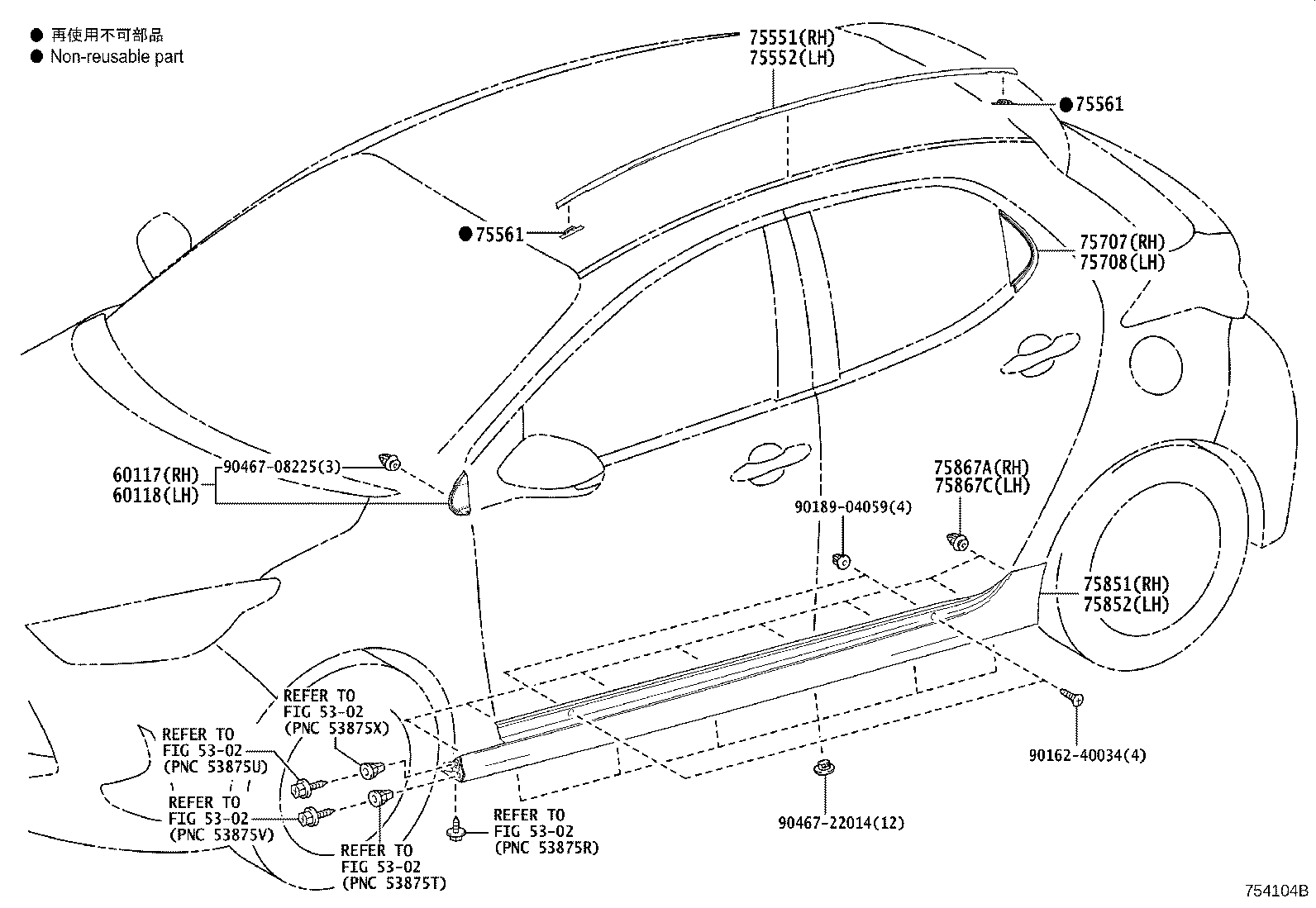

Click highlighted areas on diagram

diagram 5302 5302 5302 5302 5302 60117 60118 75551 75552 75561 75561 75707 75708 75851 75852 75867A 75867C 9016240034 9018904059 9046708225 9046722014
Part # Description Qty Price
60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH
60117-K0060

KSP210,MXPA1#,MXPH1#

 1
60118 - COVER SUB-ASSY, FRONT PILLAR, UPR LH
60118-K0060

KSP210,MXPA1#,MXPH1#

 1
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-52280

KSP210,MXPA1#,MXPH1#

塗装不要

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-52240

KSP210,MXPA1#,MXPH1#

塗装不要

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-52050

KSP210,MXPA1#,MXPH1#

 4
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-52050

KSP210,MXPA1#,MXPH1#

 4
75707 - MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75707-K0010

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

 1
75707-52010

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

 1
75708 - MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75708-K0010

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

 1
75708-52010

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

 1
75851 - MOULDING, ROCKER PANEL, RH
75851-K0060D1

KSP210,MXPA1#,MXPH1#

RED MC.,2NE ,3T3

 1
75851-K0060D2

KSP210,MXPA1#,MXPH1#

ICE PINK ME.,2SS ,3U6

 1
75851-K0060J1

KSP210,MXPA1#,MXPH1#

CYAN METALLIC,2RV ,8W9

 1
75851-K0060E0

KSP210,MXPA1#,MXPH1#

AVANT-GARDE BRONZE ME.,2SQ ,4V8

 1
75851-K0060D0

KSP210,MXPA1#,MXPH1#

BORDEAUX M.M,3R9

 1
75851-K0060A1

KSP210,MXPA1#,MXPH1#

WHITE PEARL CS.,070

 1
75851-K0060A0

KSP210,MXPA1#,MXPH1#

SUPER WHITE 2,040

 1
75851-K0060J0

KSP210,MXPA1#,MXPH1#

DK.BLUE M.M.,8W7

 1
75851-K0060G0

KSP210,MXPA1#,MXPH1#

THERMO-TECT LIME GREEN,6W7

 1
75851-K0060B0

KSP210,MXPA1#,MXPH1#

SILVER ME.,1F7

 1
75851-K0060D3

KSP210,MXPA1#,MXPH1#

CORAL CS.,2SR ,3U7

 1
75851-K0060C0

KSP210,MXPA1#,MXPH1#

BLACK,202 ,2KC

 1
75852 - MOULDING, ROCKER PANEL, LH
75852-K0060E0

KSP210,MXPA1#,MXPH1#

AVANT-GARDE BRONZE ME.,2SQ ,4V8

 1
75852-K0060C0

KSP210,MXPA1#,MXPH1#

BLACK,202 ,2KC

 1
75852-K0060B0

KSP210,MXPA1#,MXPH1#

SILVER ME.,1F7

 1
75852-K0060A0

KSP210,MXPA1#,MXPH1#

SUPER WHITE 2,040

 1
75852-K0060G0

KSP210,MXPA1#,MXPH1#

THERMO-TECT LIME GREEN,6W7

 1
75852-K0060D2

KSP210,MXPA1#,MXPH1#

ICE PINK ME.,2SS ,3U6

 1
75852-K0060J1

KSP210,MXPA1#,MXPH1#

CYAN METALLIC,2RV ,8W9

 1
75852-K0060D3

KSP210,MXPA1#,MXPH1#

CORAL CS.,2SR ,3U7

 1
75852-K0060D0

KSP210,MXPA1#,MXPH1#

BORDEAUX M.M,3R9

 1
75852-K0060J0

KSP210,MXPA1#,MXPH1#

DK.BLUE M.M.,8W7

 1
75852-K0060D1

KSP210,MXPA1#,MXPH1#

RED MC.,2NE ,3T3

 1
75852-K0060A1

KSP210,MXPA1#,MXPH1#

WHITE PEARL CS.,070

 1
75867A - CLIP, ROCKER PANEL MOULDING
75867-52020

KSP210,MXPA1#,MXPH1#

 8
75867C - CLIP, ROCKER PANEL MOULDING
75867-52020

KSP210,MXPA1#,MXPH1#

 8
Common parts
90162-40034
90189-04059
90467-08225
90467-22014
Linked diagrams
5302
