KSP210-AHXGK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

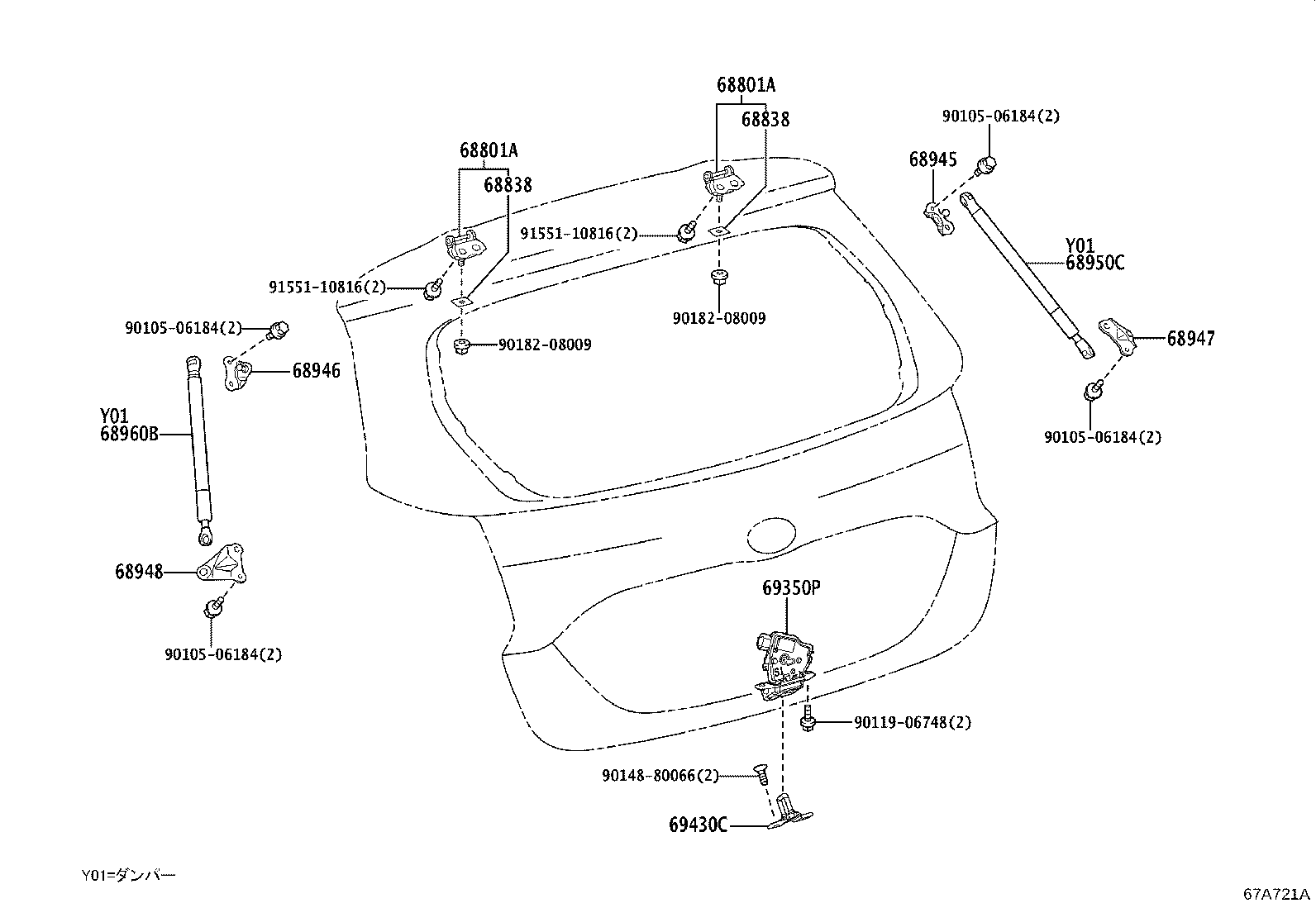

Click highlighted areas on diagram

diagram 68801A 68801A 68838 68838 68945 68946 68947 68948 68950C 68960B 69350P 69430C 9010506184 9010506184 9010506184 9010506184 9011906748 9014880066 9018208009 9018208009 9155110816 9155110816
Part # Description Qty Price
68801A - HINGE SUB-ASSY, BACK DOOR, UPPER
68801-K0010

KSP210,MXPA1#,MXPH1#

 2
68801A - HINGE SUB-ASSY, BACK DOOR, UPPER
68801-K0010

KSP210,MXPA1#,MXPH1#

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-K0010

KSP210,MXPA1#,MXPH1#

厚さ=0.5

 2
68838-K0020

KSP210,MXPA1#,MXPH1#

厚さ=1.0

 2
68838-K0030

KSP210,MXPA1#,MXPH1#

厚さ=1.5

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-K0010

KSP210,MXPA1#,MXPH1#

厚さ=0.5

 2
68838-K0020

KSP210,MXPA1#,MXPH1#

厚さ=1.0

 2
68838-K0030

KSP210,MXPA1#,MXPH1#

厚さ=1.5

 2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-K0010

KSP210,MXPA1#,MXPH1#

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-K0050

KSP210,MXPA1#,MXPH1#

 1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-K0010

KSP210,MXPA1#,MXPH1#

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-K0010

KSP210,MXPA1#,MXPH1#

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-K0130

MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X

ﾘﾔｽﾎﾟｲﾗ−有り

 1
68950-K0120

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

 1
68950-K0040

KSP210,MXPA1#,MXPH1#

ﾗｲｾﾝｽﾌﾟﾚｰﾄﾌﾞﾗｹｯﾄ−字光式対応&ﾊﾞｯｸﾄﾞｱﾀﾞﾝﾊﾟ−字光式ﾅﾝﾊﾞｰﾌﾟﾚｰﾄ用

 1
68960B - STAY ASSY, BACK DOOR, LH
68960-K0040

KSP210,MXPA1#,MXPH1#

ﾗｲｾﾝｽﾌﾟﾚｰﾄﾌﾞﾗｹｯﾄ−字光式対応&ﾊﾞｯｸﾄﾞｱﾀﾞﾝﾊﾟ−字光式ﾅﾝﾊﾞｰﾌﾟﾚｰﾄ用

 1
68960-K0120

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

 1
68960-K0130

MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,X;KSP210,MXPA15,MXPH10..G,HBDX,X

ﾘﾔｽﾎﾟｲﾗ−有り

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-52391

KSP210,MXPA1#,MXPH1#

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-52050

KSP210,MXPA1#,MXPH1#

 1
Common parts
90105-06184
90119-06748
90148-80066
90182-08009
91551-10816
