KSP210-AHXGK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

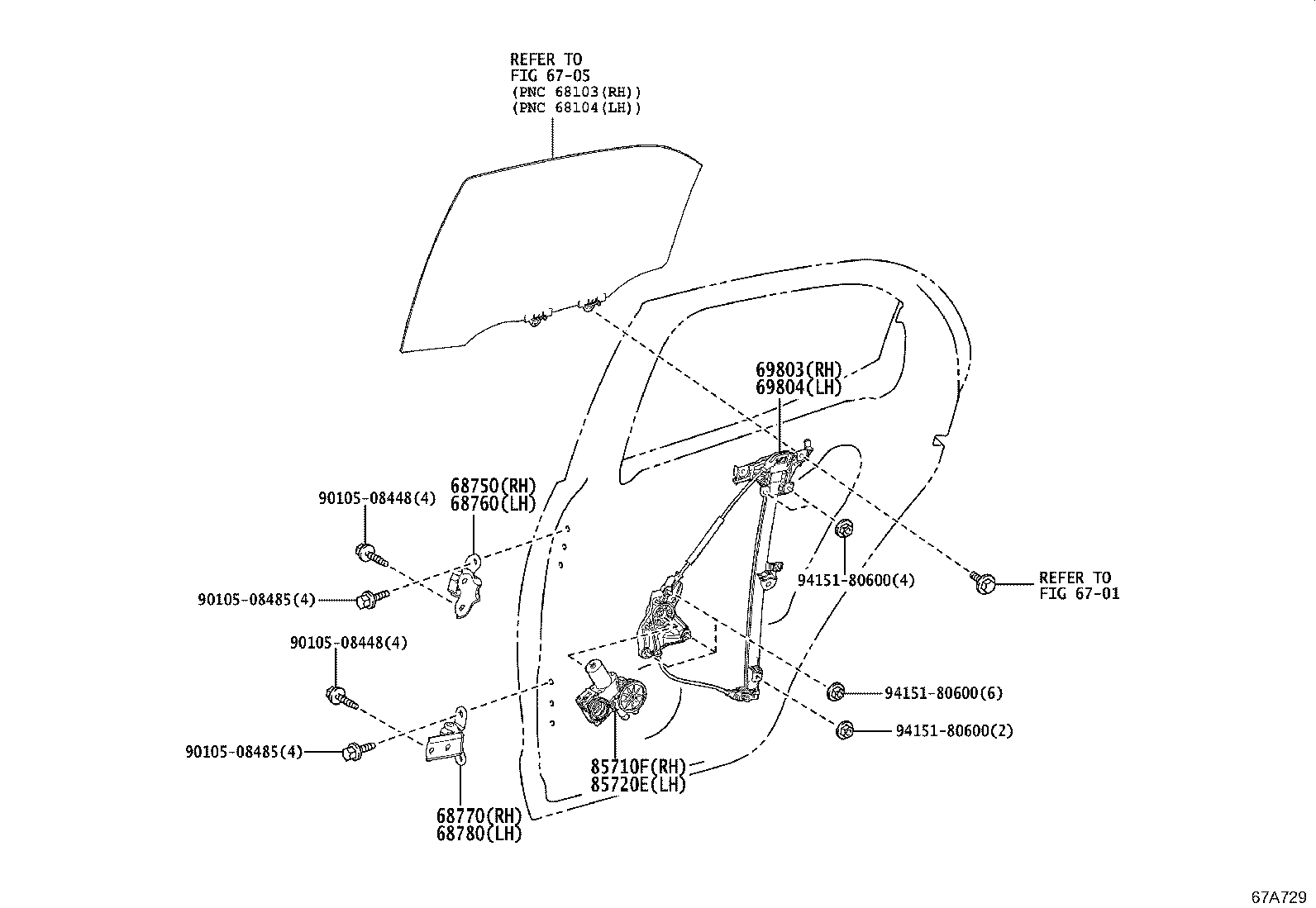

Click highlighted areas on diagram

diagram 6701 6705 68750 68760 68770 68780 69803 69804 85710F 85720E 9010508448 9010508448 9010508485 9010508485 9415180600 9415180600 9415180600
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-20122

KSP210,MXPA1#,MXPH1#

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-20122

KSP210,MXPA1#,MXPH1#

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-52031

KSP210,MXPA1#,MXPH1#

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-52031

KSP210,MXPA1#,MXPH1#

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-K0050

KSP210,MXPA1#,MXPH1#

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-K0040

KSP210,MXPA1#,MXPH1#

 1
85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-K0080

KSP210,MXPA1#,MXPH1#

 1
85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-K0080

KSP210,MXPA1#,MXPH1#

 1
Common parts
90105-08448
90105-08485
94151-80600
Linked diagrams
6701
6705
