KSP210-AHXGK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

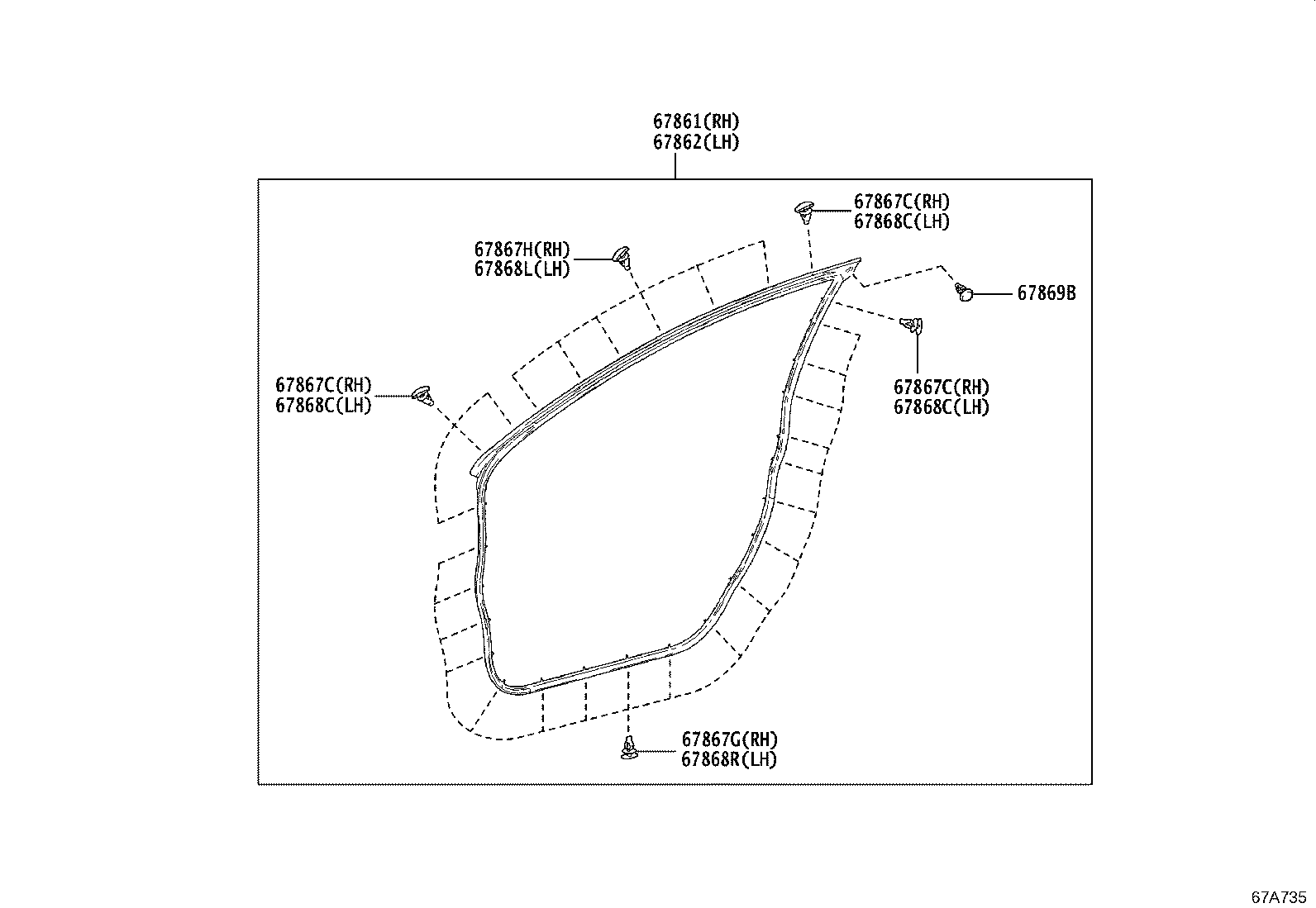

ILLUST NO. 2 OF 3(2002- )

Click highlighted areas on diagram

ﾄﾞｱｳｴｻﾞｽﾄﾘｯﾌﾟ

diagram 67861 67862 67867C 67867C 67867C 67867G 67867H 67868C 67868C 67868C 67868L 67868R 67869B
Part # Description Qty Price
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-K0010

KSP210,MXPA1#,MXPH1#

 1
67861-K0020

KSP210,MXPA1#,MXPH1#

寒冷地仕様

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-K0020

KSP210,MXPA1#,MXPH1#

寒冷地仕様

 1
67862-K0010

KSP210,MXPA1#,MXPH1#

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-30080

KSP210,MXPA1#,MXPH1#

 5
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-30080

KSP210,MXPA1#,MXPH1#

 5
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-30080

KSP210,MXPA1#,MXPH1#

 5
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67867-12150

KSP210,MXPA1#,MXPH1#

 18
67867H - RETAINER, DOOR WEATHERSTRIP, RH
67867-52020

KSP210,MXPA1#,MXPH1#

 6
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-30080

KSP210,MXPA1#,MXPH1#

 5
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-30080

KSP210,MXPA1#,MXPH1#

 5
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-30080

KSP210,MXPA1#,MXPH1#

 5
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-52030

KSP210,MXPA1#,MXPH1#

 6
67868R - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

KSP210,MXPA1#,MXPH1#

 18
67869B - CLIP, FRONT DOOR WEATHERSTRIP
90467-06084

KSP210,MXPA1#,MXPH1#

 2

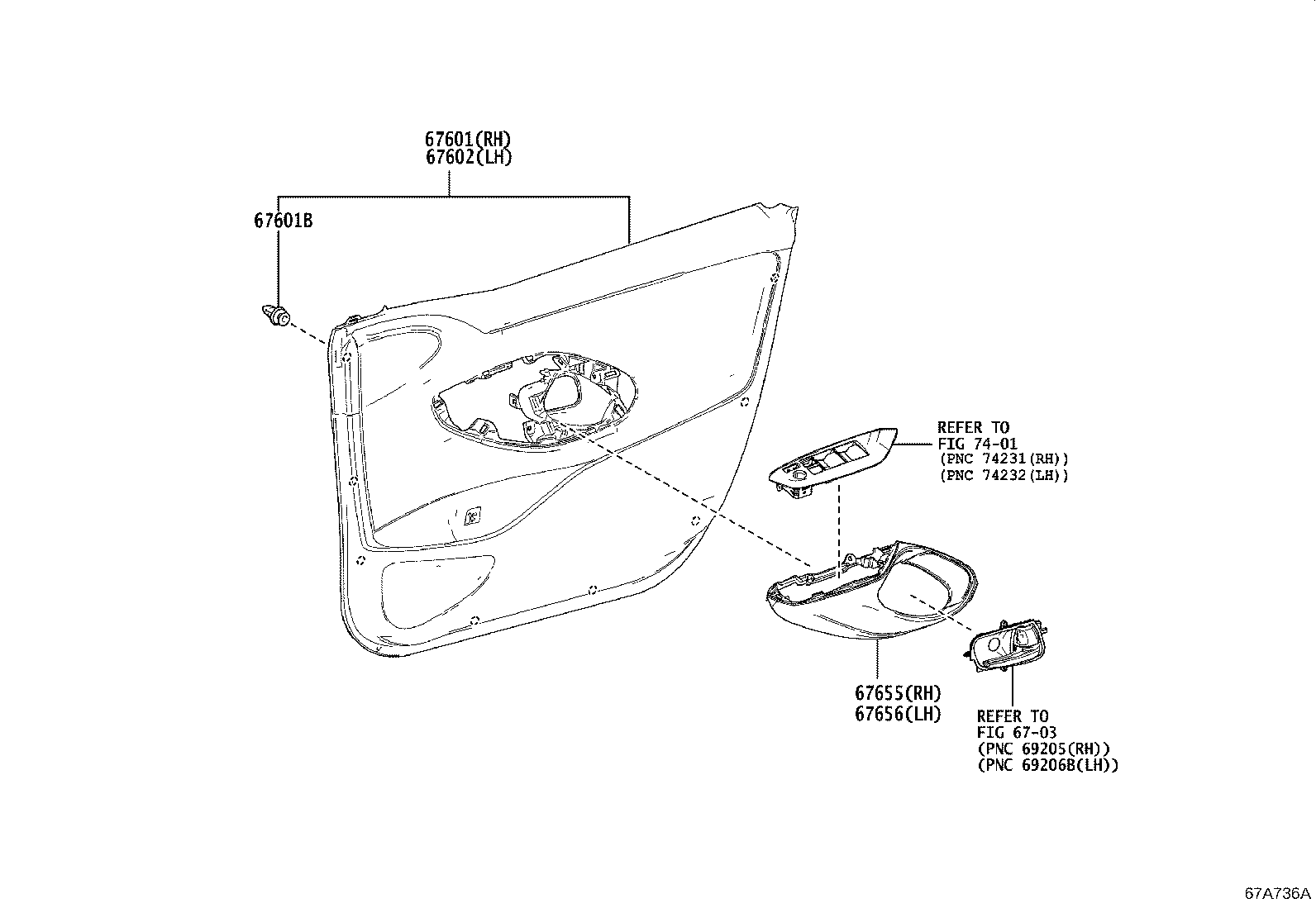

ILLUST NO. 3 OF 3(2002- )

Click highlighted areas on diagram

ﾄﾞｱﾄﾘﾑ

diagram 6703 67601 67601B 67602 67655 67656 7401
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-K0010C1

MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,HBDZ,X,Z;KSP210,MXPA15,MXPH10..G,HBDX,HBDZ,X,Z

BLACK/BLACK/BLACK/WHITE,TRIM2#

 1
67610-K0010C0

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

BLACK/TAUPE/BLACK/WHITE,TRIM4#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206

KSP210,MXPA1#,MXPH1#

 16
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-K0010C1

MXPA10..6F..G;MXPA10,MXPH15..HBDG,HBDX,HBDZ,X,Z;KSP210,MXPA15,MXPH10..G,HBDX,HBDZ,X,Z

BLACK/BLACK/BLACK/WHITE,TRIM2#

 1
67620-K0010C0

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

BLACK/TAUPE/BLACK/WHITE,TRIM4#

 1
67655 - GARNISH, FRONT DOOR TRIM, RH
67655-K0010C1

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

BLACK,TRIM2#,4#

 1
67655-K0020C0

KSP210..G

“ｾﾚｸｼｮﾝ”*(K),BLACK/ROSE METALLIC,TRIM2#,4#

 1
67655-K0010C3

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

BLACK,TRIM2#,4#

 1
67656 - GARNISH, DOOR TRIM, LH
67656-K0010C3

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

BLACK,TRIM2#,4#

 1
67656-K0010C1

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

BLACK,TRIM2#,4#

 1
67656-K0020C0

KSP210..G

“ｾﾚｸｼｮﾝ”*(K),BLACK/ROSE METALLIC,TRIM2#,4#

 1
Linked diagrams
6703
7401

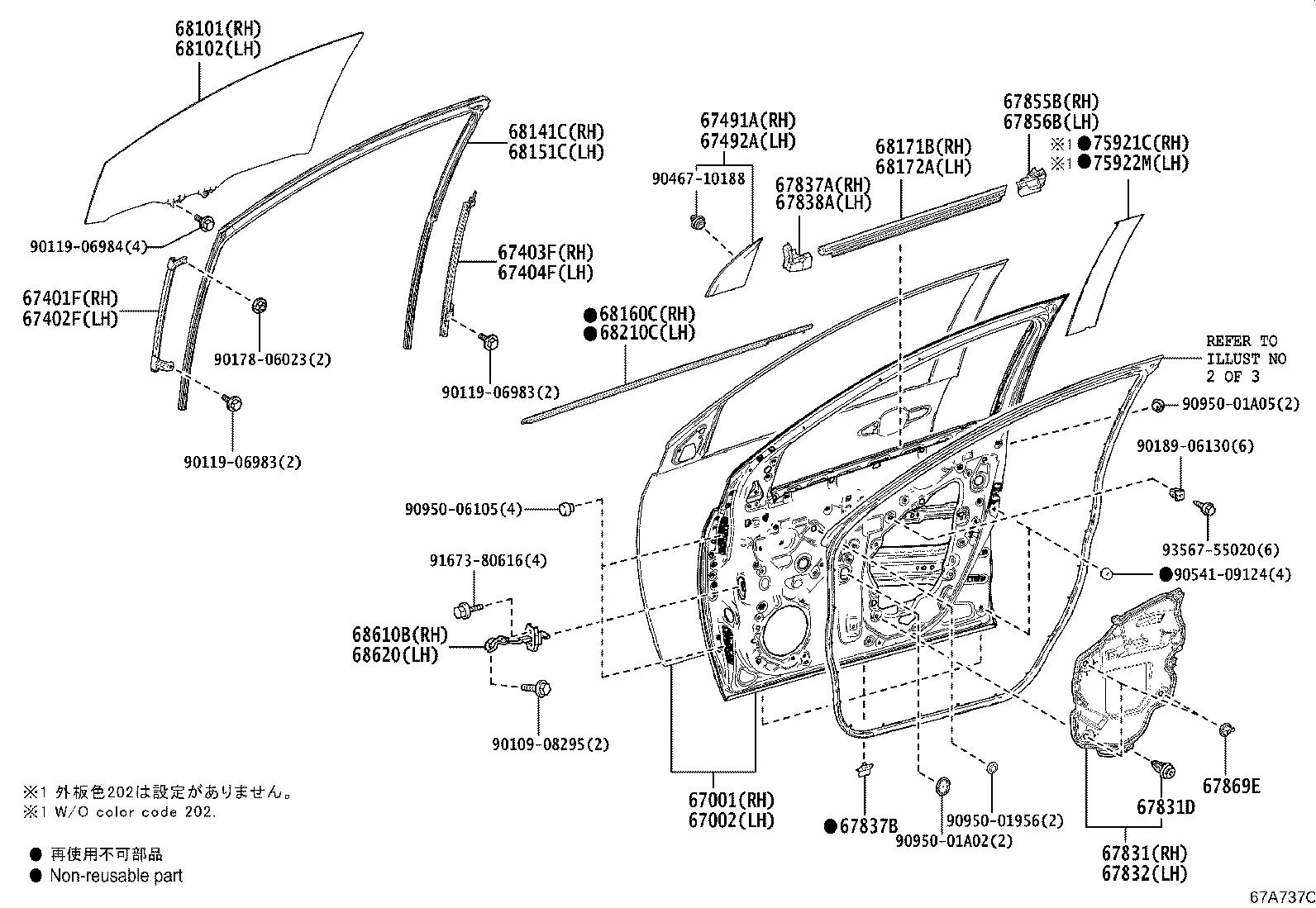

ILLUST NO. 1 OF 3(2002- )

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

diagram 67001 67002 67401F 67402F 67403F 67404F 67491A 67492A 67831 67831D 67832 67837A 67837B 67838A 67855B 67856B 67869E 68101 68102 68141C 68151C 68160C 68171B 68172A 68210C 68610B 68620 75921C 75922M 9010908295 9011906983 9011906983 9011906984 9017806023 9018906130 9046710188 9054109124 9095001956 9095001A02 9095001A05 9095006105 9167380616 9356755020
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-K0010

KSP210,MXPA1#,MXPH1#

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-K0010

KSP210,MXPA1#,MXPH1#

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-K0010

KSP210,MXPA1#,MXPH1#

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-K0010

KSP210,MXPA1#,MXPH1#

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-K0010

KSP210,MXPA1#,MXPH1#

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-K0010

KSP210,MXPA1#,MXPH1#

 1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-K0020

KSP210,MXPA1#,MXPH1#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-K0020

KSP210,MXPA1#,MXPH1#

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-K0010

KSP210,MXPA1#,MXPH1#

 1
67831D - CLIP(FOR FRONT DOOR SERVICE HOLE COVER)
90467-09206

KSP210,MXPA1#,MXPH1#

 8
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-K0010

KSP210,MXPA1#,MXPH1#

 1
67837A - SEAL, FRONT DOOR VENT, RH
67837-K0010

KSP210,MXPA1#,MXPH1#

 1
67837B - SEAL, FRONT DOOR DUST PROOF
67837-48050

KSP210,MXPA1#,MXPH1#

 6
67838A - SEAL, FRONT DOOR VENT, LH
67838-K0010

KSP210,MXPA1#,MXPH1#

 1
67855B - PROTECTOR, FRONT DOOR PANEL, RH
67855-K0010

KSP210,MXPA1#,MXPH1#

 1
67856B - PROTECTOR, FRONT DOOR PANEL, LH
67856-K0010

KSP210,MXPA1#,MXPH1#

 1
67869E - CLIP, FRONT DOOR WEATHERSTRIP
67869-47010

KSP210,MXPA1#,MXPH1#

 6
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-K0040

KSP210,MXPA1#,MXPH1#..HBDX,X

 1
68101-K0050

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDZ,Z

 1
68101-K0060

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDZ,Z

寒冷地仕様

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-K0040

KSP210,MXPA1#,MXPH1#..HBDX,X

 1
68102-K0050

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDZ,Z

 1
68102-K0060

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDZ,Z

寒冷地仕様

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-K0010

KSP210,MXPA1#,MXPH1#

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-K0010

KSP210,MXPA1#,MXPH1#

 1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68160-52260

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-K0010

KSP210,MXPA1#,MXPH1#

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-K0010

KSP210,MXPA1#,MXPH1#

 1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68210-52260

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-K0010

KSP210,MXPA1#,MXPH1#

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68610-K0010

KSP210,MXPA1#,MXPH1#

 1
75921C - TAPE, BLACK OUT, NO.1 RH
75921-K0010

KSP210,MXPA1#,MXPH1#

個数0or1個､ｲﾗｽﾄ参照

 1
75922M - TAPE, BLACK OUT, NO.1 LH
75922-K0010

KSP210,MXPA1#,MXPH1#

個数0or1個､ｲﾗｽﾄ参照

 1
Common parts
90109-08295
90119-06983
90119-06984
90178-06023
90189-06130
90467-10188
90541-09124
90950-01956
90950-01A02
90950-01A05
90950-06105
91673-80616
93567-55020
