KSP210-AHXGK (2020)
Toyota Yaris

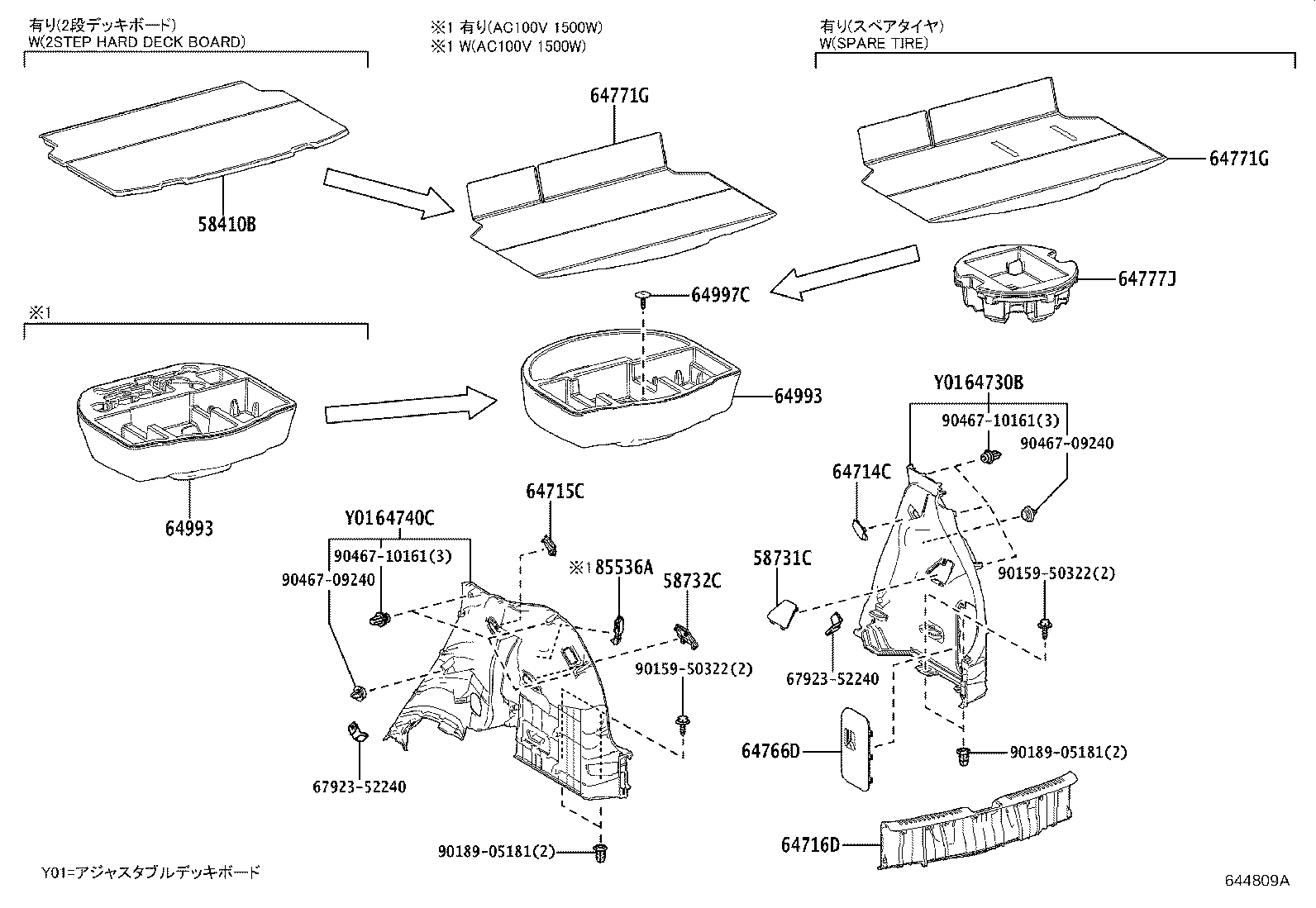

(2002- )KSP210,MXPA10,MXPH10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58410B - BOARD ASSY, DECK | ||||
| 58410-52220B0 |
MXPA10..X;KSP210,MXPH10..G,HBDX,X ﾃﾞｯｷｶ−ﾍﾟｯﾄ&ﾏｯﾄ−2段ﾃﾞｯｷﾎﾞｰﾄﾞ(DOP),DARK GRAY,TRIM2#,4# |
1 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-K0010C0 |
MXPA1#..X;KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-K0010C0 |
MXPA1#..X;KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 62566-K0010C0 |
MXPA1#..X;KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 62567-K0010C0 |
MXPA1#..X;KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-K0040C0 |
MXPA1#..X;KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-52780C0 |
MXPA10..X;KSP210,MXPH10..G,HBDX,X ﾃﾞｯｷｶ−ﾍﾟｯﾄ&ﾏｯﾄ−2段ﾃﾞｯｷﾎﾞｰﾄﾞ(DOP),BLACK,TRIM2#,4# |
1 | ||
| 64730-K0020C0 |
KSP210,MXPA1#,MXPH10..CVT..(G,HBDG,HBDX,X) 有り(車いす収納装置,助手席回転ﾁﾙﾄｼｰﾄ),BLACK,TRIM2#,4# |
1 | ||
| 64730-K0020C0 |
MXPA10..X;KSP210,MXPH10..G,HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-K0020C0 |
MXPA10..X;KSP210,MXPH10..G,HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 64740-K0020C0 |
KSP210,MXPA1#,MXPH10..CVT..(G,HBDG,HBDX,X) 有り(車いす収納装置,助手席回転ﾁﾙﾄｼｰﾄ),BLACK,TRIM2#,4# |
1 | ||
| 64740-52890C0 |
MXPA10..X;KSP210,MXPH10..G,HBDX,X ﾃﾞｯｷｶ−ﾍﾟｯﾄ&ﾏｯﾄ−2段ﾃﾞｯｷﾎﾞｰﾄﾞ(DOP),BLACK,TRIM2#,4# |
1 | ||
| 64766D - COVER, DECK SIDE TRIM JACK | ||||
| 64766-K0010C0 |
MXPA1#..X;KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 64771G - COVER, SPARE WHEEL | ||||
| 64771-52340B0 |
KSP210,MXPA1#,MXPH10..CVT..(G,HBDG,HBDX,X) 有り(車いす収納装置,助手席回転ﾁﾙﾄｼｰﾄ),DARK GRAY,TRIM2#,4# |
1 | ||
| 64771-K0010B0 |
MXPA10..X;KSP210,MXPH10..G,HBDX,X DARK GRAY,TRIM2#,4# |
1 | ||
| 64771-K0010B0 |
MXPA10..CVT..X;KSP210,MXPH10..G,HBDX,X 有り(車いす収納装置,助手席回転ﾁﾙﾄｼｰﾄ),DARK GRAY,TRIM2#,4# |
1 | ||
| 64771-K0140B0 |
MXPA10..X;KSP210,MXPH10..G,HBDX,X ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16),DARK GRAY,TRIM2#,4# |
1 | ||
| 64771G - COVER, SPARE WHEEL | ||||
| 64771-52340B0 |
KSP210,MXPA1#,MXPH10..CVT..(G,HBDG,HBDX,X) 有り(車いす収納装置,助手席回転ﾁﾙﾄｼｰﾄ),DARK GRAY,TRIM2#,4# |
1 | ||
| 64771-K0010B0 |
MXPA10..X;KSP210,MXPH10..G,HBDX,X DARK GRAY,TRIM2#,4# |
1 | ||
| 64771-K0010B0 |
MXPA10..CVT..X;KSP210,MXPH10..G,HBDX,X 有り(車いす収納装置,助手席回転ﾁﾙﾄｼｰﾄ),DARK GRAY,TRIM2#,4# |
1 | ||
| 64771-K0140B0 |
MXPA10..X;KSP210,MXPH10..G,HBDX,X ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16),DARK GRAY,TRIM2#,4# |
1 | ||
| 64777J - CUSHION, SPARE WHEEL | ||||
| 64777-K0010 |
KSP210,MXPA10,MXPH10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16) |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-K0010 |
KSP210,MXPA10,MXPH10 |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-K0010 |
KSP210,MXPA10,MXPH10 |
1 | ||
| 64997C - CLIP(FOR DECK FLOOR BOX) | ||||
| 64778-52160 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| Common parts | ||||
| 67923-52240 | ||||
| 90159-50322 | ||||
| 90189-05181 | ||||
| 90467-09240 | ||||
| 90467-10161 | ||||

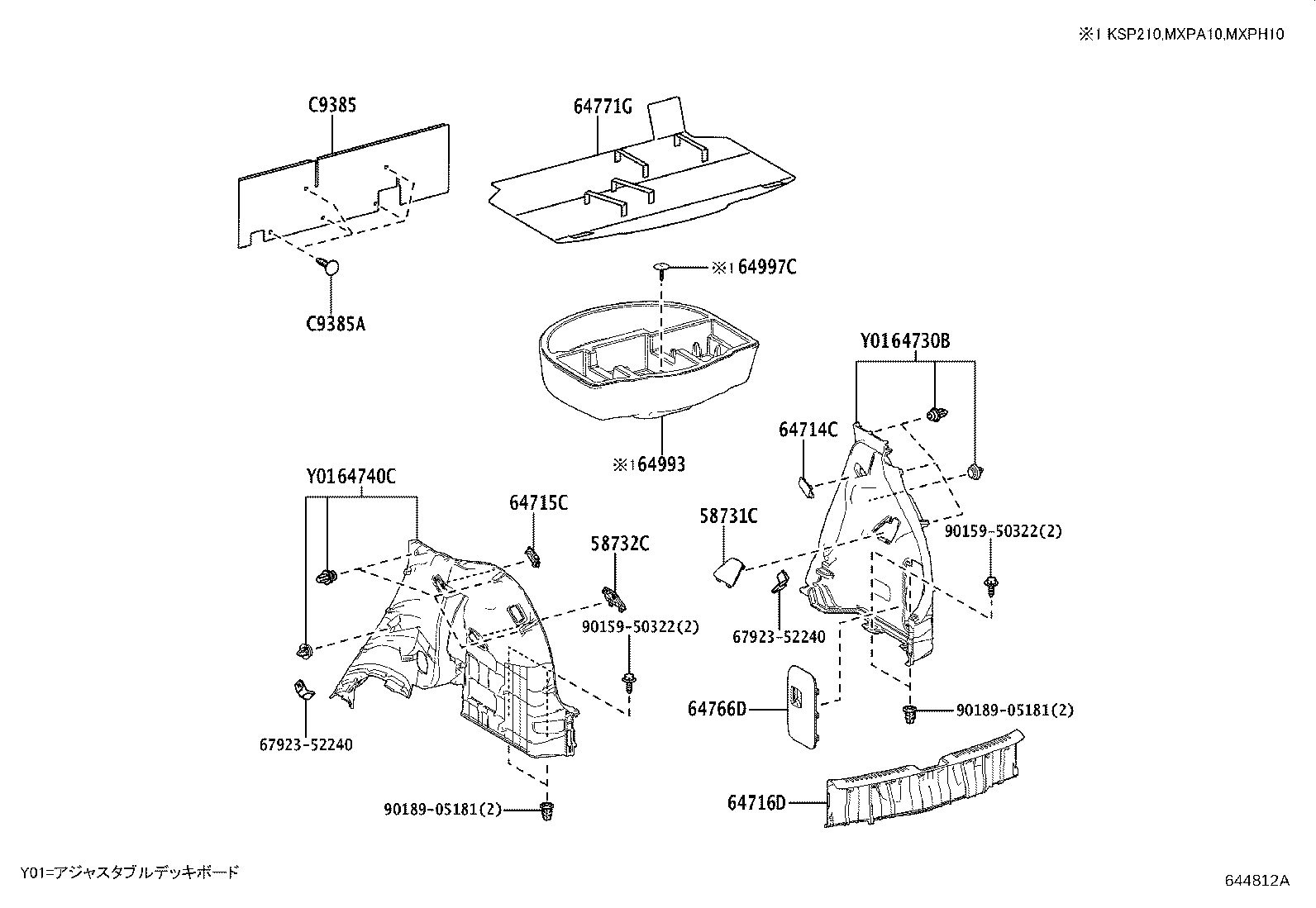

(2002- )KSP210,MXPA1#,MXPH10..CVT..G,HBDG,HBDX,X
ｳｪﾙｷｬﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-K0010C0 |
MXPA1#..X;KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-K0010C0 |
MXPA1#..X;KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 62566-K0010C0 |
MXPA1#..X;KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 62567-K0010C0 |
MXPA1#..X;KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-K0040C0 |
MXPA1#..X;KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-52780C0 |
MXPA10..X;KSP210,MXPH10..G,HBDX,X ﾃﾞｯｷｶ−ﾍﾟｯﾄ&ﾏｯﾄ−2段ﾃﾞｯｷﾎﾞｰﾄﾞ(DOP),BLACK,TRIM2#,4# |
1 | ||
| 64730-K0020C0 |
KSP210,MXPA1#,MXPH10..CVT..(G,HBDG,HBDX,X) 有り(車いす収納装置,助手席回転ﾁﾙﾄｼｰﾄ),BLACK,TRIM2#,4# |
1 | ||
| 64730-K0020C0 |
MXPA10..X;KSP210,MXPH10..G,HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-K0020C0 |
MXPA10..X;KSP210,MXPH10..G,HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 64740-K0020C0 |
KSP210,MXPA1#,MXPH10..CVT..(G,HBDG,HBDX,X) 有り(車いす収納装置,助手席回転ﾁﾙﾄｼｰﾄ),BLACK,TRIM2#,4# |
1 | ||
| 64740-52890C0 |
MXPA10..X;KSP210,MXPH10..G,HBDX,X ﾃﾞｯｷｶ−ﾍﾟｯﾄ&ﾏｯﾄ−2段ﾃﾞｯｷﾎﾞｰﾄﾞ(DOP),BLACK,TRIM2#,4# |
1 | ||
| 64766D - COVER, DECK SIDE TRIM JACK | ||||
| 64766-K0010C0 |
MXPA1#..X;KSP210,MXPH1#..G,HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 64771G - COVER, SPARE WHEEL | ||||
| 64771-52340B0 |
KSP210,MXPA1#,MXPH10..CVT..(G,HBDG,HBDX,X) 有り(車いす収納装置,助手席回転ﾁﾙﾄｼｰﾄ),DARK GRAY,TRIM2#,4# |
1 | ||
| 64771-K0010B0 |
MXPA10..X;KSP210,MXPH10..G,HBDX,X DARK GRAY,TRIM2#,4# |
1 | ||
| 64771-K0010B0 |
MXPA10..CVT..X;KSP210,MXPH10..G,HBDX,X 有り(車いす収納装置,助手席回転ﾁﾙﾄｼｰﾄ),DARK GRAY,TRIM2#,4# |
1 | ||
| 64771-K0140B0 |
MXPA10..X;KSP210,MXPH10..G,HBDX,X ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16),DARK GRAY,TRIM2#,4# |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-K0010 |
KSP210,MXPA10,MXPH10 |
1 | ||
| 64997C - CLIP(FOR DECK FLOOR BOX) | ||||
| 64778-52160 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| C9385 - MAT, BRIDGE PLATE | ||||
| C9385-52010 |
KSP210,MXPA10,MXPH10..CVT..(G,HBDG,HBDX,X) 有り(車いす収納装置,助手席回転ﾁﾙﾄｼｰﾄ) |
1 | ||
| C9385A - CLIP(FOR BRIDGE PLATE MAT) | ||||
| 90467-05164C7 |
KSP210,MXPA10,MXPH10..CVT..(G,HBDG,HBDX,X) 有り(車いす収納装置,助手席回転ﾁﾙﾄｼｰﾄ),BLACK,TRIM2#,4# |
5 | ||
| Common parts | ||||
| 67923-52240 | ||||
| 90159-50322 | ||||
| 90189-05181 | ||||
