KSP210-AHXGK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

Click highlighted areas on diagram

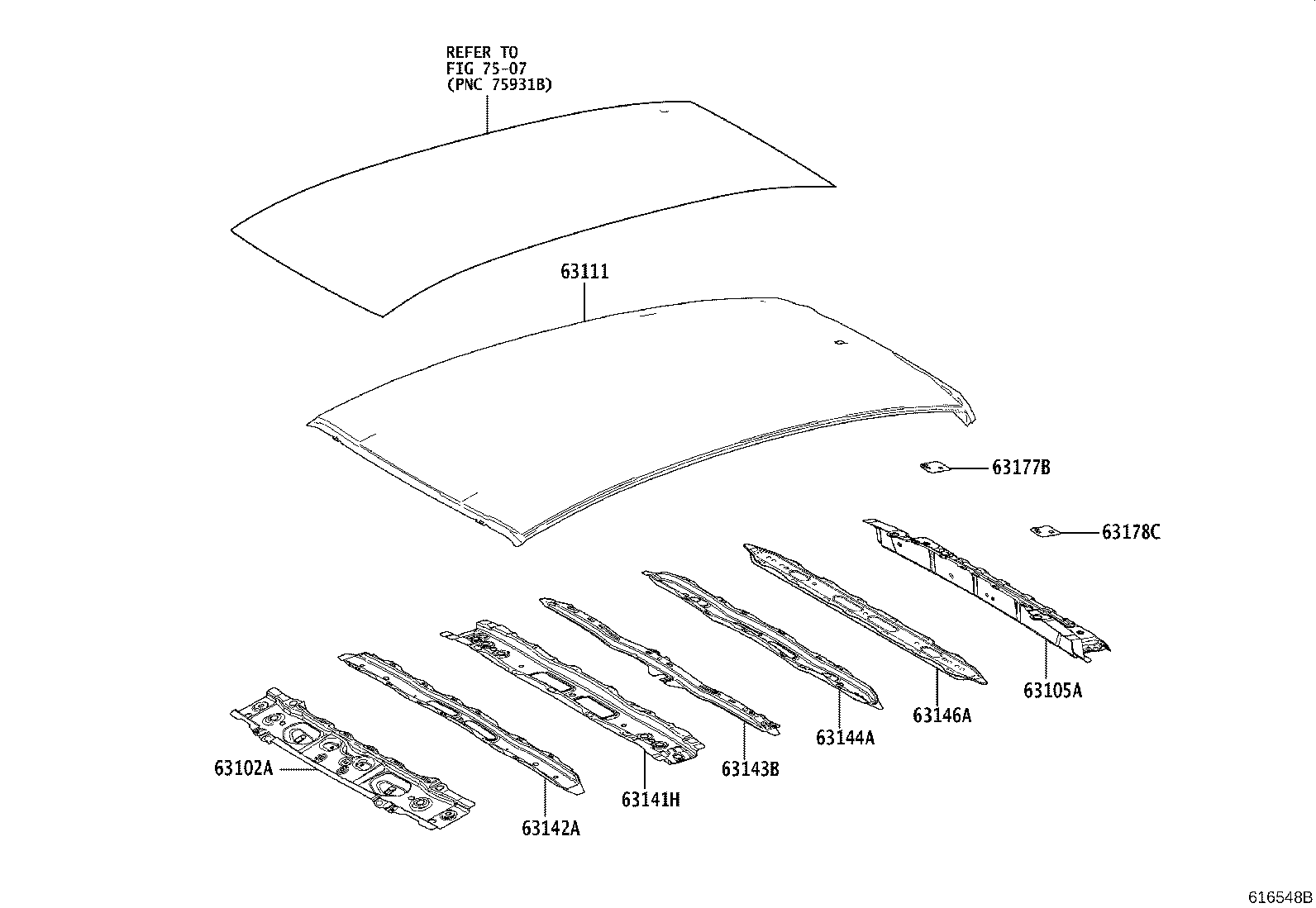

diagram 63102A 63105A 63111 63141H 63142A 63143B 63144A 63146A 63177B 63178C 7507
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-K0010

KSP210,MXPA1#,MXPH1#

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-52210

KSP210,MXPA1#,MXPH1#

 1
63111 - PANEL, ROOF
63111-K0170

KSP210,MXPA1#,MXPH1#

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-K0010

KSP210,MXPA1#,MXPH1#

 1
63142A - REINFORCEMENT, ROOF PANEL, NO.2
63142-K0040

KSP210,MXPA1#,MXPH1#

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-52200

KSP210,MXPA1#,MXPH1#

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-K0010

KSP210,MXPA1#,MXPH1#

 1
63146A - BRACKET, ROOF PANEL REINFORCEMENT, NO.1
63146-K0010

KSP210,MXPA1#,MXPH1#

 1
63177B - RETAINER, BACK DOOR HINGE FEMALE, RH
63177-52040

KSP210,MXPA1#,MXPH1#

 1
63178C - RETAINER, BACK DOOR HINGE FEMALE, LH
63178-52040

KSP210,MXPA1#,MXPH1#

 1
Linked diagrams
7507
