KSP210-AHXGK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )KSP210,MXPA10,MXPH1#

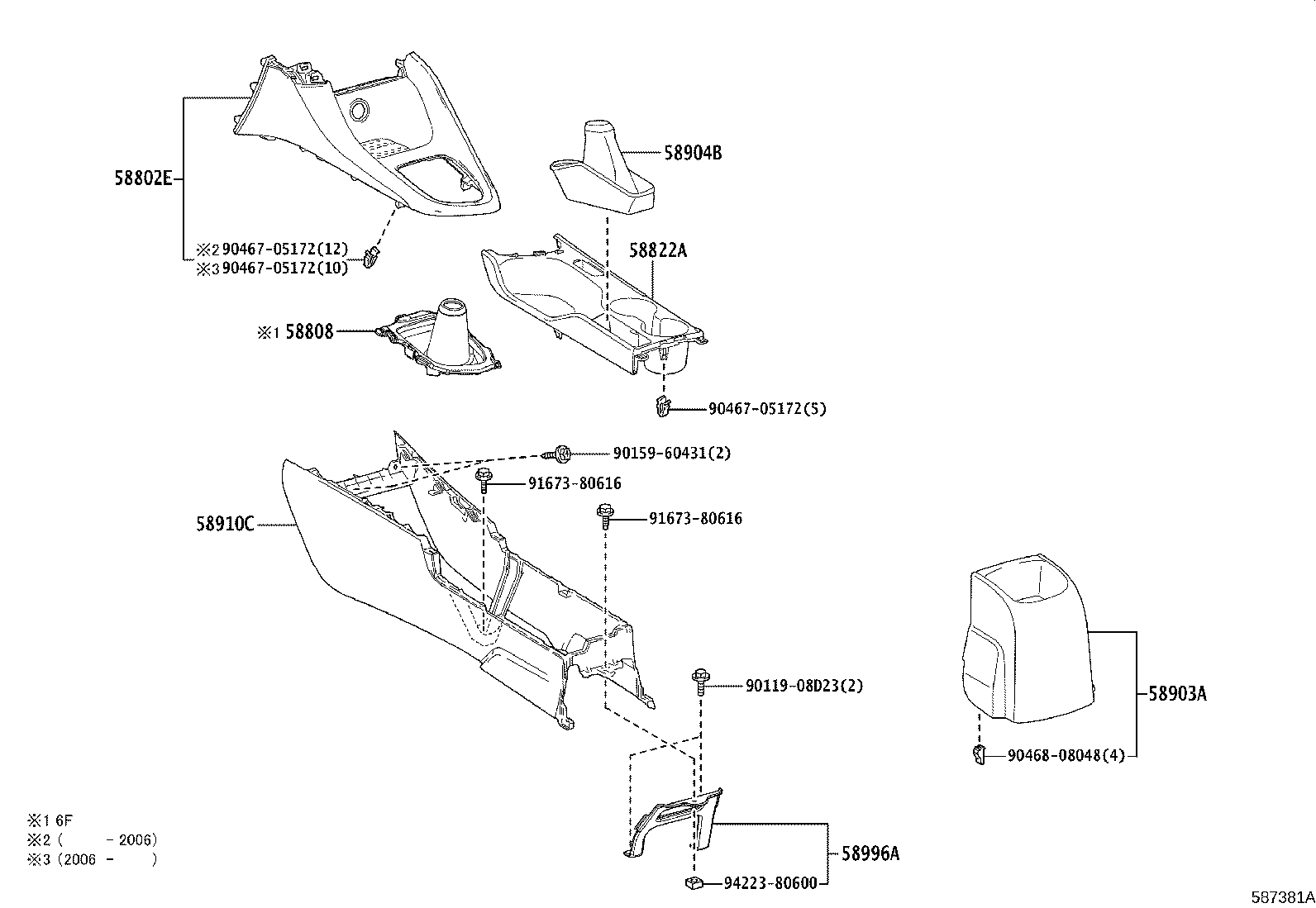

Click highlighted areas on diagram

diagram 58802E 58808 58822A 58903A 58904B 58910C 58996A 9011908D23 9015960431 9046705172 9046705172 9046705172 9046808048 9167380616 9167380616 9422380600
Part # Description Qty Price
58802E - BOX SUB-ASSY, CONSOLE, FRONT
58810-K0060C0

KSP210..G;MXPA10..6F..G

BLACK/BLACK/BLACK,TRIM20

 1
58810-K0060C4

KSP210,MXPA1#,MXPH1#..G,HBDG

BLACK/BLACK/ROSE METALLIC,TRIM20

 1
58810-K0060C1

KSP210,MXPA1#,MXPH1#..G,HBDG

BLACK/TAUPE/ROSE METALLIC,TRIM40

 1
58810-K0060C2

KSP210,MXPA1#,MXPH1#..G,HBDG

BLACK/TAUPE/BLACK,TRIM40

 1
58810-K0020C2

KSP210,MXPA1#,MXPH1#..HBDX,X

BLACK/BLACK,TRIM2#

 1
58810-K0020C3

KSP210,MXPA1#,MXPH1#..HBDX,X

BLACK/TAUPE,TRIM4#

 1
58822A - PANEL, CONSOLE, UPPER REAR
58822-K0010C0

MXPA1#..X;KSP210,MXPH1#..G,HBDX,X

BLACK,TRIM2#,4#

 1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-K0010C0

MXPA10..X;KSP210,MXPH1#..G,HBDX,X

BLACK,TRIM2#,4#

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-K0010C1

MXPA1#..X;KSP210,MXPH1#..G,HBDX,X

BLACK,TRIM2#,4#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-K0010C0

MXPA1#..X;KSP210,MXPH1#..G,HBDX,X

BLACK,TRIM2#,4#

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-K0010

KSP210,MXPA10,MXPH1#

 1
Common parts
90119-08D23
90159-60431
90467-05172
90468-08048
91673-80616
94223-80600
