KSP210-AHXGK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )KSP210,MXPA10

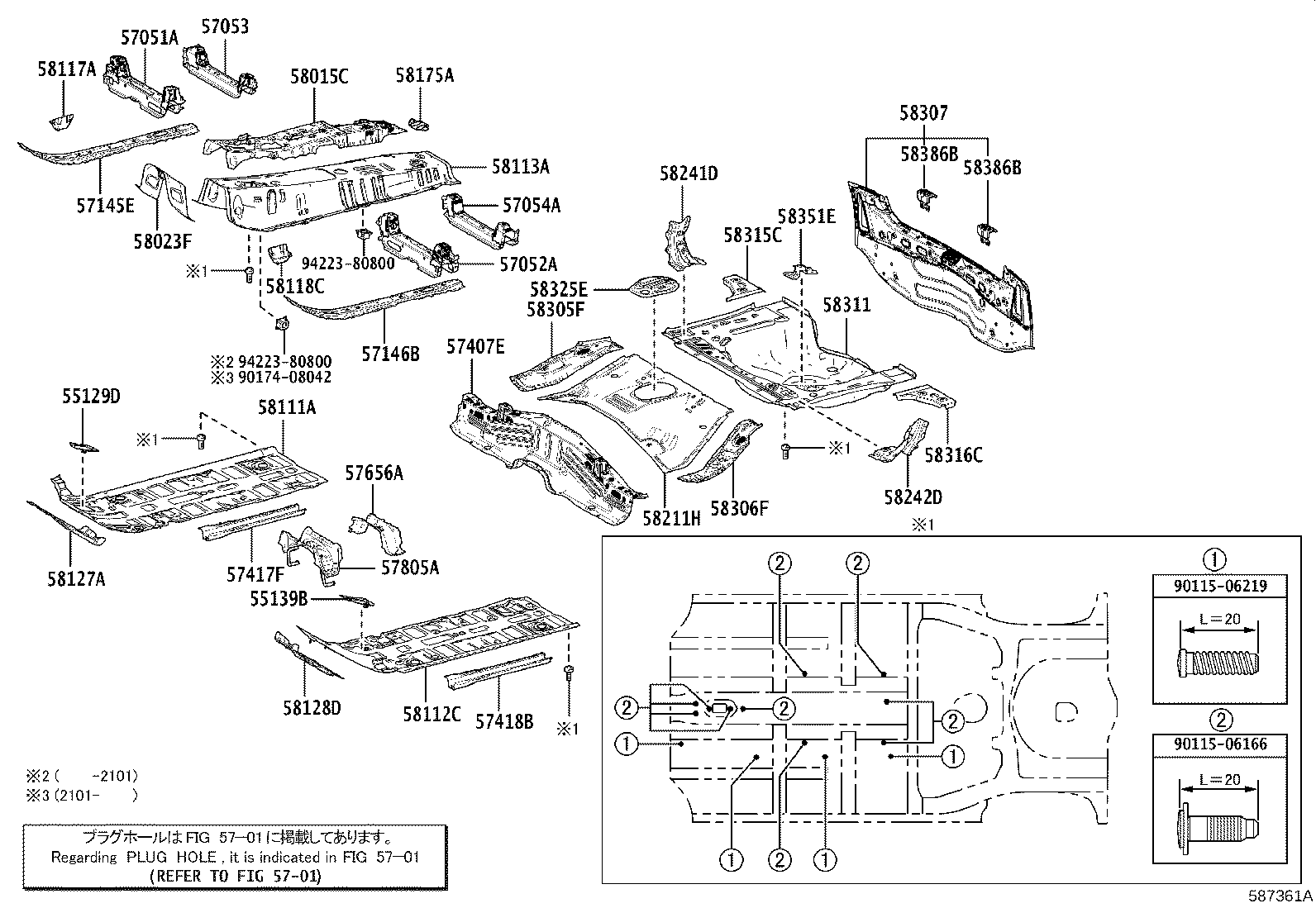

Click highlighted areas on diagram

diagram 55129D 55139B 5701 57051A 57052A 57053 57054A 57145E 57146B 57407E 57417F 57418B 57656A 57805A 58015C 58023F 58111A 58112C 58113A 58117A 58118C 58127A 58128D 58175A 58211H 58241D 58242D 58305F 58306F 58307 58311 58315C 58316C 58325E 58351E 58386B 58386B 9011506166 9011506219 9017408042 9422380800 9422380800
Part # Description Qty Price
55129D - COVER, DASH PANEL HOLE, RH
55129-K0010

KSP210,MXPA1#,MXPH1#

 1
55139B - COVER, DASH PANEL HOLE, LH
55139-K0010

KSP210,MXPA1#,MXPH1#

 1
57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-52110

KSP210,MXPA1#,MXPH1#

 1
57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57052-52100

KSP210,MXPA1#,MXPH1#

 1
57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH
57053-K0010

KSP210,MXPA1#,MXPH1#

 1
57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH
57054-K0010

KSP210,MXPA1#,MXPH1#

 1
57145E - REINFORCEMENT, FRONT SIDE MEMBER, REAR RH
57145-K0010

KSP210,MXPA1#,MXPH1#

 1
57146B - REINFORCEMENT, FRONT SIDE MEMBER, REAR LH
57146-K0010

KSP210,MXPA1#,MXPH1#

 1
57407E - MEMBER SUB-ASSY, CENTER FLOOR CROSS
57407-K0010

KSP210,MXPA10

 1
57417F - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-K0010

KSP210,MXPA1#,MXPH1#

 1
57418B - REINFORCEMENT, FRONT FLOOR UNDER, LH
57417-K0010

KSP210,MXPA1#,MXPH1#

 1
57656A - BRACKET, EXHAUST PIPE MOUNTING, NO.1
57656-K0030

KSP210,MXPA10,MXPH1#

 1
57805A - REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1
57805-K0030

KSP210,MXPA10,MXPH1#

 1
58015C - PANEL SUB-ASSY, FRONT FLOOR HOUSING
58015-K0010

KSP210,MXPA10,MXPH1#

 1
58023F - BRACKET SUB-ASSY, FLEXIBLE HOSE
58023-K0010

KSP210,MXPA1#,MXPH1#

 1
58111A - PAN, FRONT FLOOR, RH
58111-K0010

KSP210,MXPA1#,MXPH1#

 1
58112C - PAN, FRONT FLOOR, LH
58112-K0010

KSP210,MXPA1#,MXPH1#

 1
58113A - PANEL, FRONT FLOOR, CENTER
58113-52240

KSP210,MXPA10,MXPH10

 1
58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH
58117-52090

KSP210,MXPA1#,MXPH1#

 1
58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH
58118-52040

KSP210,MXPA1#,MXPH1#

 1
58127A - REINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
58127-K0010

KSP210,MXPA1#,MXPH1#

 1
58128D - REINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH
58128-K0010

KSP210,MXPA1#,MXPH1#

 1
58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1
58175-K0020

KSP210,MXPA1#,MXPH1#

 1
58211H - PAN, CENTER FLOOR
58211-K0010

KSP210,MXPA10

 1
58241D - GUSSET, WHEELHOUSE INNER, FRONT RH
58241-K0010

KSP210,MXPA10,MXPH10

 1
58242D - GUSSET, WHEELHOUSE INNER, FRONT LH
58242-K0010

KSP210,MXPA10,MXPH10

 1
58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH
58305-K0010

KSP210,MXPA1#

 1
58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH
58306-K0010

KSP210,MXPA1#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-K0010

KSP210,MXPA10,MXPH10

 1
58311 - PAN, REAR FLOOR
58311-K0020

KSP210,MXPA10,MXPH10

 1
58315C - EXTENSION, REAR FLOOR SIDE PANEL, RH
58315-K0010

KSP210,MXPA1#,MXPH1#

 1
58316C - EXTENSION, REAR FLOOR SIDE PANEL, LH
58316-K0010

KSP210,MXPA1#,MXPH1#

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-K0010

KSP210,MXPA10

 1
58351E - BRACKET, SPARE WHEEL CLAMP
58351-12060

KSP210,MXPA1#,MXPH10

 1
58386B - BRACKET, REAR BUMPER COVER, NO.2
58386-47020

KSP210,MXPA1#,MXPH1#

 2
58386B - BRACKET, REAR BUMPER COVER, NO.2
58386-47020

KSP210,MXPA1#,MXPH1#

 2
Common parts
90115-06166
90115-06219
90174-08042
94223-80800
Linked diagrams
5701
