KSP210-AHXGK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

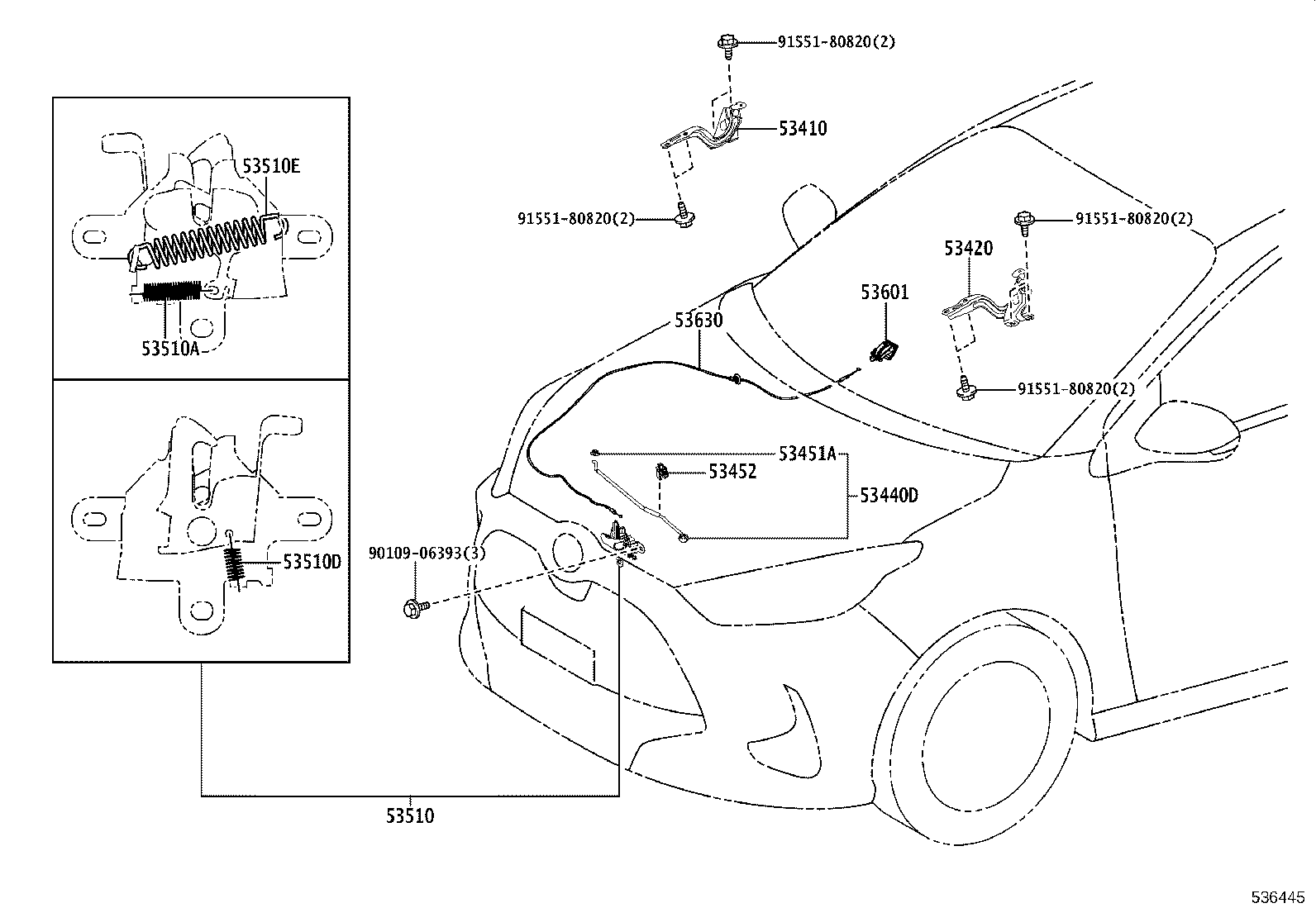

Click highlighted areas on diagram

diagram 53410 53420 53440D 53451A 53452 53510 53510A 53510D 53510E 53601 53630 9010906393 9155180820 9155180820 9155180820 9155180820
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-K0040

KSP210,MXPA1#,MXPH1#

 1
53420 - HINGE ASSY, HOOD, LH
53420-K0040

KSP210,MXPA1#,MXPH1#

 1
53440D - SUPPORT ASSY, HOOD
53440-K0010

KSP210,MXPA1#,MXPH1#

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15025

KSP210,MXPA1#,MXPH1#

 1
53452 - HOLDER, HOOD STAY
53452-15020

KSP210,MXPA1#,MXPH1#

 1
53510 - LOCK ASSY, HOOD
53510-K0060

KSP210,MXPA1#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

KSP210,MXPA1#,MXPH1#

線径=0.9,ｺｲﾙ巻数=21

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

KSP210,MXPA1#,MXPH1#

線径=1.2,ｺｲﾙ巻数=8.5

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-16077

KSP210,MXPA1#,MXPH1#

線径=1.6,ｺｲﾙ巻数=12

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-30100C0

MXPA1#..X;MXPA10..6F..(G,Z);KSP210,MXPH1#..G,HBDX,X

BLACK,TRIM2#

 1
53601-30100E1

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

TAUPE,TRIM4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-K0030

KSP210,MXPA1#,MXPH1#

 1
Common parts
90109-06393
91551-80820
