KSP210-AHXGK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

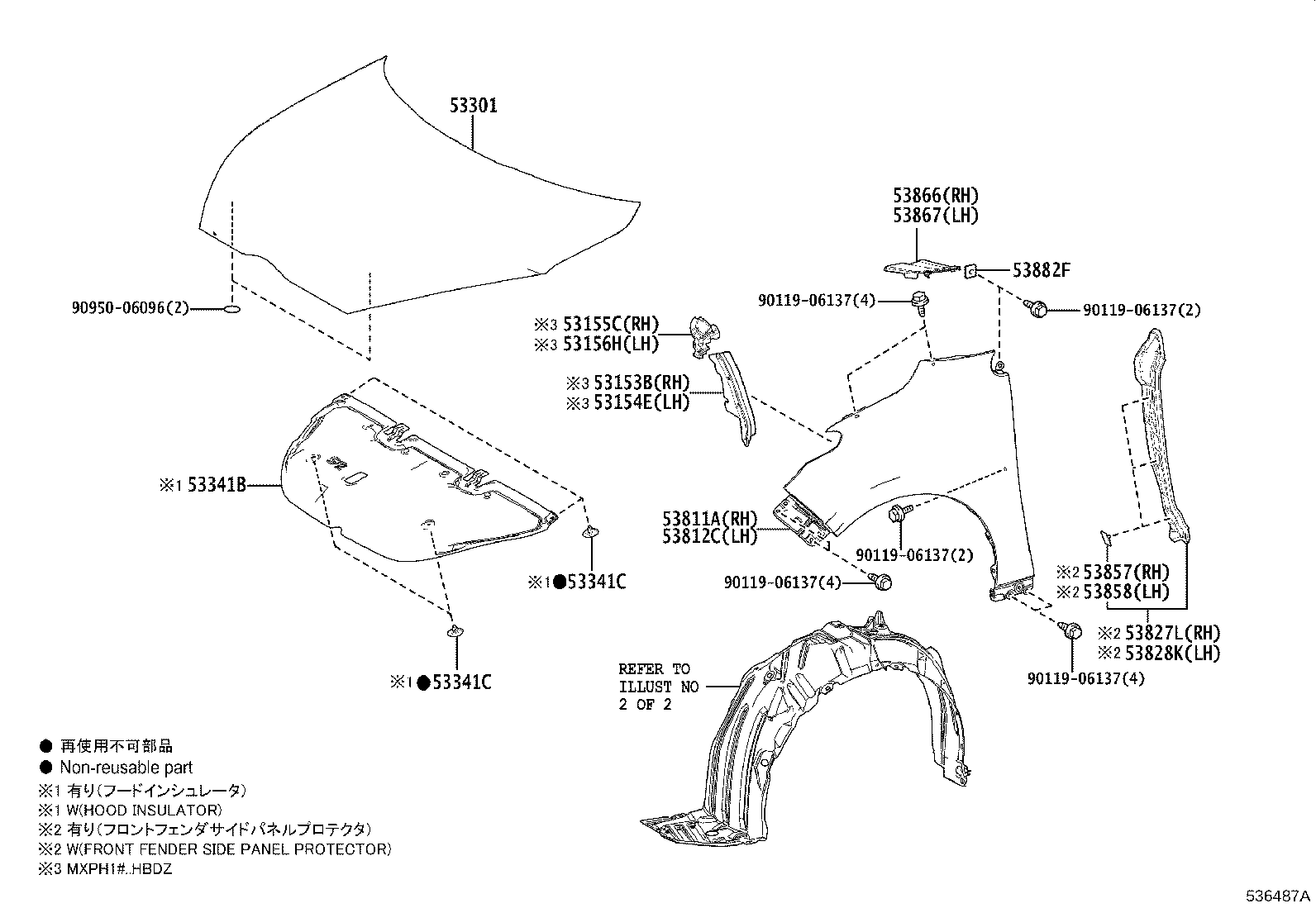

ILLUST NO. 1 OF 2(2002- )

Click highlighted areas on diagram

diagram 53153B 53154E 53155C 53156H 53301 53341B 53341C 53341C 53811A 53812C 53827L 53828K 53857 53858 53866 53867 53882F 9011906137 9011906137 9011906137 9011906137 9011906137 9095006096
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-K0010

KSP210,MXPA1#,MXPH1#

 1
53811A - PANEL, FRONT FENDER, RH
53811-K0060

KSP210,MXPA1#,MXPH1#

 1
53812C - PANEL, FRONT FENDER, LH
53812-K0060

KSP210,MXPA1#,MXPH1#

 1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-K0010

KSP210,MXPA10,MXPH1#..G,HBDG,HBDX,X,Z

寒冷地仕様

 1
53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-K0010

KSP210,MXPA10,MXPH1#..G,HBDG,HBDX,X,Z

寒冷地仕様

 1
53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857-12010

KSP210,MXPA10,MXPH1#..G,HBDG,HBDX,X,Z

寒冷地仕様

 3
53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53857-12010

KSP210,MXPA10,MXPH1#..G,HBDG,HBDX,X,Z

寒冷地仕様

 3
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-K0010

KSP210,MXPA1#,MXPH1#

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-K0010

KSP210,MXPA1#,MXPH1#

 1
53882F - SEAL, FRONT FENDER
53882-16030

KSP210,MXPA1#,MXPH1#

 2
Common parts
90119-06137
90950-06096

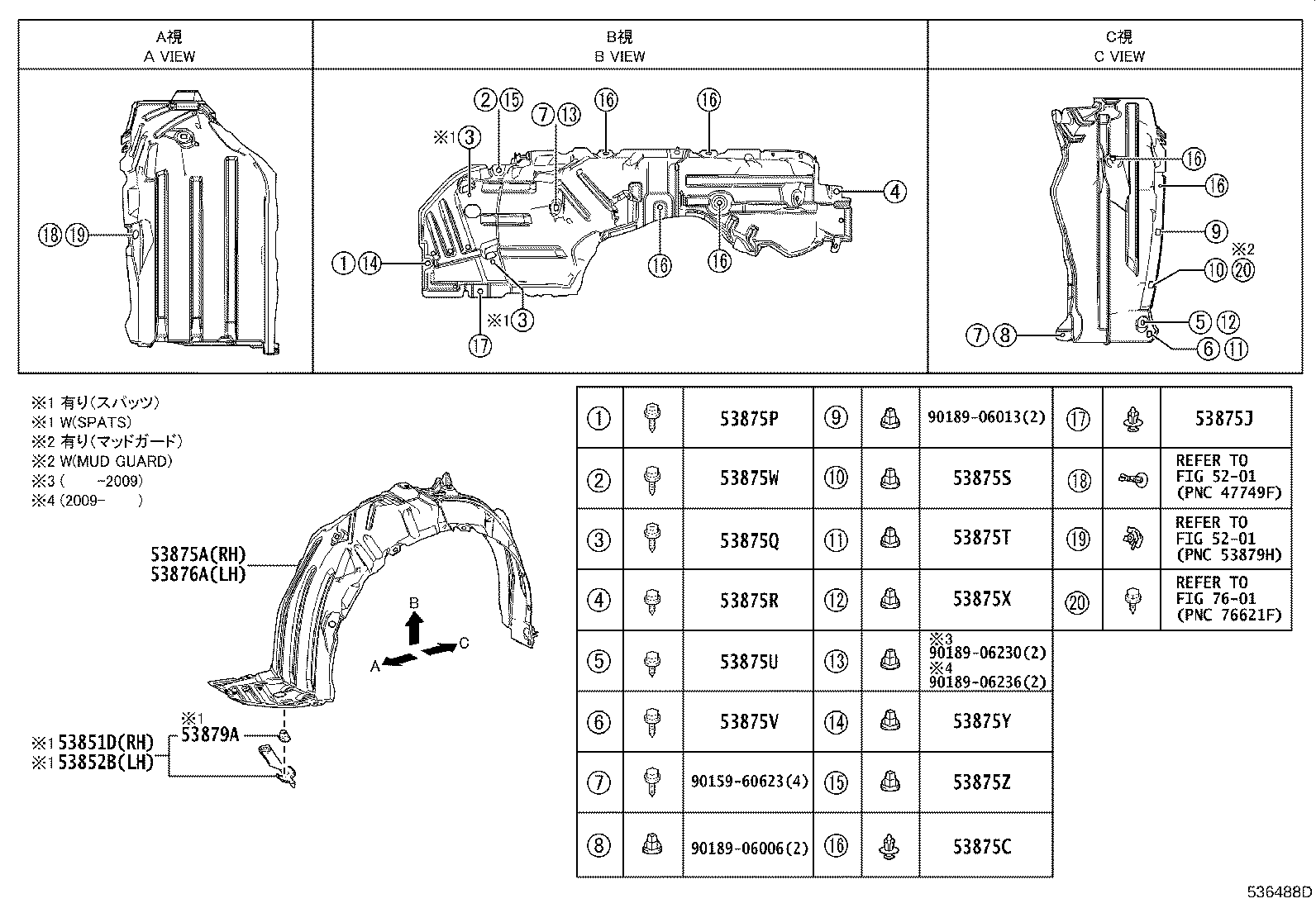

ILLUST NO. 2 OF 2(2002- )

Click highlighted areas on diagram

diagram 5201 5201 53851D 53852B 53875A 53875C 53875J 53875P 53875Q 53875R 53875S 53875T 53875U 53875V 53875W 53875X 53875Y 53875Z 53876A 53879A 7601 9015960623 9018906006 9018906013 9018906230 9018906236
Part # Description Qty Price
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-K0010

MXPA1#;KSP210,MXPH1#..G,HBDG,HBDX,HBDZ

 1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-K0010

MXPA1#;KSP210,MXPH1#..G,HBDG,HBDX,HBDZ

 1
53875A - LINER, FRONT FENDER, RH
53875-K0010

KSP210,MXPA1#,MXPH1#

 1
53875C - CLIP, FRONT FENDER LINER
90467-07214

KSP210,MXPA1#,MXPH1#

 12
53875J - CLIP, FRONT FENDER LINER
90467-07220

KSP210,MXPA1#,MXPH1#

 2
53875P - SCREW, NO.1
90159-60477

KSP210,MXPA1#,MXPH1#

 2
53875Q - SCREW, NO.2
90159-60477

MXPA1#;KSP210,MXPH1#..G,HBDG,HBDX,HBDZ

 4
53875R - SCREW, NO.3
90159-60623

KSP210,MXPA1#,MXPH1#

 2
53875S - GROMMET, NO.1
90189-06013

KSP210,MXPA1#,MXPH1#

 2
53875T - GROMMET, NO.2
90189-06145

KSP210,MXPA1#,MXPH1#

 2
53875U - SCREW, NO.4
90159-60623

KSP210,MXPA1#,MXPH1#

 2
53875V - SCREW, NO.5
90159-60623

KSP210,MXPA1#,MXPH1#

 2
53875W - SCREW, NO.6
90159-60477

KSP210,MXPA1#,MXPH1#

 2
53875X - GROMMET, NO.3
90189-06145

KSP210,MXPA1#,MXPH1#

 2
53875Y - GROMMET, NO.4
90189-06237

KSP210,MXPA1#,MXPH1#

 2
53875Z - GROMMET, NO.5
90189-06237

KSP210,MXPA1#,MXPH1#

 2
53876A - LINER, FRONT FENDER, LH
53876-K0010

KSP210,MXPA1#,MXPH1#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-17020

MXPA1#;KSP210,MXPH1#..G,HBDG,HBDX,HBDZ

 4
Common parts
90159-60623
90189-06006
90189-06013
90189-06230
90189-06236
Linked diagrams
5201
7601
