KSP210-AHXGK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

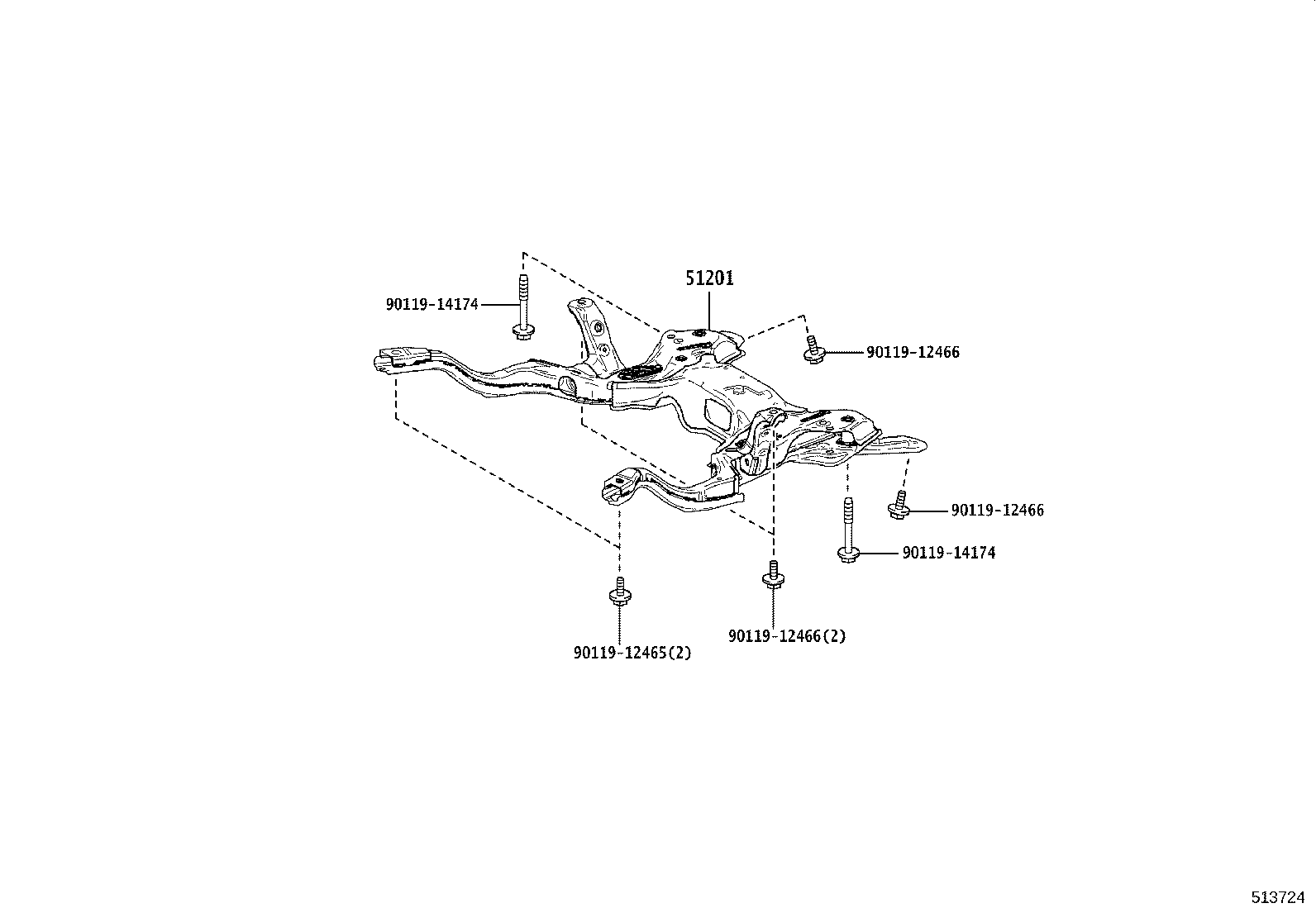

ILLUST NO. 1 OF 2(2002- )KSP210

Click highlighted areas on diagram

diagram 51201 9011912465 9011912466 9011912466 9011912466 9011914174 9011914174
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-52110

KSP210

 1
Common parts
90119-12465
90119-12466
90119-14174

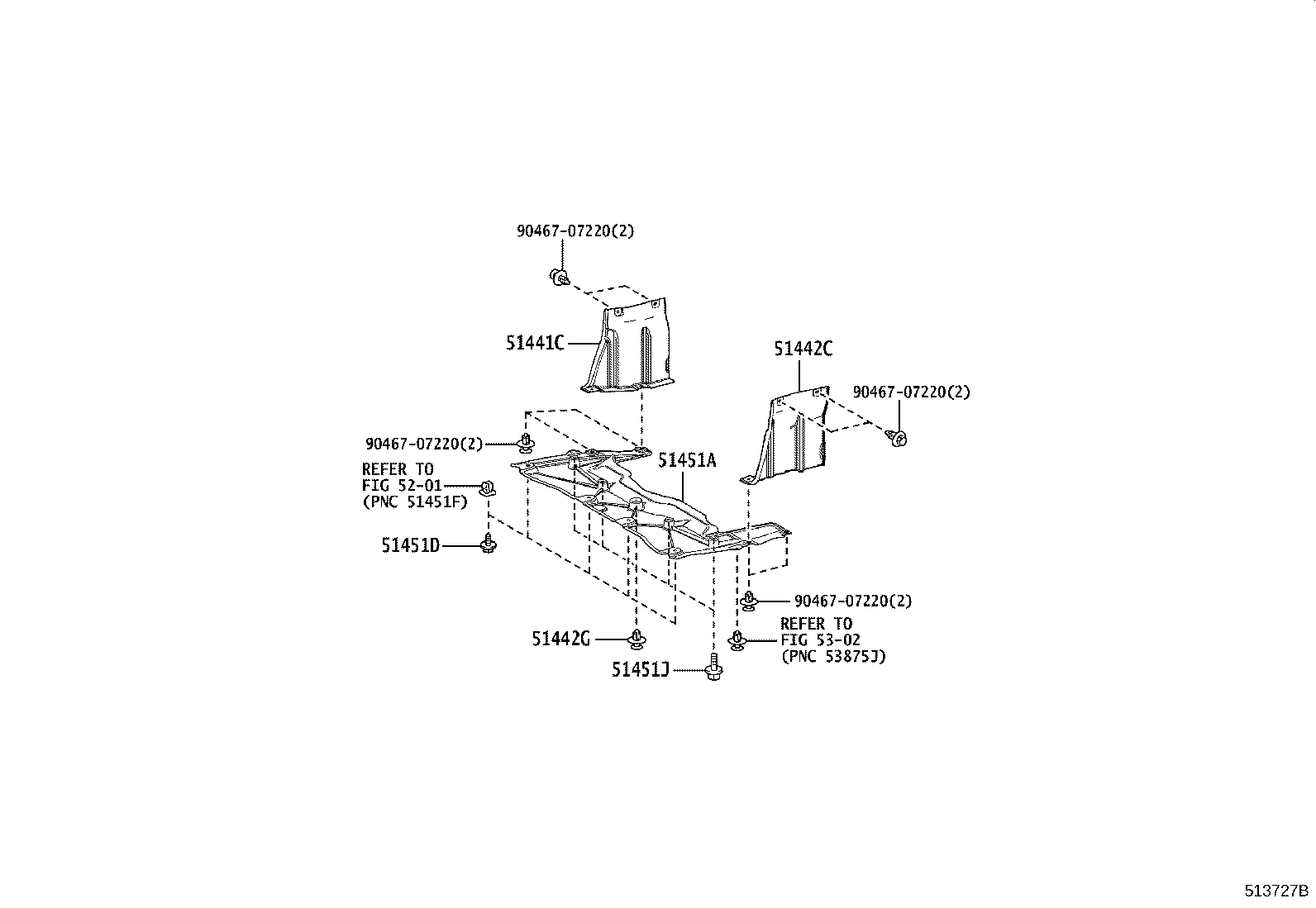

ILLUST NO. 2 OF 2(2002- )KSP210

Click highlighted areas on diagram

diagram 51441C 51442C 51442G 51451A 51451D 51451J 5201 5302 9046707220 9046707220 9046707220 9046707220
Part # Description Qty Price
51441C - COVER, ENGINE UNDER, RH
51441-K0010

KSP210,MXPA10,MXPH1#

 1
51442C - COVER, ENGINE UNDER, LH
51442-K0010

KSP210,MXPA10,MXPH1#

 1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220

KSP210,MXPA1#,MXPH1#

 1
51451A - COVER, ENGINE UNDER, CENTER
51451-K0010

KSP210,MXPA10

 1
51451D - SCREW, NO.1
90159-60477

KSP210,MXPA1#,MXPH1#

 4
51451J - BOLT, NO.1
90119-06A13

KSP210,MXPA1#,MXPH1#

 4
Common parts
90467-07220
Linked diagrams
5201
5302
