KSP210-AHXGK (2020)
Toyota Yaris
Production
Feb 2020
-
Sep 9999
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2002- )KSP210

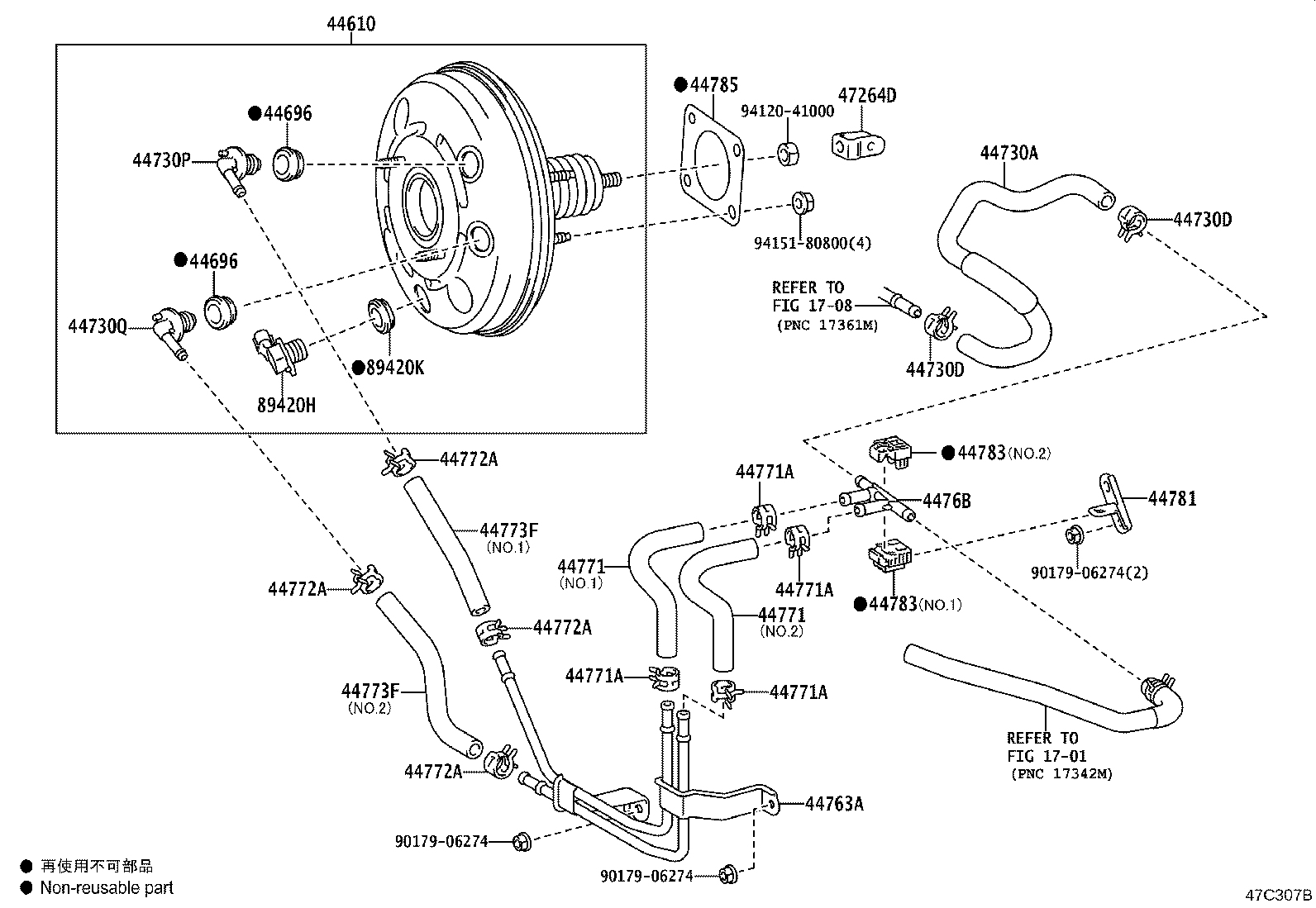

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-K0130 |
KSP210 |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
KSP210 |
2 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
KSP210 |
2 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44774-K0050 |
KSP210 |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16014 |
KSP210 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16014 |
KSP210 |
2 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-52010 |
KSP210 |
1 | ||
| 44730Q - VALVE ASSY, VACUUM CHECK, NO.2 | ||||
| 44730-52010 |
KSP210 |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-K0050 |
KSP210 |
1 | ||
| 4476B - EJECTOR, BRAKE BOOSTER VACUUM | ||||
| 4476B-48010 |
KSP210 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-K0010 |
KSP210 NO.1 |
1 | ||
| 44771-K0020 |
KSP210 NO.2 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-K0010 |
KSP210 NO.1 |
1 | ||
| 44771-K0020 |
KSP210 NO.2 |
1 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16014 |
KSP210 |
4 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16014 |
KSP210 |
4 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16014 |
KSP210 |
4 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16014 |
KSP210 |
4 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
KSP210 |
4 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
KSP210 |
4 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
KSP210 |
4 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
KSP210 |
4 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44772-K0050 |
KSP210 NO.2 |
1 | ||
| 44772-K0040 |
KSP210 NO.1 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44772-K0050 |
KSP210 NO.2 |
1 | ||
| 44772-K0040 |
KSP210 NO.1 |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-K0020 |
KSP210 |
1 | ||
| 44783 - CLAMP, VACUUM HOSE | ||||
| 44783-K0010 |
KSP210 NO.1 |
1 | ||
| 44783-K0020 |
KSP210 NO.2 |
1 | ||
| 44783 - CLAMP, VACUUM HOSE | ||||
| 44783-K0010 |
KSP210 NO.1 |
1 | ||
| 44783-K0020 |
KSP210 NO.2 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-16020 |
KSP210,MXPA1# |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-52040 |
KSP210 |
1 | ||
| 89420H - SENSOR ASSY, VACUUM | ||||
| 89421-52020 |
KSP210 |
1 | ||
| 89420K - GROMMET, VACUUM SENSOR | ||||
| 90480-24439 |
KSP210 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 94120-41000 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1708 | ||||
