KSP210-AHXGK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

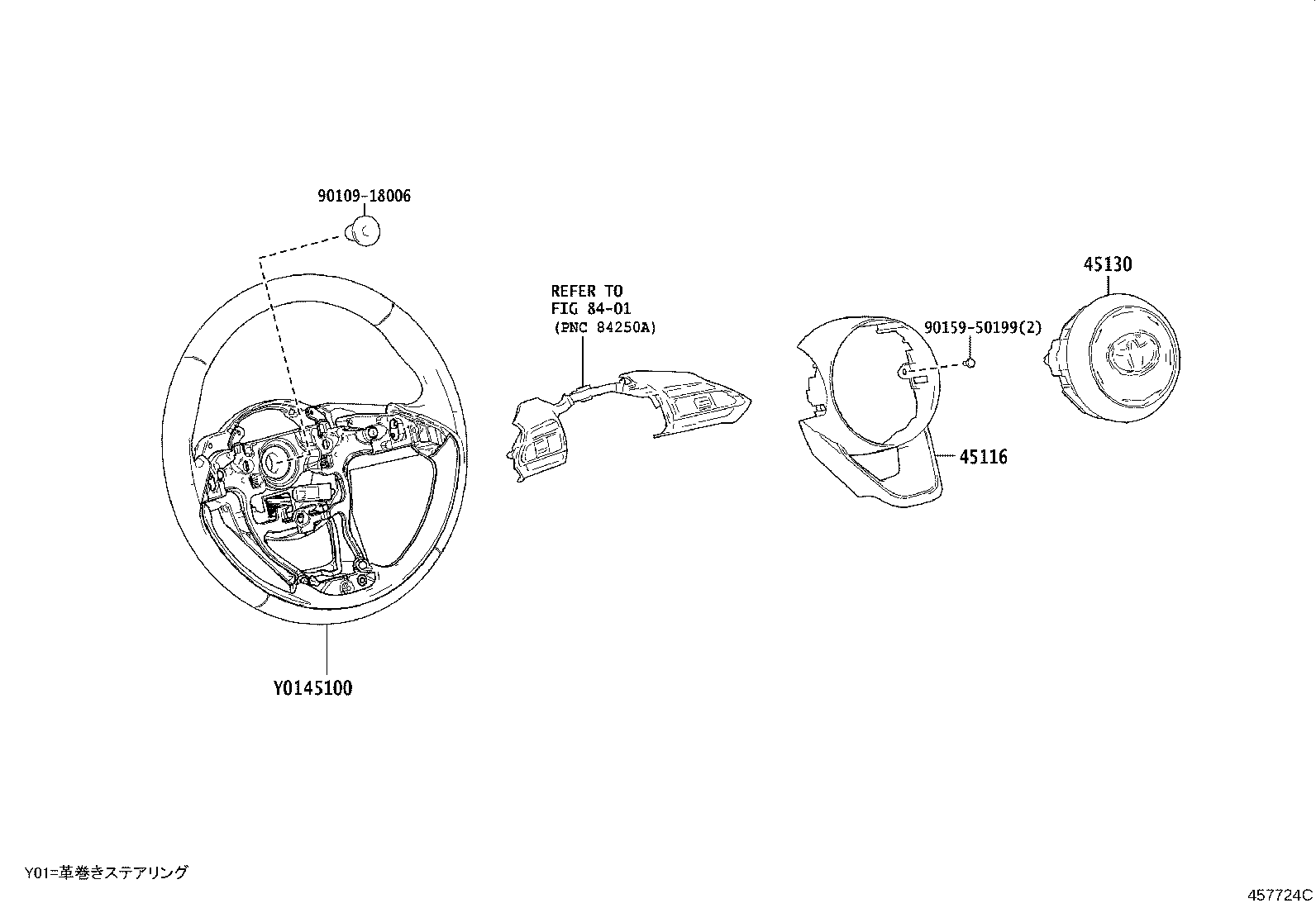

Click highlighted areas on diagram

diagram 45100 45116 45130 8401 9010918006 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-K0010C0

MXPA1#..X;KSP210,MXPH1#..G,HBDX,X

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#,4#

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-K0020C0

KSP210..G

“ｾﾚｸｼｮﾝ”*(K)&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ),ROSE METALLIC,TRIM2#,4#

 1
45116-K0020C0

KSP210..G

“ｾﾚｸｼｮﾝ”*(K)&ﾌﾛﾝﾄｼｰﾄ−STD(ﾍｯﾄﾞﾚｽﾄ分割ﾀｲﾌﾟ) 運転席:回転&ﾁﾙﾄ,ROSE METALLIC,TRIM2#,4#

 1
45116-52200C0

KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X

BLACK,TRIM2#,4#

 1
45130 - BUTTON ASSY, HORN
45130-K0020C0

MXPA1#..X;KSP210,MXPH1#..G,HBDX,X

BLACK,TRIM2#,4#

 1
Common parts
90109-18006
90159-50199
Linked diagrams
8401
