KSP210-AHXGK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

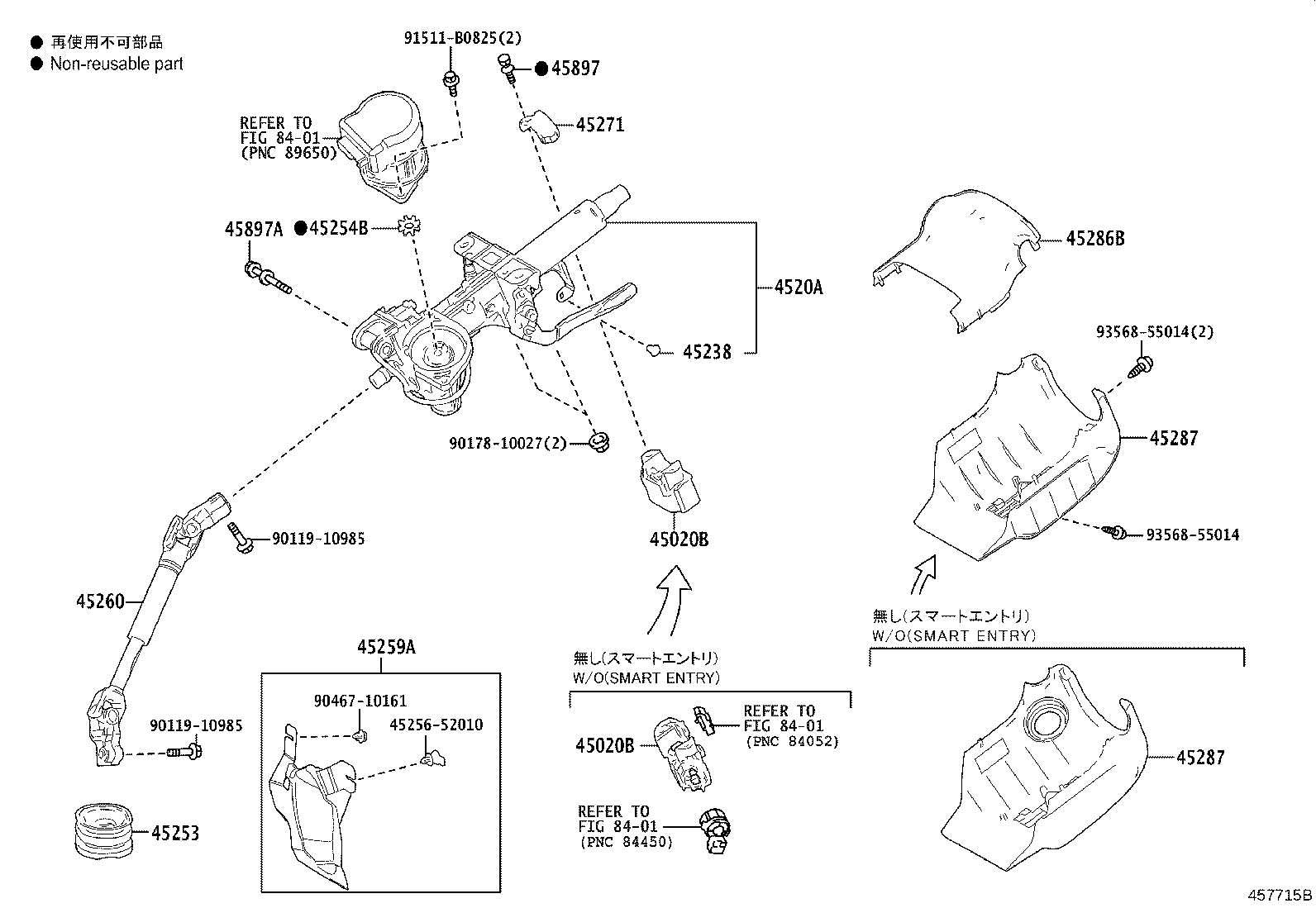

Click highlighted areas on diagram

diagram 45020B 45020B 4520A 45238 45253 45254B 4525652010 45259A 45260 45271 45286B 45287 45287 45897 45897A 8401 8401 8401 9011910985 9011910985 9017810027 9046710161 91511B0825 9356855014 9356855014
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-K0010

KSP210,MXPA10..X

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
45020-K0010

MXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z

 1
45280-33180

KSP210,MXPA10,MXPH10..CVT..(HBDX,X)

 1
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-K0010

KSP210,MXPA10..X

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
45020-K0010

MXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z

 1
45280-33180

KSP210,MXPA10,MXPH10..CVT..(HBDX,X)

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-52340

MXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z

 1
4520A-52340

KSP210,MXPA10..X

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
4520A-52350

KSP210,MXPA10,MXPH10..HBDX,X

 1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-52010

KSP210,MXPA1#,MXPH1#

 1
45253 - COVER, STEERING COLUMN HOLE
45253-K0010

KSP210,MXPA1#,MXPH1#

 1
45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45254-28040

KSP210,MXPA1#,MXPH1#

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-K0010

KSP210,MXPA1#,MXPH1#

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-K0010

KSP210,MXPA1#,MXPH1#

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52030

KSP210,MXPA1#,MXPH1#

 1
45286B - COVER, STEERING COLUMN, UPR
45286-K0010C0

KSP210,MXPA10..X

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),BLACK,TRIM2#,4#

 1
45286-K0010C0

MXPA15..X;KSP210,MXPH15..G,HBDX

BLACK,TRIM2#,4#

 1
45286-K0020C0

KSP210,MXPA10,MXPH10..HBDX,X

BLACK,TRIM2#,4#

 1
45287 - COVER, STEERING COLUMN, LWR
45024-K0010C0

MXPA15..X;KSP210,MXPH15..G,HBDX

BLACK,TRIM2#,4#

 1
45024-K0010C0

KSP210,MXPA10..X

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),BLACK,TRIM2#,4#

 1
45024-K0020C0

KSP210,MXPA10,MXPH10..HBDX,X

BLACK,TRIM2#,4#

 1
45287 - COVER, STEERING COLUMN, LWR
45024-K0010C0

MXPA15..X;KSP210,MXPH15..G,HBDX

BLACK,TRIM2#,4#

 1
45024-K0010C0

KSP210,MXPA10..X

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),BLACK,TRIM2#,4#

 1
45024-K0020C0

KSP210,MXPA10,MXPH10..HBDX,X

BLACK,TRIM2#,4#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

KSP210,MXPA1#,MXPH1#

 2
45897A - BOLT, TILT STEERING PAWL SET
90119-10981

KSP210,MXPA1#,MXPH1#

 1
Common parts
45256-52010
90119-10985
90178-10027
90467-10161
91511-B0825
93568-55014
Linked diagrams
8401
