KSP210-AHXGK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

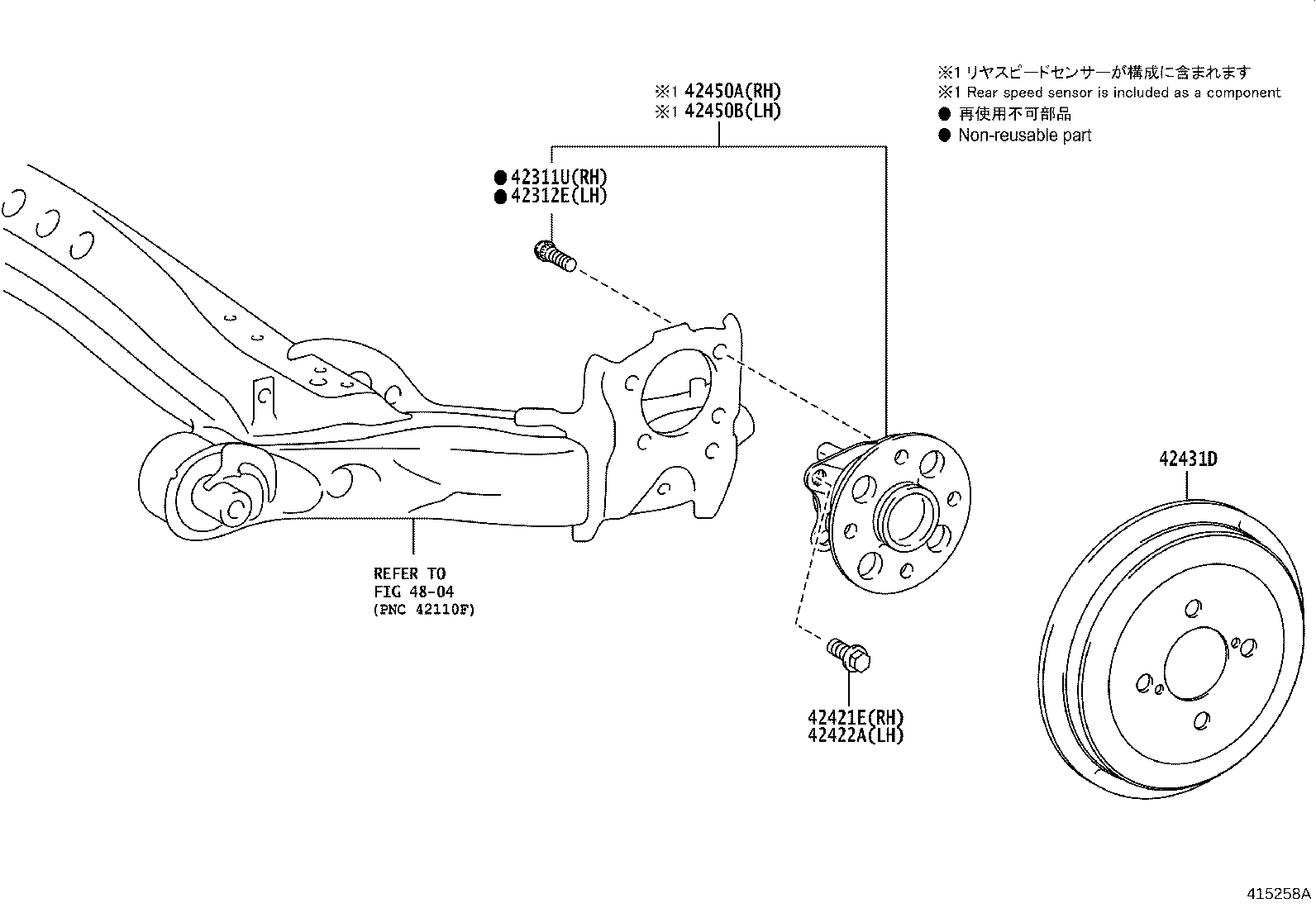

ILLUST NO. 1 OF 2(2002- )KSP210,MXPA10,MXPH10

Click highlighted areas on diagram

diagram 42311U 42312E 42421E 42422A 42431D 42450A 42450B 4804
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02049

KSP210,MXPA1#,MXPH1#

 4
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02049

KSP210,MXPA1#,MXPH1#

 4
42421E - BOLT (FOR REAR AXLE BEARING CASE RH)
90105-12406

KSP210,MXPA1#,MXPH1#

 4
42422A - BOLT (FOR REAR AXLE BEARING CASE LH)
90105-12406

KSP210,MXPA1#,MXPH1#

 4
42431D - DRUM, BRAKE
42431-K0020

KSP210,MXPA1#,MXPH1#

 2
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42450-K0010

KSP210,MXPA10,MXPH10

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42450-K0010

KSP210,MXPA10,MXPH10

 1
Linked diagrams
4804
