KSP210-AHXGK (2020)
Toyota Yaris
Production
Feb 2020
-
Sep 9999
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2002- )KSP210

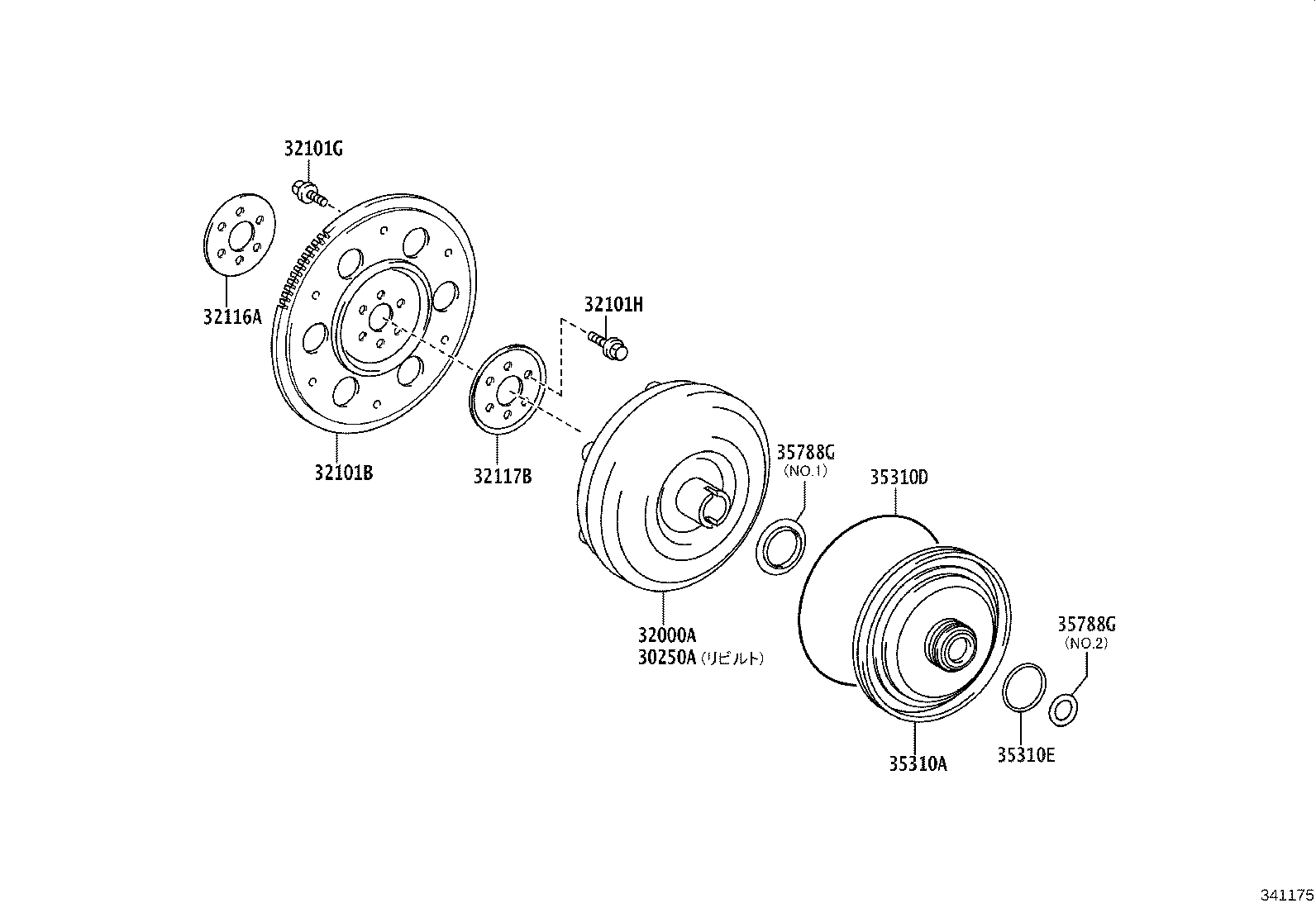

Click highlighted areas on diagram
K412
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30250A - CONVERTER ASSY, TORQUE, REBUILT | ||||
| 30250-52250 |
KSP210 |
1 | ||
| 32000A - CONVERTER ASSY, TORQUE | ||||
| 32000-52250 |
KSP210 |
1 | ||
| 32101B - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-52080 |
KSP210 |
1 | ||
| 32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-08113 |
KSP210,MXPA1#..CVT *8−1.25PX12−8.4,ﾌﾞﾗｯｸ |
1 | ||
| 90119-08498 |
KSP210,MXPA1#..CVT *8−1.25PX12−8,ｼﾙﾊﾞ− ﾎﾜｲﾄ |
5 | ||
| 32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-10048 |
KSP210 |
6 | ||
| 32116A - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-52010 |
KSP210 |
1 | ||
| 32117B - SPACER, DRIVE PLATE, REAR | ||||
| 32117-52010 |
KSP210 |
1 | ||
| 35310A - PUMP ASSY, FRONT OIL | ||||
| 35310-52130 |
KSP210 |
1 | ||
| 35310D - RING, O (FOR FRONT OIL PUMP) | ||||
| 90301-99093 |
KSP210 |
1 | ||
| 35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP) | ||||
| 35617-52060 |
KSP210 |
2 | ||
| 35788G - RACE, THRUST BEARING | ||||
| 35789-52090 |
KSP210 NO.2 |
1 | ||
| 35789-52060 |
KSP210 NO.1 |
1 | ||
| 35788G - RACE, THRUST BEARING | ||||
| 35789-52090 |
KSP210 NO.2 |
1 | ||
| 35789-52060 |
KSP210 NO.1 |
1 | ||
