KSP210-AHXGK (2020)
Toyota Yaris
Production
Feb 2020
-
Sep 9999
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

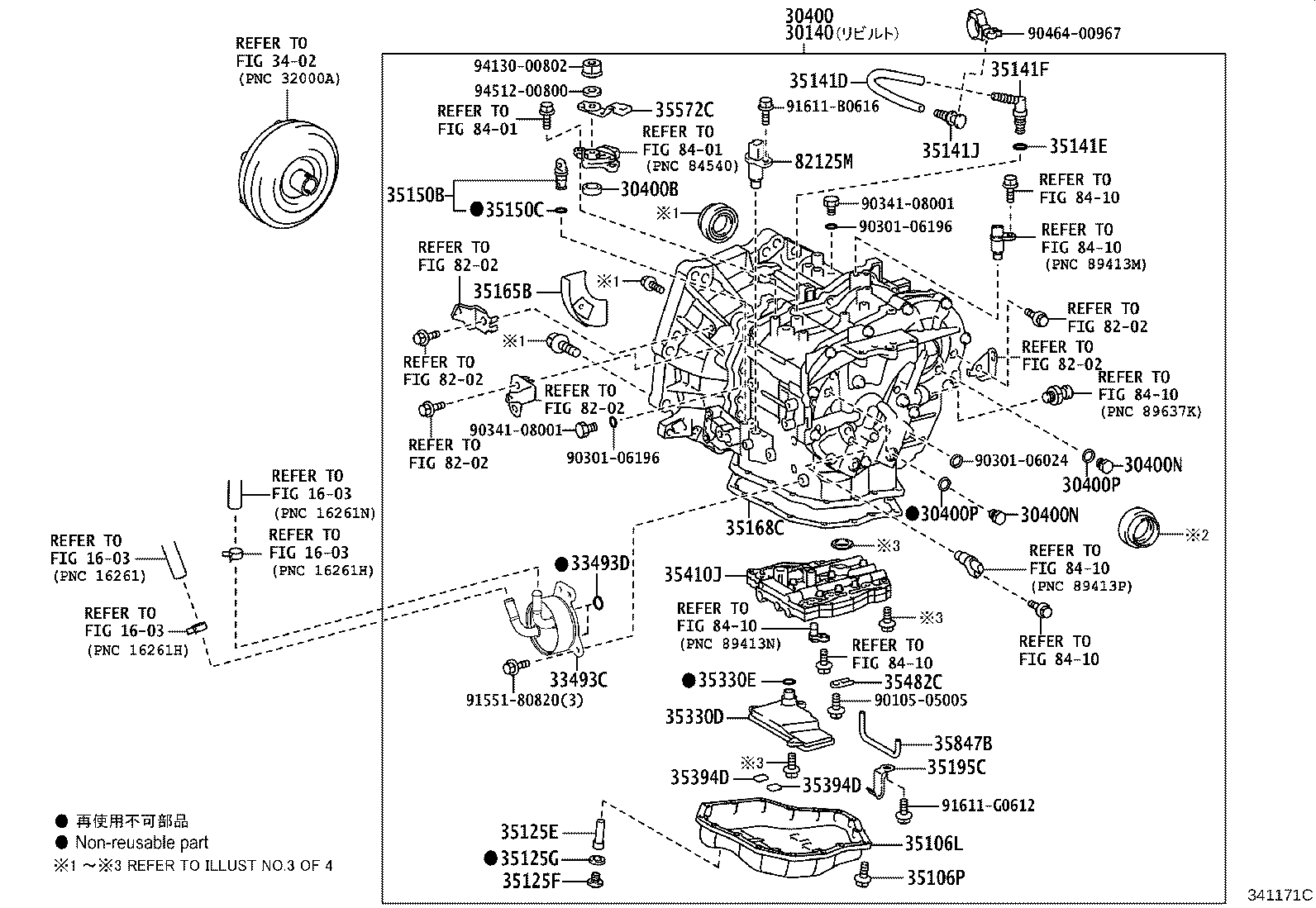

ILLUST NO. 1 OF 4(2002- )KSP210
Click highlighted areas on diagram
K412
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30140 - TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER) | ||||
| 30140-52620 |
KSP210 K412 |
1 | ||
| 30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE | ||||
| 30400-52620 |
KSP210 K412 |
1 | ||
| 30400B - SEAL, TYPE T OIL, NO.1(FOR CVT) | ||||
| 90311-12002 |
KSP210 |
1 | ||
| 30400N - PLUG, REFILL(CVT) | ||||
| 90341-18077 |
KSP210 |
2 | ||
| 30400N - PLUG, REFILL(CVT) | ||||
| 90341-18077 |
KSP210 |
2 | ||
| 30400P - GASKET, REFILL PLUG(CVT) | ||||
| 90430-18008 |
KSP210 |
2 | ||
| 30400P - GASKET, REFILL PLUG(CVT) | ||||
| 90430-18008 |
KSP210 |
2 | ||
| 33493C - COOLER, TRANSMISSION OIL | ||||
| 33493-52070 |
KSP210 |
1 | ||
| 33493D - RING, O (FOR TRANSMISSION OIL COOLER) | ||||
| 90301-20012 |
KSP210 |
2 | ||
| 35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT) | ||||
| 35106-52110 |
KSP210 |
1 | ||
| 35106P - BOLT(FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
KSP210 |
16 | ||
| 35125E - TUBE, OVERFLOW(CVT) | ||||
| 35125-52220 |
KSP210 |
1 | ||
| 35125F - PLUG, OVERFLOW(CVT) | ||||
| 90341-12034 |
KSP210 |
1 | ||
| 35125G - GASKET, OVERFLOW PLUG(CVT) | ||||
| 90430-12008 |
KSP210 |
1 | ||
| 35141D - HOSE(FOR BREATHER PLUG) | ||||
| 35121-52050 |
KSP210 |
1 | ||
| 35141E - RING, O(FOR BREATHER PLUG) | ||||
| 90301-08015 |
KSP210 |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03209 |
KSP210 |
1 | ||
| 35141J - PLUG, BREATHER, NO.2(CVT) | ||||
| 90930-03149 |
KSP210 |
1 | ||
| 35150B - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-48010 |
KSP210,MXPA1#..CVT |
1 | ||
| 35150C - RING, O (FOR TRANSMISSION CASE PLUG) | ||||
| 90301-09173 |
KSP210,MXPA1#..CVT |
1 | ||
| 35165B - PLATE, TRANSMISSION CASE, NO.1 | ||||
| 35165-52070 |
KSP210 |
1 | ||
| 35168C - GASKET, TRANSAXLE OIL PAN(CVT) | ||||
| 35168-52080 |
KSP210 |
1 | ||
| 35195C - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-12030 |
KSP210 |
2 | ||
| 35330D - STRAINER ASSY, OIL | ||||
| 35330-52080 |
KSP210 |
1 | ||
| 35330E - RING, O (FOR OIL STRAINER) | ||||
| 90301-22019 |
KSP210 |
1 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-48010 |
KSP210 |
2 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-48010 |
KSP210 |
2 | ||
| 35410J - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-52280 |
KSP210 |
1 | ||
| 35482C - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-21020 |
KSP210 |
1 | ||
| 35572C - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-52070 |
KSP210 |
1 | ||
| 35847B - TUBE, TRANSMISSION LUBE APPLY | ||||
| 35847-52030 |
KSP210 |
1 | ||
| 82125M - WIRE, TRANSMISSION | ||||
| 82125-52140 |
KSP210 |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90301-06024 | ||||
| 90301-06196 | ||||
| 90341-08001 | ||||
| 90464-00967 | ||||
| 91551-80820 | ||||
| 91611-B0616 | ||||
| 91611-G0612 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 3402 | ||||
| 8202 | ||||
| 8401 | ||||
| 8410 | ||||

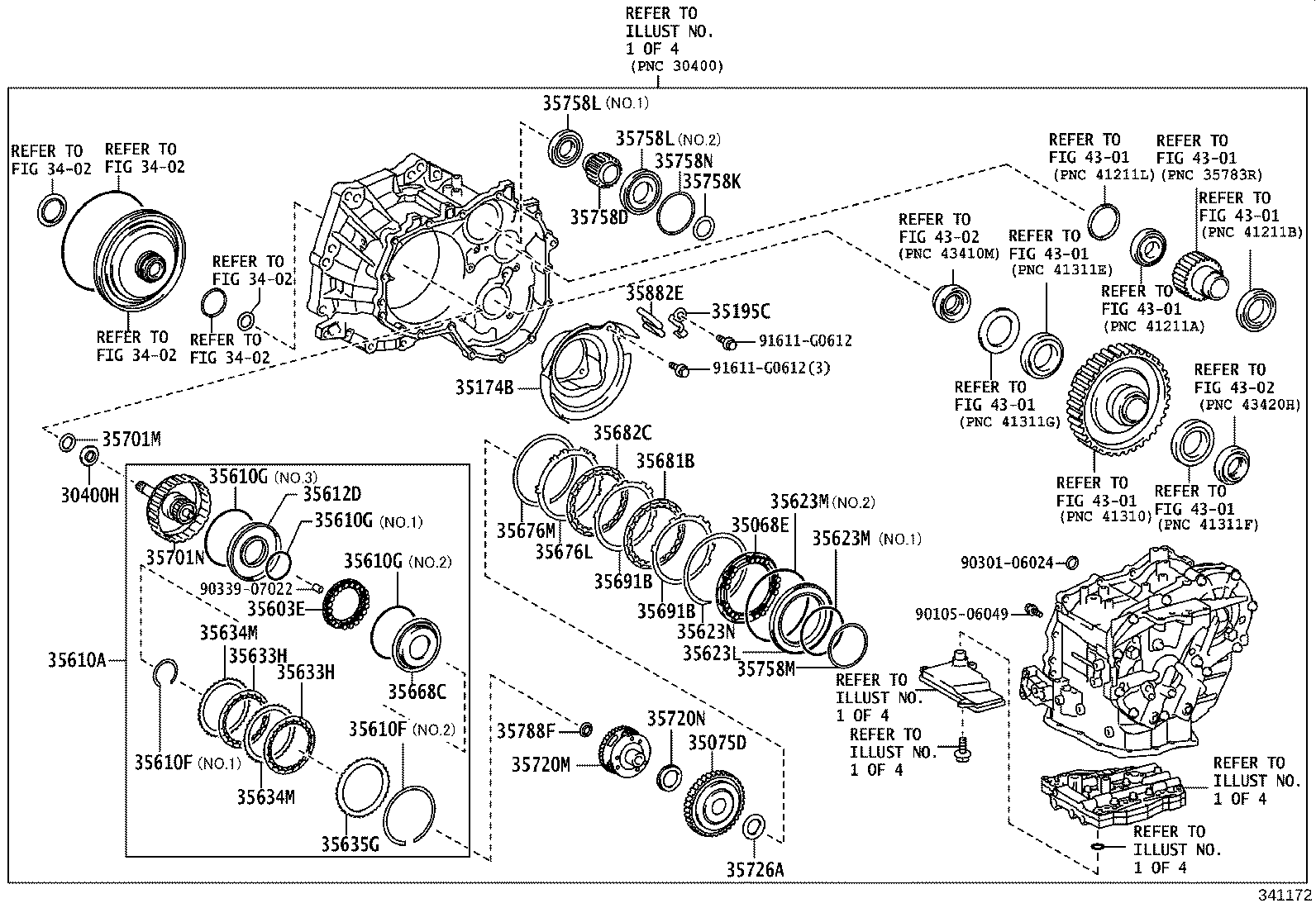

ILLUST NO. 2 OF 4(2002- )KSP210
Click highlighted areas on diagram
K412
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400H - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-18009 |
KSP210 |
1 | ||
| 35068E - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-52090 |
KSP210 |
1 | ||
| 35075D - GEAR SUB-ASSY, FRONT PLANETARY RING | ||||
| 35075-52040 |
KSP210 |
1 | ||
| 35174B - PLATE, OIL RESERVOIR LOCK | ||||
| 35174-52100 |
KSP210 |
1 | ||
| 35195C - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-12030 |
KSP210 |
2 | ||
| 35603E - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-52070 |
KSP210 |
1 | ||
| 35610A - CLUTCH ASSY, FORWARD MULTIPLE DISC | ||||
| 35610-52110 |
KSP210 |
1 | ||
| 35610F - RING, SNAP (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90520-99087 |
KSP210 NO.2 |
1 | ||
| 90520-44041 |
KSP210,MXPA1#..CVT NO.1 |
1 | ||
| 35610F - RING, SNAP (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90520-99087 |
KSP210 NO.2 |
1 | ||
| 90520-44041 |
KSP210,MXPA1#..CVT NO.1 |
1 | ||
| 35610G - RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90301-50001 |
KSP210 NO.1 |
1 | ||
| 90301-99155 |
KSP210 NO.3 |
1 | ||
| 90301-95003 |
KSP210 NO.2 |
1 | ||
| 35610G - RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90301-50001 |
KSP210 NO.1 |
1 | ||
| 90301-99155 |
KSP210 NO.3 |
1 | ||
| 90301-95003 |
KSP210 NO.2 |
1 | ||
| 35610G - RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90301-50001 |
KSP210 NO.1 |
1 | ||
| 90301-99155 |
KSP210 NO.3 |
1 | ||
| 90301-95003 |
KSP210 NO.2 |
1 | ||
| 35612D - PISTON, FORWARD CLUTCH | ||||
| 35612-74010 |
KSP210 |
1 | ||
| 35623L - PISTON, REVERSE BRAKE | ||||
| 35623-52110 |
KSP210 |
1 | ||
| 35623M - RING, O (FOR REVERSE BRAKE PISTON) | ||||
| 90301-99118 |
KSP210 NO.2 |
1 | ||
| 90301-79003 |
KSP210 NO.1 |
1 | ||
| 35623M - RING, O (FOR REVERSE BRAKE PISTON) | ||||
| 90301-99118 |
KSP210 NO.2 |
1 | ||
| 90301-79003 |
KSP210 NO.1 |
1 | ||
| 35623N - RING, SNAP (FOR REVERSE BRAKE PISTON) | ||||
| 90520-99101 |
KSP210 |
1 | ||
| 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-52080 |
KSP210 |
2 | ||
| 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-52080 |
KSP210 |
2 | ||
| 35634M - PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-52080 |
KSP210 |
2 | ||
| 35634M - PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-52080 |
KSP210 |
2 | ||
| 35635G - FLANGE, FORWARD CLUTCH | ||||
| 35635-52150 |
KSP210 厚さ=3.2 |
1 | ||
| 35635-52140 |
KSP210 厚さ=3.0 |
1 | ||
| 35635-52130 |
KSP210 厚さ=2.8 |
1 | ||
| 35635-52160 |
KSP210 厚さ=3.4 |
1 | ||
| 35668C - BALANCER, CLUTCH, NO.1 | ||||
| 35668-52070 |
KSP210 |
1 | ||
| 35676L - FLANGE, BRAKE | ||||
| 35676-52040 |
KSP210 |
1 | ||
| 35676M - RING, SNAP (FOR BRAKE FLANGE) | ||||
| 90521-99001 |
KSP210 |
1 | ||
| 35681B - DISC, BRAKE, NO.1 | ||||
| 35681-52090 |
KSP210 |
1 | ||
| 35682C - DISC, BRAKE, NO.2 | ||||
| 35681-52100 |
KSP210 |
1 | ||
| 35691B - PLATE, BRAKE, NO.1 | ||||
| 35691-52050 |
KSP210 |
2 | ||
| 35691B - PLATE, BRAKE, NO.1 | ||||
| 35691-52050 |
KSP210 |
2 | ||
| 35701M - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT) | ||||
| 90374-20008 |
KSP210 外径=33.26 |
1 | ||
| 35701N - SHAFT SUB-ASSY, INPUT | ||||
| 35701-52090 |
KSP210 |
1 | ||
| 35720M - GEAR ASSY, PLANETARY | ||||
| 35720-52080 |
KSP210 |
1 | ||
| 35720N - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY GEAR) | ||||
| 90374-34014 |
KSP210 |
1 | ||
| 35726A - WASHER, PLANETARY RING GEAR THRUST | ||||
| 35726-52080 |
KSP210 |
1 | ||
| 35758D - GEAR, REDUCTION DRIVE | ||||
| 35758-52060 |
KSP210 |
1 | ||
| 35758K - SHIM (FOR REDUCTION DRIVE GEAR) | ||||
| 90564-23005 |
KSP210 厚さ=1.65 |
1 | ||
| 90564-23004 |
KSP210 厚さ=1.60 |
1 | ||
| 90564-23006 |
KSP210 厚さ=1.70 |
1 | ||
| 90564-23001 |
KSP210 厚さ=1.45 |
1 | ||
| 90564-23010 |
KSP210 厚さ=1.90 |
1 | ||
| 90564-23015 |
KSP210 厚さ=2.15 |
1 | ||
| 90564-23002 |
KSP210 厚さ=1.50 |
1 | ||
| 90564-23009 |
KSP210 厚さ=1.85 |
1 | ||
| 90564-23012 |
KSP210 厚さ=2.00 |
1 | ||
| 90564-23007 |
KSP210 厚さ=1.75 |
1 | ||
| 90564-23003 |
KSP210 厚さ=1.55 |
1 | ||
| 90564-23019 |
KSP210 厚さ=2.35 |
1 | ||
| 90564-23011 |
KSP210 厚さ=1.95 |
1 | ||
| 90564-23016 |
KSP210 厚さ=2.20 |
1 | ||
| 90564-23008 |
KSP210 厚さ=1.80 |
1 | ||
| 90564-23023 |
KSP210 厚さ=2.55 |
1 | ||
| 90564-23024 |
KSP210 厚さ=2.60 |
1 | ||
| 90564-23020 |
KSP210 厚さ=2.40 |
1 | ||
| 90564-23013 |
KSP210 厚さ=2.05 |
1 | ||
| 90564-23022 |
KSP210 厚さ=2.50 |
1 | ||
| 90564-23025 |
KSP210 厚さ=2.65 |
1 | ||
| 90564-23018 |
KSP210 厚さ=2.30 |
1 | ||
| 90564-23026 |
KSP210 厚さ=2.70 |
1 | ||
| 90564-23017 |
KSP210 厚さ=2.25 |
1 | ||
| 90564-23021 |
KSP210 厚さ=2.45 |
1 | ||
| 90564-23014 |
KSP210 厚さ=2.10 |
1 | ||
| 35758L - BEARING, RADIAL BALL (FOR REDUCTION DRIVE GEAR) | ||||
| 90363-31004 |
KSP210 NO.1 |
1 | ||
| 90363-38012 |
KSP210 NO.2 |
1 | ||
| 35758L - BEARING, RADIAL BALL (FOR REDUCTION DRIVE GEAR) | ||||
| 90363-31004 |
KSP210 NO.1 |
1 | ||
| 90363-38012 |
KSP210 NO.2 |
1 | ||
| 35758M - SHIM (FOR PRIMARY SHEAVE SHAFT) | ||||
| 90564-64141 |
KSP210 厚さ=1.55 |
1 | ||
| 90564-64143 |
KSP210 厚さ=1.65 |
1 | ||
| 90564-64149 |
KSP210 厚さ=1.95 |
1 | ||
| 90564-64144 |
KSP210 厚さ=1.70 |
1 | ||
| 90564-64148 |
KSP210 厚さ=1.90 |
1 | ||
| 90564-64146 |
KSP210 厚さ=1.80 |
1 | ||
| 90564-64140 |
KSP210 厚さ=1.50 |
1 | ||
| 90564-64147 |
KSP210 厚さ=1.85 |
1 | ||
| 90564-64142 |
KSP210 厚さ=1.60 |
1 | ||
| 90564-64145 |
KSP210 厚さ=1.75 |
1 | ||
| 35758N - WASHER (FOR REDUCTION DRIVE GEAR) | ||||
| 90201-69001 |
KSP210 |
1 | ||
| 35788F - RACE, THRUST BEARING | ||||
| 35789-12090 |
KSP210 |
1 | ||
| 35882E - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-52070 |
KSP210 |
1 | ||
| Common parts | ||||
| 90105-06049 | ||||
| 90301-06024 | ||||
| 90339-07022 | ||||
| 91611-G0612 | ||||
| Linked diagrams | ||||
| 3402 | ||||
| 4301 | ||||
| 4302 | ||||

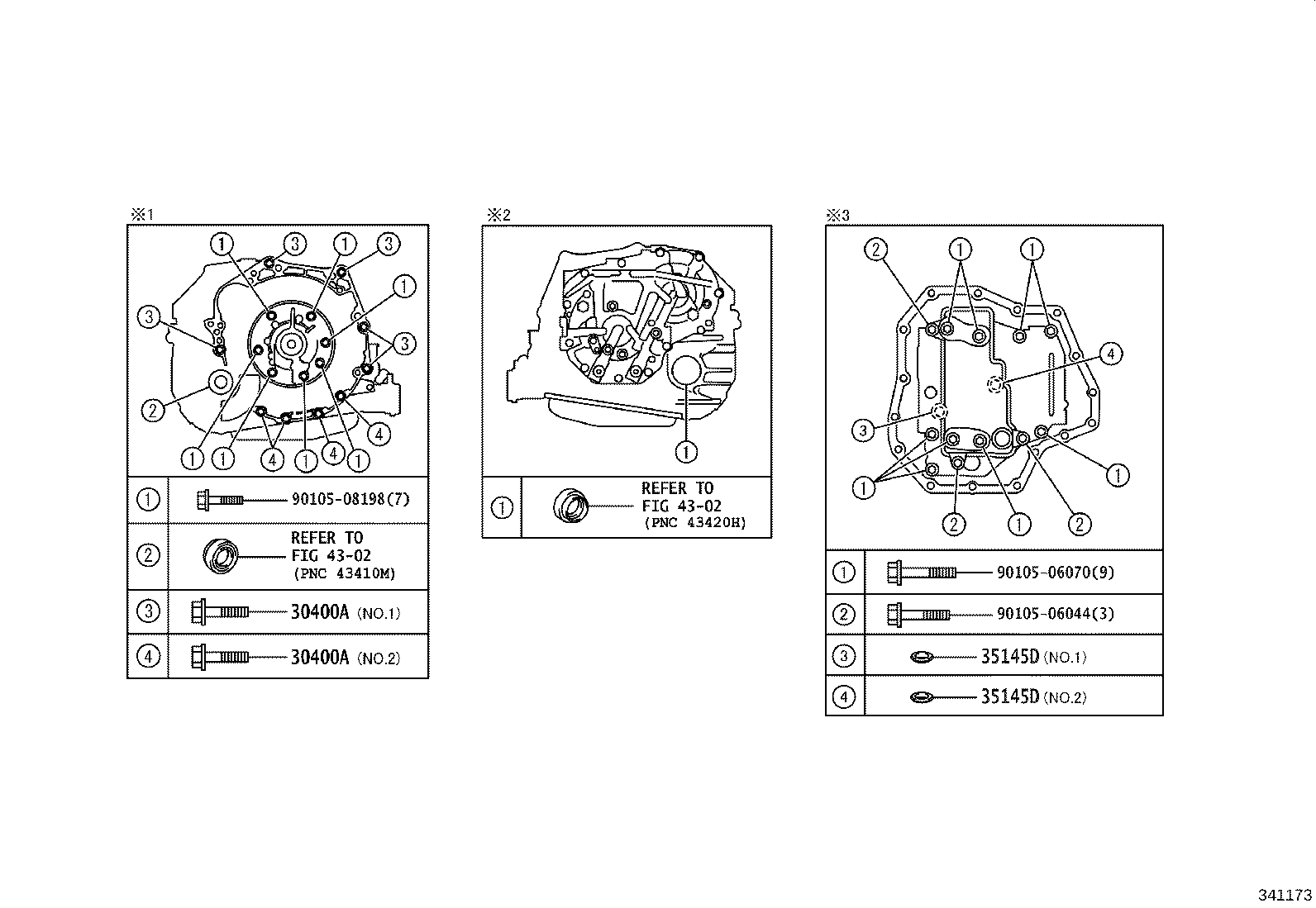

ILLUST NO. 3 OF 4(2002- )KSP210
Click highlighted areas on diagram
K412
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400A - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 91619-61245 |
KSP210 NO.1 |
5 | ||
| 91553-81035 |
KSP210 NO.2 |
4 | ||
| 30400A - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 91619-61245 |
KSP210 NO.1 |
5 | ||
| 91553-81035 |
KSP210 NO.2 |
4 | ||
| 35145D - GASKET, TRANSAXLE CASE | ||||
| 35145-52050 |
KSP210 NO.1 |
1 | ||
| 35145-52060 |
KSP210 NO.2 |
1 | ||
| 35145D - GASKET, TRANSAXLE CASE | ||||
| 35145-52050 |
KSP210 NO.1 |
1 | ||
| 35145-52060 |
KSP210 NO.2 |
1 | ||
| Common parts | ||||
| 90105-06044 | ||||
| 90105-06070 | ||||
| 90105-08198 | ||||
| Linked diagrams | ||||
| 4302 | ||||

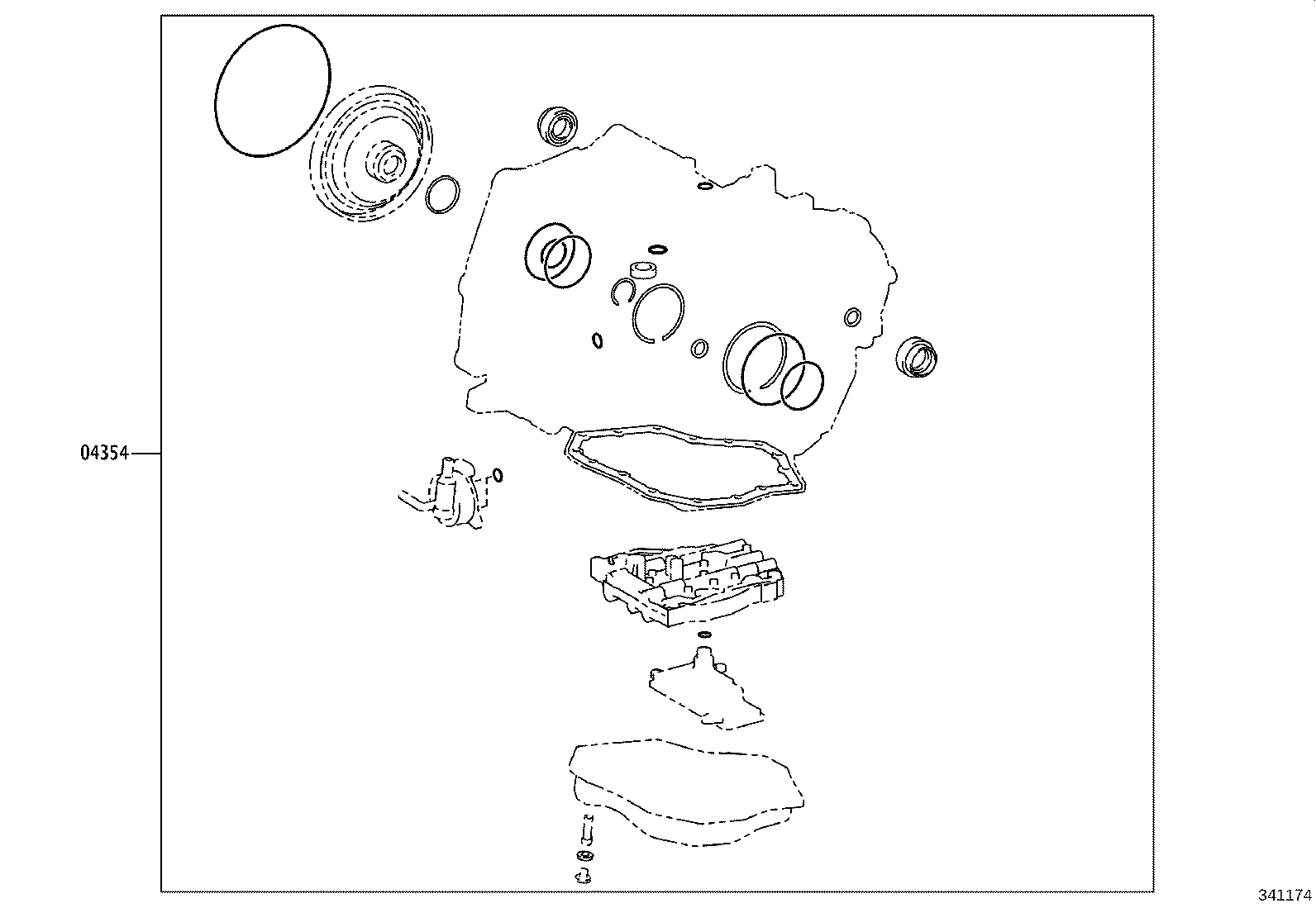

ILLUST NO. 4 OF 4(2002- )KSP210
Click highlighted areas on diagram
K412
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04354 - OVERHAUL KIT, TRANSAXLE(CVT) | ||||
| 04354-52010 |
KSP210 |
1 | ||
