KSP210-AHXGK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )KSP210

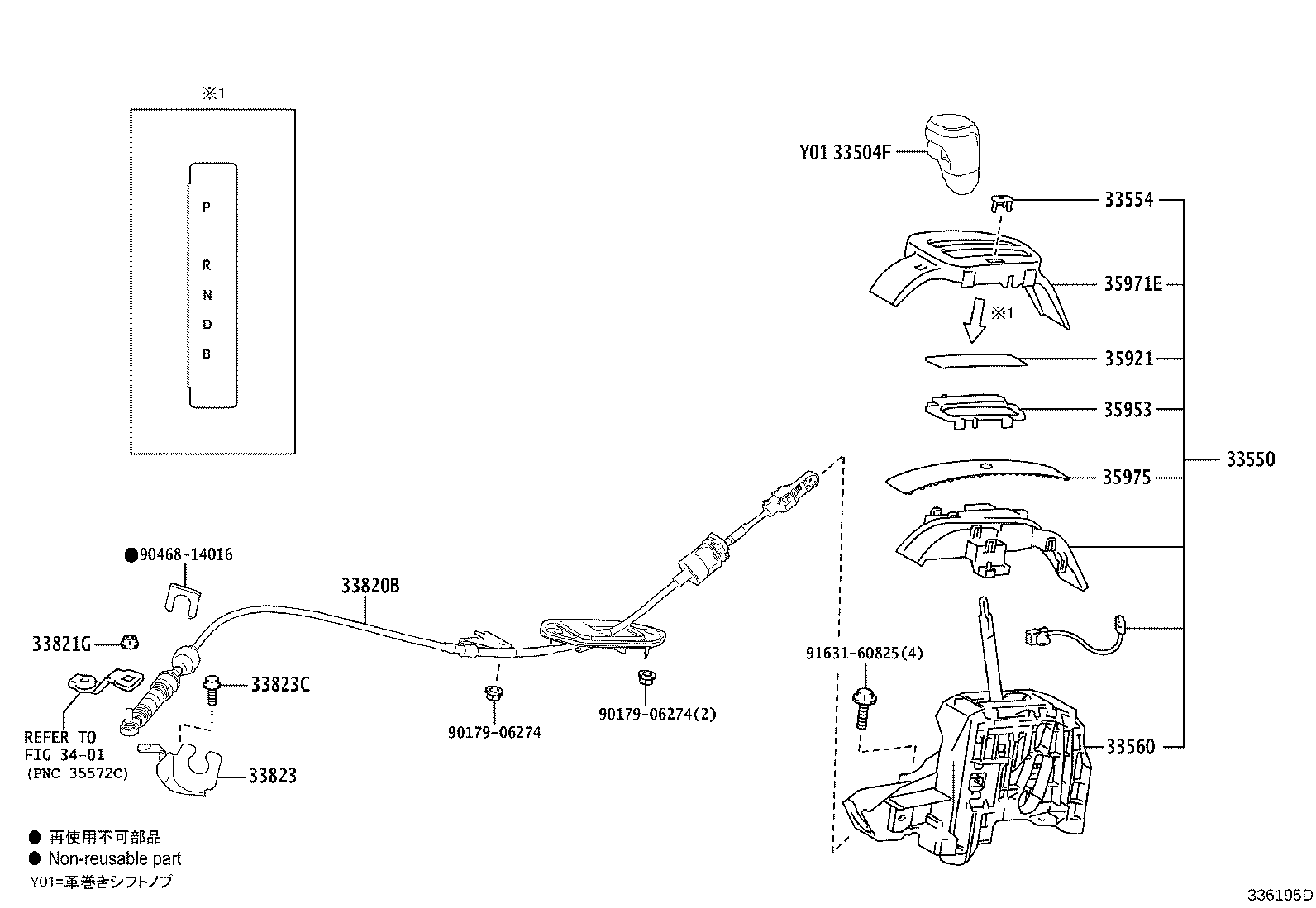

Click highlighted areas on diagram

diagram 33504F 33550 33554 33560 33820B 33821G 33823 33823C 3401 35921 35953 35971E 35975 9017906274 9017906274 9046814016 9163160825
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-K0030C0

MXPA1#..CVT..X;KSP210,MXPH1#..G,HBDX,X

BLACK,TRIM2#,4#

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-K0070

KSP210,MXPA10,MXPH10..CVT..(HBDX,X)

 1
33550-K0080

KSP210,MXPA10..CVT..X

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
33550-K0080

MXPA15,MXPH15;KSP210,MXPA10,MXPH10..CVT..(G,HBDG,HBDZ,Z)

 1
33554 - CAP, SHIFT LEVER
33554-K0030

KSP210,MXPA1#,MXPH1#..CVT

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-K0030

KSP210,MXPA10,MXPH10..CVT..(HBDX,X)

 1
33560-K0040

MXPA15,MXPH15;KSP210,MXPA10,MXPH10..CVT..(G,HBDG,HBDZ,Z)

 1
33560-K0040

KSP210,MXPA10..CVT..X

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-K0050

KSP210

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

KSP210,MXPH1#

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-K0030

KSP210

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91671-80820

KSP210,MXPA1#,MXPH1#..CVT

 2
35921 - PLATE, CONTROL POSITION INDICATOR
35921-K0050

KSP210,MXPA1#,MXPH1#..CVT

 1
35953 - GUIDE, POSITION INDICATOR LIGHT
35953-K0010

KSP210,MXPA1#,MXPH1#..CVT

 1
35971E - HOUSING, POSITION INDICATOR
35971-K0030

KSP210,MXPA1#,MXPH1#..CVT

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-K0030

KSP210,MXPA1#,MXPH1#..CVT

 1
Common parts
90179-06274
90468-14016
91631-60825
Linked diagrams
3401
