KSP210-AHXGK (2020)
Toyota Yaris
Production
Feb 2020
-
Sep 9999
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2002- )1KRFE

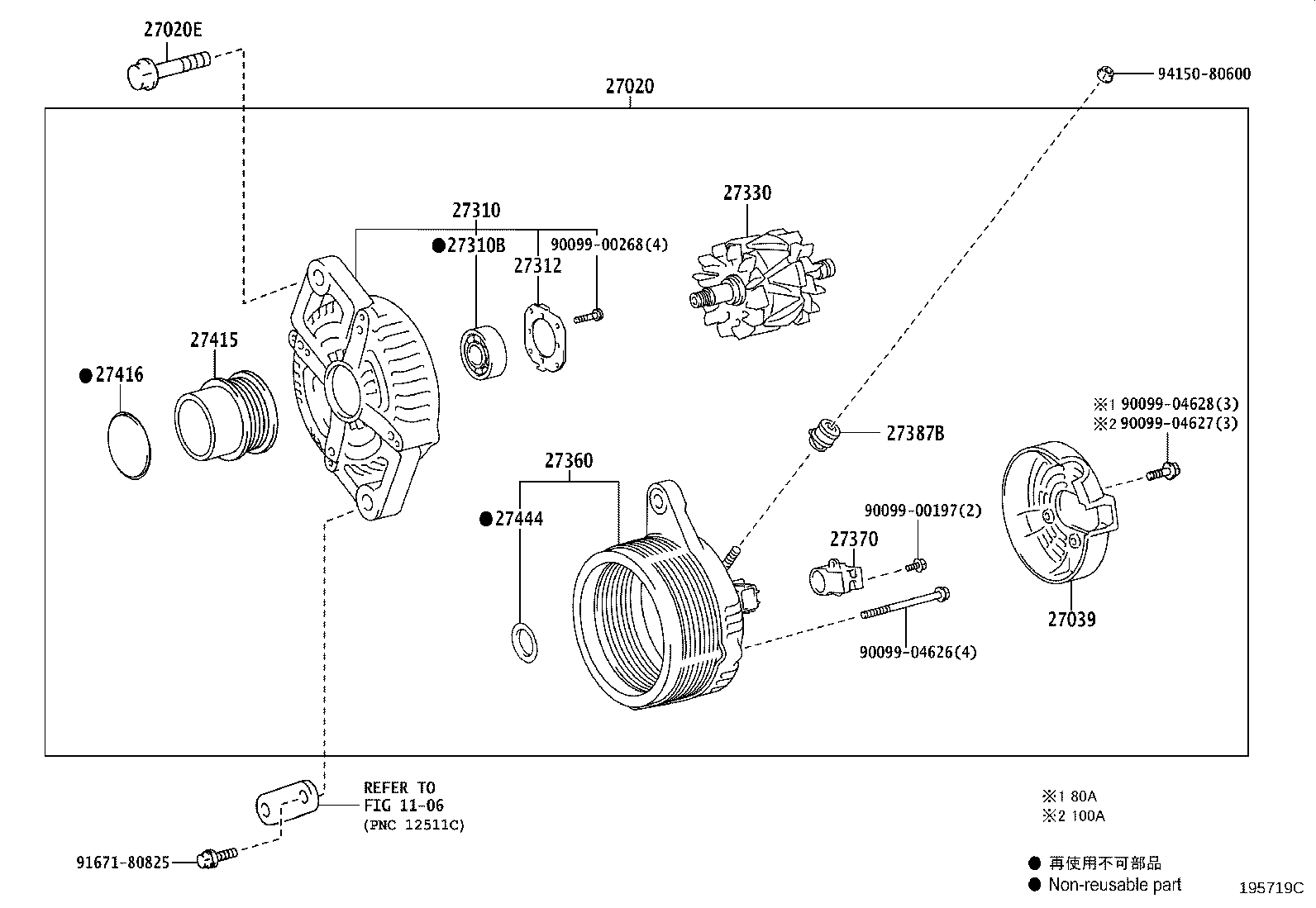

Click highlighted areas on diagram
12V 80A,100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-40150 |
1KRFE..KSP210 12V 80A |
1 | ||
| 27060-40160 |
1KRFE..KSP210 12V 100A,寒冷地仕様 |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91552-81075 |
1KRFE..KSP210 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-37220 |
M15AFKS,1KRFE..KSP210,MXPA1# 寒冷地仕様 |
1 | ||
| 27039-47310 |
M15AFKS,1KRFE..KSP210,MXPA1# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-40190 |
1KRFE..KSP210 |
1 | ||
| 27310-40200 |
1KRFE..KSP210 寒冷地仕様 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10223 |
M15AFKS,1KRFE..KSP210,MXPA1# 寒冷地仕様 |
1 | ||
| 90099-10227 |
M15AFKS,1KRFE..KSP210,MXPA1# |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
M15AFKS,1KRFE..KSP210,MXPA1# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-47330 |
M15AFKS,1KRFE..KSP210,MXPA1# 寒冷地仕様 |
1 | ||
| 27330-47310 |
M15AFKS,1KRFE..KSP210,MXPA1# |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-40180 |
1KRFE..KSP210 寒冷地仕様 |
1 | ||
| 27360-40170 |
1KRFE..KSP210 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31220 |
M15AFKS,1KRFE..KSP210,MXPA1# |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-47310 |
M15AFKS,1KRFE..KSP210,MXPA1# |
1 | ||
| 27387-20130 |
M15AFKS,1KRFE..KSP210,MXPA1# 寒冷地仕様 |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0W220 |
1KRFE..KSP210 寒冷地仕様 |
1 | ||
| 27415-0W210 |
1KRFE..KSP210 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W020 |
1KRFE..KSP210 |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-21190 |
M15AFKS,1KRFE..KSP210,MXPA1# |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04626 | ||||
| 90099-04627 | ||||
| 90099-04628 | ||||
| 91671-80825 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
